WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

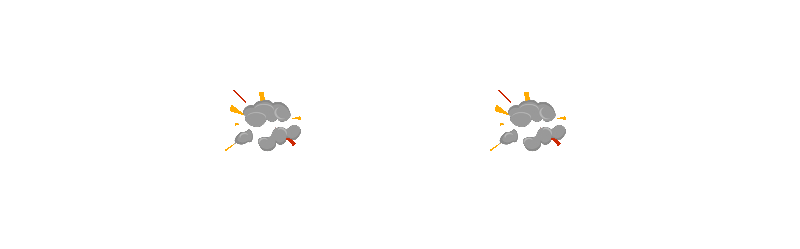

ALTERNATE SPINNING

The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

ALTERNATE SPINNING

Smooth Airflow

better heat dissipation

STANDARD SPINNING

Turbulent Airflow

worse heat dissipation

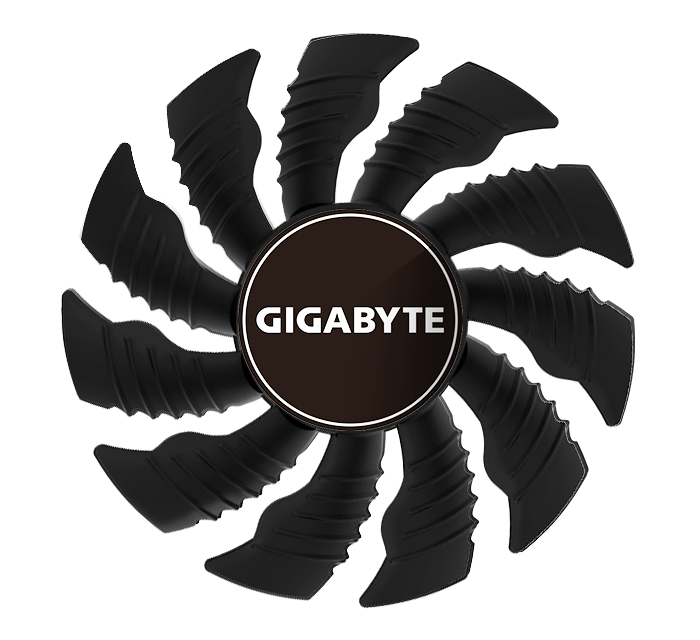

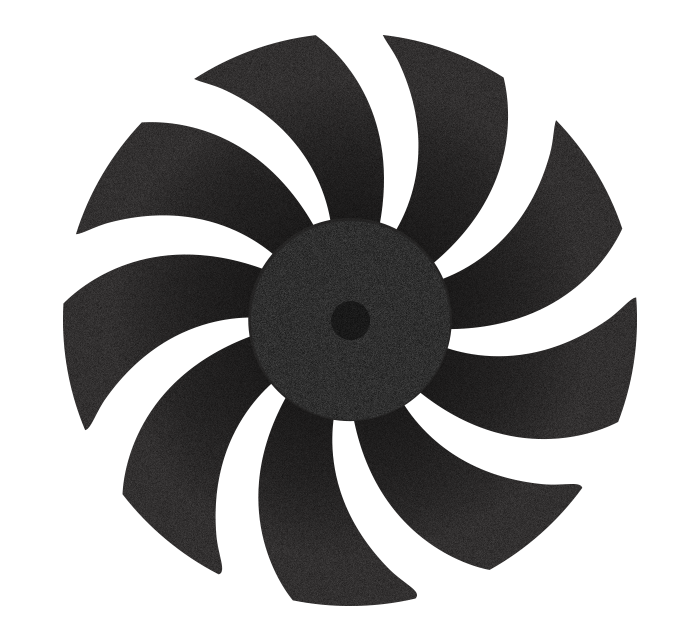

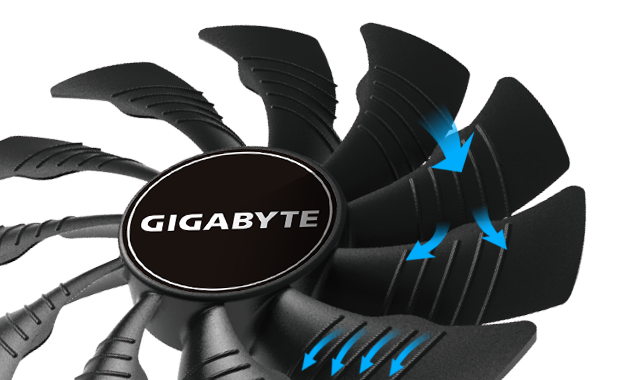

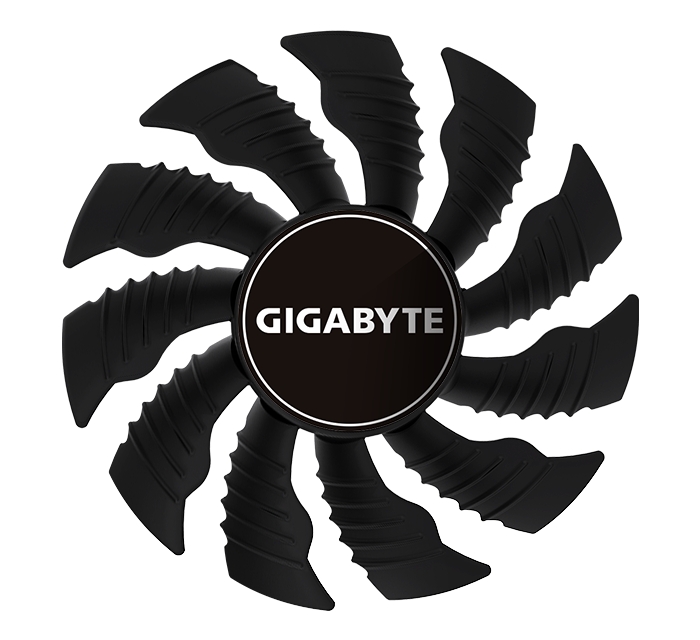

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

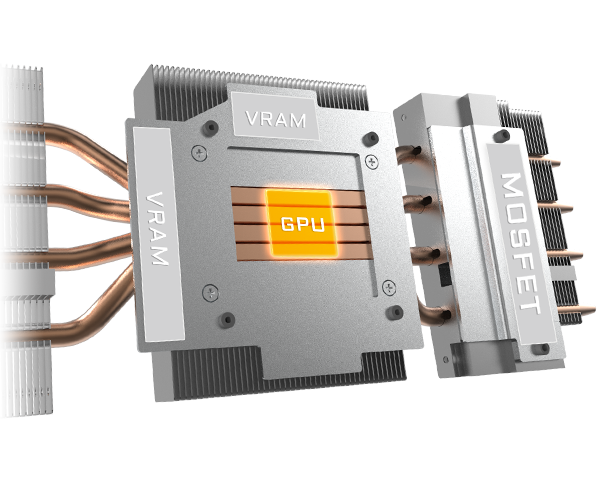

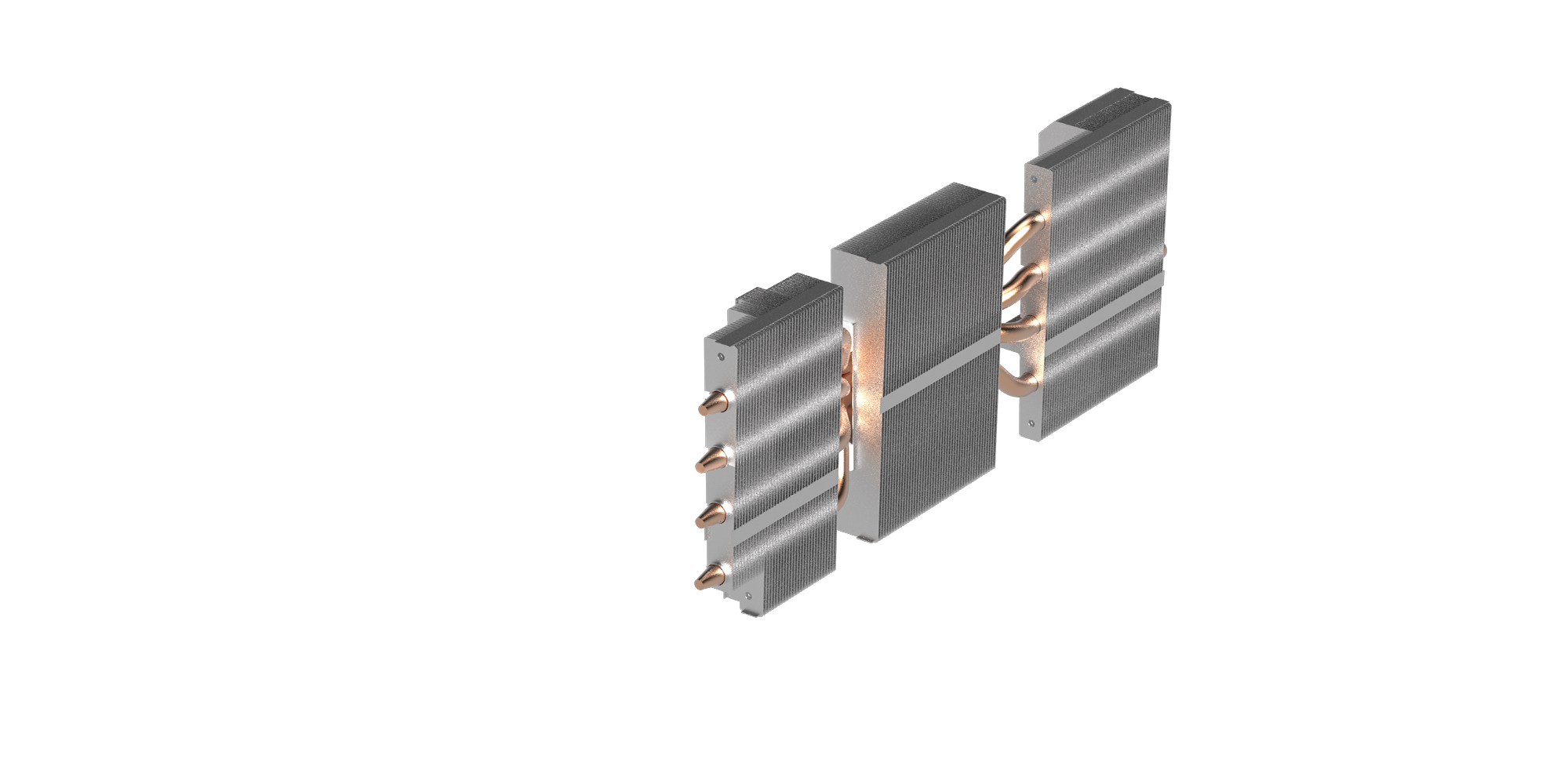

HEAT PIPES DIRECT TOUCH GPU

The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPE

The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

CYCLING
Smoothly cycles through all colors

CONSISTENT
Choose a color for static light

FLASH
Choose a color for flash effect

DUAL FLASH
Choose a color for double flash effect

BREATHING
Choose a color to fade in and out

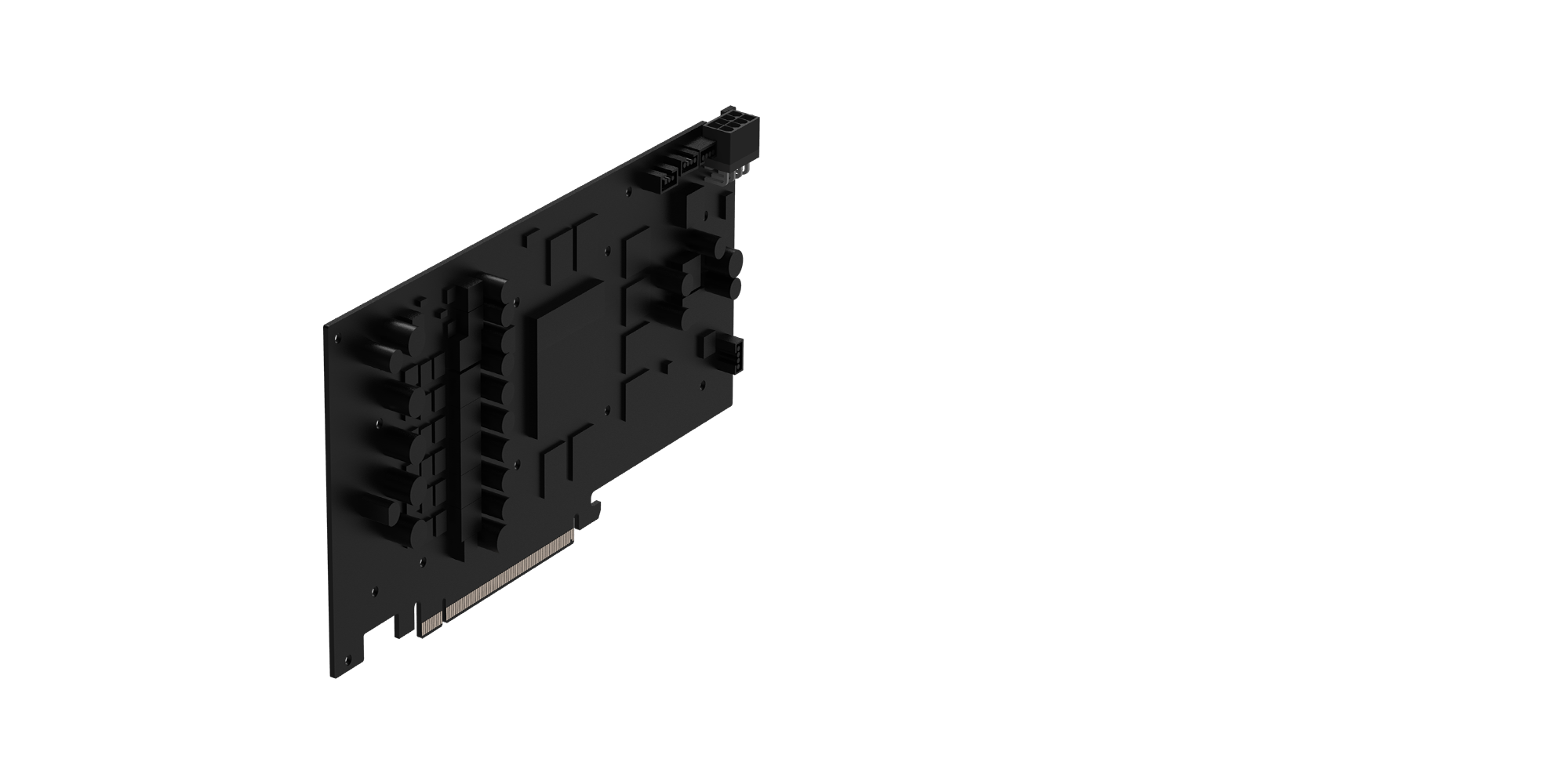

BUILT STRONG

Extreme durability and overclocking

The graphics card uses the 6+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.(Reference card is 4+2 power phase)

POWER INDICATORS

The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.

Light on :
power cable disconnected

Light off :
stable power supply

Blinking :
abnormal power supply

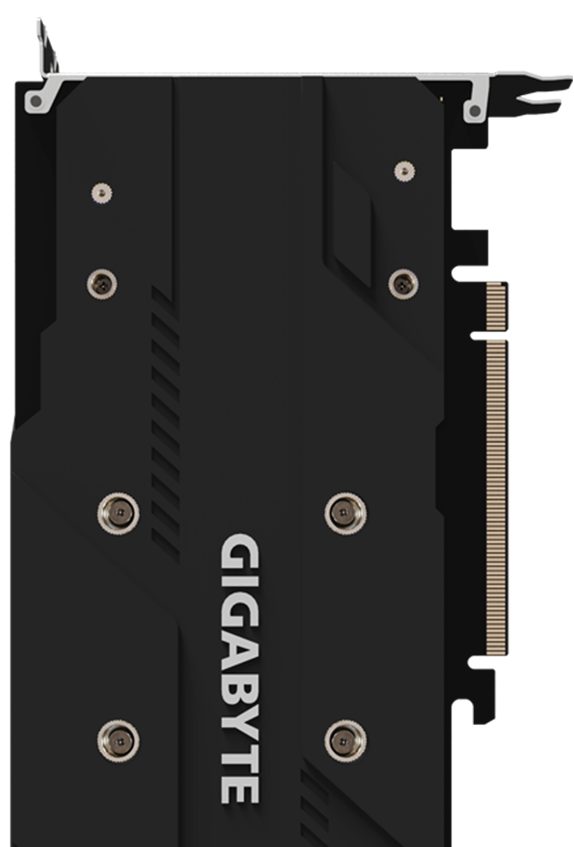

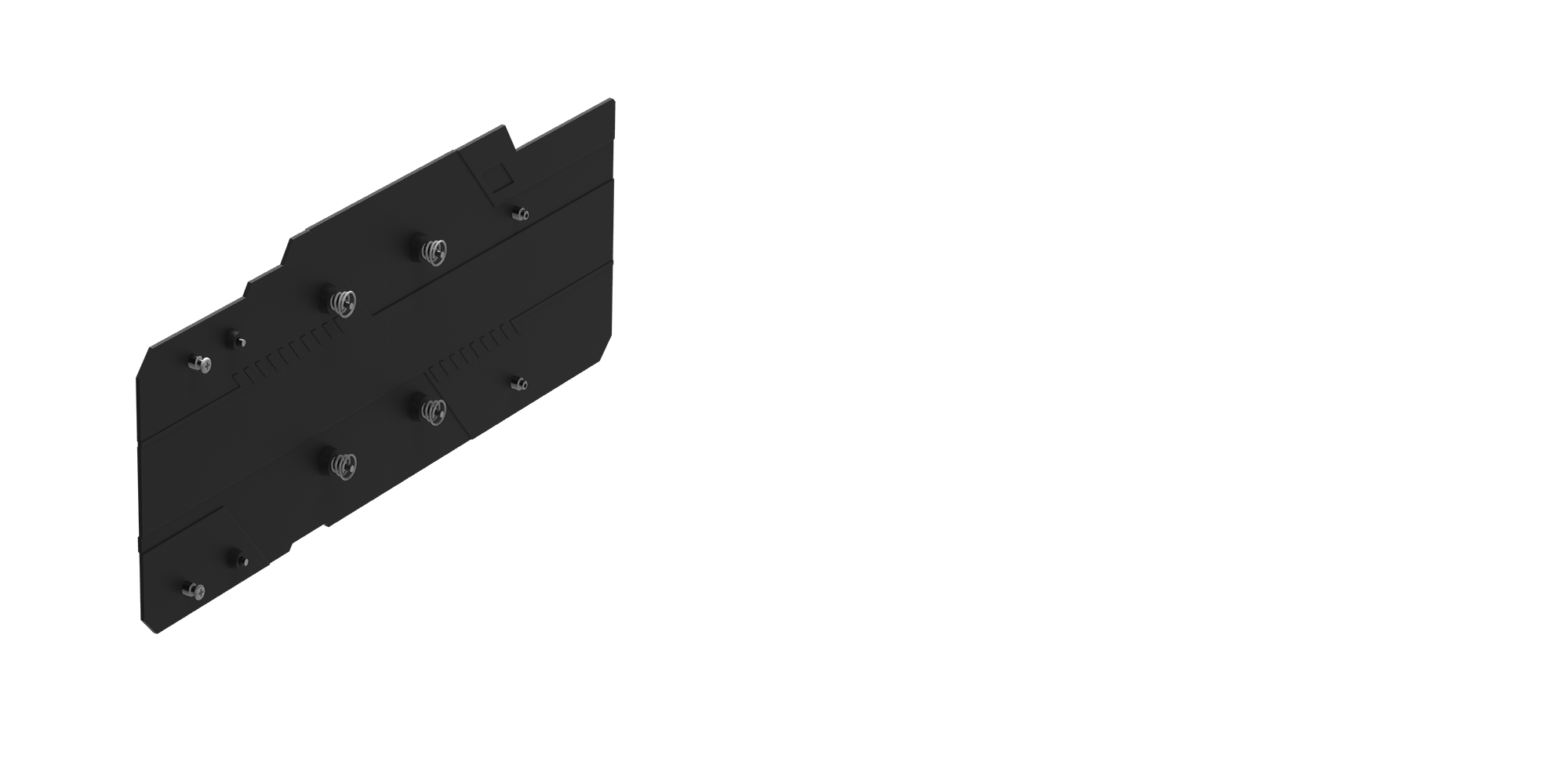

Protection Metal Back Plate

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

IN TOTAL COMMAND

The interface and functionality of the software is subject to each model.

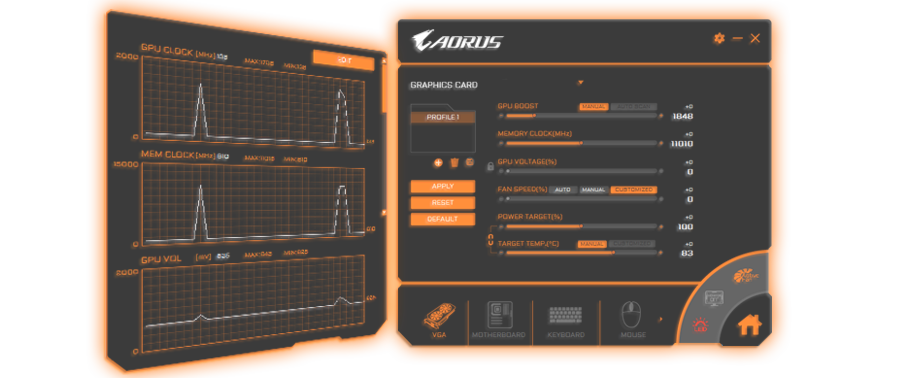

AORUS Engine

The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.

Download

* All the images in this page are for illustration only.
