Performance . Stability
GIGABYTE Solid State Drive

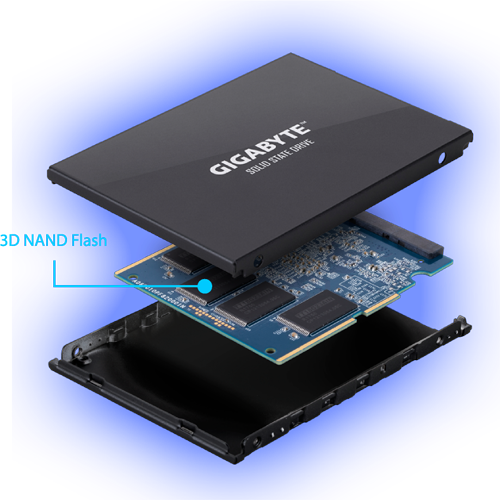

Industry Leading 3D NAND Flash
GIGABYTE UD PRO series SSDs adopt 3D TLC NAND flash, which has higher bit capacity, R/W speed performance, endurance and reliability compared to 2D TLC flash. Moreover, with an optimized controller and firmware, GIGABYTE UD PRO series SSDs provide excellent performance for a smooth PC experience.
Reliability You Can Trust
In comparison to standard SSDs without built-in buffer cache, GIGABYTE UD PRO series SSDs are twice as effective even when its flash memory is at full capacity. At the same time, the random write (IOPS) is up to 16 times faster than non buffer cache versions. Additionally, integrated DDR3L RAM allows users to make use of the entire flash memory capacity without sacrificing performance quality or storage capacity. It’s important to note that GIGABYTE has thoroughly tested the UD PRO series SSDs by implementing them on a full range of motherboards with their respective chipsets to evaluate both the functionality as well as durability of the SSDs. Through stress tests under high temperatures and other extreme conditions, the UD PRO series SSDs not only passed the tests but performed flawlessly.
* MTBF (Mean Time Between Failure): Measure of how reliable a hardware product or component is.
** TBW (Terabyte Written): the total amount of data that can be written into an SSD before it is likely to fail.
*** 3 years or 100/200 TBW, whichever comes first.
Capacity1 Model Sequential Read MB/s2 Sequential Write MB/s2 Random Read IOPS2 Random Write IOPS2
256GB GP-GSTFS30256GTTD 530 500 70K 40K
512GB GP-GSTFS30512GTTD 530 500 80K 75K
1 Note: 1GB = 1 billion bytes. Real useable capacity may vary by models.
2 Speeds based on internal testing. Real performance may vary by models.
