The Intel® USB 3.1 controller utilizes 4 PCIe Gen3 lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.
Connecting the Future –
USB Type-C™
USB Type-C™
The World's Next Universal Connector
Reversible USB Type-C™ with USB 3.1
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.
* Product features may vary by model.

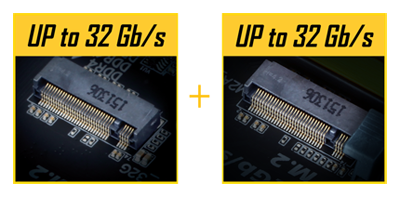

Dual PCIe Gen3 x4 M.2
With two PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.
* Product features may vary by model.
Fast Intel® 750 Series 2.5" SSD Support via M.2 to U.2 Add-in-Card
GIGABYTE Motherboards Support the Latest Consumer NVMe SSD for Truly Amazing Performance
Experience the future of storage performance for desktop client and workstation users with the Intel® SSD 750 Series. The Intel® SSD 750 Series delivers uncompromised performance by utilizing NVM Express over four lanes of PCIe 3.0.
*Product features may vary by model.

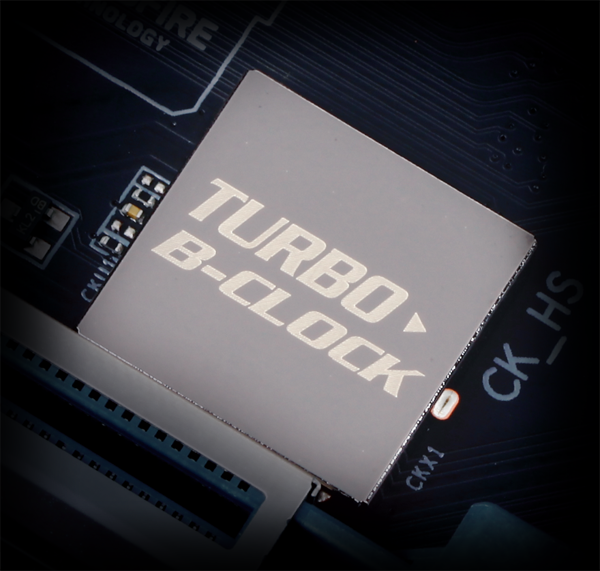

Turbo B-Clock:
Built-in Advanced Performance Tuning IC
Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
* Turbo B-Clock overclocking range may vary according to CPU capabilities.
* Product features may vary by model.
* Turbo B-Clock overclocking range may vary according to CPU capabilities.
* Product features may vary by model.
All New GIGABYTE™ App Center Including EasyTune™, Cloud Station™ Utilities and More…
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.
Easy Tune™
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
Cloud Station™
GIGABYTE™ Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

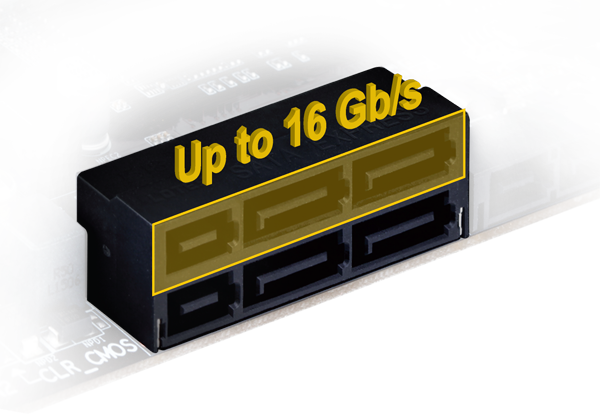

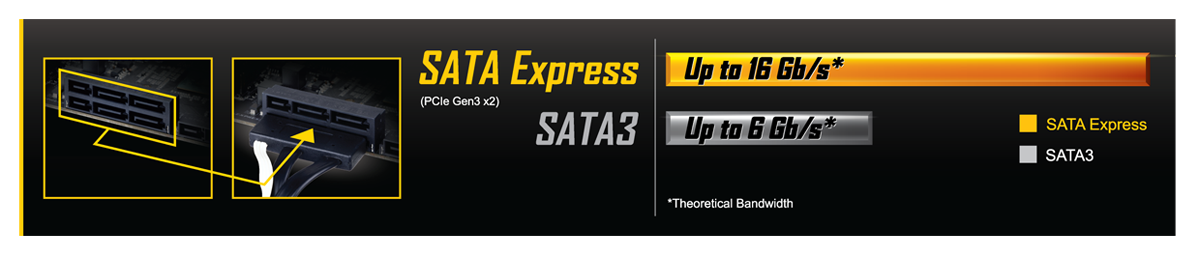

Next Generation SATA Express
SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.
The above photos are for reference only.

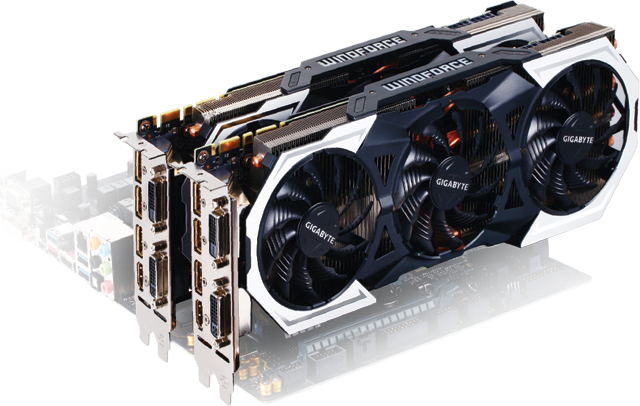

2-Way SLI™/3-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
*Features may vary by model.
*Features may vary by model.
Dual Intel® GbE LAN with cFosSpeed
The Dual Intel® Gigabit LAN with cFosSpeed features advanced technology to help deliver better network responsiveness in crowded LAN environments and allows optimization and improved network performance for specific applications, making it a popular choice amongst gamers.
* Product features may vary by model.

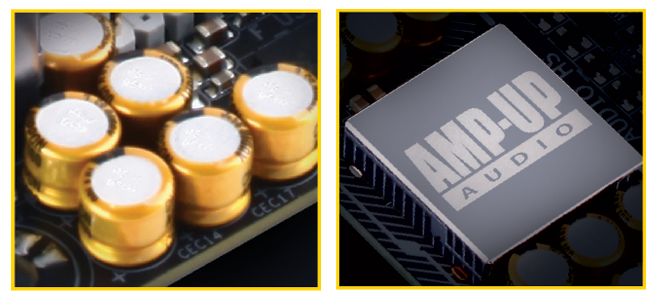

High Definition Audio Design
The Realtek ALC1150 is a high-performance multi-channel high definition audio codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.
High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
High Quality audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
