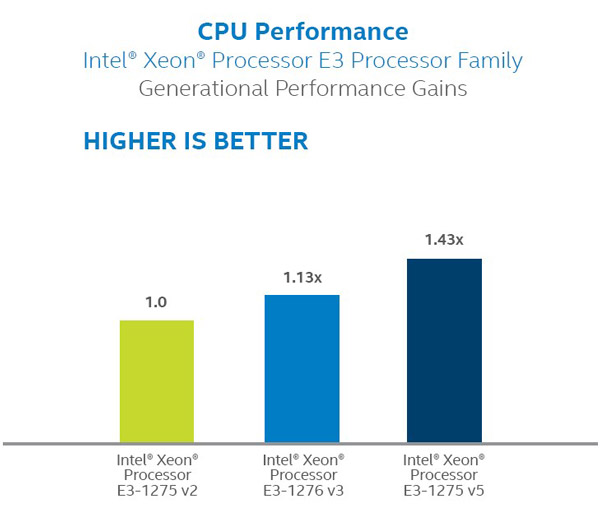

Intel® Xeon® E3-1200 v5 processor Supports
Built for Professionals
Step up to the performance and visuals demanded by professional-grade CAD or media and entertainment applications. With Intel Xeon processor E3-1200 v5 product family-based workstations, you’ll find the capabilities that get designers, engineers, and animators started.

Media and entertainment animators, artists, and editors looking to accelerate nonlinear editing or test select special effects-such as blur and motion filters-can work with greater efficiency. Imaging experts are supported by advanced features, access to OpenCL* acceleration, and fast processing performance. Your software benefits because the Intel Xeon processor E3-1200 v5 product family has been certified on and optimized for a wide range of third-party ISV applications.




NVIDIA® QUADRO® Professional Graphics Supports
NVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more.

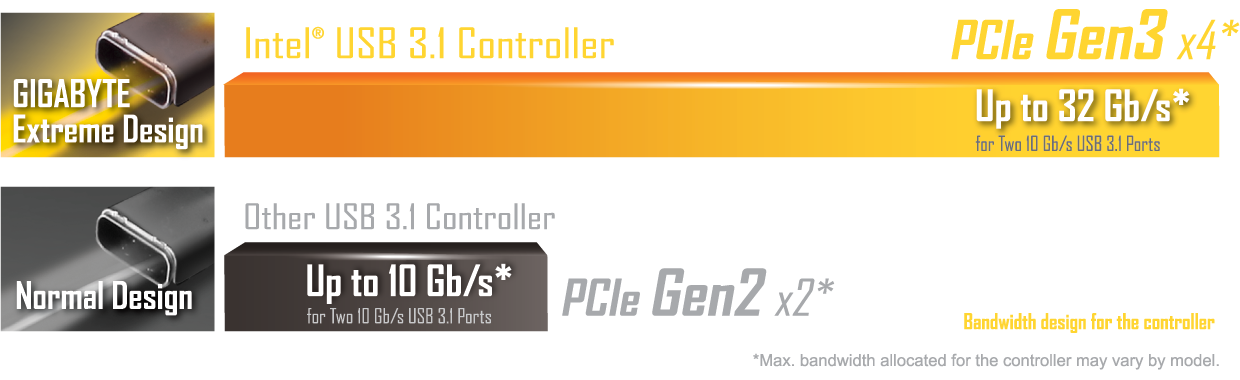

The Intel® USB 3.1 controller utilizes 4 PCIe Gen3 lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.

* GA-X170-EXTREME ECC only.




Connecting the Future - USB Type-C:
The World's Next Universal Connector

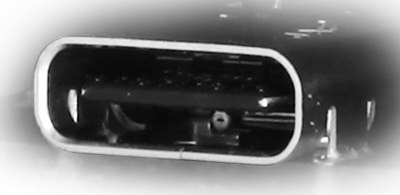

The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.

* Product features may vary by model.





* Product features may vary by model.

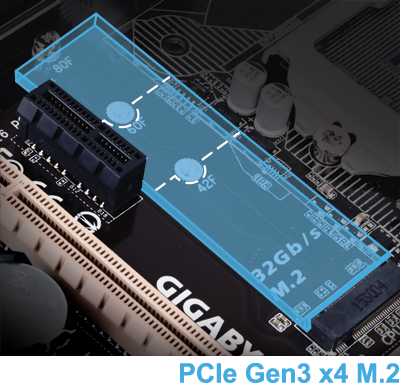

PCIe Gen3 x4 M.2
With PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.





Support for DDR4 2133 MHz Memory Modules
The next generation of DRAM is here with DDR4. Featuring stock frequencies starting at 2133 MHz, DDR4 delivers up to 20% less energy consumption and twice as much density as the previous generation DDR3. DDR4 can help GIGABYTE users to load their programs faster, increase responsiveness of their system and help them to handle heavy data tasks in a flash. GIGABYTE motherboards provide Dual Channel DDR4 memory support across the entire range, bringing exceptionally fast memory access.




Killer E2400 Gaming Network / Intel Gigabit LAN
Killer™ E2400 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.

Intel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

* GA-X170-EXTREME ECC only.





Intel® GbE LAN with cFos Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environments.










* Product features may vary by model.



* GA-X170-EXTREME ECC only.

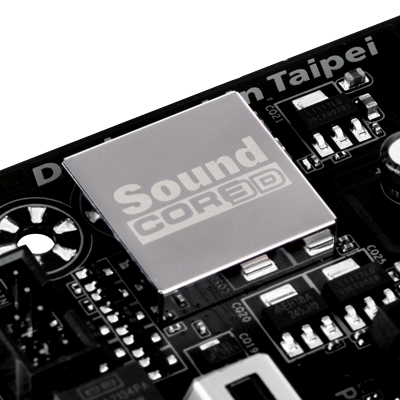

Creative® Sound Core3D Quad-Core Audio Processor*
Combining world's first Quad-Core Creative Sound Core3D Audio Processor Plus Advanced Creative SBX PROSTUDIO Audio Suite.
+ Harnessing the power of a Dedicated Audio Processor to offload workload from CPU
+ Total solution from Creative (Hardware +Software)
+ Richer overall audio experience






* GA-X150-PRO ECC only.
Realtek ALC1150 115dB SNR HD Audio
The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.





Audio Noise Guard with Ambient LED Trace Path Lighting
GIGABYTE motherboards feature LED lighting for the audio guard path, providing a cool, custom look to your rig. Not only does the Audio Noise Guard protect the board's sensitive analog audio components, but its LEDs can also be programed to beat at the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.
* Photos are for reference only.





APP Center including EasyTune and Cloud station Utilities

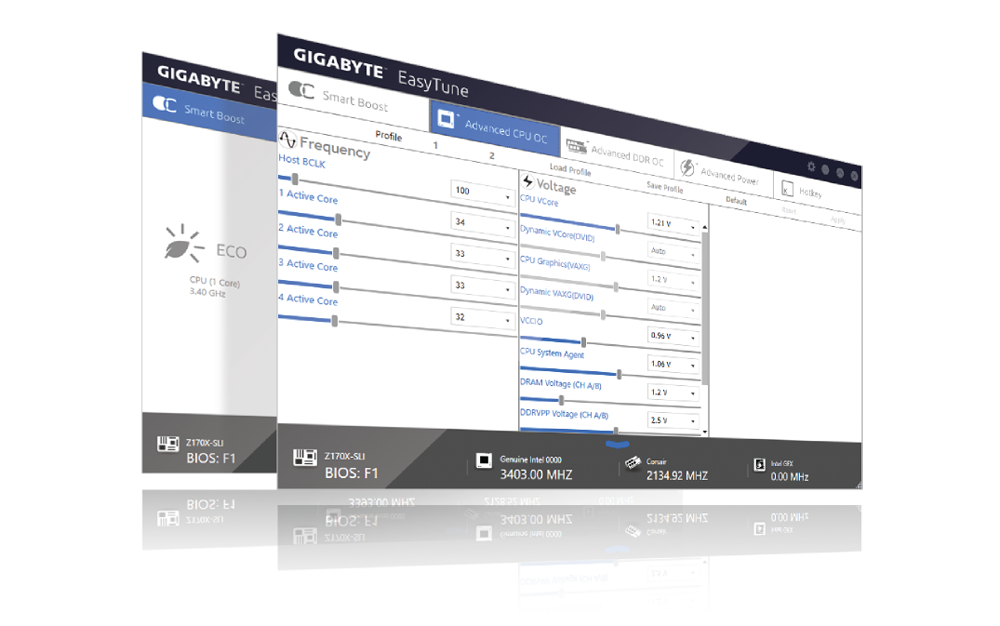

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.




APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.









Easy Tune™
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

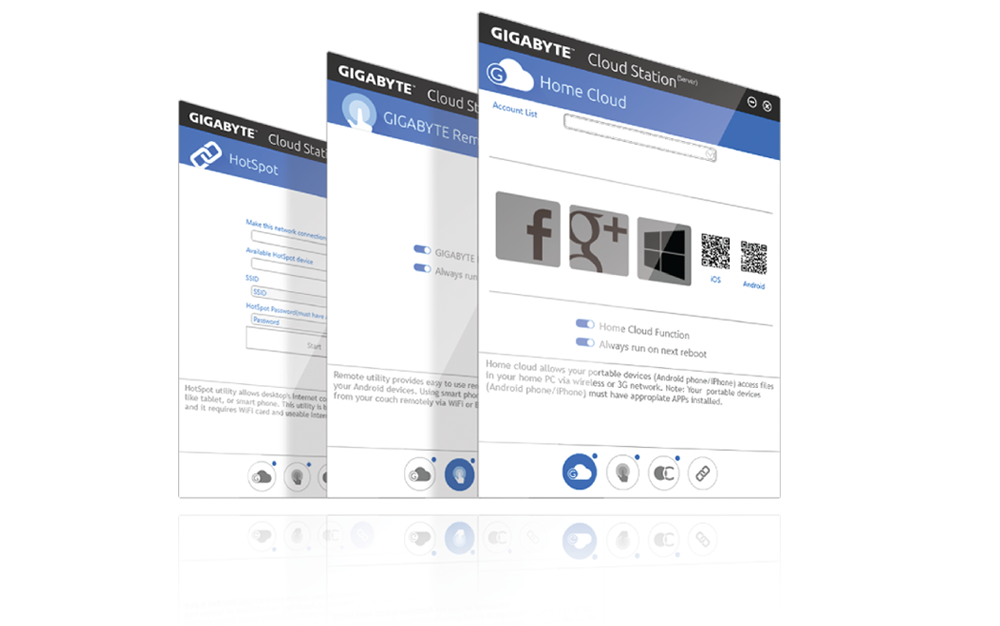

Cloud Station™

GIGABYTE™ Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
