Accessory

Bracket

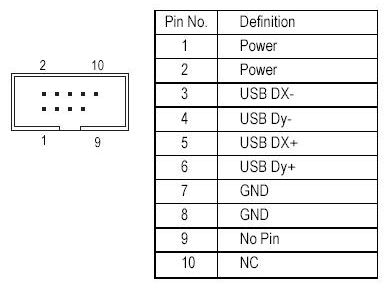

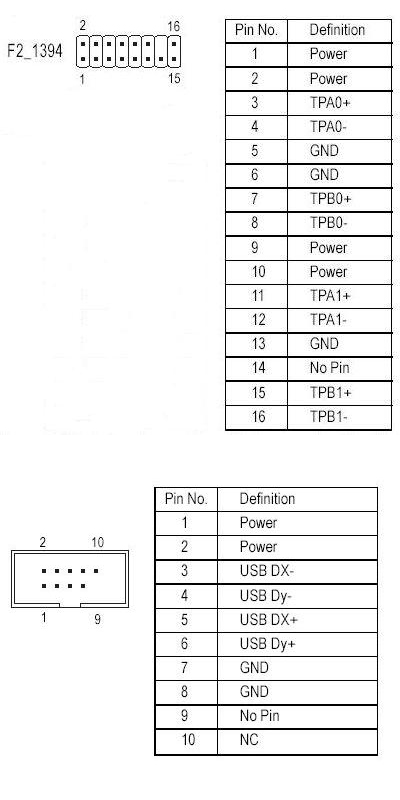

USB+1394 S/N : 12CR1-1UBIE0-11/R USB2.02P+IEEE1394(28-14GRAY) Pin Assignment	USB S/N : 12CR1-1UB030-21 4 Ports USB2.0 Cable(2*5-9YELLOW) Pin Assignment
USB S/N : 12CR1-1UB030-51/R 2 Ports USB2.0 Cable Pin Assignment	1394 S/N : 12CF1-1IE006-00 1IN1 3 ports IEEE1394 Cable(2*5-9) Pin Assignment

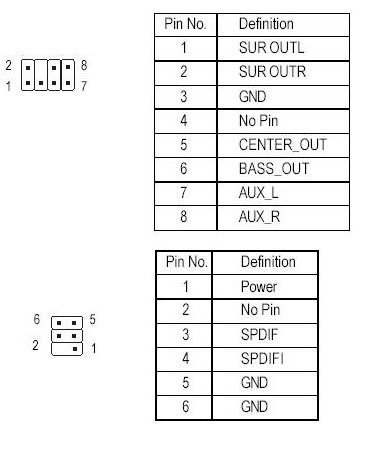

COM S/N : 12CF1-1CM001-31/R COM Port Cable(31cm) Pin Assignment	AUDIO S/N : 12CR1-1SPAUD-21 8-Channel Audio Combo Kit Pin Assignment

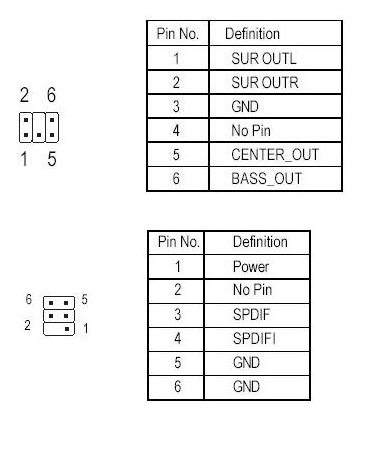

AUDIO S/N : 12CR1-1SPAUD-12 6-Channel Audio Combo Kit Pin Assignment	AUDIO S/N : 12CR1-1SPOUT-12 SPDIF Output Cable Pin Assignment

Adapter
Serial ATA to PATA Adapter S/N : 24AS0-SATAAD-01 Serial ATA to PATA Adapter

IO SHIELD
IO SHIELD S/N : 12AIO-TA0001-01 PS2/2R+1C+LPT/RJ45+ 2USB/2AUDIO	IO SHIELD S/N : 12AIO-000020-01 PS2/PLT+2CRCA+1C/2*RJ45+ USB/2A
IO SHIELD S/N : 12AIO-000021-01 PS2/PLT+RCA+SP+1C/2RJ45+ USB/2AUDIO	IO SHIELD S/N : 12AIO-000023-01 PS2/PLT+2/11394USB+ RJ45USB/2AUDIO
IO SHIELD S/N : 12AIO-000026-01 PS2/1394+USB/LPT+2C/LAN+ USB/AUDIO

Bracket
AUDIO S/N : 12CR1-1SPINO-11R SPDIF In and Out Cable Pin Assignment	Game Port S/N : 12CF1-1GM001-01 Game Port Cable(20cm) Pin Assignment

IDE Cable
IDE cable S/N : 12CF1-2ID10B-01R 2IN1 CB BLUE(PVC)+TAPE ATA133+FDD

Bracket

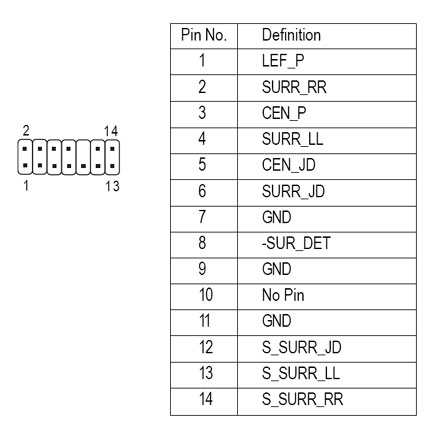

AUDIO S/N : 12CF1-1AU004-01R 8-Channel Surround Cable(2*7-9) Pin Assignment

Adapter
SATA S/N : 12CF1-2SERPW-01R Power Adapter cable(Serial ATA*2)

Bracket
AUDIO S/N : 12CR1-1SPDIN-01R 3 pin SPDIF In Cable (33cm) Pin Assignment

e-SATA Cable
e-SATA S/N : 12CF1-3SATPW-11R SATA Bracket Pin Assignment

Bracket
TV out S/N : 12CR1-1AU001-01R/02R TV Out Bracket Pin Assignment	1394 S/N : 12CF1-1IE008-01R 2-ports IEEE 1394a bracket Pin Assignment
LPT S/N : 12CF1-1LP001-01R LPT port cable Pin Assignment	COM S/N : 12CF1-1CM001-32R COM Port Cable(31cm) Pin Assignment
AUDIO S/N : 12CR1-1SPOUT-03R 3 pin SPDIF OUT(RCA) cable Pin Assignment
