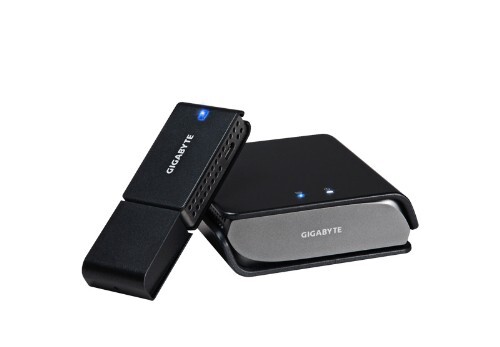

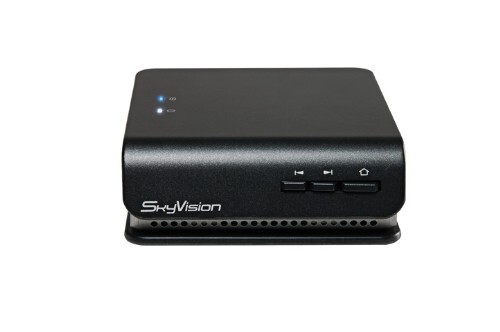

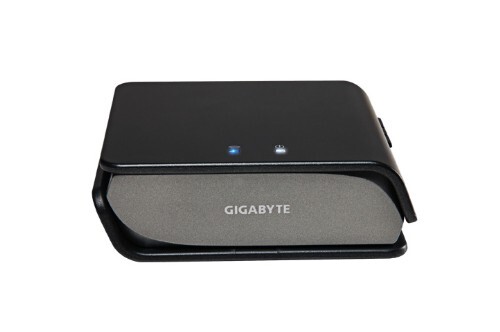

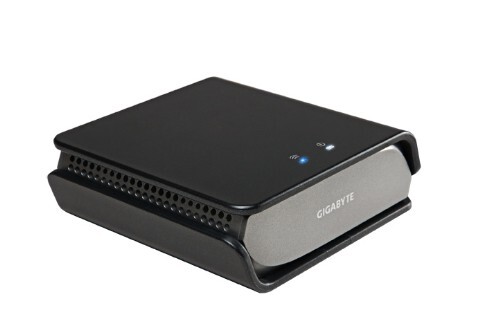

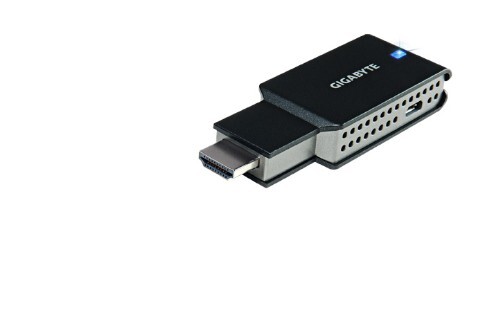

SkyVision WS100

HD Video Sync On-the-Go

HD Video Sync On-the-Go

Wirelessly link full-HD (1080p/ 60Hz) video to the display
Plug and play*
No delay - Perfect for video entertainment and gaming (latency < 1ms)
Comply with WHDI 1.0 and HDCP 2.0 standard
10 meter transmission range*
Support 5.1 channels of surround sound

* Both source and display device must have HDMI ports
* The transmitter and receiver should be placed within range and with clear line of sight with each other for the most optimal experience.

1/6

Select All

Cancel All Download

SPECIFICATIONS

Wireless Technology

WHDI 1.0

Host Interface

HDMI (Type A)

Video quality

uncompressed

Video resolution

HD: 480p,576p,720p,1080i, 1080p/60Hz
PC: VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024)
Panel: 1280x768, 1366x768, 1920x1080

Audio

Up to 18Mbps audio stream
5.1 channel, up to 48KHz 24 Bit, AC3 and DTS

Operating frequency

5.1GHz to 5.8GHz

Range

Up to 10 meters (Line of sight)* (transmission quality varies with the environment)

Latency

< 1ms

Power supply

TX: 5V micro USB cable(female)
RX: 5V , 2A micro USB power cable

I/O port

TX: HDMI port*1
Micro USB*1
RX: HDMI port*1
DC-In*1

Dimensions

TX: 93x32x15.3 mm (LxWxH)
RX: 93x82x32 mm (LxWxH)

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
