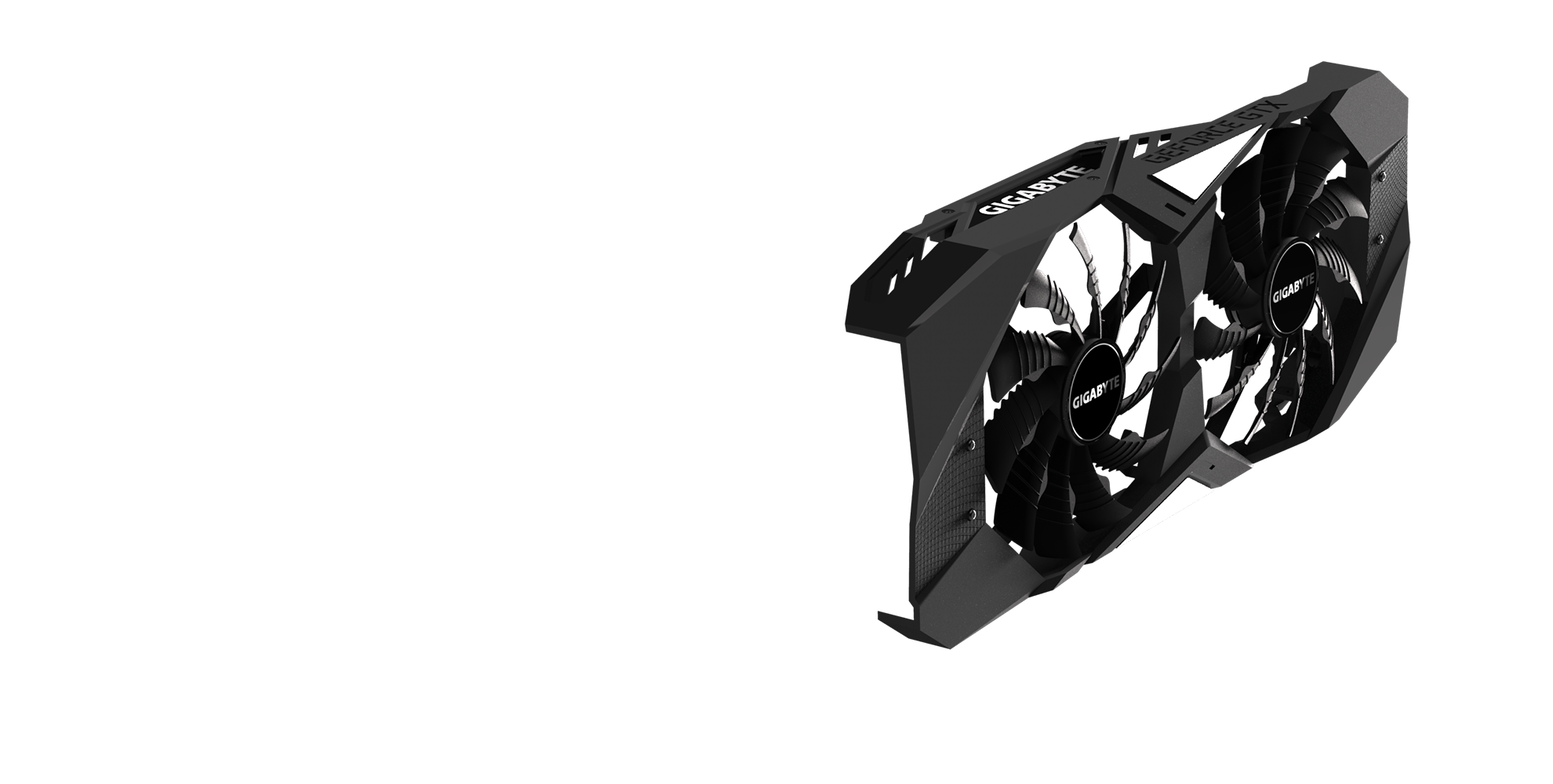

WINDFORCE 2X cooling system features 2x 100mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes direct touch GPU and 3D active fan, together delivering an effective heat dissipation.
The GIGABYTE patent “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
Smooth Airflow : better heat dissipation
Turbulent Airflow : worse heat dissipation

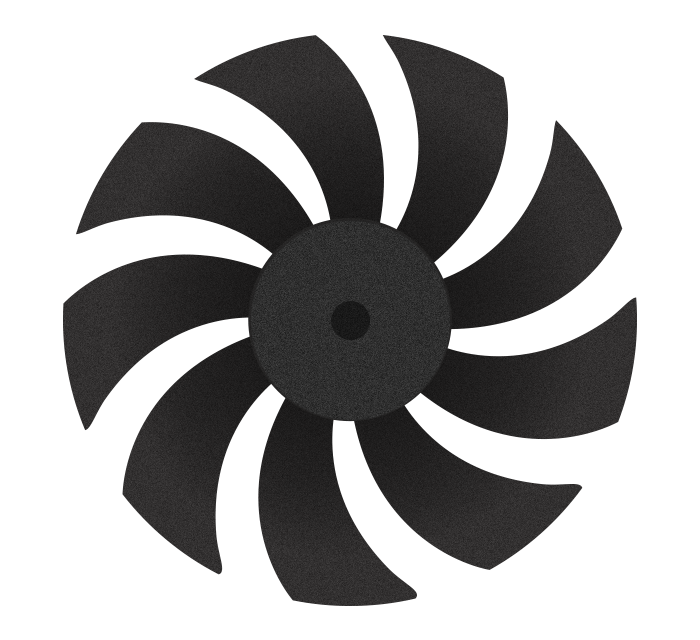

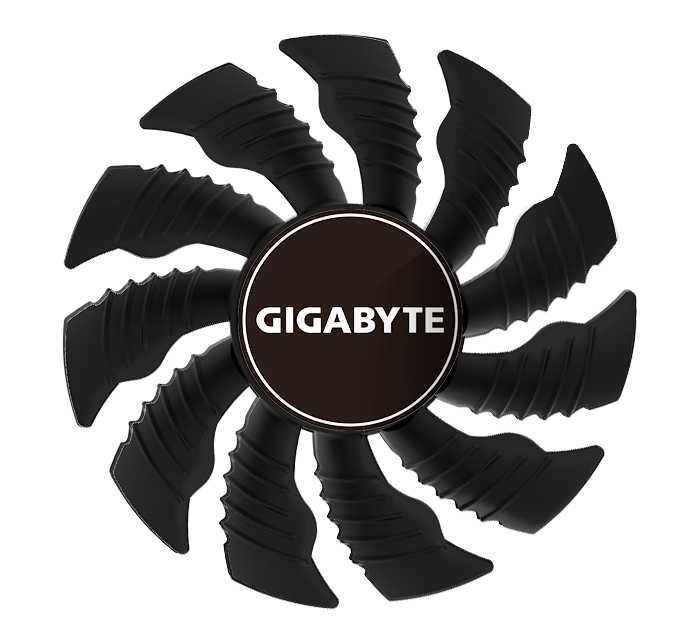

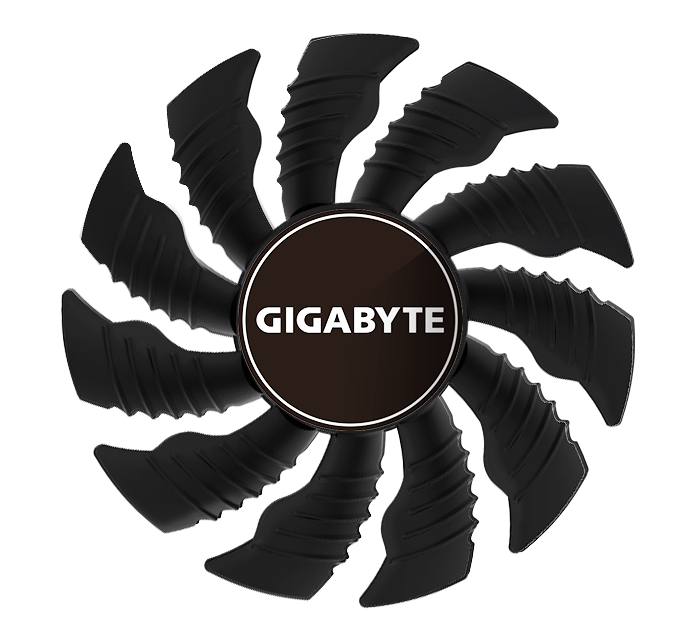

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
The shape of the pure copper heat pipes maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increase cooling capacity.
Smoothly cycles through all colors
Choose a color for static light
Choose a color for flash effect
Choose a color for double flash effect
Choose a color to fade in and out

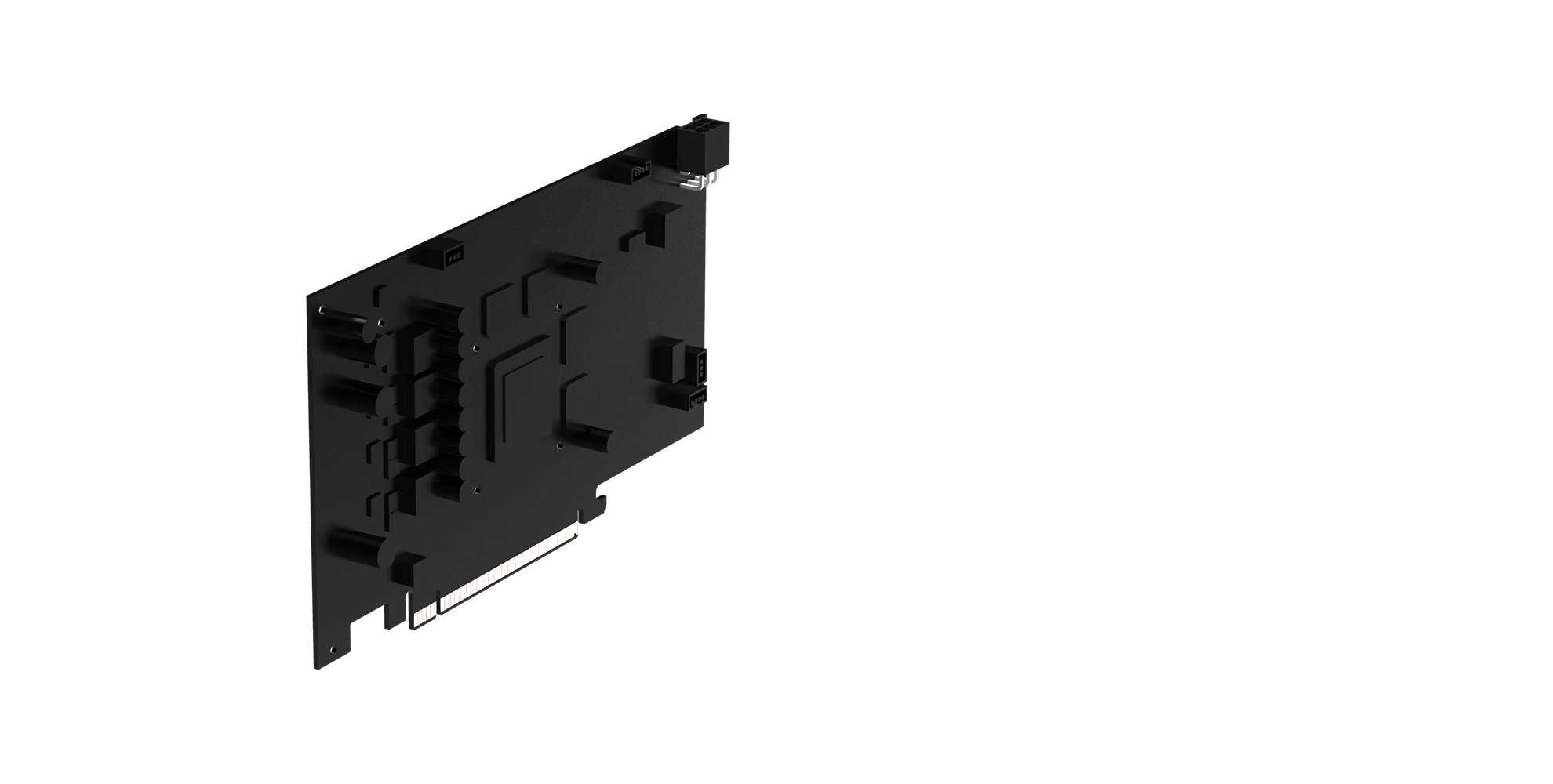

The graphics card uses the 3+1 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.(Reference card is 2+1 power phase)

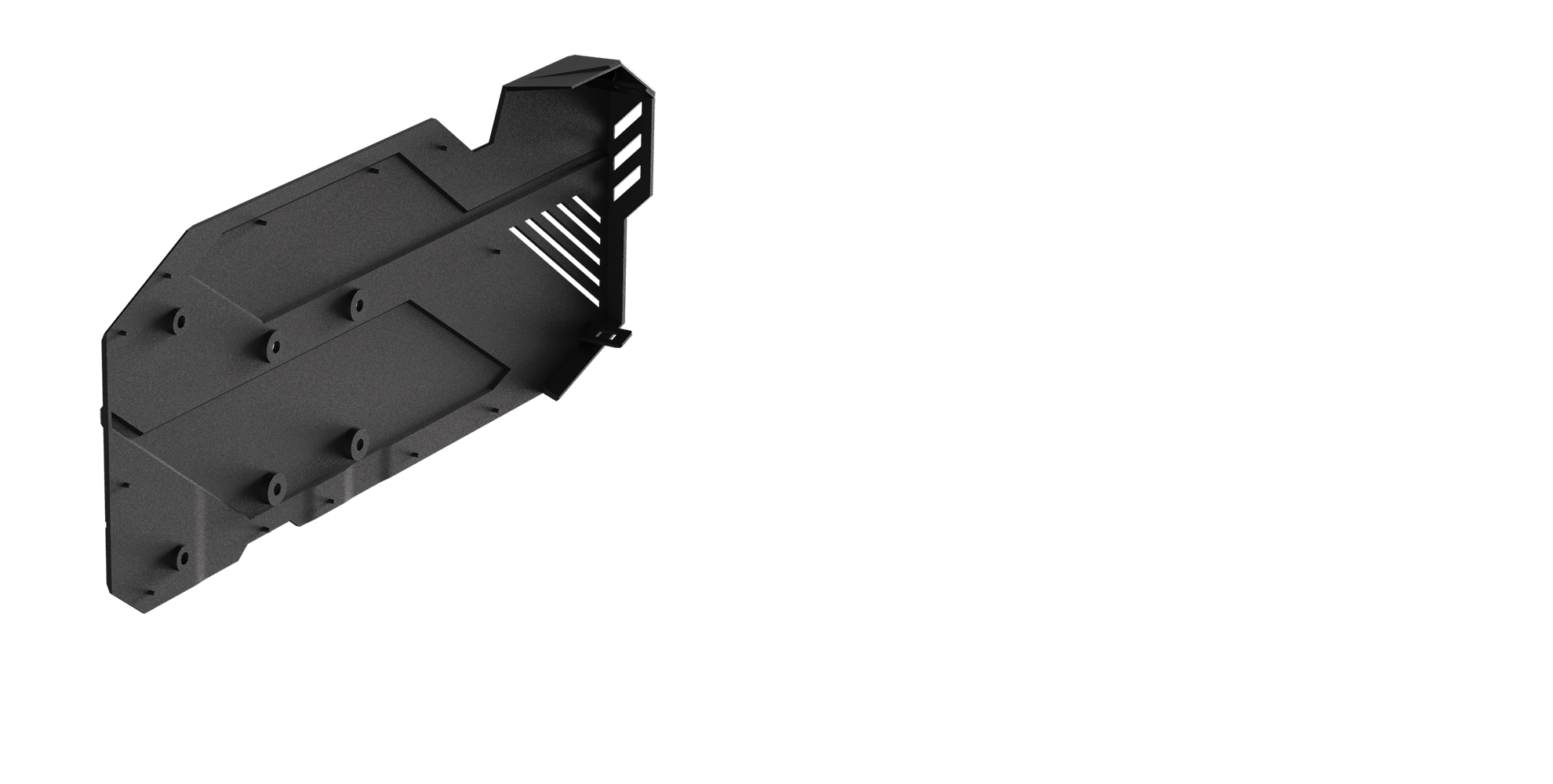

The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
The interface and functionality of the software is subject to each model.
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
