Direct 14 Phases Infineon Digital VRM Solution with PowIRstage
• 6-Layer 2X Copper PCIe 4.0 Mid-Loss Ready PCB
Intel® WiFi 6 802.11ax 2T2R & BT 5
Advanced Thermal Design
• Fins-Array Heatsink
• Direct Touch Heatpipe
• 5 W/mK LAIRD Thermal Conductivity Pad
• Thermal Baseplate
Realtek 2.5GbE LAN
Intel® GbE LAN
• cFosSpeed Internet Accelerator
Integrated I/O Shield
• Q-Flash Plus / Clear CMOS Buttons
DualBIOS™ with Socketed BIOS
Triple PCIe 4.0 x4 M.2 Connectors
• PCIe 4.0/3.0 x4 NVMe support
• Triple Thermal Guards
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The
all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list
of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of
Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new,
advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making
the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
AMD StoreMI Technology
GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI
storage devices to reduce boot times and enhance the overall user experience. This easy-to-use
utility combines the
speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of
the device to match
that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the
best CPU power design. With the
best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among
Ultimate Power Design
Direct 14 Phases Digital Power
2X Copper PCB

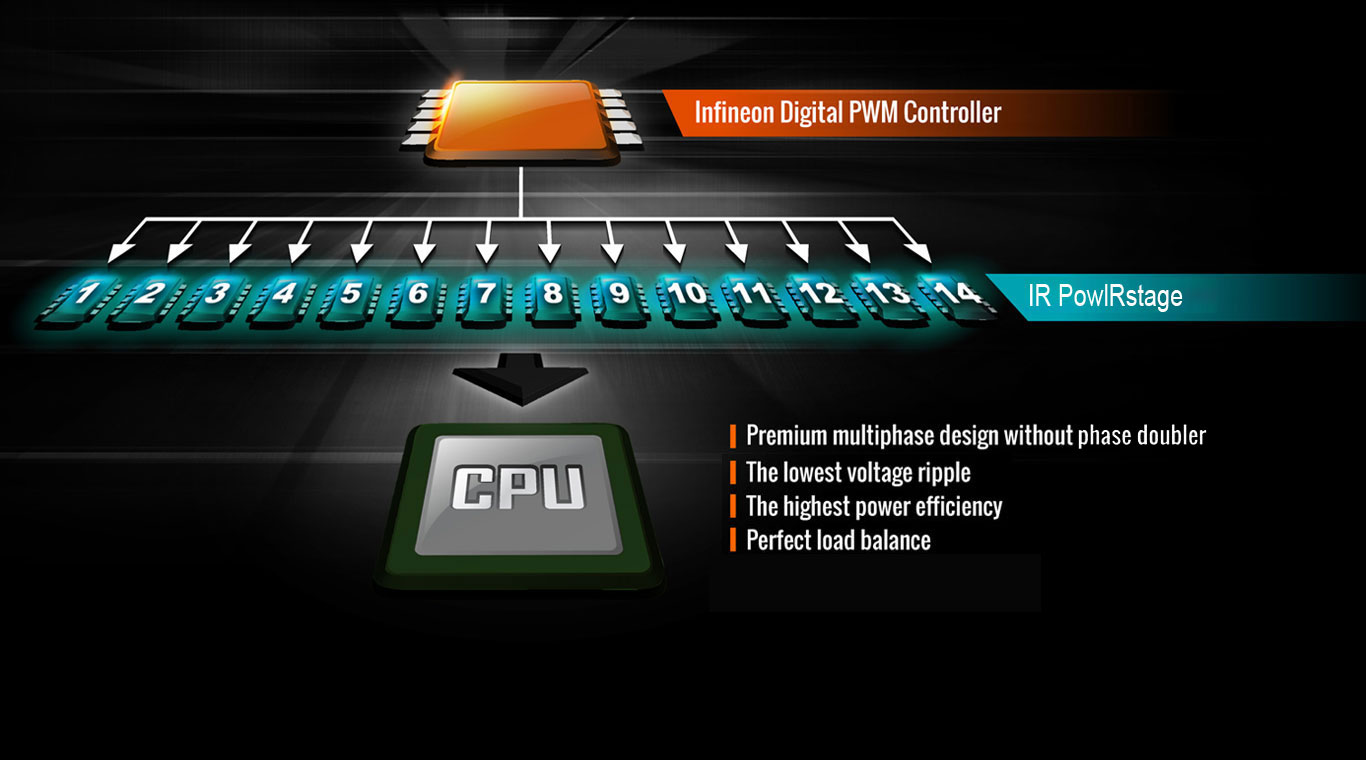

Direct 14 Phase Power Architecture
Direct 14 Phases Infineon Digital Power Design
New generation Infineon PWM controller
12+2 vCore + SOC phases power design without PWM
50A IR PowIRstage
Server level reliability
X570 AORUS MASTER motherboard uses the latest new generation Infineon multiphase
PWM controller, and a total of 14
phases for vCore and SOC, all with IR PowIRstage MOSFETs which are capable
of providing at least 50A of power from
each phase, for a total of 700A.

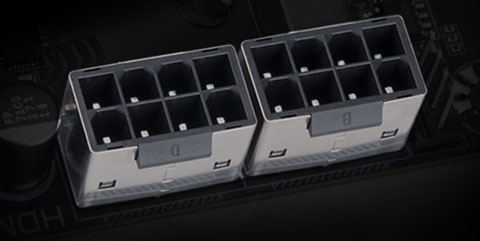

Additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in
delivering power to the motherboard's most
power-hungry and energy-sensitive components, allowing enthusiasts to get the
absolute maximum performance from new AMD
Ryzen 3000 series processors.

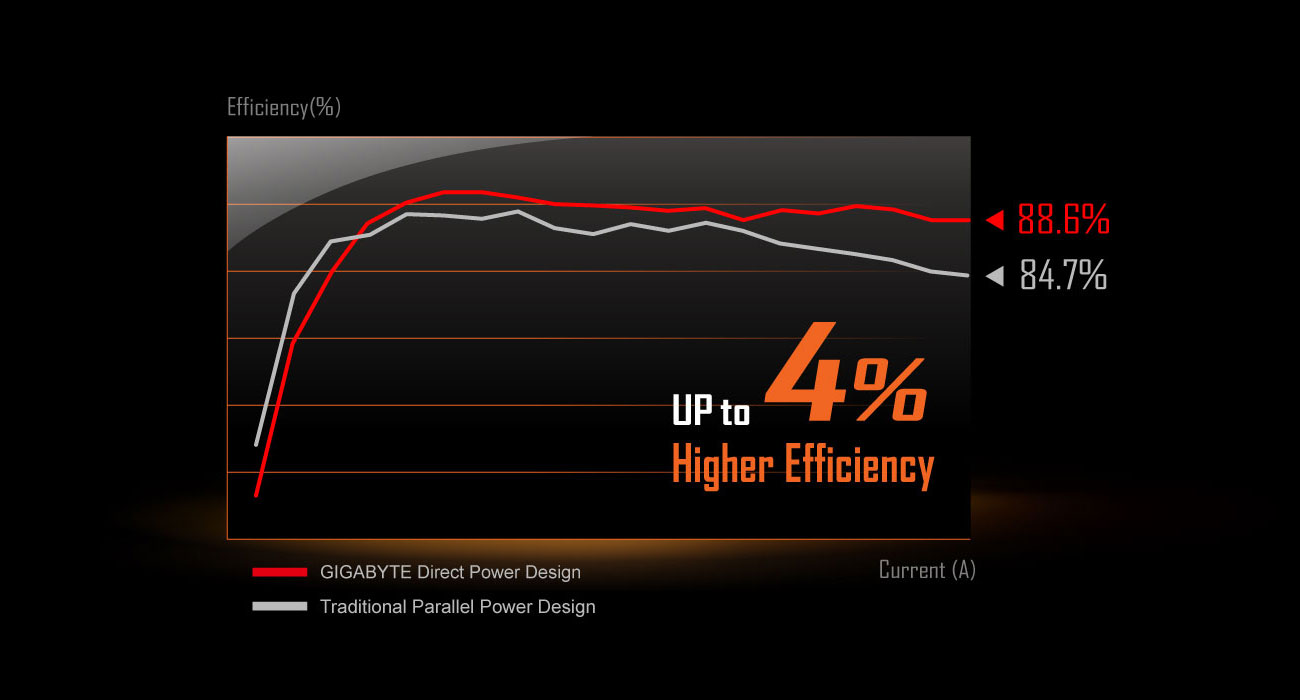

Power Efficiency & Voltage Ripple Graph

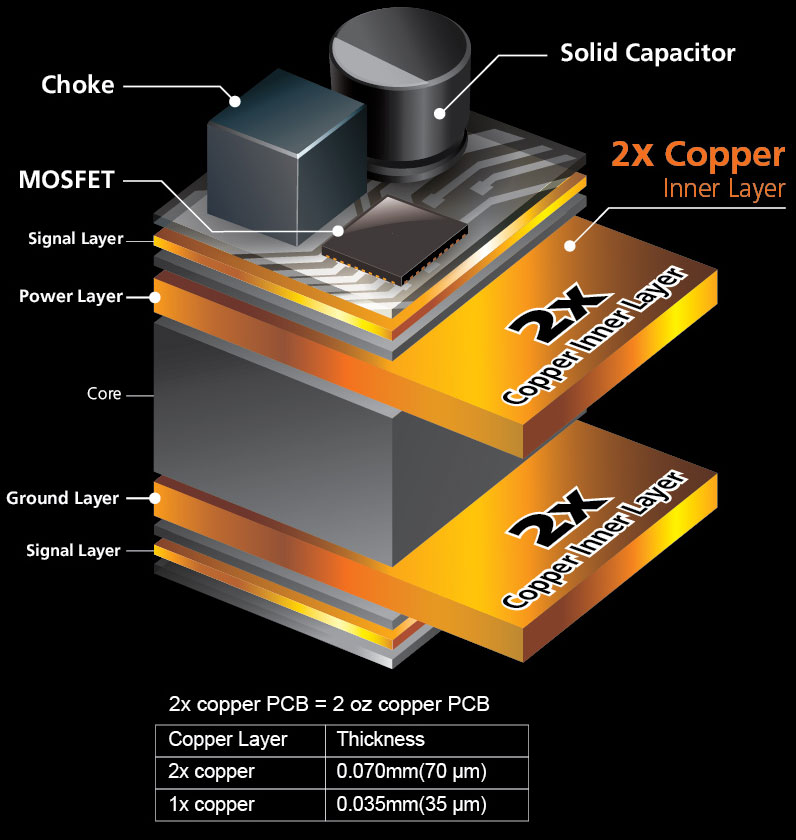

GIGABYTE's exclusive 2X copper PCIe 4.0 Ready PCBs design provides sufficient power
trace paths between components to handle greater than
normal power loads and to remove heat from the critical CPU power delivery area. This is
essential to ensure the motherboard is able to handle the increased power loading that
necessary when overclocking.
Advanced Thermal Design
X570 AORUS MASTER reaches a perfect balance between style and performance by combining the media
heatsink, a heatpipe, and a thermal baseplate, to provide 30% lower MOSFET temperatures for
and professional gamers
Fins-Array Heatsink with Direct Touch Heatpipe and
High Thermal Conductivity Pad
X570 AORUS MASTER uses Fins-Array Heatsink which increases the heat dissipation area by 300%
compared to traditional
heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS fins.
By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat
compared to traditional
thermal pads in the same time period.

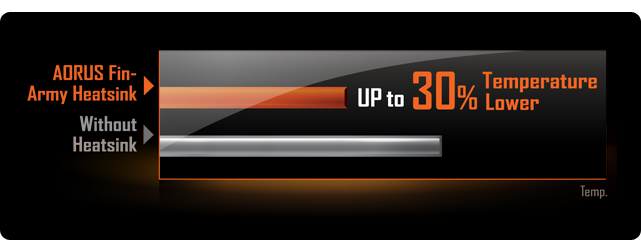

Fins-Array enlarges surface area so heat can be taken away more quickly than others.
2. High Thermal
By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more
3. Thermal Baseplate
With an integrated base plate and additional backside heatsinks cool down the hottest area.
4. Direct Touch Heatpipe
Heatpipe directly touches the heating source VRM components that guarantee good contact between
VRM and heatsink.

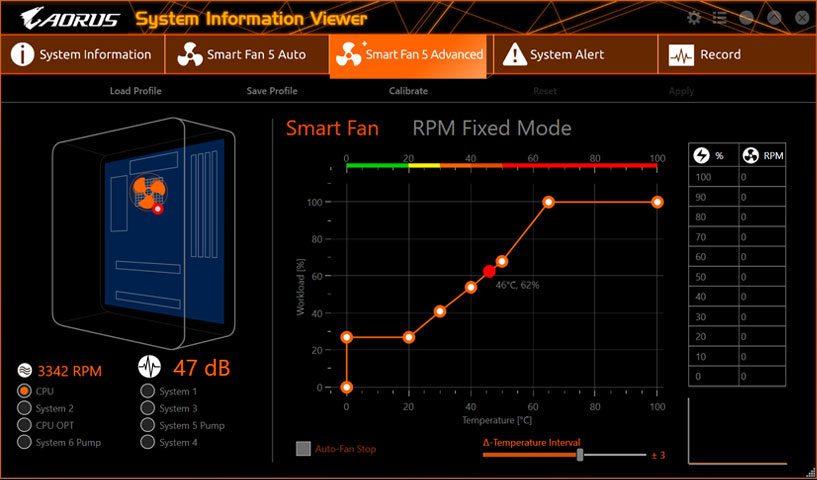

Smart Chipset Fan Heatsink
Provides 3 different operating modes to minimize noise and extend the fan’s longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation.
X570 motherboards adopt a high quality ball bearing fan which guarantees 60,000* working hours.
* MTBF, A standard measurement that continuously operates under certain criteria with 90 % of confidence level.
Base plate + I/O Shield Armor
Durable design and easy installation
With an integrated base plate, GIGABYTE Motherboards give users a strong foundation
their Gaming PCs.
With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.
Integrated Q-Flash Plus/ Clear CMOS buttons on the I/O shield enable users easier debugging and operation.
Full PCIe 4.0 Design
X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including
PCIe 4.0 slots, PCIe 4.0 M.2 connectors, PCIe 4.0 B-clock Tuning IC, and delivering highly optimized performance and flexibility
demanded for power users and extreme gaming enthusiasts. The inclusion of the PCIe 4.0 B-Clock Tuning IC and a server grade PCB helps you unlock the best
performance from PC peripherals.
Full PCIe 4.0 Design
PCIe 4.0 Hardware
PCIe 4.0 M.2 with Thermal Guard
PCIe 4.0 B-CLK IC
X570 AORUS Series Motherboards feature built-in PCIe 4.0 slots, delivering superior
compared to that from
previous generation technology. Performance of Graphics cards and PCIe NVMe AIC SSDs will
limited by insufficient
PCIe 4.0 slots have higher slot signal stability and lower impedance, maximizing PCIe
while also being
backwards compatible with PCIe 3.0.

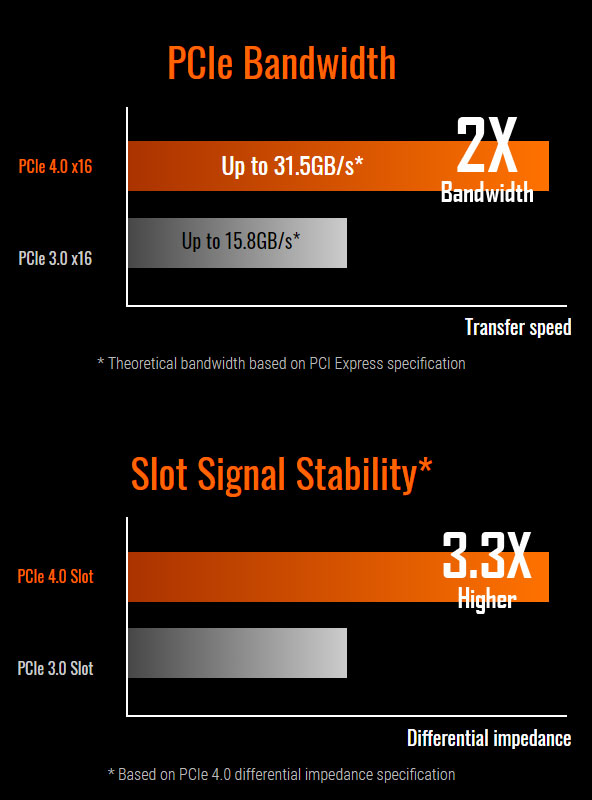

PCIe 4.0 x16
PCIe 3.0 x16
* Theoretical bandwidth based on PCI Express specification
Up to 31.5GB/s*
Up to 15.8GB/s*
Slot Signal Stability*
PCIe 4.0 Slot
PCIe 3.0 Slot
* Based on PCIe 4.0 differential impedance specification
Low Signal Loss PCB
PCIe 4.0 Mid-Loss PCB

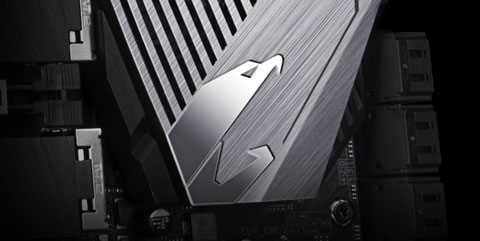

Triple PCIe 4.0 M.2 Connectors with Thermal Guards
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems’
Triple PCIe 4.0 SSD in RAID 0
Extreme Performance with PCIe 4.0 x4 NVMe PCIe SSDs
X570 AORUS motherboards offer the industry’s best compatibility in terms
of NVMe storage for
who demand high capacity and seek the best performance. AORUS' unique
design can be
configured in RAID for record speeds of up to 9840 MB/s (Sequential
Read), making AORUS the
obvious choice for the ultimate PC.
For upcoming ultra fast PCIe 4.0 SSDs, compromised performance is not
thermal performance is
particularly important for high-performance Gen 4 NVMe SSDs.
GIGABYTE provides improved thermal solutions for M.2 SSD devices. The M.2
Thermal Guard prevents
bottlenecks on high speed M.2 SSDs as it helps to dissipate heat before it
becomes an issue.
Thermal Throttling As Temperature Rises

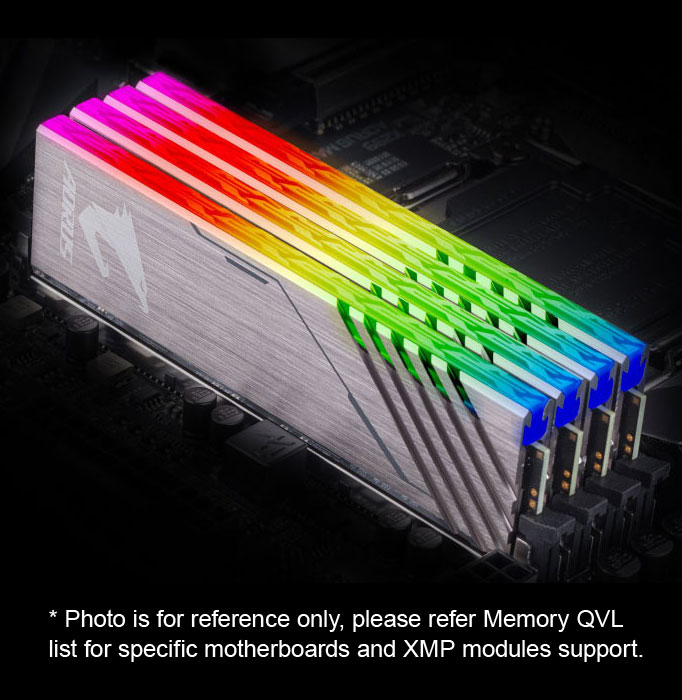

Support for DDR4 XMP Up to 4400MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with
4400MHz and beyond. All users need to do to attain this performance boost is to
memory module is XMP capable and that the XMP function is activated and enabled on
Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated！
AORUS partners very closely with memory vendors from around the world to ensure that
by popular memory brands are compatible with AORUS Motherboards. AORUS has verified
over 1000+ different
modules to ensure performance in a AORUS built system.

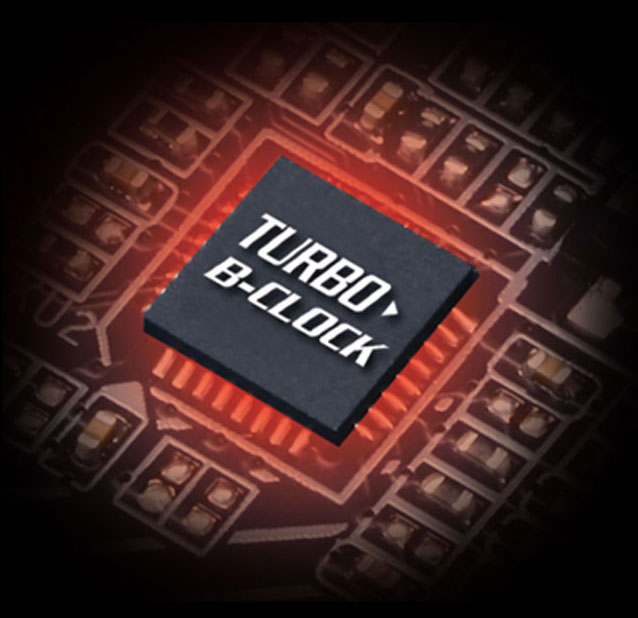

PCIe 4.0 Turbo B-Clock Tuning IC
The PCIe 4.0 Turbo B-Clock Tuning IC on X570 AORUS motherboards enables overclockers to change their BCLK frequencies to
their desired values. With the new linear range adjustment option of the Tuning IC, ranges from 100MHz to 300MHz are now
* Turbo B-Clock overclocking range may vary according to CPU capabilities.
ESS SABRE reference DAC
True High-Fidelity Music
Audiophile Grade Capacitors
Precision Audio Stream

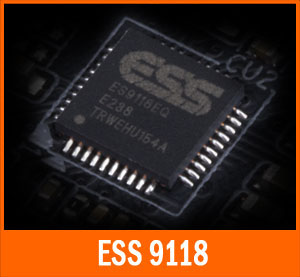

ESS SABRE reference DAC ES9118
ESS SABRE reference DAC (ESS 9118)
Hypertream Dynamic Range (SNR 125dB)
High-Res music (32bit, 192KHz PCM)
Super low THD+N (THD+N -112db)
True High-Fidelity Music (Realtek ALC1220-VB)
Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and
enabled music are easier than ever.

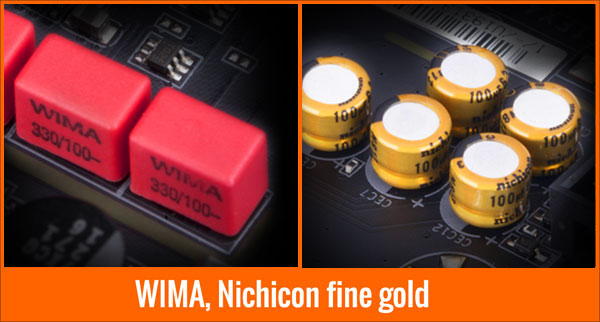

Audiophile Grade Capacitors (WIMA , Nichicon Fine Gold)
To ensure a studio-quality experience, WIMA and Nichicon Fine Gold capacitors are
used to provide
power to the overall system.

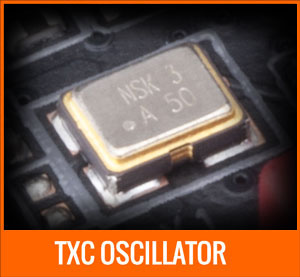

Precision Audio Stream (TXC OSCILLATOR)
Provides precise time triggers to Digital-Analog Converters. High resistance to
ALC1220-VB Immersive Gaming
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your
head-worn audio device, preventing
issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both

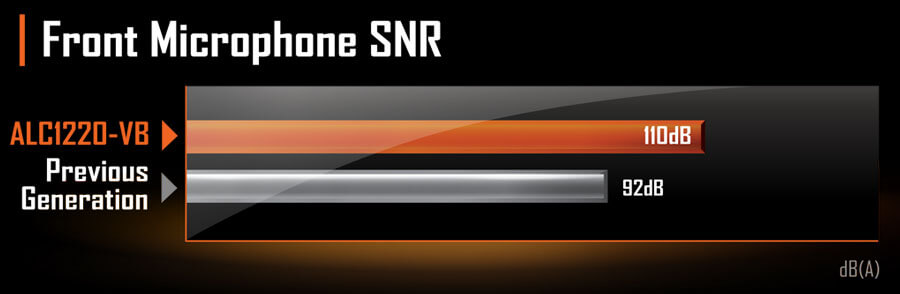

front/rear microphone SNR up to 110/114dB(A).
No More Confusion
During In-Game Voice Chat
Microphone input with higher front dynamic range allows gamers to hear more clearly. No more
misunderstandings, no more confusing
GO! GO! GO! as NO! NO! NO!
Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the
latest technology. X570 AORUS
motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to
Next Generation Connectivity
Intel® WiFi 6
Intel® GbE LAN
New Introduce Intel® WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides
smooth video streaming, better
gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5
provides 4X range over BT
4.2 and with faster transmission.
Benefit of WiFi 6:
5.5X throughput than 802.11ac 1x1*
4X better network capacity, no traffic jams especially in those dense area with lots
Network efficiency increase for better user experience
Transmission speed (Mbps)
* Based on WIFI theoretical bandwidth
AORUS Antenna Supports Dual Band with Better WIFI Signal
All new antenna supported dual band 802.11ax/ac 2.4GHz & 5GHz.
better signal strength compared to traditional antenna design
AORUS Antenna with smart antenna function for the best WIFI signal transmitting
Multiple angle tilt and magnetic base for the best signal strength direction and
First Adopter on 2.5GbE LAN Onboard
2X Faster than ever
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2
faster transfer speeds compared to general 1GbE networking, perfectly designed for
with ultimate online gaming experience
Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet
Intel® GbE LAN with cFosSpeed Internet

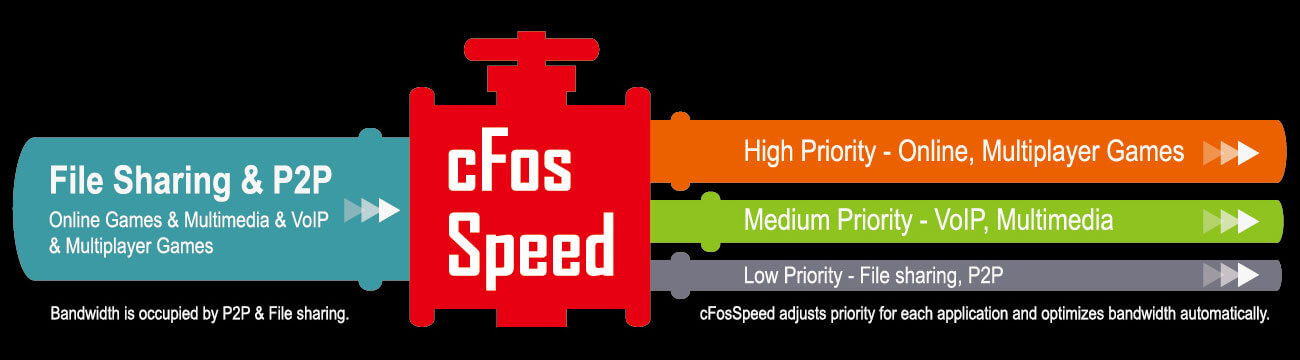

Intel® GbE LAN features cFosSpeed, a network traffic management
helps to improve
network latency and maintain low ping times to deliver better responsiveness in crowded

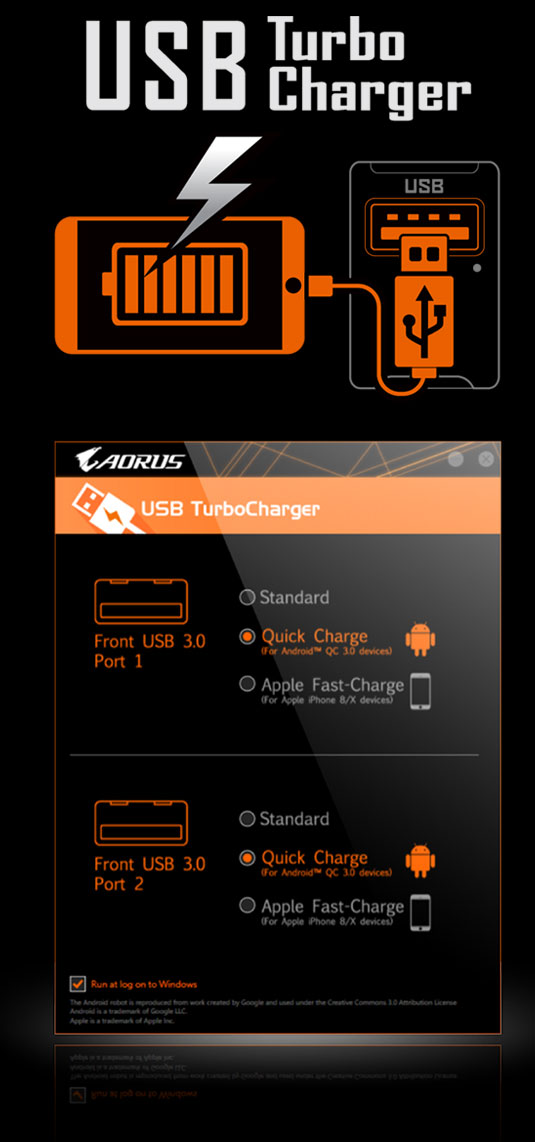

GIGABYTE patent pending USB TurboCharger technology allows users to recharge their
devices with stunning speed, up
to 50% in less than 30 minutes*. By connecting Front USB 3.2 Gen1 Type-A cable of chassis to
USB TurboCharger can recharge both Android devices with QC 3.0 and Apple devices with
*Charge time varies with devices' hardware design, battery size, front
USB 3.2 Gen1 cable
quality of chassis and environmental factors, actual results will vary.
USB Type-C™ Front Panel Connector
Equipped with next generation connectivity AORUS Gaming Motherboards already
support the chassis
future. The onboard USB Type-C™ header for USB 3.2 Gen2 makes access
convenient when connecting
USB 3.2 Gen2 drive or charging your new mobile device.
Native USB 3.2 Gen2
Connecting the Future - USB Type-C™

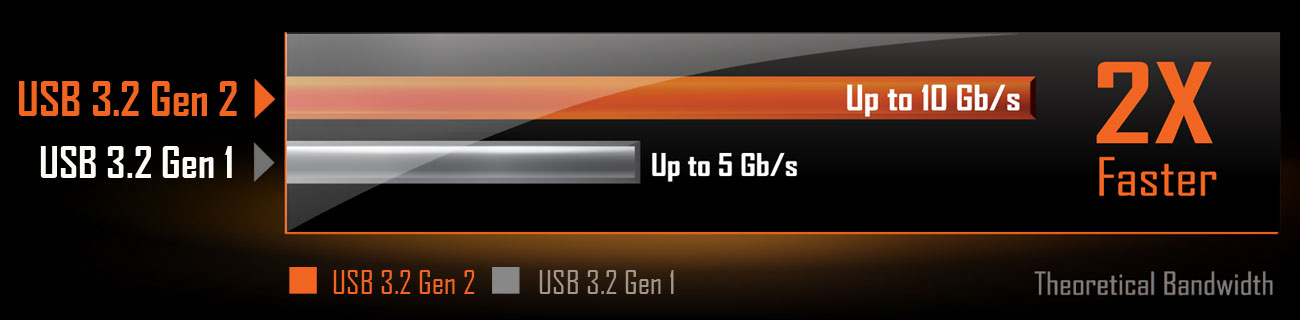

AMD's native USB 3.2 Gen2 provides USB 3.2 Gen2 ports with speeds up to 10Gbps.
With twice the
bandwidth compared to its
previous generation as well as backwards compatibility with USB 2.0 and USB 3.2
Gen1, the much
improved USB 3.2 Gen2
protocol is available over the new reversible USB Type-C™ and the traditional
USB Type-A connector
compatibility over a wider range of devices.

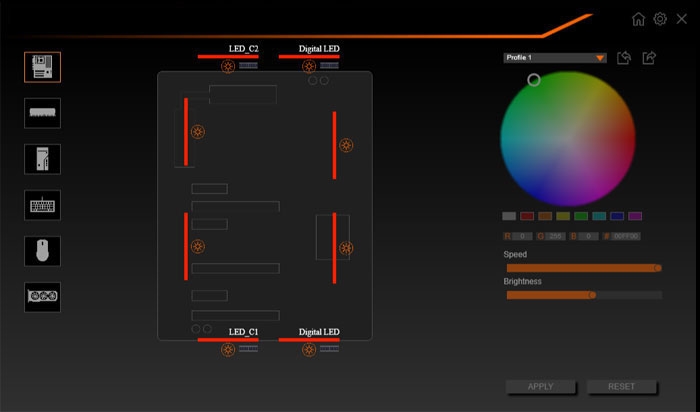

RGB Fusion 2.0
With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB
2.0 offers users the
option to control onboard RGB and external RGB / Addressable LED light strips for
feature filled with colors and patterns, RGB Fusion 2.0 on X570 Series AORUS
Motherboards are now upgraded
with Addressable LED support. With external Addressable LED strips*, where each LED
users can experience even more patterns, styles, and illuminations.
AORUS Motherboards will support 5v Addressable LED lighting strips
up to 300
LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various
with more to come.
* Addressable LEDs are available only on select Motherboards,
LED Strips, Addressable LED
Strips are not included with Motherboard purchase.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent
lifestyle. With full RGB
support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.
RGB Fusion 2.0 Ready
RGB Fusion 2.0 Software
RGB Fusion APP
With a dazzling array of products supported, RGB Fusion 2.0 is the software that brings
all together, letting your accessories
synchronize to the same beat. Customize all your LEDs how you like — have them match,
RGB Fusion 2.0
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a
solution for customizing the lighting effects across all supported devices. From
motherboards, graphics cards to the peripheral products, you can personalize your
rig with your own style and show off your build by sharing the profiles. In
the new gaming mode makes the lighting effects interactive with selected games to
you the most immersive gaming experience.
Sync with one click
Individual control as you wish
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the
GIGABYTE RGB Fusion
mobile app users can watch as they control the lighting within their gaming PC. This
ease of access as they try and adjust colors and speeds for different modes, all
can be achieved
away from the keyboard and monitor of their PC.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while
cool. Smart Fan 5 allows users to interchange their fan headers to reflect different
sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more
fan headers that support both PWM and Voltage mode fans have been introduced to make the
motherboard more liquid cooling friendly.
Fan / Water Pump Connectors
Internal Temperature Sensors
External Temperature Sensors
Noise Detection Cable
Different models have different number of fan pin headers and temperature sensors. Smart Fan
function may vary by model.
Hybrid Fan Headers
Temperature Sensor Cable x 2
Noise Detect Cable x 1
■ 7 Fan / Water Pump Connectors
■ 7 Internal Temperature Sensors
■ 2 External Temperature Sensors
■ 1 Noise Detection Cable
■ All Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
■ Intuitive UI for Fan Control
Hybrid FAN Header
Smart Fan 5 Software
Achieve fan silence. With Fan Stop, map any fan to stop
when temperatures drop below a specified threshold. Which fan stops, based on
readings from which sensor, and at what temperature—all of it can be customized
Intelligent Fan Control Design
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives
on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external
you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device
whether it be fan or
pump with different PWM or Voltage mode.
With the new Noise Detection function, you can monitor noise level of all devices
including fans, CPU coolers, graphics
card, etc. in real time, and you can determine how fast your fan speed needs to be. Our
bundled Noise Detection cable
doesn’t include any sound recording function, it simply detects sound pressure while
protecting your privacy.
New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage
For each fan or pump, you can use the intuitive fan curve to define trigger
AORUS ULTRA DURABLE
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card
nor enter the BIOS menu to flash
the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB
flash drive, then press the
dedicated Q-Flash Plus button and you’re good to go!
Solid Pin Power Connectors
X570 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power connectors to
offer a stable power supply
during CPU overloading.
Solid Pin Power connector advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE
the PCIe connectors to provide the extra
strength required to support heavy graphics cards.
Ultra Durable™ Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB
distortion/twisting and plate bending, in addition to preventing any possible ESD
GIGABYTE Patented Double Locking Bracket
Learn more about AORUS ULTRA DURABLE
The Industry's Leading Static-Electricity & Surge Protection
Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring,
users to quickly diagnose which
major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.
* Photo for reference only.
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology
GIGABYTE that protects arguably
one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your
motherboard has both a 'Main BIOS'
and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware
improper OC settings or power
failure during the update process.
Easy to Install "G Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate as space is
are tiny. With the G Connector, you can connect all the FP cables at once, simplifying
of building your next PC and saving you frustration.
GIGABYTE BIOS & Applications
System Information Viewer
New User Interface
All new EASY MODE shows important hardware information in one page including CPU
Memory, Storage, Fan.
Add constantly used items into the favorite menu for quick access.
Show all kinds of storage information including SATA, PCIE and M.2 interface.
List all changes before saving and exiting bios. Quickly review overall settings
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you
choose any utility you want to
install from APP CENTER and keep you updated with latest utilities and drivers version.
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to
their system settings or adjust
system and memory clocks and voltages in a Windows environment. With Smart Quick Boost,
click is all it takes
to automatically overclock your system, giving an added performance boost when you need
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using
simple and slick graphical user
interface. @BIOS can automatically download the latest version from the GIGABYTE
you can update your BIOS from a file on your computer. @BIOS also allows you to save
current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your
current system status. Monitor components
such as the clocks and processor, set your preferred fan speed profile, create alerts
temperatures get too high or record your system's behavior; these are the possibilities
the System Information Viewer.
XSplit Gamecaster + Broadcaster: Cast Your Game
Now set up your stage and share the greatest gaming moments with XSplit
Broadcaster! Fully optimized social
media integration is ready for real-time chats—keeping you notified yet focused
the game. It takes
just one click to stream your gameplay to Twitch. Host your game like a pro!
* Free 1 year XSplit Gamecaster + Broadcaster Premium License.
