Ultimate Power Design
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the
best CPU power design. With the
best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among

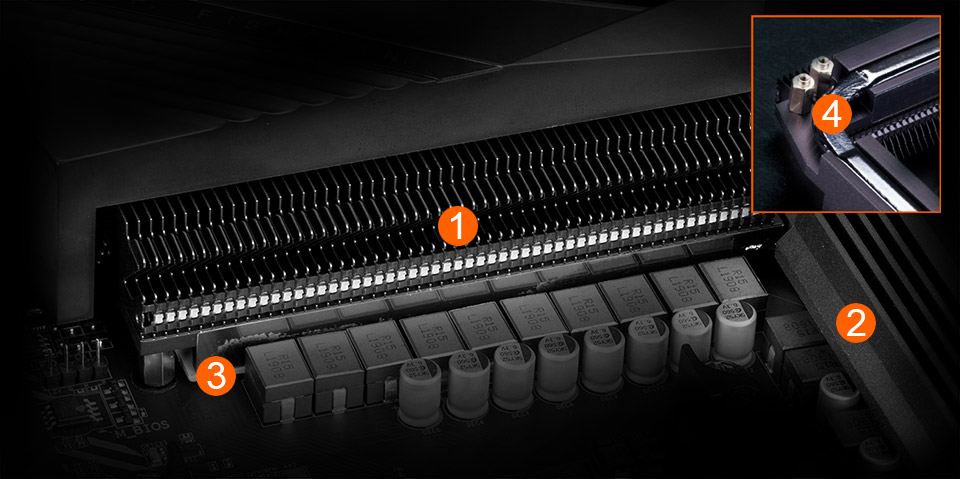

12+2 Phases Digital Power
2X Copper PCB

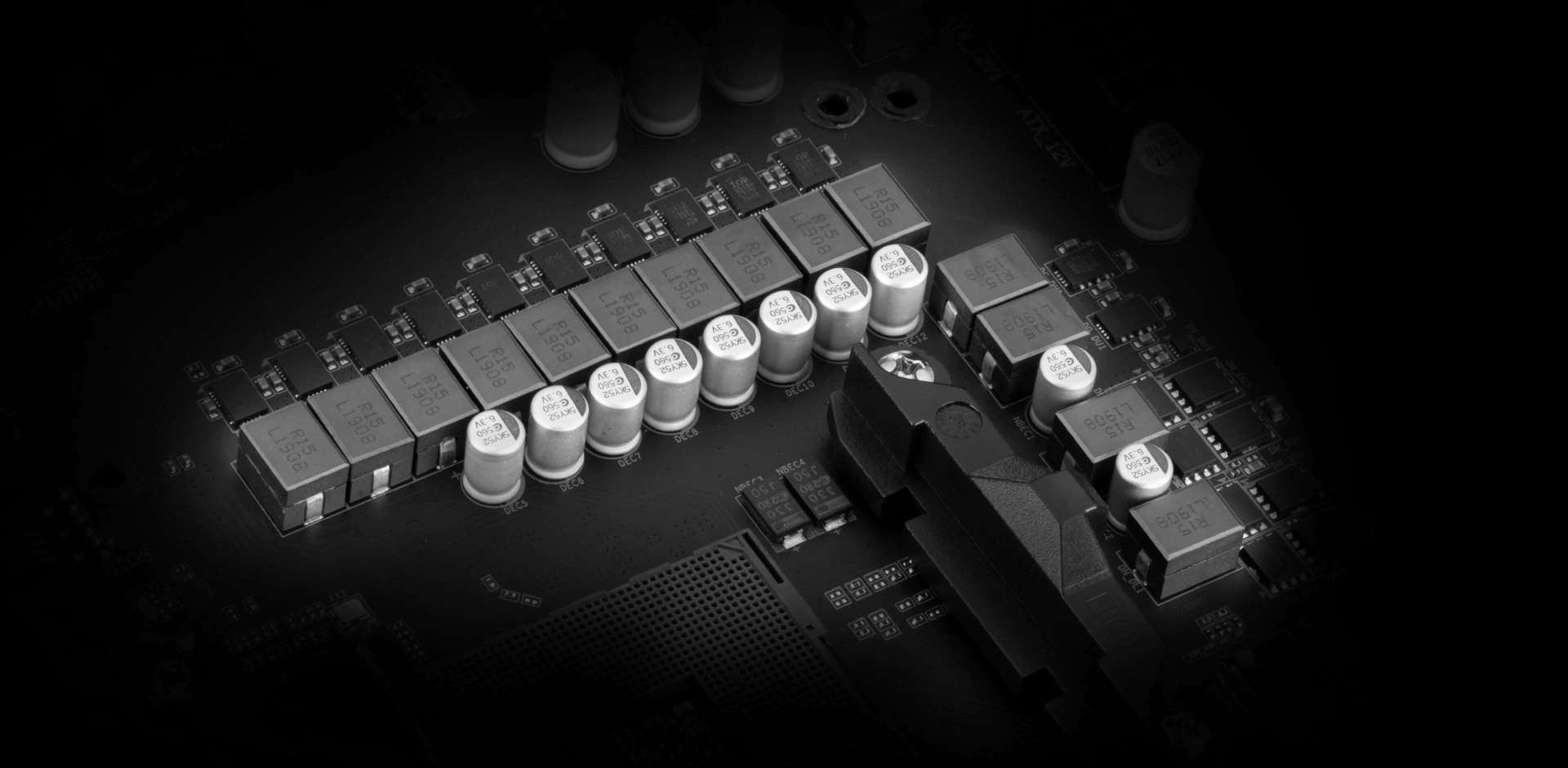

12+2 Phases IR Digital Power Design
12+2 phase power design
40A IR 3553 PowIRstage for vCore
Server level reliability
X570 AORUS PRO WIFI motherboard uses an all IR digital CPU power design which includes both digital PWM Controller and PowlRstage MOSFET, and is capable of providing at least 40A of power from each phase, for a total of 480A.

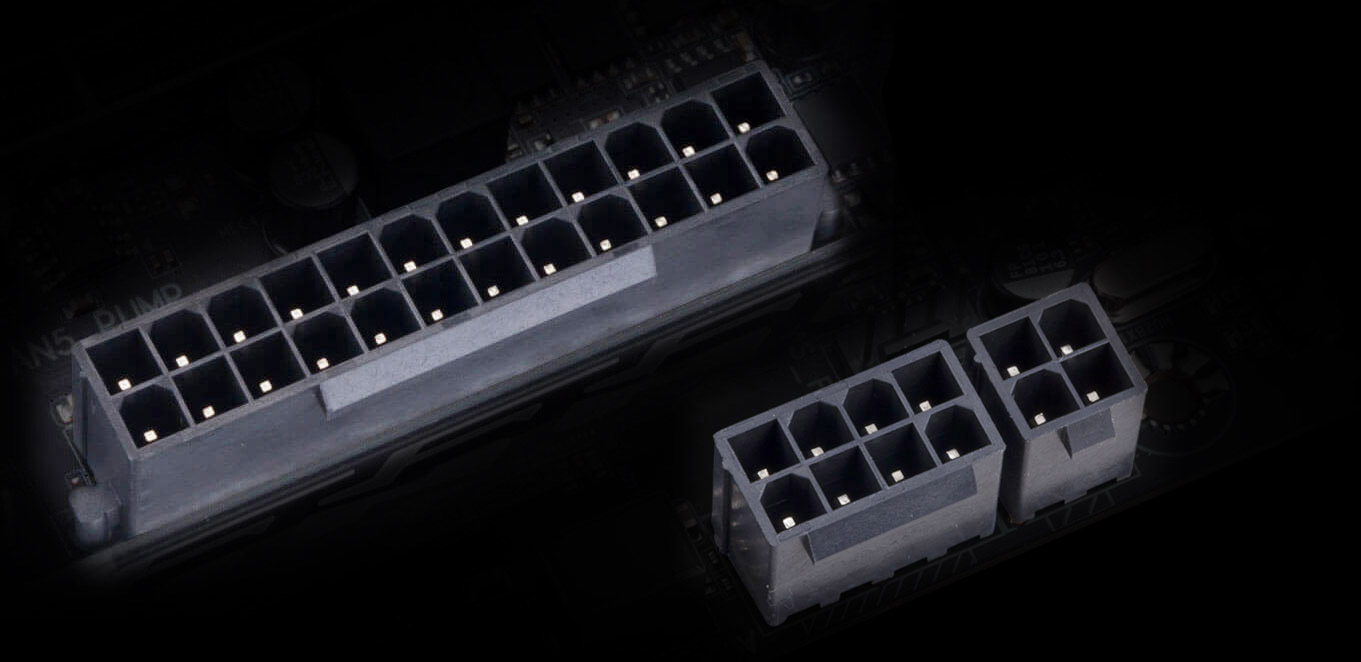

These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new AMD Ryzen 3000 series CPU.
*Doubled from 6 phases with current balancing.
12+2 Phase Power Architecture
Power Efficiency & Voltage Ripple Graph
GIGABYTE's exclusive 2X copper PCIe 4.0 Ready PCBs design provides sufficient power
trace paths between components to handle greater than
normal power loads and to remove heat from the critical CPU power delivery area. This is
essential to ensure the motherboard is able to handle the increased power loading that
necessary when overclocking.
Full PCIe 4.0 Design
X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including
PCIe 4.0 slots, PCIe 4.0 M.2 connectors and delivering highly optimized performance and flexibility
demanded for power users and extreme gaming enthusiasts.

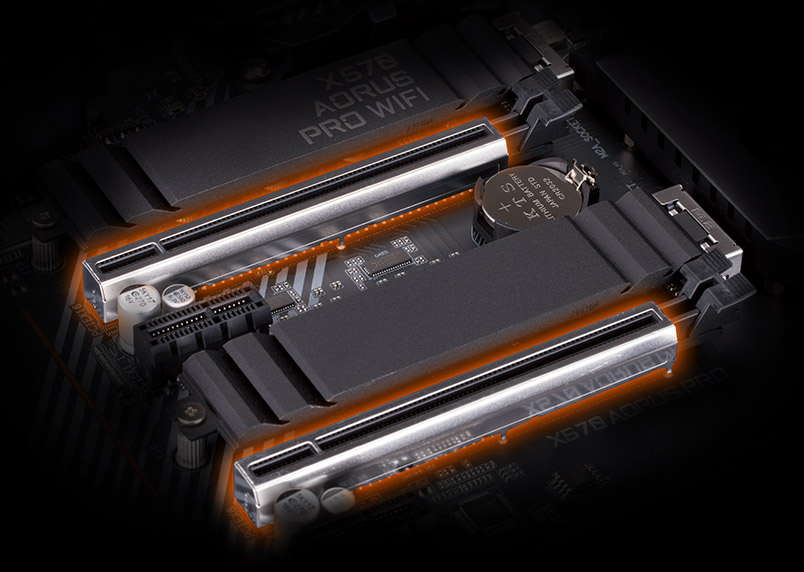

PCIe 4.0 Hardware
PCIe 4.0 M.2 with Thermal Guard
X570 AORUS Series Motherboards feature built-in PCIe 4.0 slots, delivering superior
compared to that from
previous generation technology. Performance of Graphics cards and PCIe NVMe AIC SSDs will
limited by insufficient
PCIe 4.0 slots have higher slot signal stability and lower impedance, maximizing PCIe
while also being
backwards compatible with PCIe 3.0.
PCIe 4.0 x16
PCIe 3.0 x16
* Theoretical bandwidth based on PCI Express specification
Up to 31.5GB/s*
Up to 15.8GB/s*
Slot Signal Stability*
PCIe 4.0 Slot
PCIe 3.0 Slot
* Based on PCIe 4.0 differential impedance specification
Low Signal Loss PCB
PCIe 4.0 Mid-Loss PCB
Dual PCIe 4.0 M.2 Connectors with Thermal Guards
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems’
Dual PCIe 4.0 SSD in RAID 0
Extreme Performance with PCIe 4.0 x4 NVMe PCIe SSDs
X570 AORUS motherboards offer the industry’s best compatibility in terms
of NVMe storage for
who demand high capacity and seek the best performance. AORUS' unique
design can be
configured in RAID for record speeds of up to 9534 MB/s (Sequential
Read), making AORUS the
obvious choice for the ultimate PC.
Extreme sequential Read 9534 MB/s,
Sequential Write 8243 MB/s
AORUS M.2 Thermal Guard designed for Gen 4 SSD
GIGABYTE Ultra-Efficient M.2 Thermal Guard
For upcoming ultra fast PCIe 4.0 SSDs, compromised performance is not
thermal performance is
particularly important for high-performance Gen 4 NVMe SSDs.
GIGABYTE provides improved thermal solutions for M.2 SSD devices. The M.2
Thermal Guard prevents
bottlenecks on high speed M.2 SSDs as it helps to dissipate heat before it
becomes an issue.

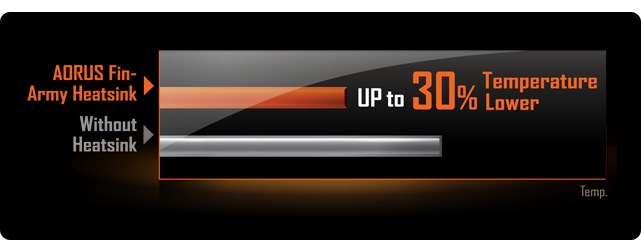

Thermal Throttling As Temperature Rises
Support for DDR4 XMP Up to 4400MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with
4400MHz and beyond. All users need to do to attain this performance boost is to
memory module is XMP capable and that the XMP function is activated and enabled on
Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated！
AORUS partners very closely with memory vendors from around the world to ensure that
by popular memory brands are compatible with AORUS Motherboards. AORUS has verified
over 1000+ different
modules to ensure performance in a AORUS built system.
Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the
latest technology. X570 AORUS
motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to
Next Generation Connectivity
Intel® WiFi 6
Intel® GbE LAN
New Introduce Intel® WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides
smooth video streaming, better
gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5
provides 4X range over BT
4.2 and with faster transmission.
Benefit of WiFi 6:
- 5.5X throughput than 802.11ac 1x1*
- 4X better network capacity, no traffic jams especially in those dense area with lots
- Network efficiency increase for better user experience
Transmission speed (Mbps)
* Based on WIFI theoretical bandwidth
AORUS Antenna Supports Dual Band with Better WIFI Signal
- All new antenna supported dual band 802.11ax/ac 2.4GHz & 5GHz.
better signal strength compared to traditional antenna design
- AORUS Antenna with smart antenna function for the best WIFI signal transmitting
- Multiple angle tilt and magnetic base for the best signal strength direction and
Intel® GbE LAN with cFosSpeed Internet
Intel® GbE LAN features cFosSpeed, a network traffic management
helps to improve
network latency and maintain low ping times to deliver better responsiveness in crowded
USB Type-C™ Front Panel Connector
Equipped with next generation connectivity AORUS Gaming Motherboards already
support the chassis
future. The onboard USB Type-C™ header for USB 3.2 Gen2 makes access
convenient when connecting
USB 3.2 Gen2 drive or charging your new mobile device.
Native USB 3.2 Gen2
Connecting the Future - USB Type-C™
AMD's native USB 3.2 Gen2 provides USB 3.2 Gen2 ports with speeds up to 10Gbps.
With twice the
bandwidth compared to its
previous generation as well as backwards compatibility with USB 2.0 and USB 3.2
Gen1, the much
improved USB 3.2 Gen2
protocol is available over the new reversible USB Type-C™ and the traditional
USB Type-A connector
compatibility over a wider range of devices.

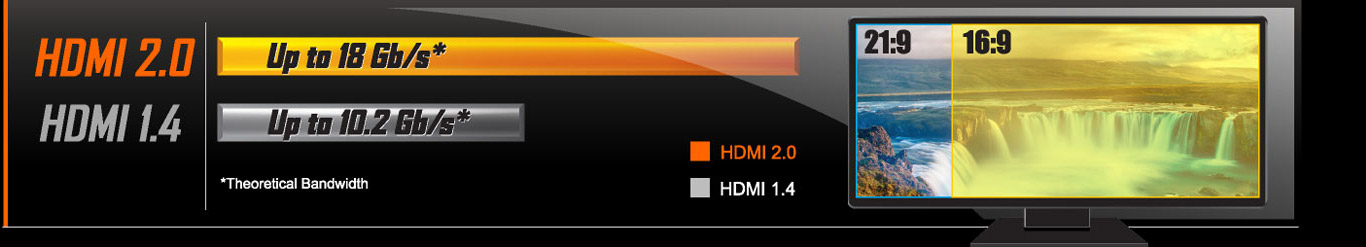

HDMI 2.0 for 4K / 60P / 21:9 / HDCP 2.2 Support
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly
twice that of the previous
generation. This unlocks the potential for users to transfer multiple video streams, as well as
a native cinematic 21:9
ratio (which most movies are shot in), offering the best visual experience for viewers.
Note: Only Picasso and Raven Ridge APUs support displaying function.
