New Processor Architecture

Intel® Xeon® Scalable processors are designed for the performance demands of complex, data-demanding workloads such as in-memory databases, and real-time business analytics.


THE PERFORMANCE AND SPACE OPTIMIZED SERVER

S12-P04R acts a cost efficient and performance optimized role as a front-end server; file server, e-mail server and web server for small office or mid-level enterprise.


Applications:
• Data Center Optimized
• Web Server
• Enterprise Server
• Managed Hosting

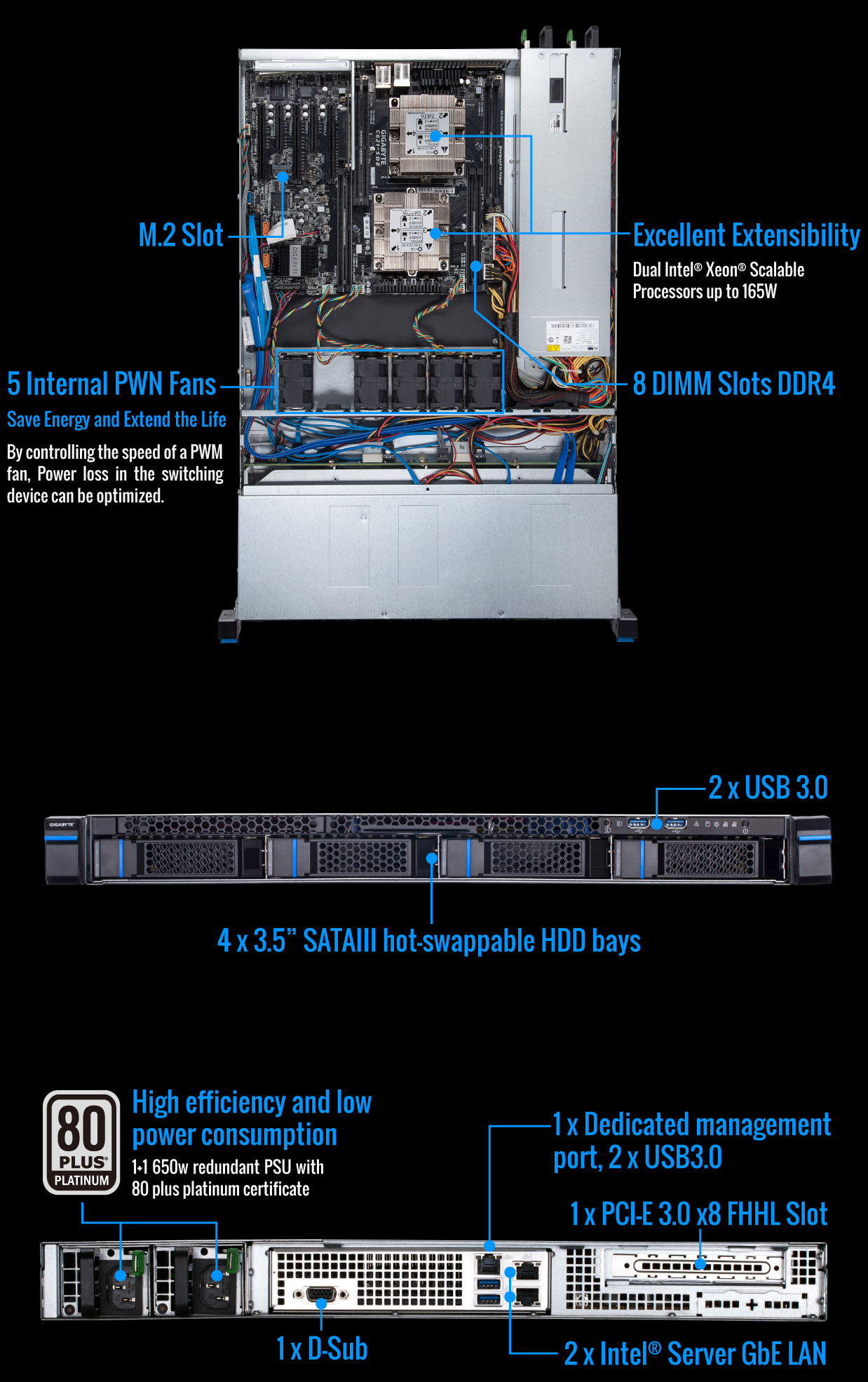

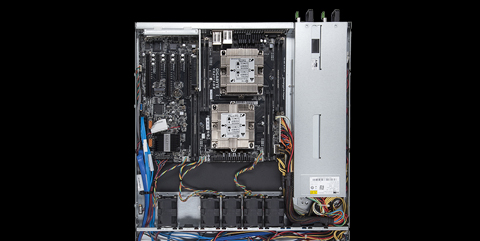

SPEC OVERVIEW
M.2 Slot
Excellent Extensibility
Dual Intel® Xeon® Scalable Processors up to 165W
5 Internal PWN Fans
Save Energy and Extend Life
By controlling the speed of a PWM fan, Power loss in the switching device can be optimized.
8 DIMM Slots DDR4
4 x 3.5” SATAIII hot-swappable HDD bays
2 x USB 3.0
High efficiency and low power consumption
1+1 650w redundant PSU with 80 plus platinum certificate
1 x Dedicated management port, 2 x USB3.0
1 x PCI-E 3.0 x8 FHHL Slot
1 x D-Sub
2 x Intel® Server GbE LAN

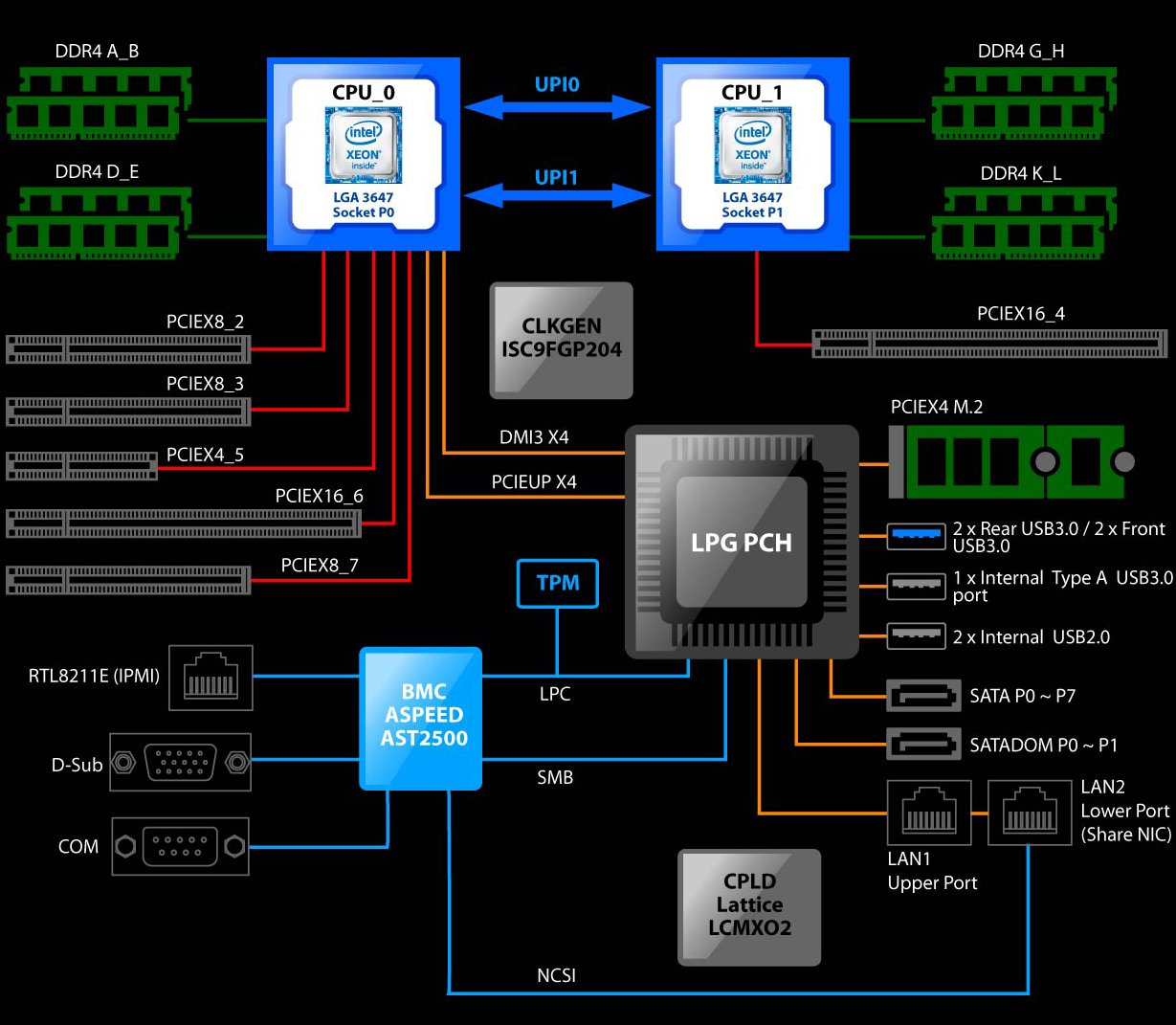

S12-P04R Motherboard Block Diagram

TOOL-LESS COMPONENT
TOOL-LESS COMPONENT

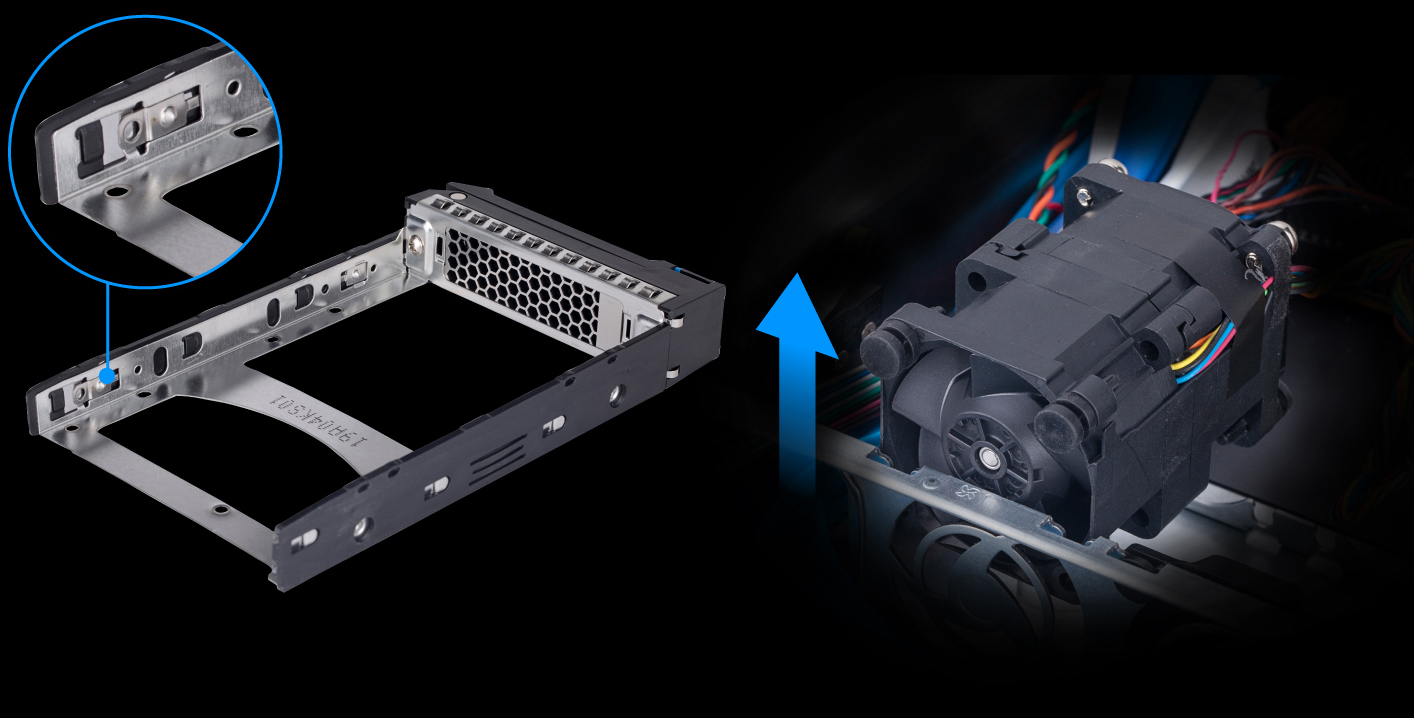

S12-P04R features tool-less design that helps IT managers to maintain/upgrade system components easily with no tools required to replace the system components, including 3.5-inch drive trays, and system fans.
GIGABYTE REMOTE MANAGEMENT

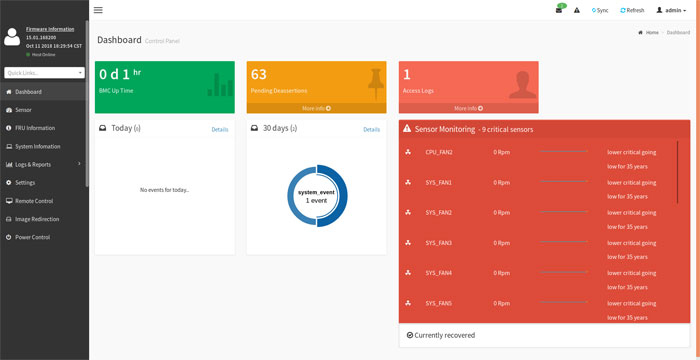

GIGABYTE Remote Management

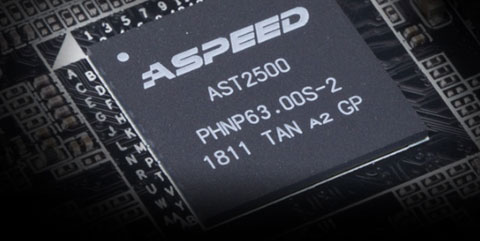

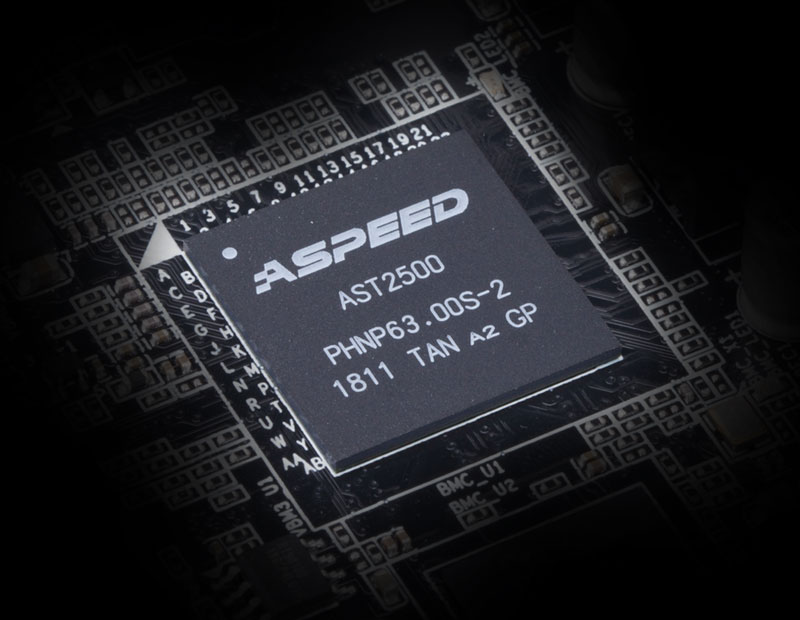

With ASPEED AST 2500 BMC, Gigabyte server boards can provide an IPMI 2.0 compliant solution for IT managers to do remote management through the web interface.

Key Features include:
  1. IPMI 2.0 implementation
  2. Full configuration via web interface
  3. Hardware status monitor
  4. Remote power control
  5. Remote firmware update

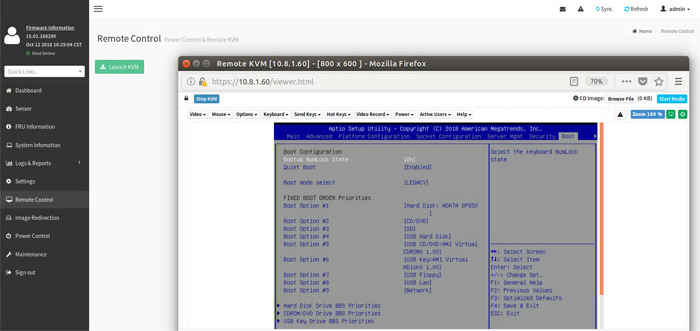

  6. Remote KVM with image redirection
  7. Event log and reporting
  8. Easy and convenient user management

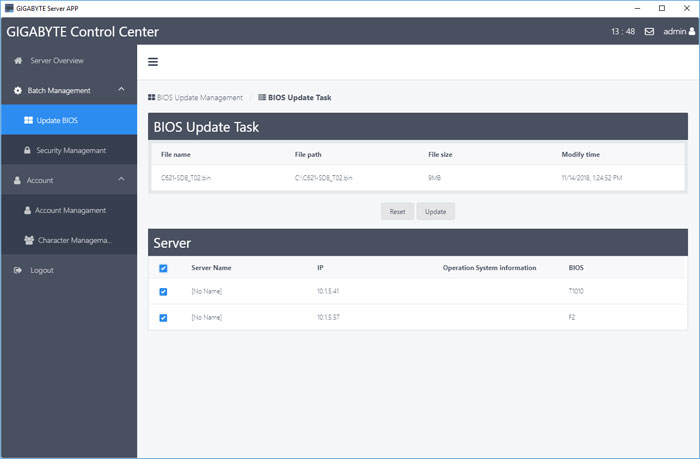

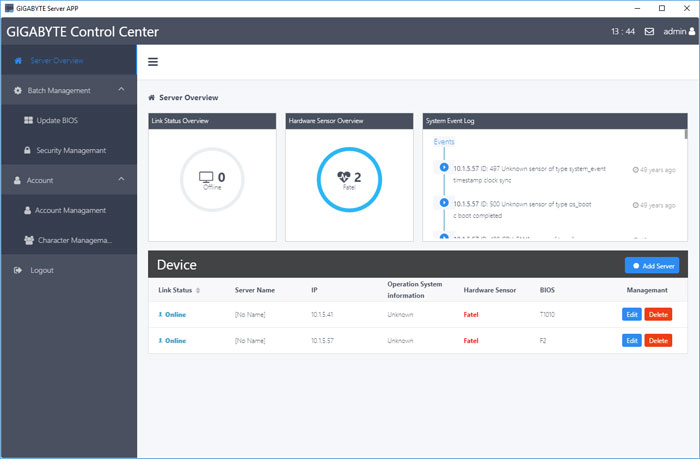

GIGABYTE Control Center
GIGABYTE Control Center is a windows-based application that helps IT managers to fully control and monitor multiple servers without hassle.

Key Features include:
  1. Hardware status monitor
  2. BIOS update
  3. Security management
  4. Easy and convenient user management
CONNECTIVITY

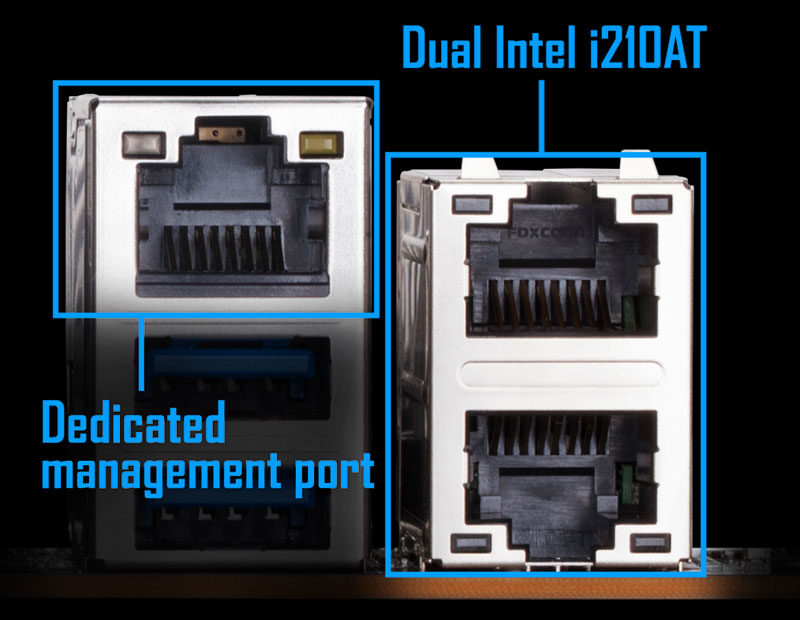

Dual Intel® Server GbE LAN and dedicated management port
  1. Support Windows Server O/S
  2. Teaming Features
    - Fault Tolerance
    - Link Aggregation
    - Load Balancing
  3. Dedicated management port improves security level and the BMC can be accessed by specific IPs or subnet.
