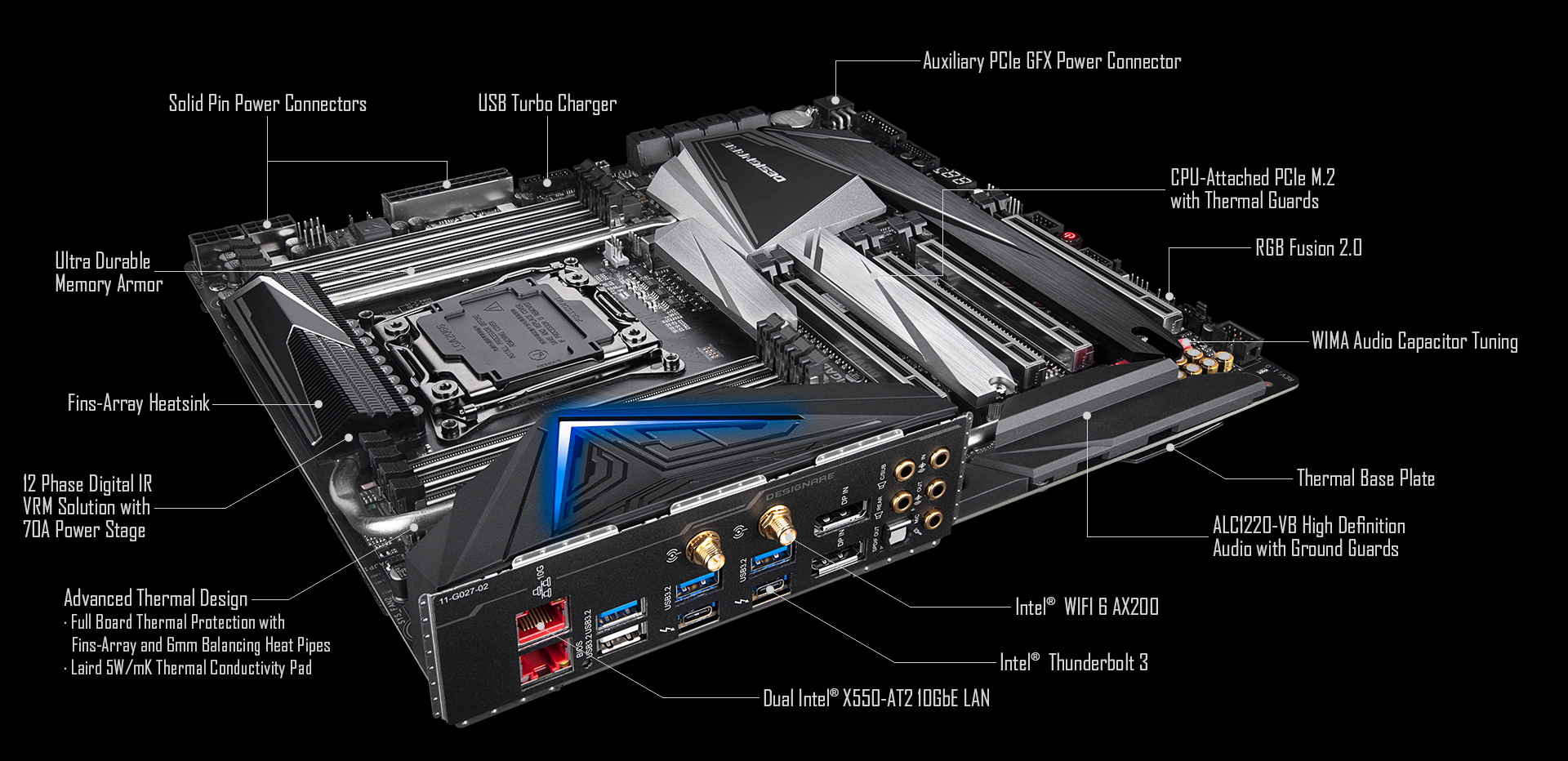

X299X DESIGNARE 10G

Server-Class Intel^® X550-AT2 Dual 10GbE LAN

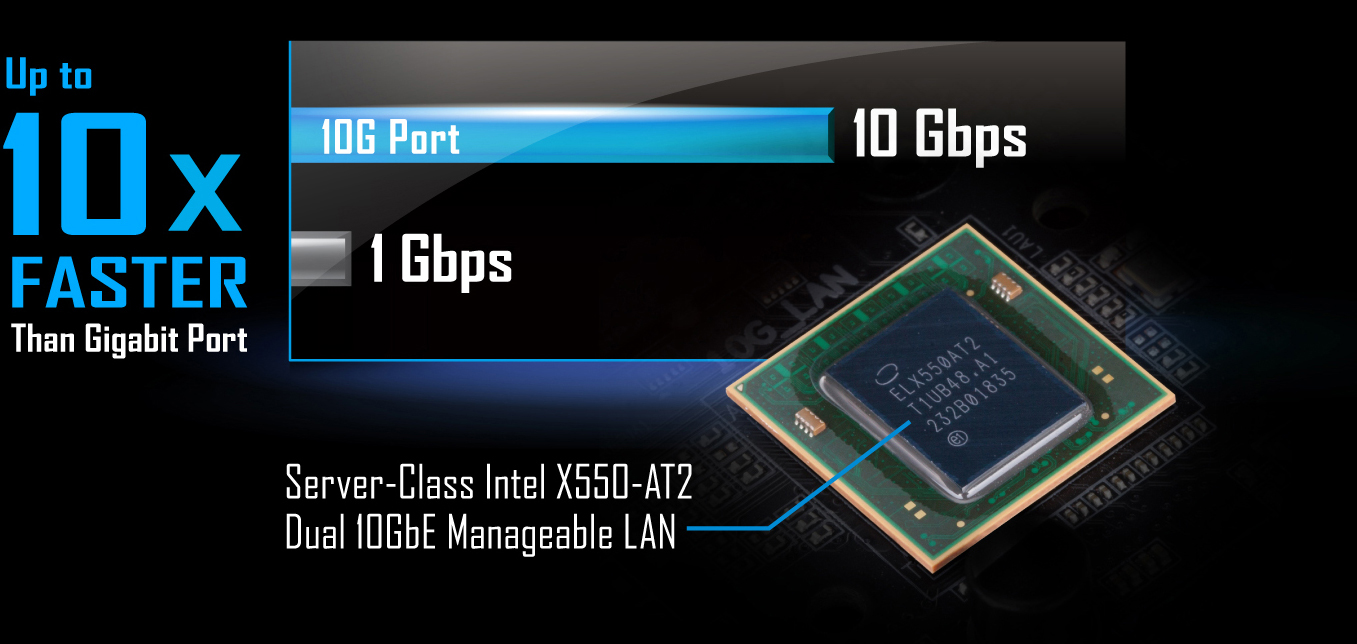

Pre-mounted Server-Class Intel^® X550-AT2 provides dual 10 GbE manageable connection for the system, further boosts the communication performance and reliability between clients.

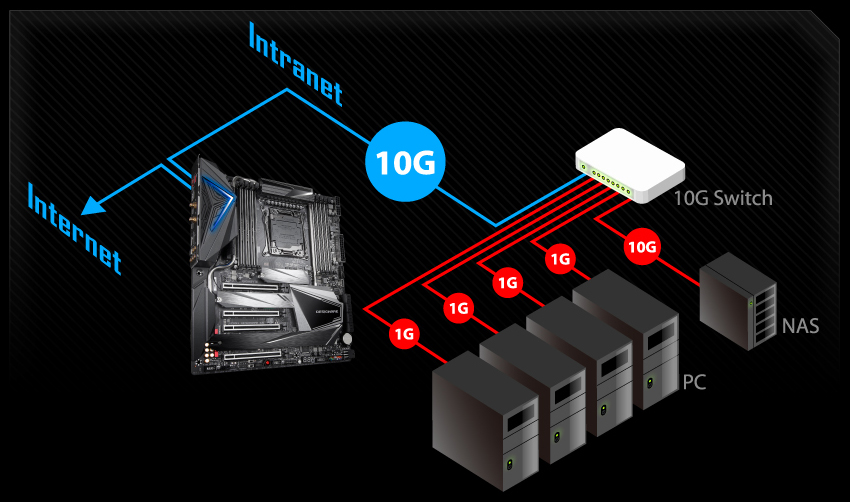

Benefits of Dual 10GbE Connectivity

PERFORMANCE

STABILITY

SECURITY

Link Aggregation for Higher Bandwidth.

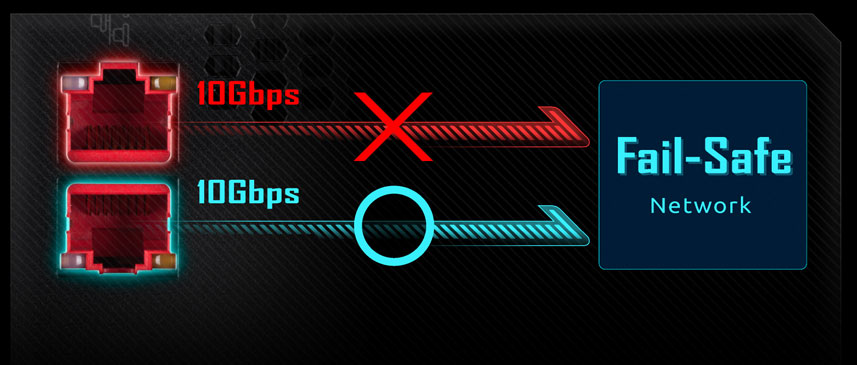

Higher Fault-Tolerance with Two Independent Internet link.

Separate Internet and Intranet Link to Two Different LAN Port.

12 Phases IR Digital VRM Solution with 70A Power Stage

To unleash the full power of the new Intel 18 core CPU, the motherboard demands un-precedented strong power solution. GIGABYTE R&Ds selects the best components and never stop pursuing the highest overclock performance. That makes X299X DESIGNARE 10G an un-beatable motherboard in the market.

• 70A IR Power Stage for each vCore Phase
• High current capacity MOSFET
• Lower temperature
• Server level reliability

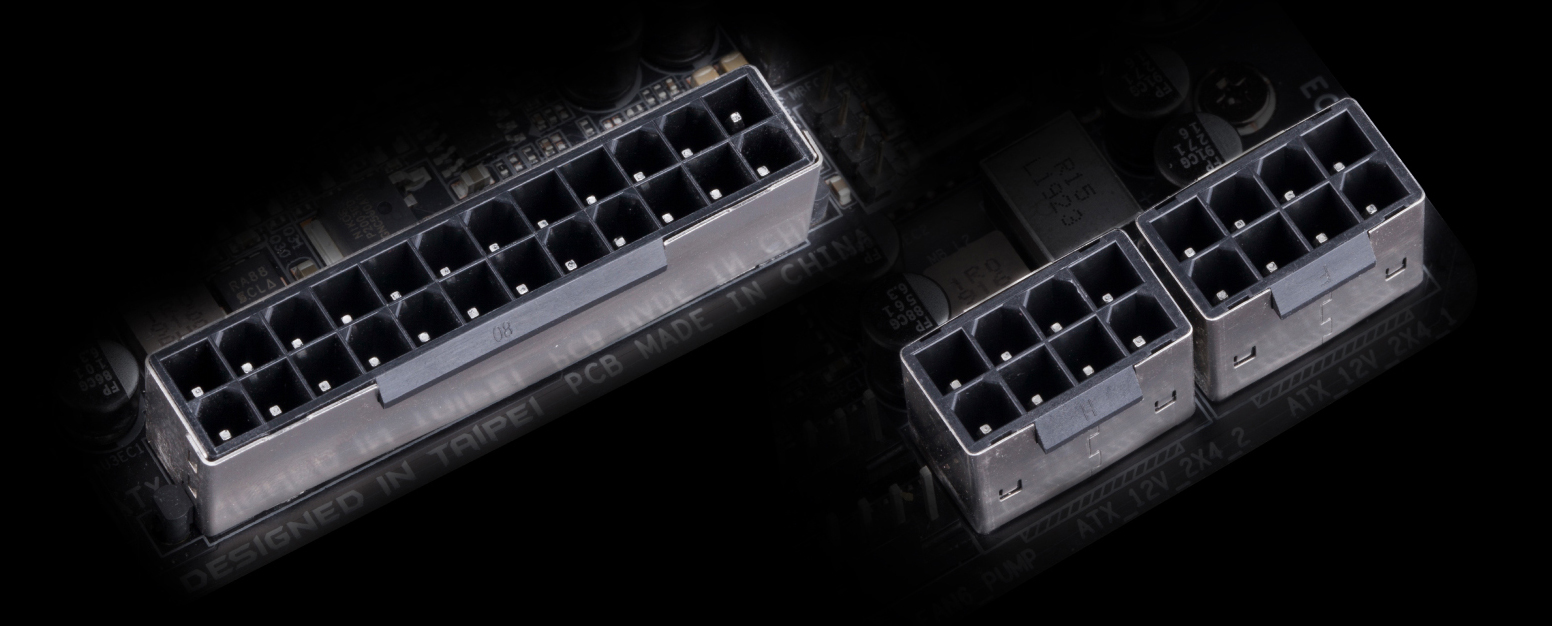

X299X DESIGNARE 10G motherboard adopts an all IR digital CPU power design which includes a digital PWM Controller with Power Stage MOSFET and is capable of providing 70A of power from each phase, for a total of incredible 840A. This 100% digital controller and additional 8+8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new 18-core 10th Gen Intel^® Core™ X processors.

Re-engineered Thermal Solution

With CPU draws bigger power than ever. Thermal solution are pushed to a limit. X299X DESIGNARE 10G features full Board Thermal Protection with Fins-Array and 6mm Balancing Heat Pipes . In order to place full Board Thermal Protection , we try hard to clear a path for it. Furthers, fins-Array Heatsink which increases the heat dissipation area by 300% compared to regular heatsinks of the same size. By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pad, it transfers 2.7x more heat than regular thermal pads in the same time period. 6mm Heatpipe helps to transfer heat between heatsinks which to get thermal balance more quickly. On the back, we use Nanocarbon coating on baseplate, which leads to 10% cooler MOSFETs.

1. Fins-Array Heatsink
Increase 300% heat dissipation area compared to traditional heatsink in same size.

2. High Thermal Conductivity Pad
By using 1.5mm thicker 5 W/mK thermal conductivity pad, it transfer 2.7x more heat than usual thermal pad in the same time period.

3. Aluminum Baseplate
Provides stronger support to the platform as well as better radiant heat dissipation.

4. 3 x 6mm Heatpipe
Heatpipe helps to transfer heat between heatsinks that helps to get thermal balance of the MOSFETs more quickly.

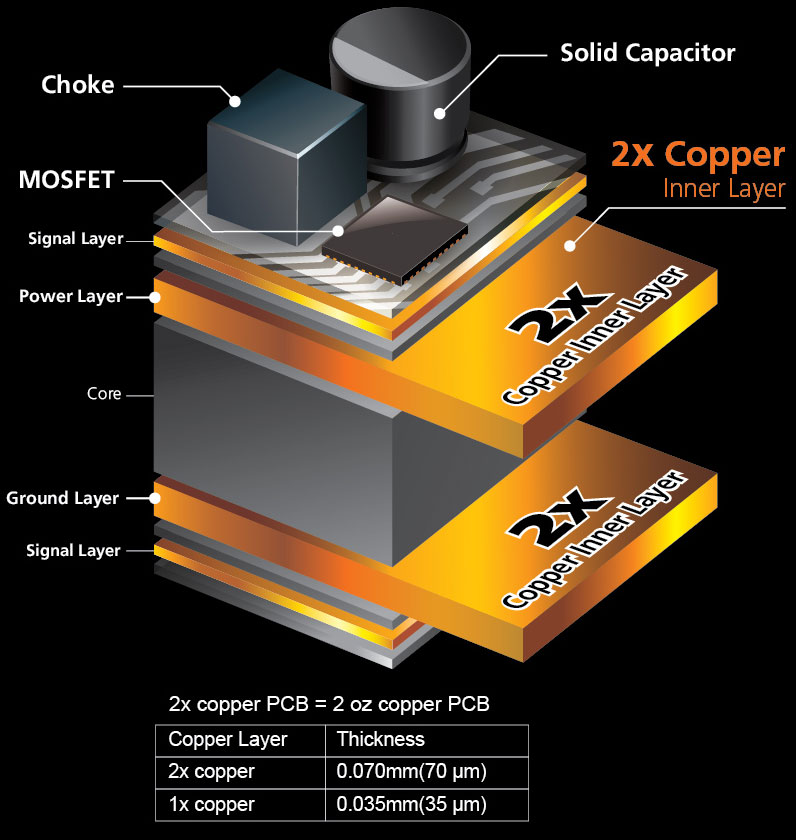

GIGABYTE's exclusive 2X copper PCIe 4.0 Ready PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

Support for DDR4 to 4333MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility to 4333MHz and beyond.

Smart Fan 5

With Smart Fan 5 users can ensure that their PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Pin Headers

Fan / Water Pump Pin Headers

Internal Temperature Sensors

External Temperature Sensors

Noise Detection Cable

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

Temperature Sensors

Hybrid Fan Headers

Temperature Sensor Cable x 2

Noise Detect Cable x 1

■ 8 Fan / Water Pump Connectors
■ 7 Temperature Sensors
■ 2 External Temperature Sensors
■ 1 Noise Detection Cable
■ All Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
■ Intuitive UI for Fan Control

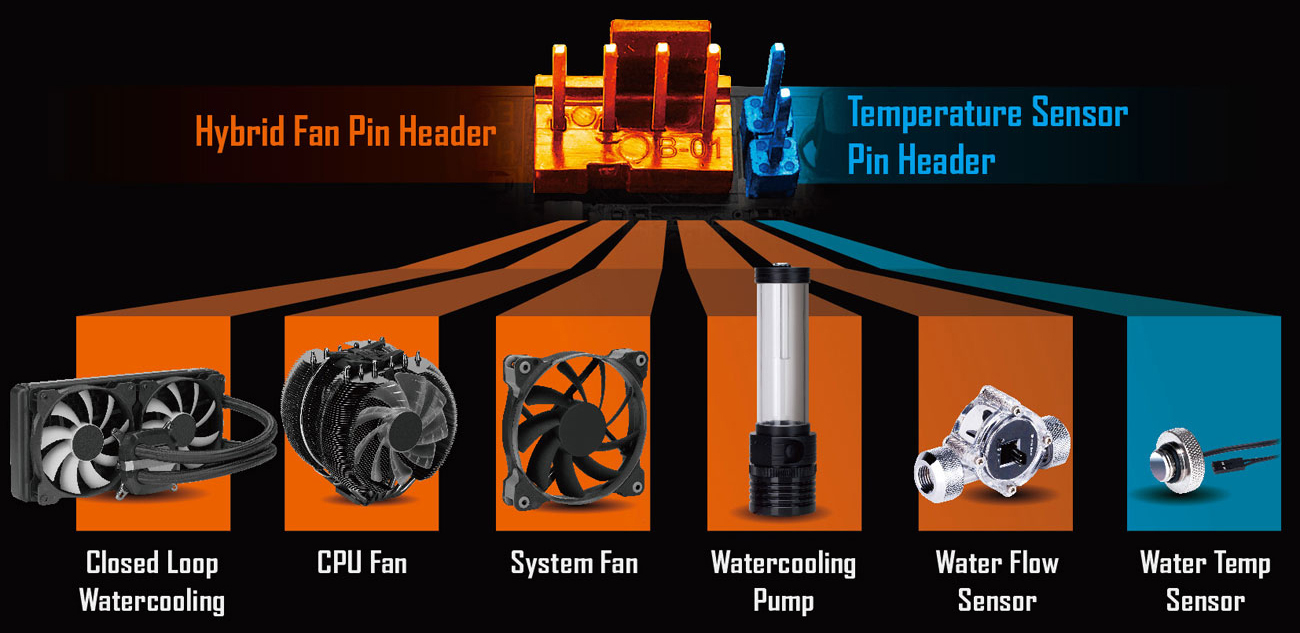

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

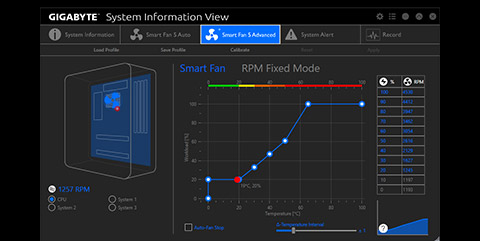

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

* Photos are for reference only.

ALC1220-VB Immersive Gaming ViBes

All New Realtek High-End HD Audio Codec

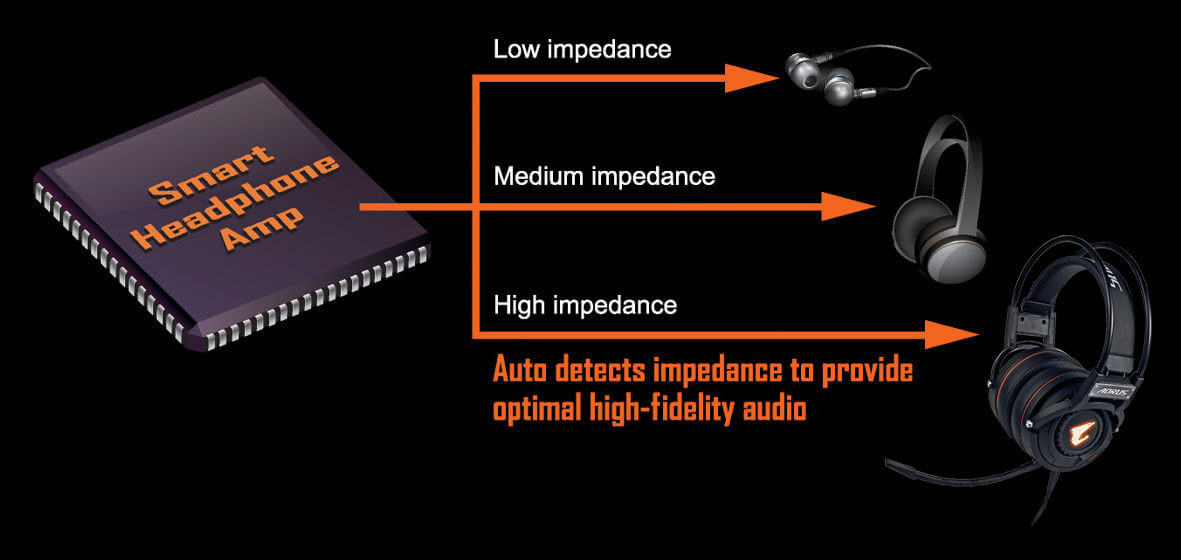

ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.

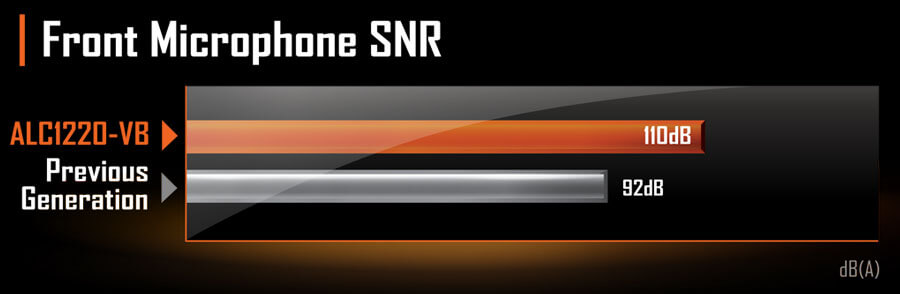

With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).

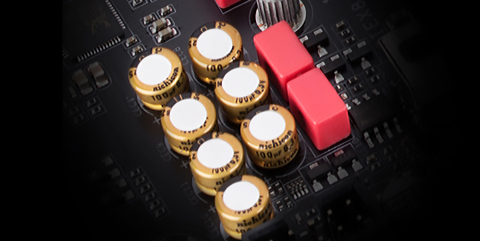

High-End WIMA & Audio Capacitors

The DESIGNARE motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

DTS :X^® Ultra

Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS^® codecs.

DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization.

Learn more about the immersive gaming sound experience powered by DTS Sound Unbound at https://dts.com/sound-unbound-app

*DTS Sound Unbound needs the latest Windows fixes in the Windows 10, please upgrade your Windows 10 OS to Win10 Build 18898 or later versions.

DTS:X Ultra Technology Video

DTS:X Ultra Experience Video

No More Confusion
During In-Game Voice Chat

Microphone input with higher front dynamic range allows gamers to hear more clearly. No more misunderstandings, no more confusing GO! GO! GO! as NO! NO! NO!

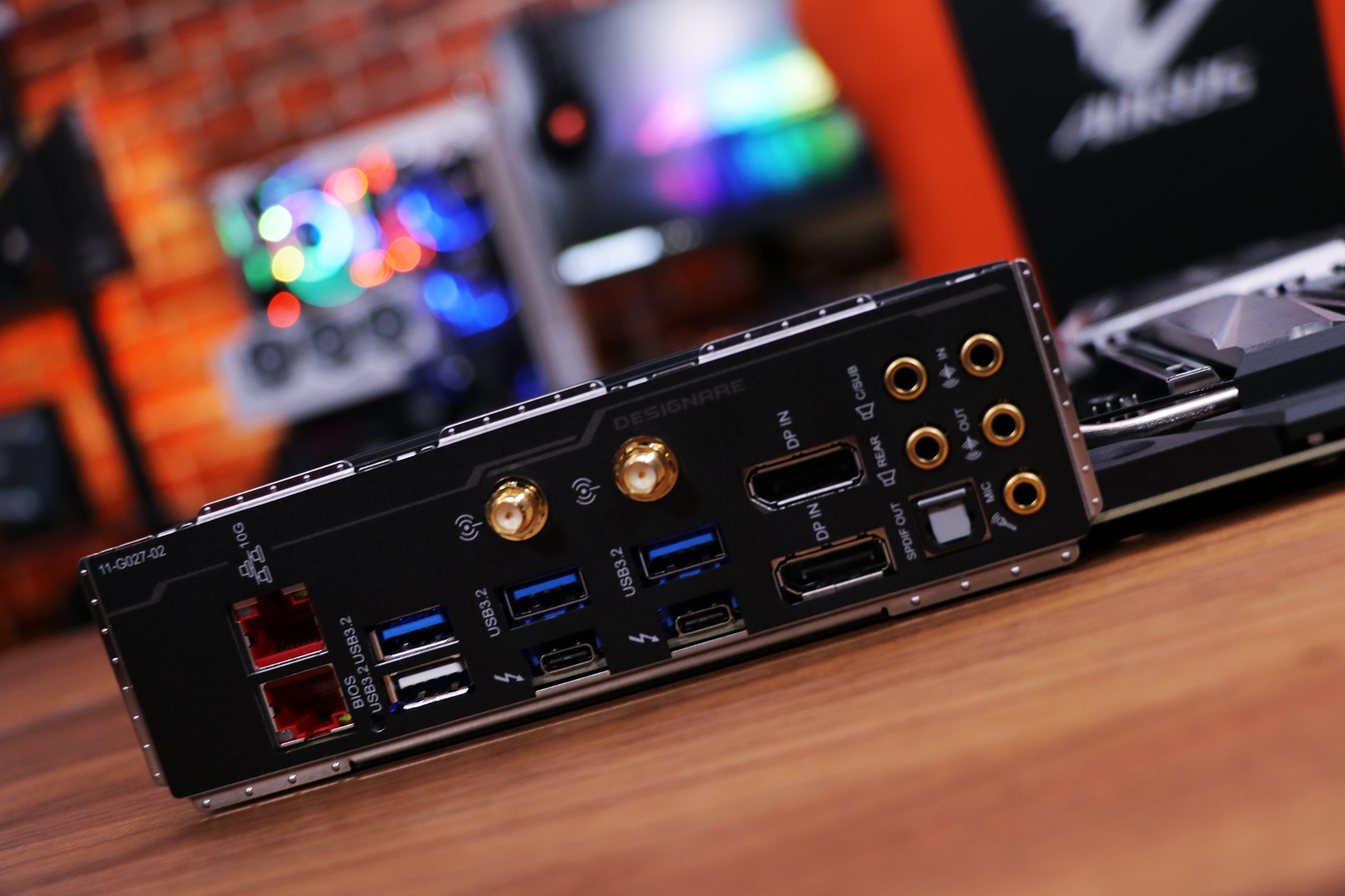

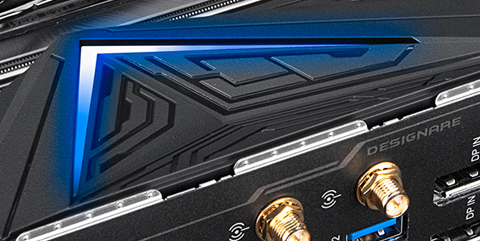

Integrated I/O Shield Armor
Durable Design And Easy Installation

With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield.

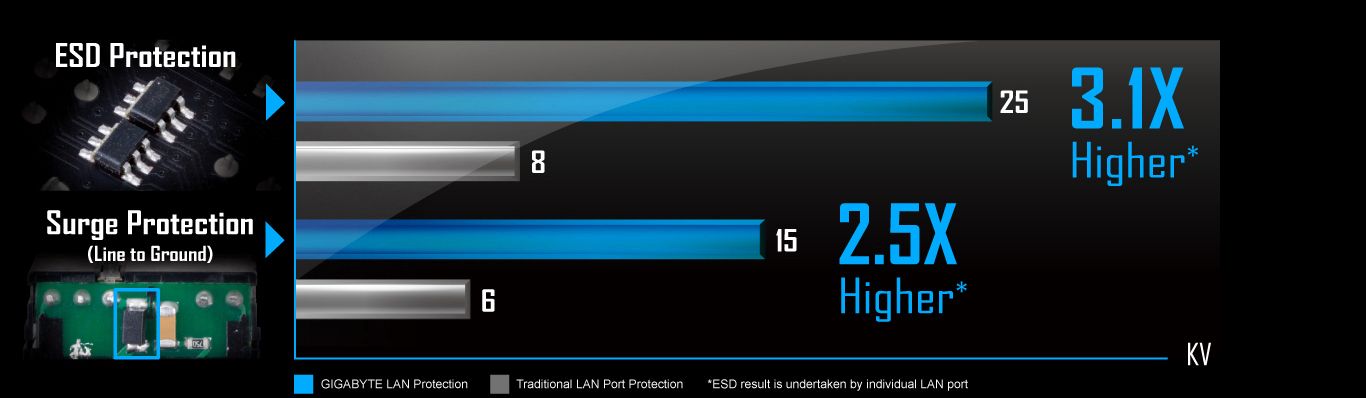

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

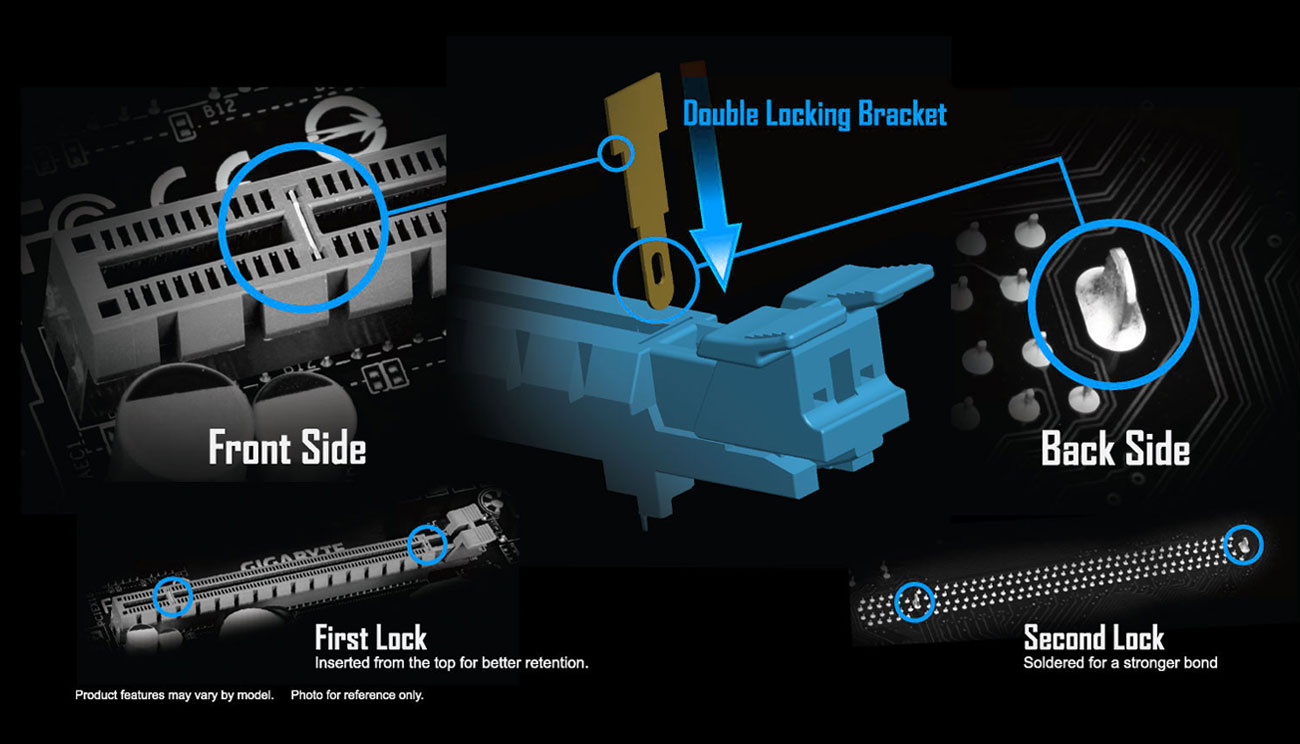

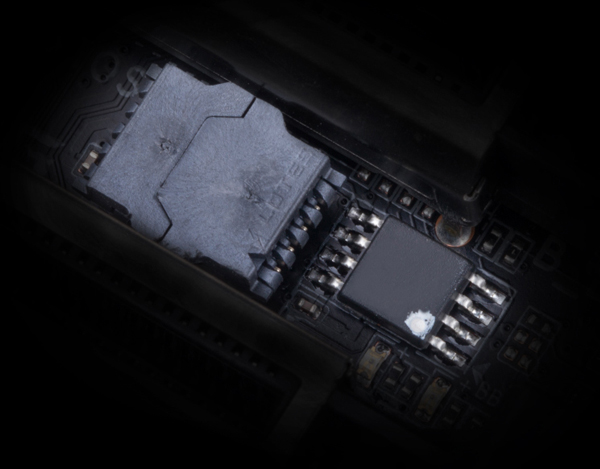

GIGABYTE Patented Double Locking Bracket

GIGABYTE Patented
DualBIOS™ Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

* Photo for reference only.

GIGABYTE BIOS & Applications

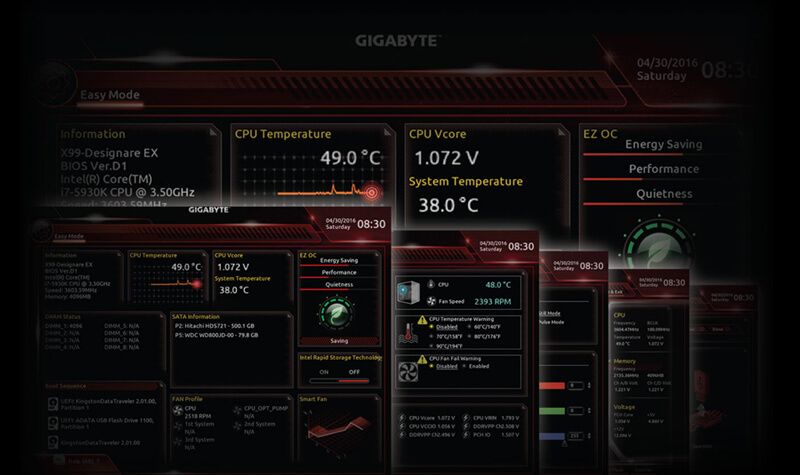

BIOS

* Photo for reference only.

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Optimized Memory Installation Reminder

Displays correct installation reminder message when user installs two memory modules but runs single channel mode.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

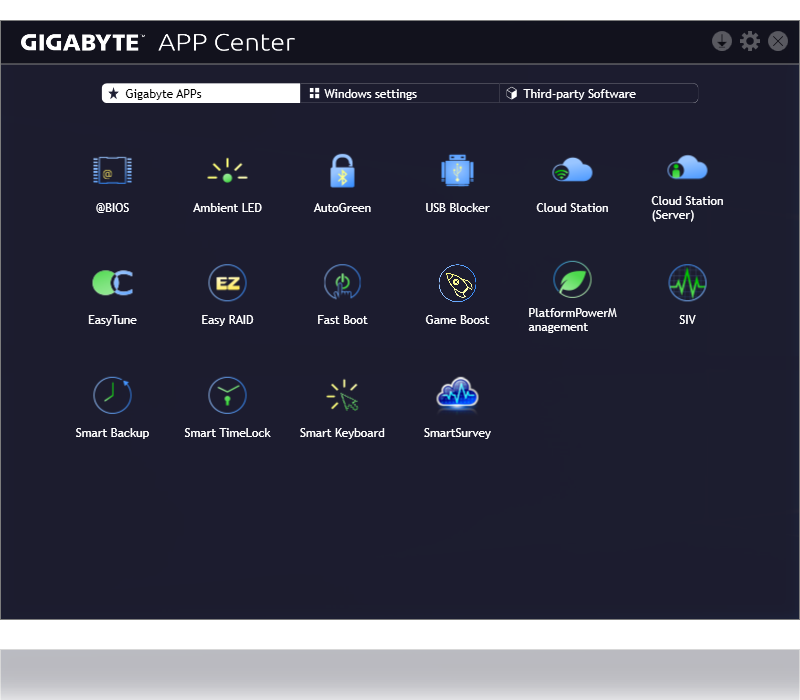

APP CENTER

GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.
* Photo for reference only.

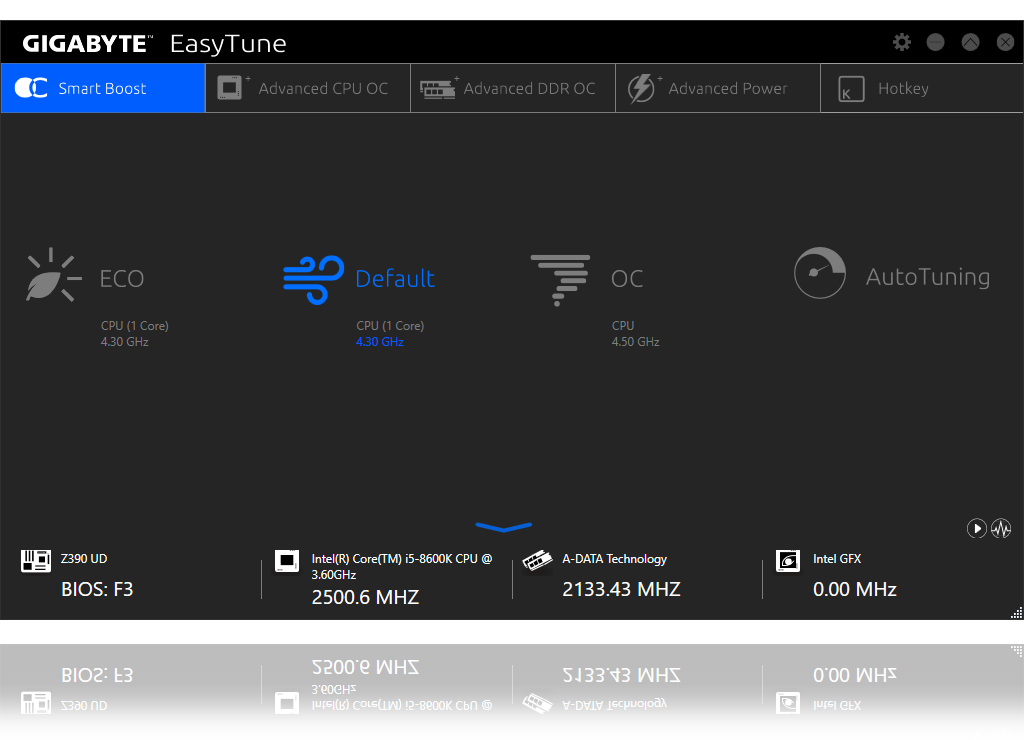

EasyTune™

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
* Photo for reference only.

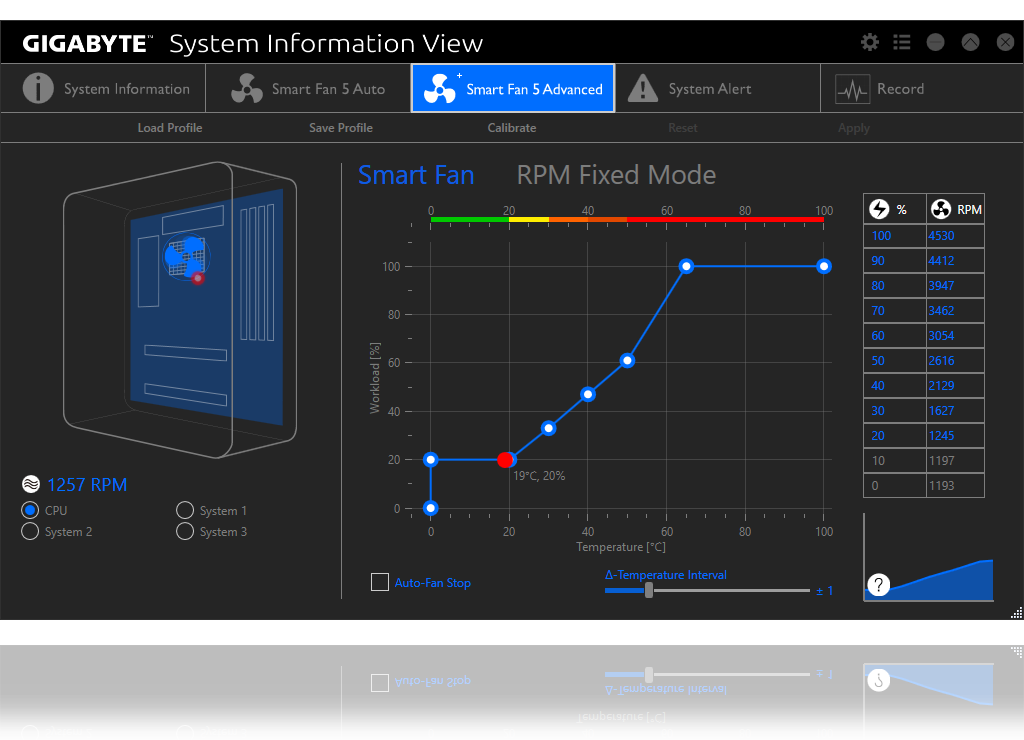

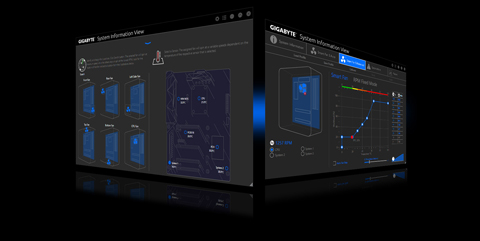

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
* Photo for reference only.
