The falcon utilizes its powerful wings to soar through the skies and lock down its prey. The AORUS
Core takes inspiration from the falcon’s aerodynamic wings, incorporating a multi-layered design which
features wing shaped contours and also resembles the falcon’s high velocity ascension and dive through the
skies. With sleek and metallic armor, the AORUS Core symbolizes advancement in technology with its

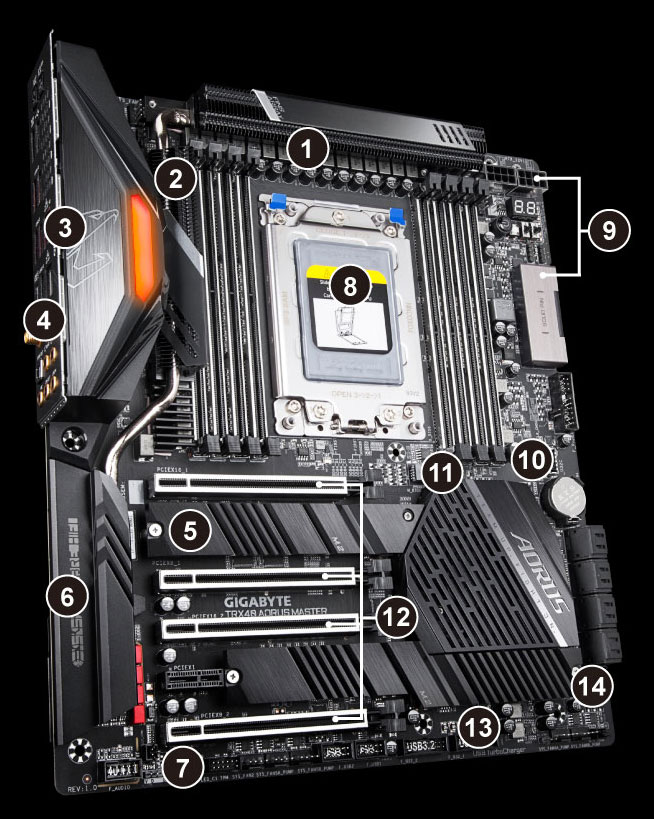

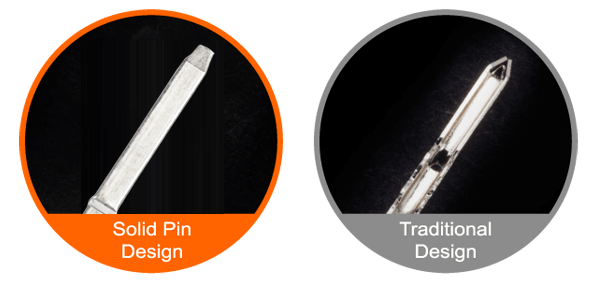

• 24 Pin ATX Power Connector
• 8+8 Pin CPU Power Connector

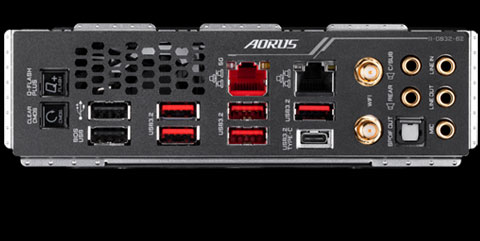

Front USB 3.2 Gen2 Type-C™

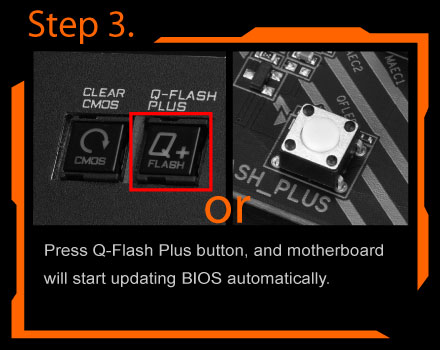

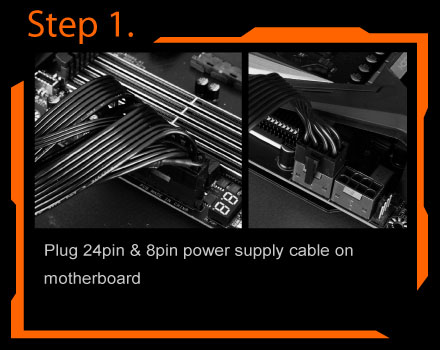

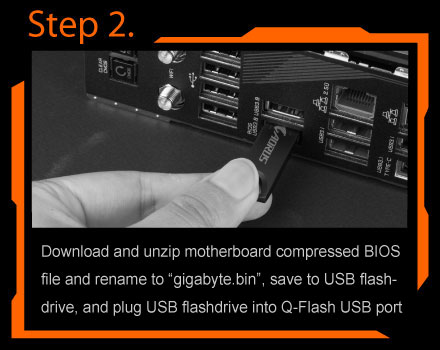

DualBIOS™ with Q-Flash Plus
• Socketed BIOS ROM
PCIe 4.0 x16/x8/x16/x8

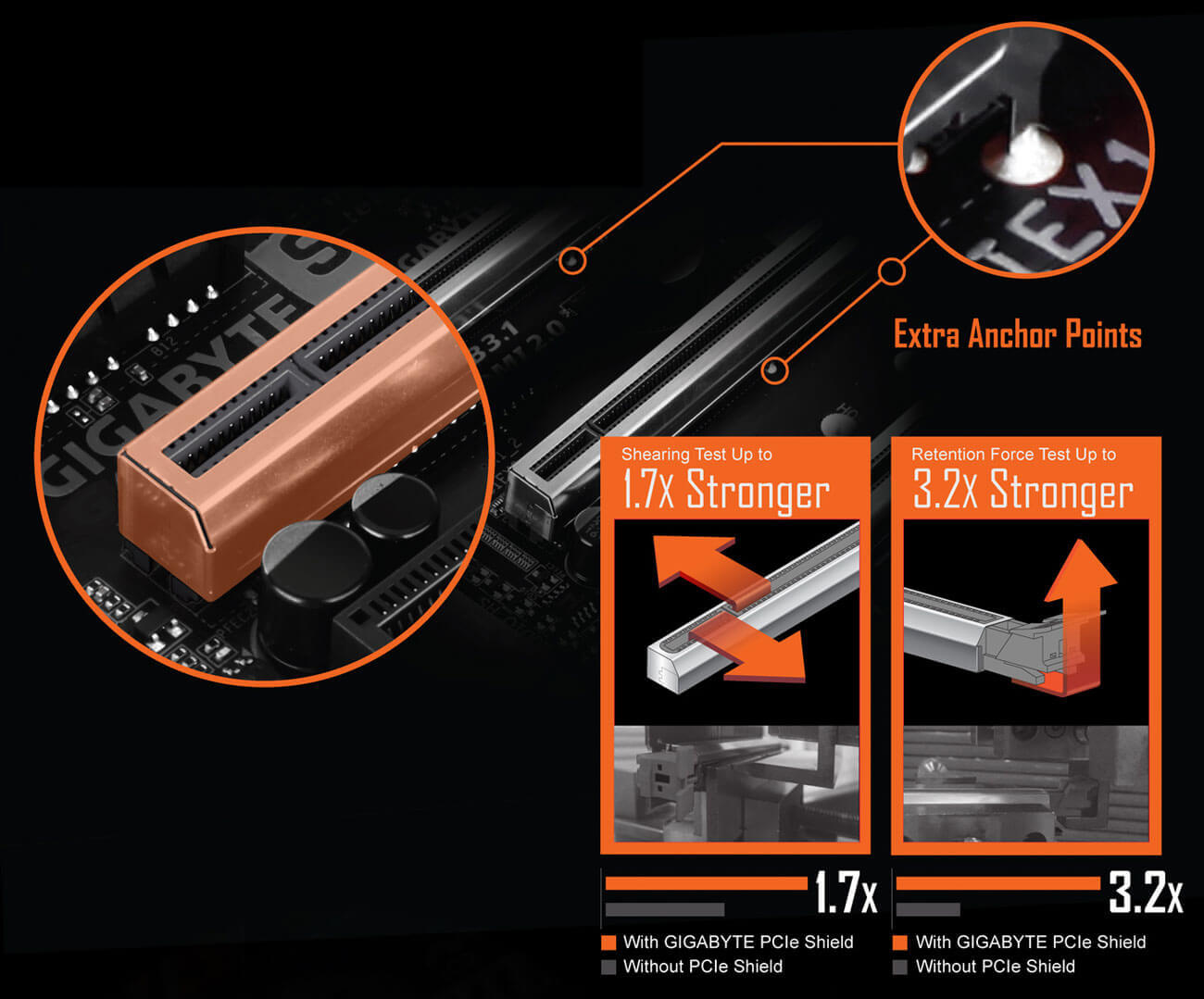

• 4 x Ultra Durable PCIe Armor

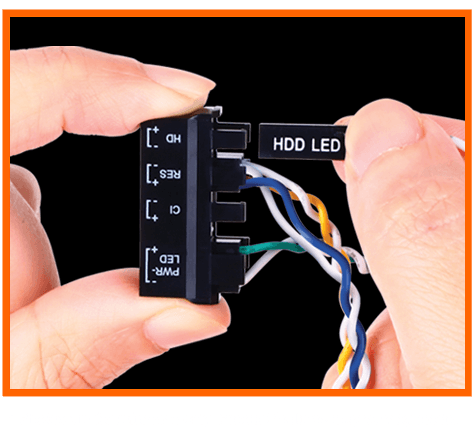

GIGABYTE Add-in Card Connector

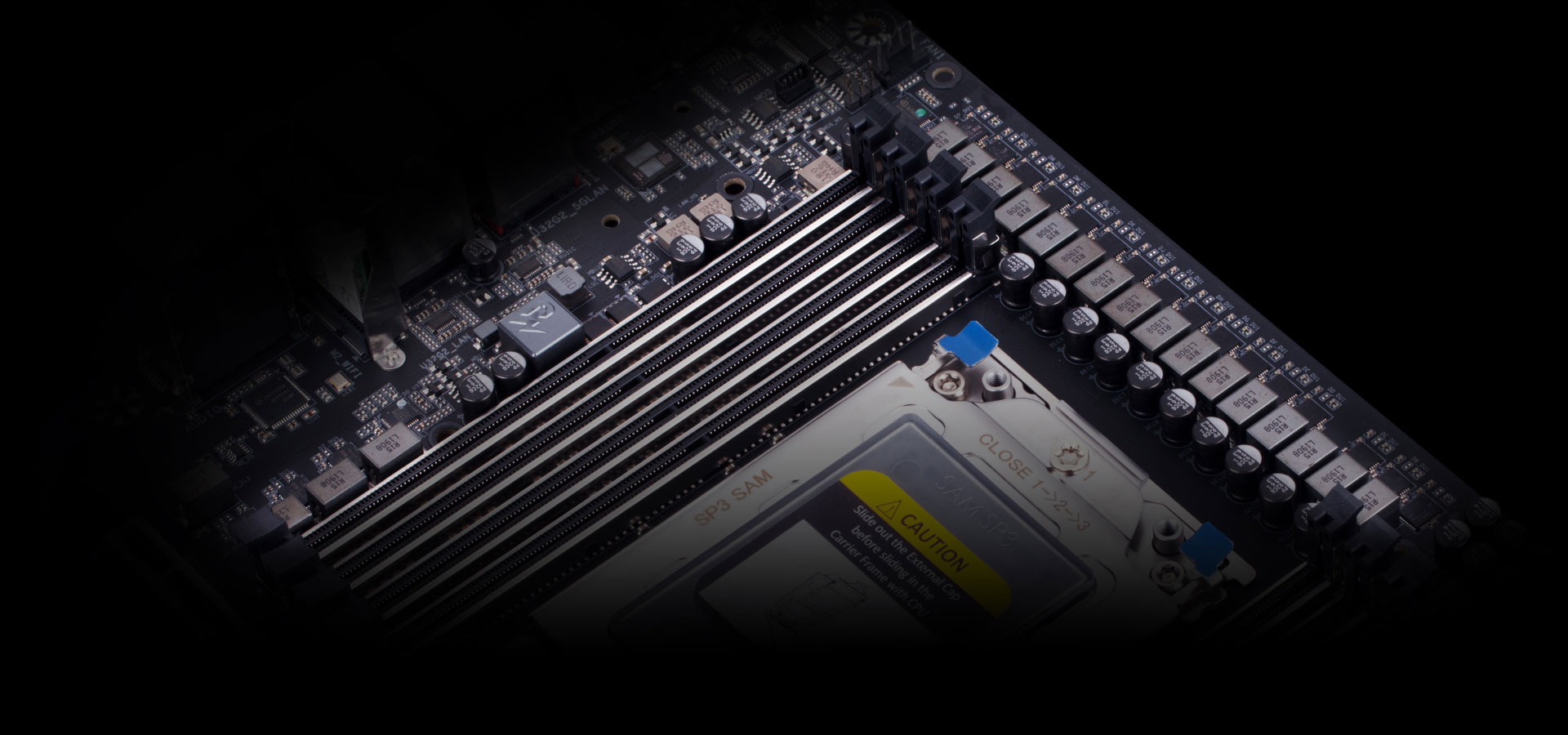

Ultimate Power Design
To unleash the full potential of the 3rd Generation AMD Ryzen™ Threadripper™ CPU, the
motherboard requires the best CPU
power design. With the best quality components and GIGABYTE R&D design capability, TRX40 AORUS MASTER is a
Ultimate Power Design
16+3 Direct Digital Power Design
2X Copper PCB
Direct 16 Phase Power Design

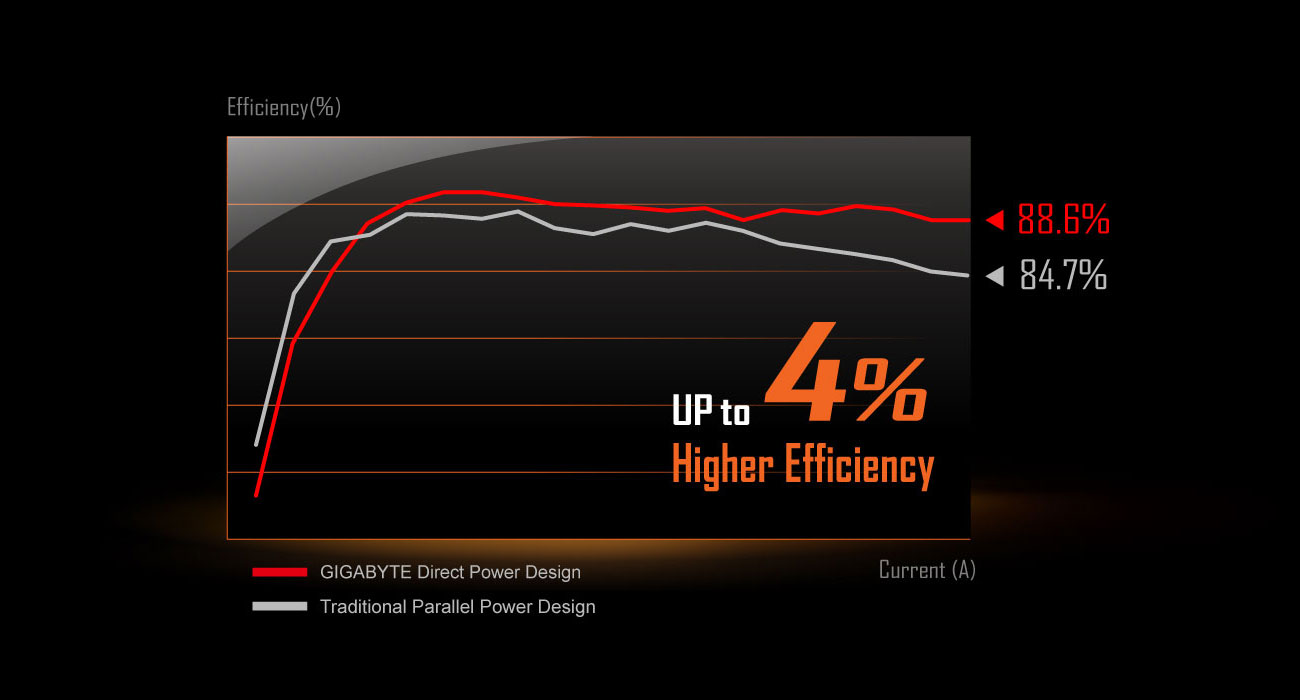

Power Efficiency & Voltage Ripple Graph

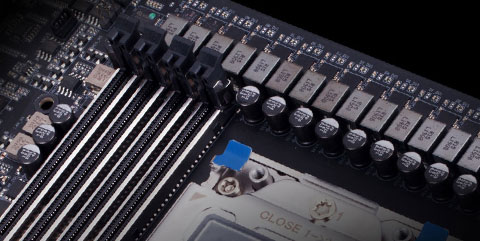

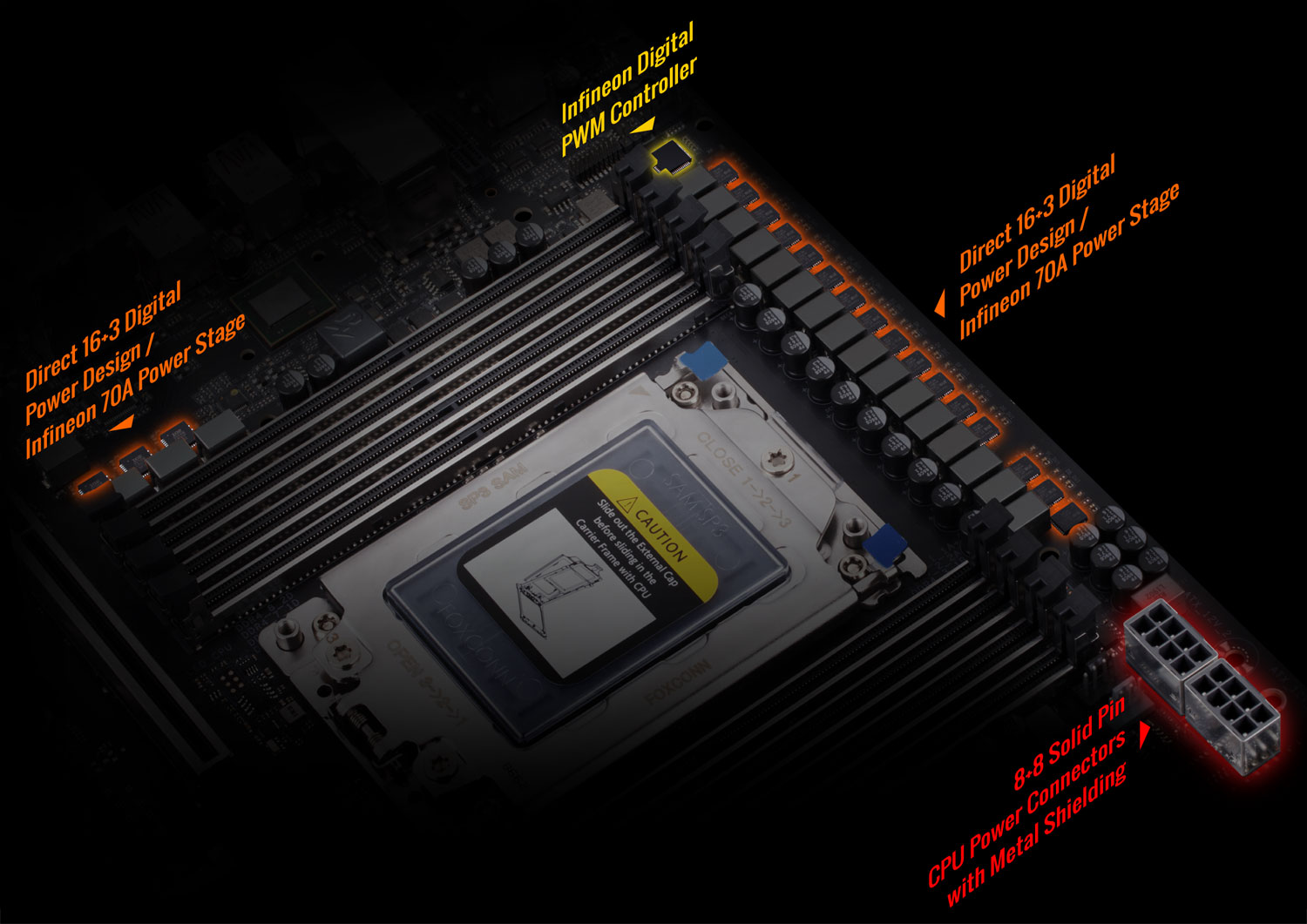

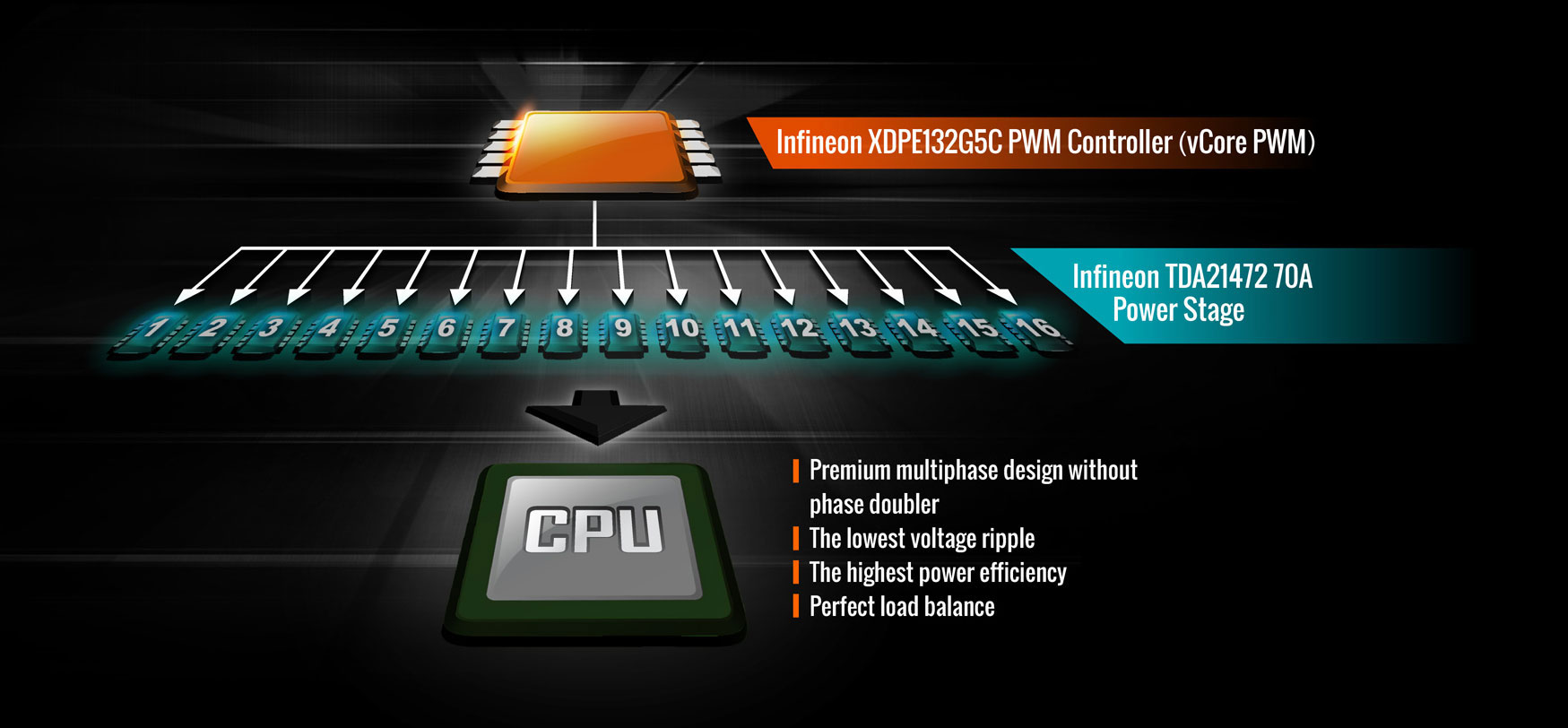

Direct 16+3 Phases Infineon Digital VRM Solution
TRX40 AORUS MASTER motherboard uses latest new generation Infineon multiphase PWM
controller, and a
total 16+3 phase for
vCore and SOC, all with Infineon TDA21472 Power Stage MOSFET which is capable of providing
70A of power from
each phase, for a total of amazing 1330A. Power design is no longer a bottleneck for this
New Direct Multiphase Power Design
No Doubler / Not Parallel
Next-Gen Infineon PWM Controller
70A Power Stage
The Lowest Voltage Ripple
The Highest Efficiency

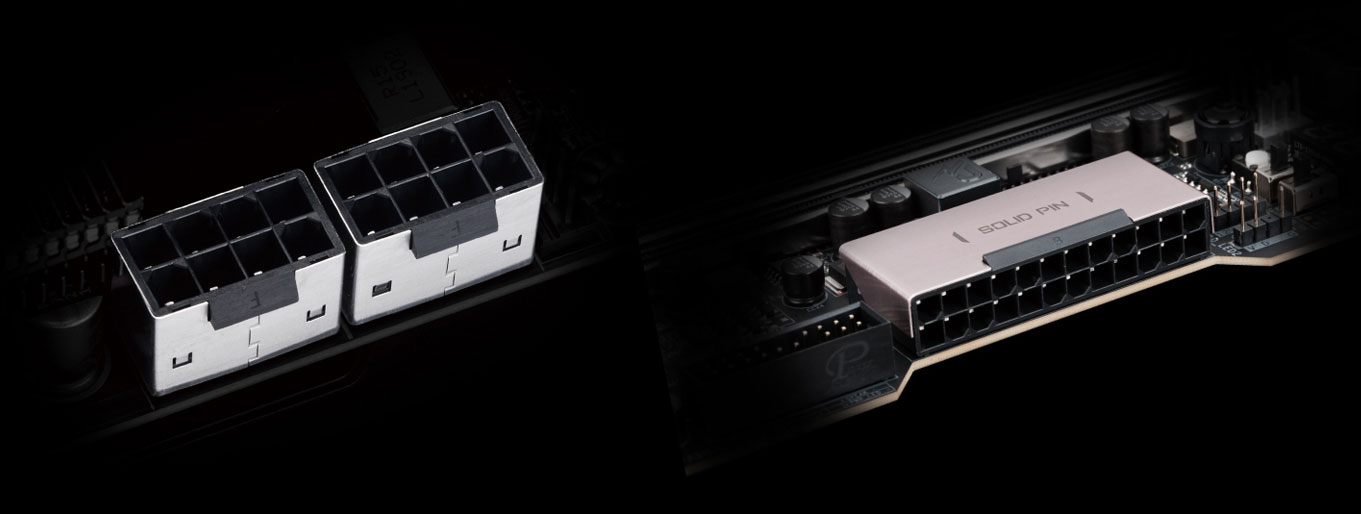

8+8 Pin Metal Shielding Connector

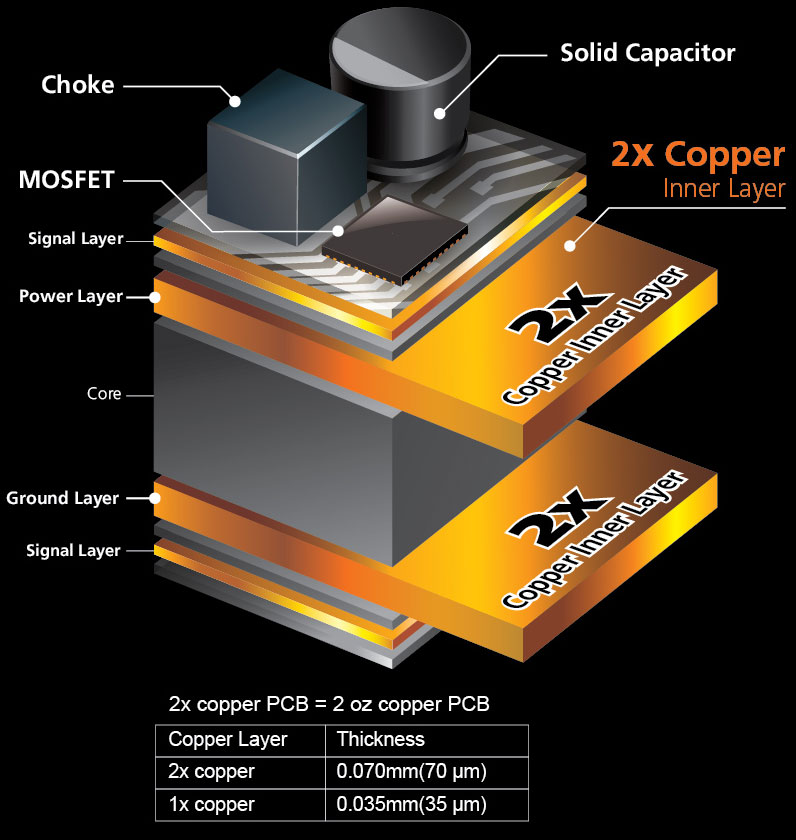

GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between
components to handle greater than
normal power loads and to remove heat from the critical CPU power delivery area. This is
essential to ensure the motherboard is able to handle the increased power loading that
necessary when overclocking.
Advanced Thermal Design
TRX40 AORUS MASTER reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array
heatsink, Heatpipe and a thermal baseplate, to provide lower MOSFET temperatures for enthusiasts, overclockers and

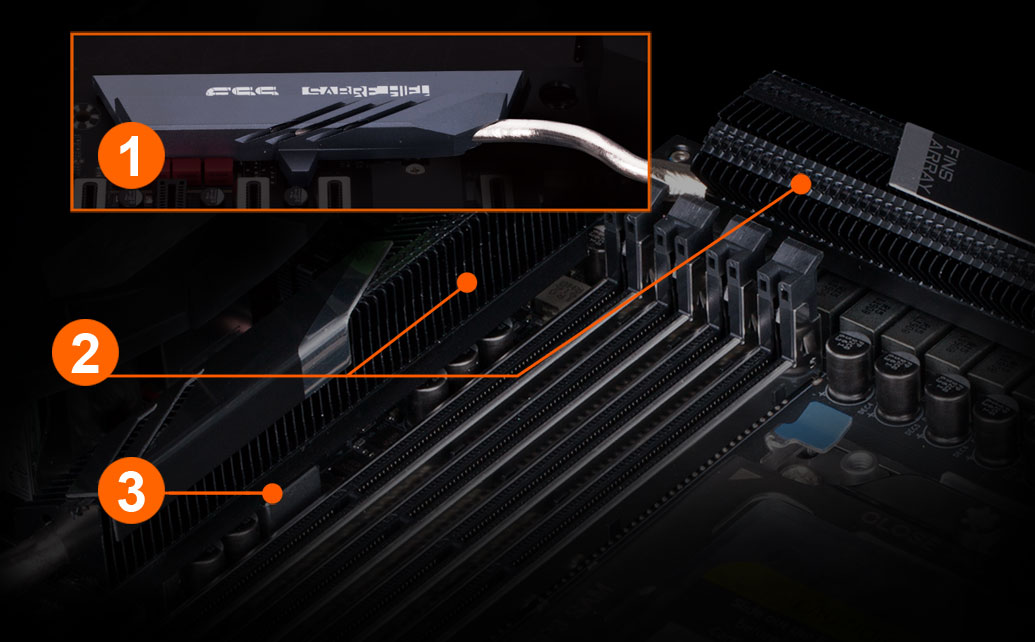

Advanced Thermal Design
8X Hybrid Fan Header

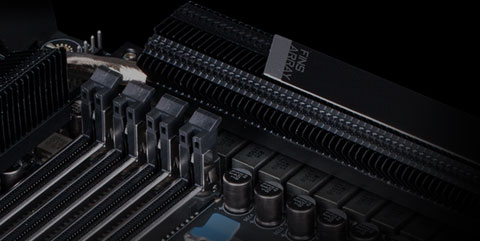

1. Heatpipe with Extended Heatsink
Extended heatsink with Heatpipe is capable of transferring more heat from MOS fins
under same time period.
Fins-Array increases the heat dissipation surface by 300% compared to traditional
heatsinks of the same size.
3. 5 W/mK LAIRD Thermal Pad
By using LAIRD 5W/mK high thermal conductivity pads, it can transfer 2.7x more
Smart Chipset Fan Heatsink
Provides several different operating modes to minimize noise and extend the fan's longevity. You can choose the mode that suits you the best in any situation.
TRX40 motherboards built-in a 5cm ball bearing fan which guarantee 50,000* working hours to cool down the heat brought
out by the TRX40 chipset.
* MTBF, A standard measurement that continuously operates under certain criteria with 90
% of confidence level.
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD
devices. The M.2 Thermal
Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps
to dissipate heat
before it becomes an issue.
Thermal Throttling As Temperature Rises

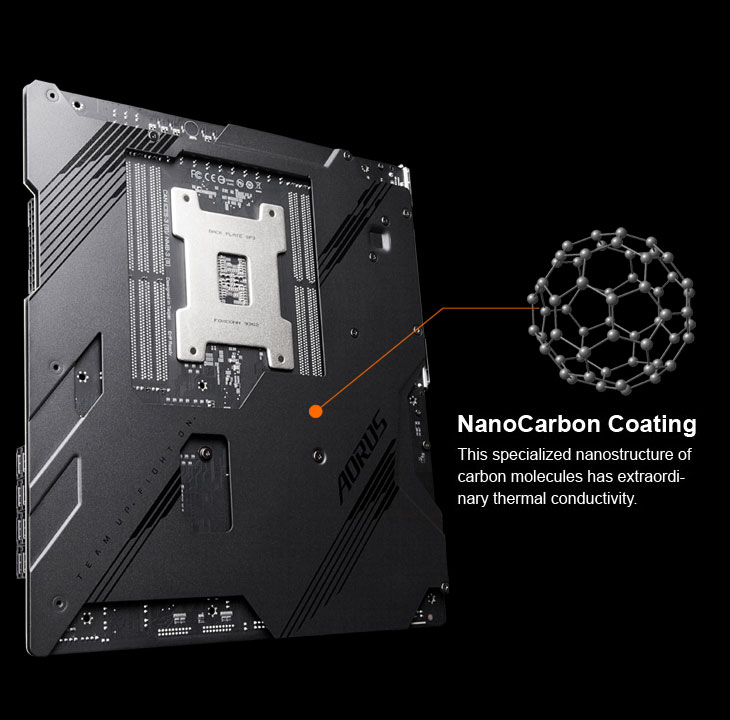

Base plate made of aluminum instead of traditional iron ensures 3X thermal conductivity.
A thin layer of NanoCarbon is coated on the base plate through electrostatic adhesion to
enhance thermal radiation capability.
Transfer heat from the back side PCB to the base plate so the NanoCarbon base plate can
dissipate heat passively.
Effectively lowers backside PWM component temperature by 10%.
This specialized nanostructure of carbon molecules has extraordinary thermal conductivity.

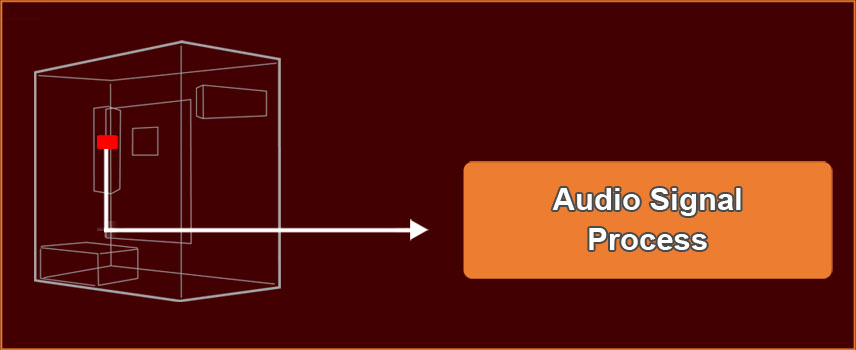

With the new Noise Detection function, you can monitor noise level of all devices including
CPU coolers, graphics
card, etc. in real time, and you can determine how fast your fan speed needs to be. Our
Noise Detection cable
doesn’t include any sound recording function, it simply detects sound pressure while
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its
performance while staying
cool. Smart Fan 5 allows users to interchange their fan headers to
reflect different thermal
sensors at different locations on the motherboard. Not only that, with
Smart Fan 5 more hybrid
fan headers that support both PWM and Voltage mode fans have been
introduced to make the motherboard
more liquid cooling friendly.
Fan / Water Pump Connectors
Hybrid Fan Headers
Temperature Sensor Cable x 2
Noise Detect Cable x 1
■ 8 Fan / Water Pump Connectors
■ 7 Temperature Sensors
■ 2 External Temperature Sensors
■ 1 Noise Detection Cable
■ All Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2AX12V) with
■ Intuitive UI for Fan Control
* Different models have a different number of fan pin headers and
temperature sensors. Smart Fan 5 function may vary by model.
Achieve fan silence. With Fan Stop, map any fan to
stop completely when temperatures
drop below a specified threshold. Which fan stops, based on readings
from which sensor, and at
what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design
Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives
on flow-rate and water-temperature through the Hybrid Fan Pin Headers or
external thermistor sensors—giving
you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling
device whether it be fan
or pump with different PWM or Voltage mode.

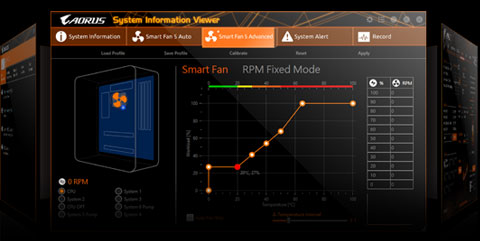

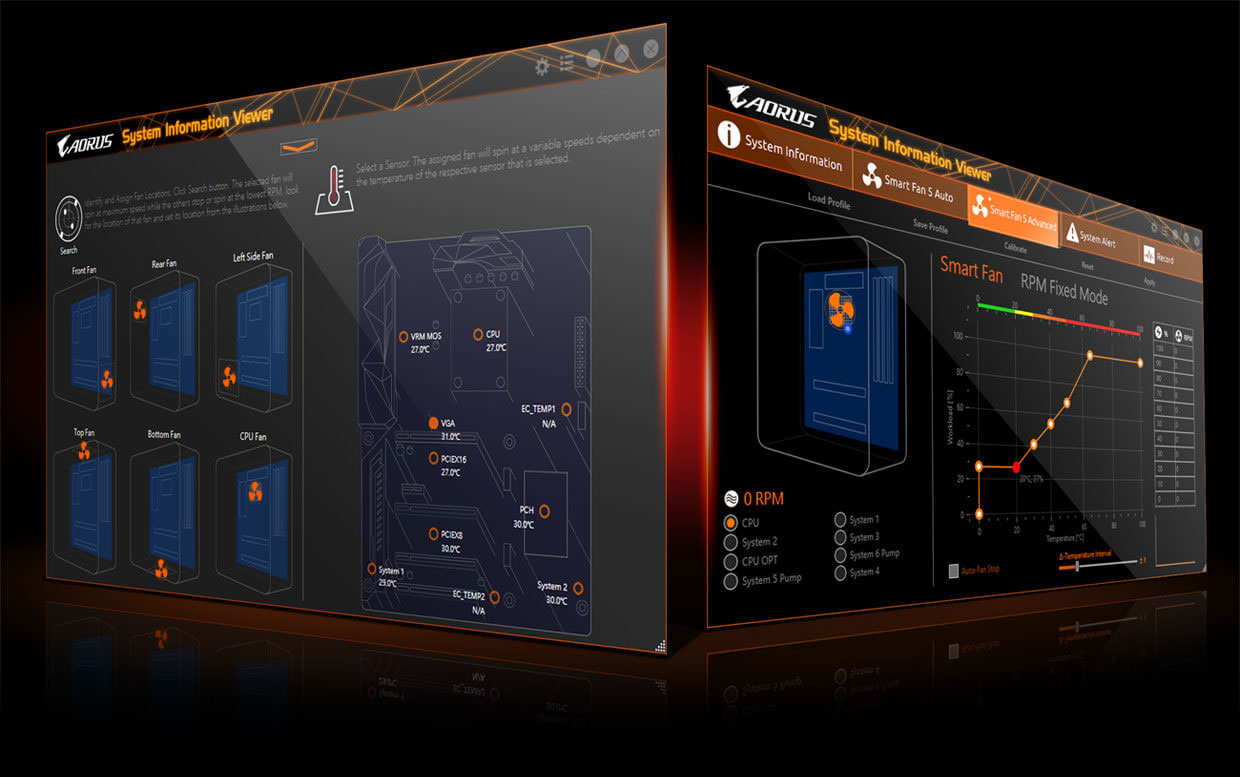

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage
For each fan or pump, you can use the intuitive fan curve to define trigger
thresholds and corresponding

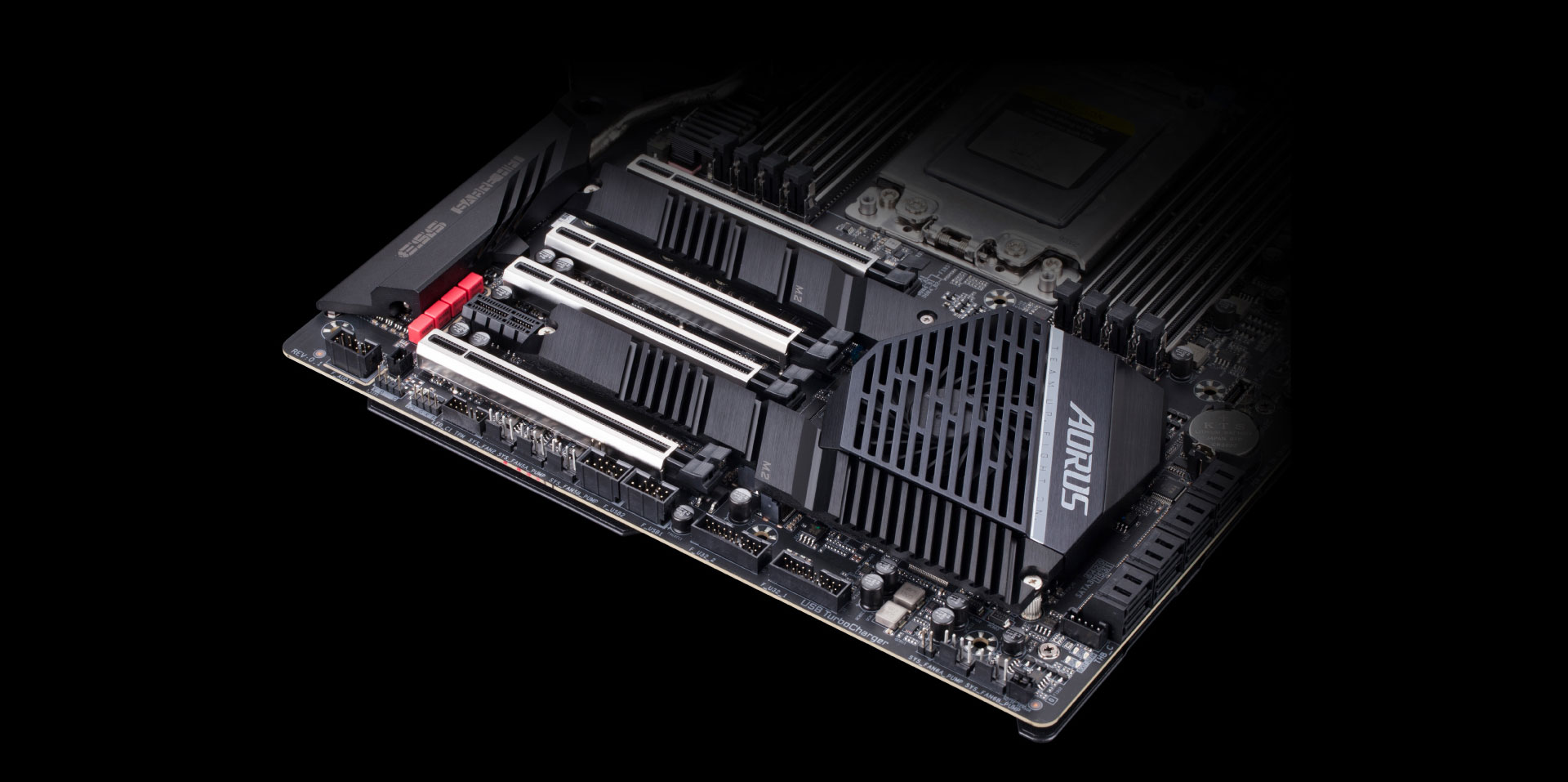

TRX40 AORUS MASTER pushes the envelope once again by featuring Full PCIe 4.0 Design, delivering highly optimized
performance and flexibility demanded for power users and extreme gaming enthusiasts.

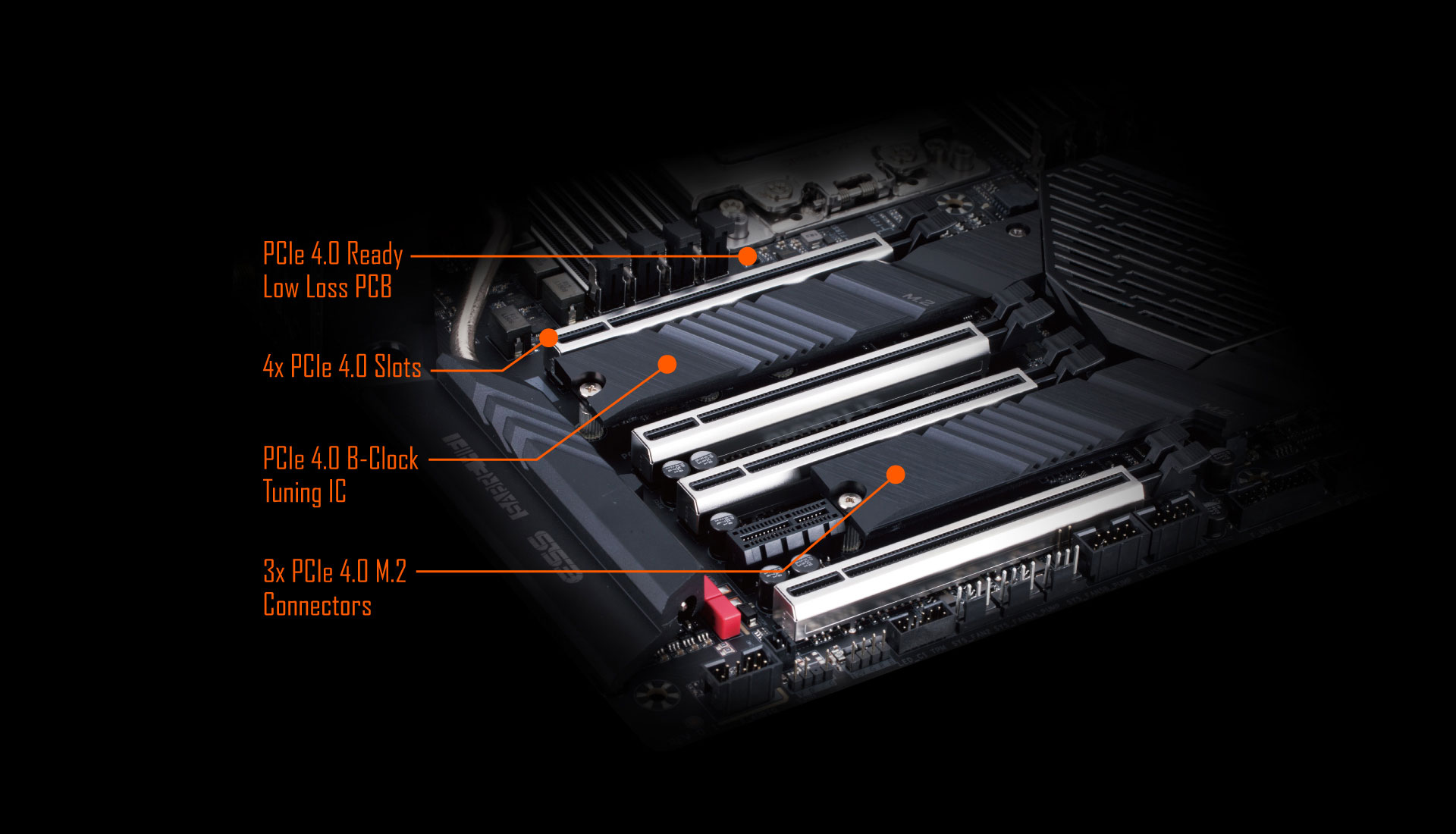

PCIe 4.0 Design
3X M.2 PCIe 4.0 x4
TRX40 AORUS MASTER equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots,
M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 4.0. There will be no compromised on PCIe

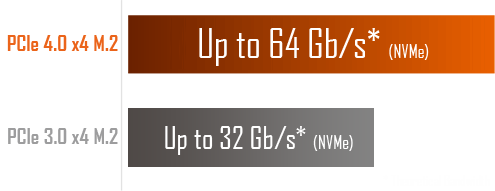

2X Theoretic Bandwidth vs. PCIe 3.0
PCIe 4.0 Switch and Re-driver IC
New Low Impedance PCIe and M.2 Slot
PCIe 4.0 Ready 2X Copper PCB
The Best PCIe 4.0 Signal Quality
External clock generator for PCIe 4.0 overclocking.

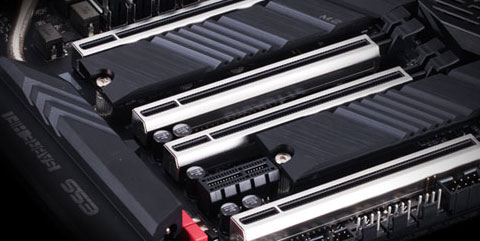

2. 4X PCIe 4.0 Slot
Reinforced PCIe 4.0 x16/x8/x16/x8 with lower impedance.
3. PCIe 4.0 Re-driver
Boost & strengthen PCIe 4.0 signal to longer length.
4. 3X M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with lower impedance.
PCIe 4.0 x16
PCIe 3.0 x16
* Theoretical bandwidth based on PCI Express specification
Up to 31.5GB/s*
Up to 15.8GB/s*
Slot Signal Stability*
PCIe 4.0 Slot
PCIe 3.0 Slot
* Based on PCIe 4.0 differential impedance specification
Low Signal Loss PCB
PCIe 4.0 Low-Loss PCB

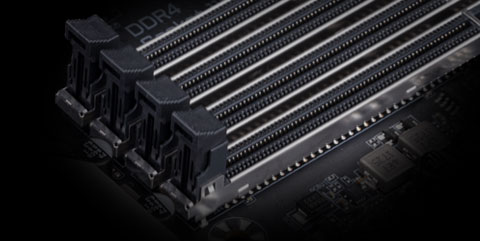

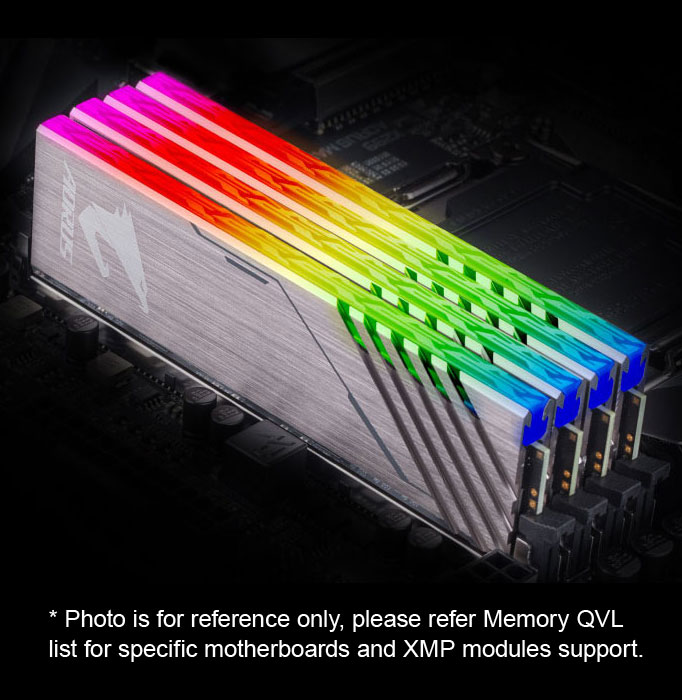

Support for DDR4 XMP Up to 4400MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper
compatibility with profiles up to 4400MHz and beyond. All users need to do
to attain this performance boost is
to ensure that their memory module is XMP capable and that the XMP function
is activated and
enabled on their AORUS
Broad DDR4 Compatibility with Support List of 1000+ DDR4
AORUS partners very closely with memory vendors from around the world to
ensure that modules offered
by popular memory brands are compatible with AORUS Motherboards. AORUS has
verified over 1000+ different
modules to ensure performance in a AORUS built system.

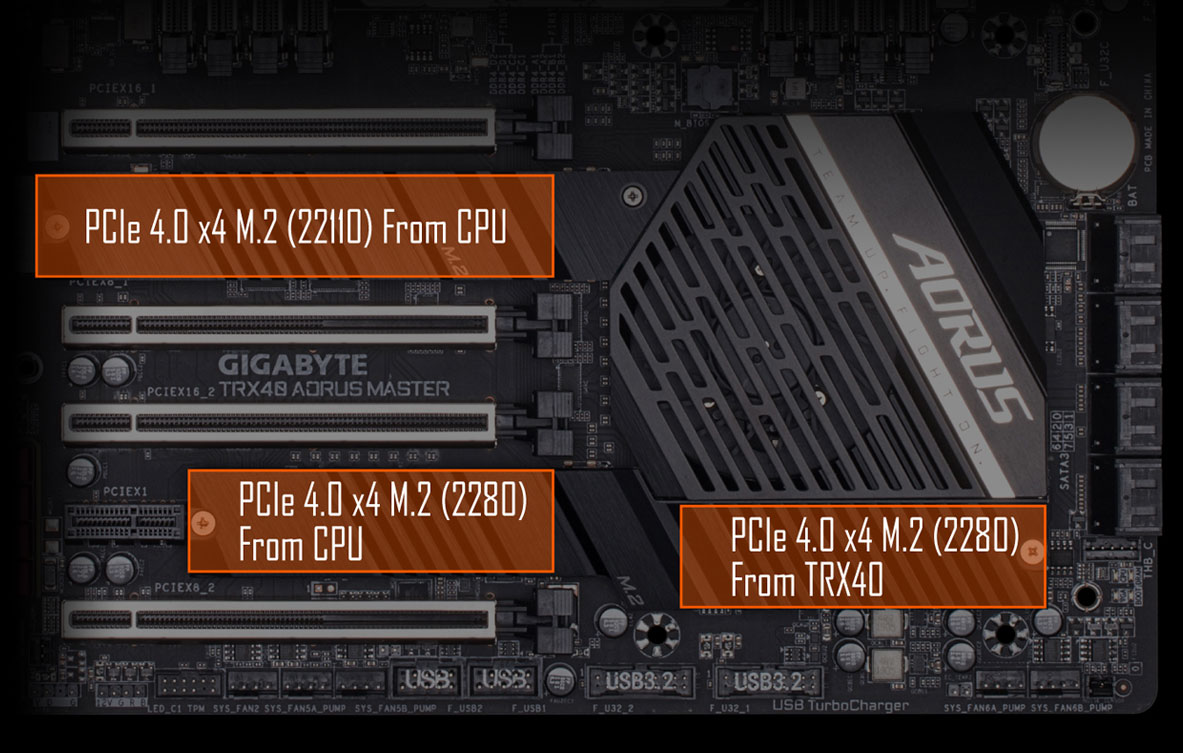

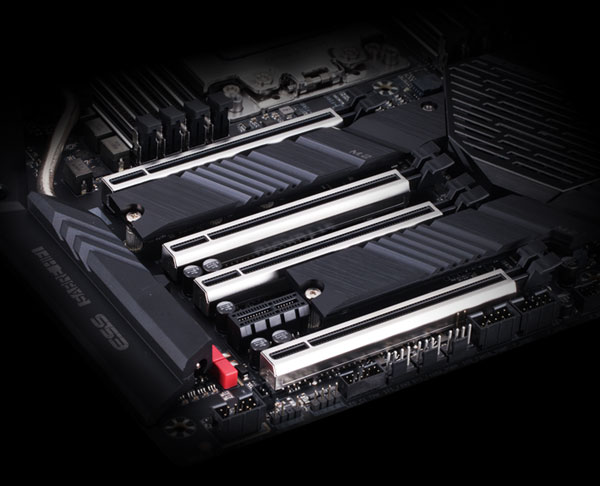

Triple PCIe 4.0 M.2 Connectors with Thermal Guards
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems’
Triple PCIe 4.0 SSD in RAID 0
Extreme Performance with PCIe 4.0 x4 NVMe PCIe SSDs
AORUS TRX40 motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high
capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 12460
MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. TRX40 AORUS
MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
Next Generation Connectivity
AQUANTIA® 5 GbE LAN
Intel® GbE LAN
WIFI 6 802.11ax
AQUANTIA® 5GbE BASE-T Networking
Next Generation Multi-Gig Gaming
The AQUANTIA® AQC111C is a high-performance, backward compatible with 5GBASE-T/
2.5GBASE-T/ 1000BASE-T/ 100BASE-TX
Ethernet Controller which is able to provide up to 5 GbE network connectivity, with 5 times faster
compared to general 1GbE networking and is perfectly designed for media centers, workstations and

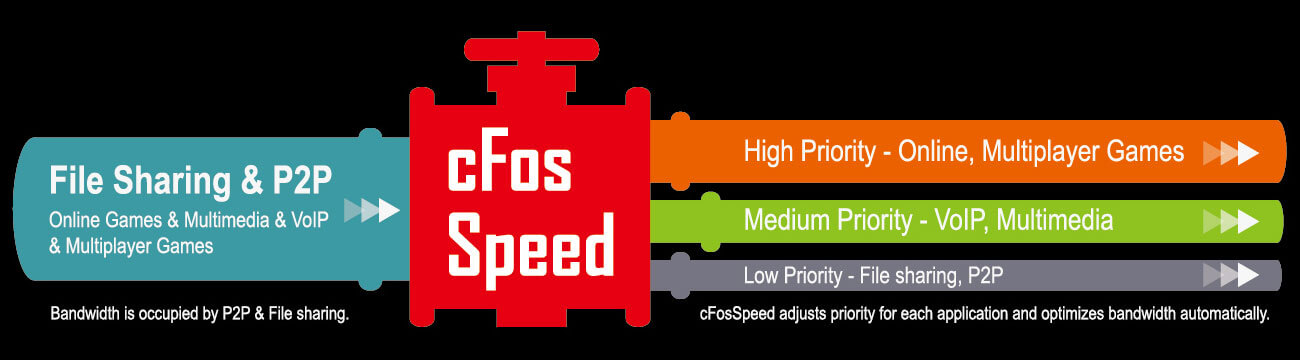

Intel® GbE LAN with cFosSpeed Internet
Intel® GbE LAN features cFosSpeed, a network traffic management
helps to improve
network latency and maintain low ping times to deliver better responsiveness in crowded
New Introduce Intel® WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides
smooth video streaming, better
gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5
provides 4X range over BT
4.2 and with faster transmission.

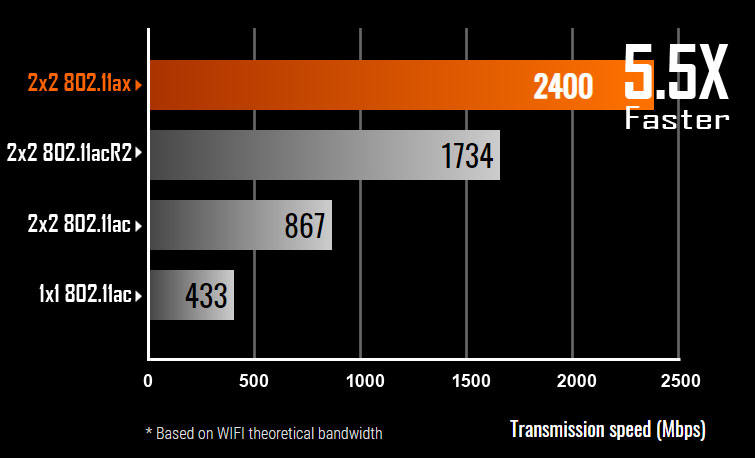

Benefit of WiFi 6:
5.5X throughput than 802.11ac 1x1*
4X better network capacity, no traffic jams especially in those dense area with lots
Network efficiency increase for better user experience
Transmission speed (Mbps)
* Based on WIFI theoretical bandwidth

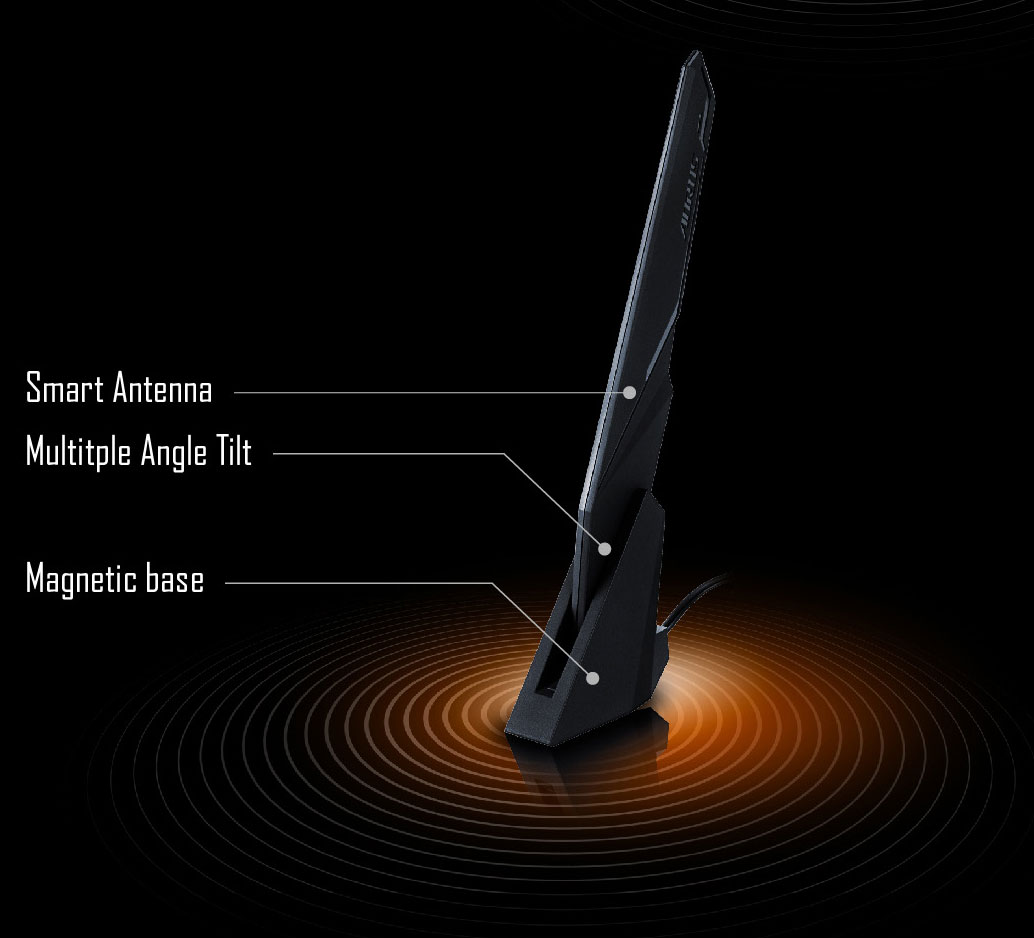

AORUS Antenna Supports Dual Band with Better WIFI Signal
All new antenna supported dual band 802.11ax/ac 2.4GHz & 5GHz.
better signal strength compared to traditional antenna design
AORUS Antenna with smart antenna function for the best WIFI signal transmitting
Multiple angle tilt and magnetic base for the best signal strength direction and

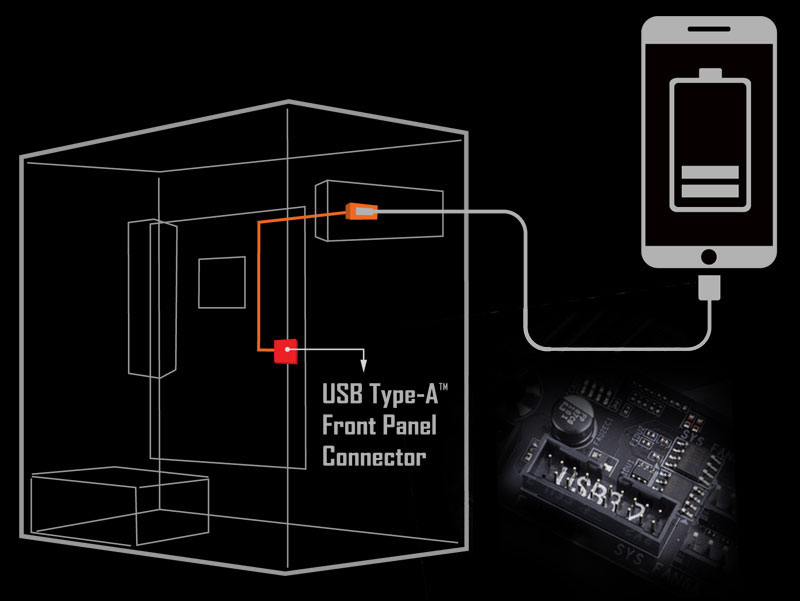

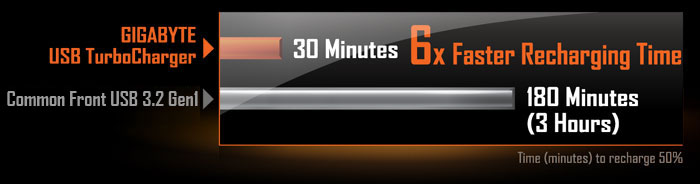

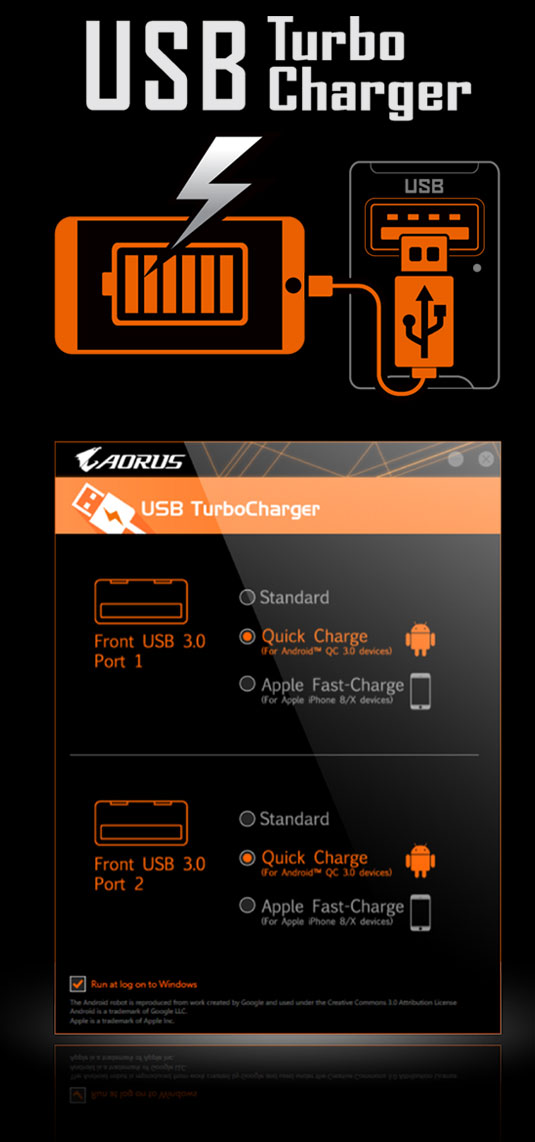

GIGABYTE patent pending USB TurboCharger technology allows users to recharge their
mobile devices with stunning speed, up
to 50% in less than 30 minutes*. By connecting Front USB 3.2 Gen1 Type-A cable of
chassis to our motherboard,
USB TurboCharger can recharge both Android devices with QC 3.0 and Apple devices with
*Charge time varies with devices' hardware design, battery size, front
USB 3.2 Gen1 cable quality of chassis and environmental factors, actual results will

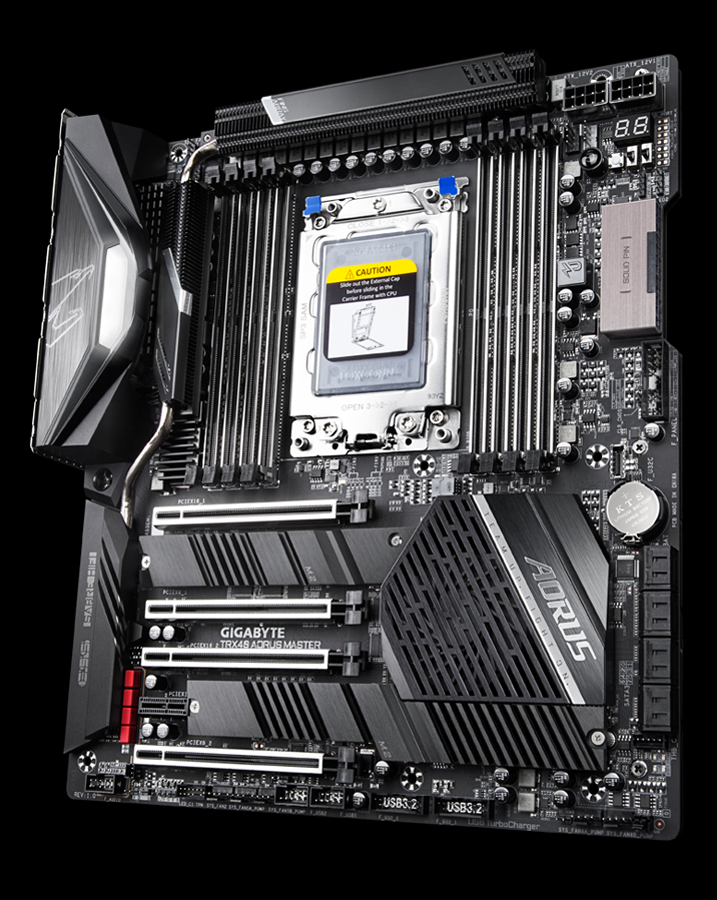

TRX40 AORUS MASTER features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or

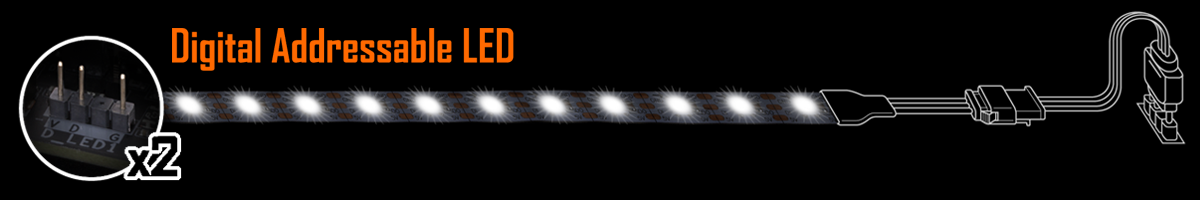

AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.
RGB FUSION 2.0
RGB FUSION Software
RGB FUSION APP
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent
lifestyle. With full RGB
support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides
you a better
solution for customizing the lighting effects across all supported
motherboards, graphics cards to the peripheral products, you can
personalize your gaming
rig with your own style and show off your build by sharing the profiles.
the new gaming mode makes the lighting effects interactive with selected
games to bring
you the most immersive gaming experience.
Sync with one click
Individual control as you wish
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the
GIGABYTE RGB Fusion
mobile app users can watch as they control the lighting within their gaming PC. This
ease of access as they try and adjust colors and speeds for different modes, all
can be achieved
away from the keyboard and monitor of their PC.

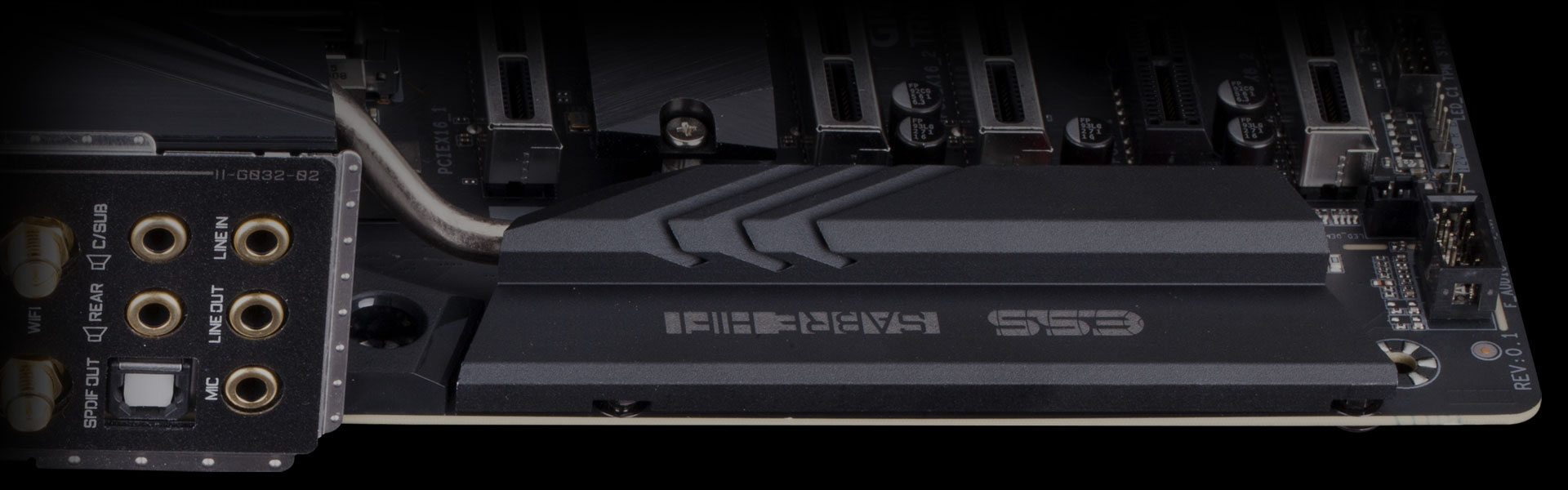

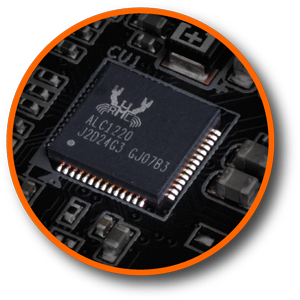

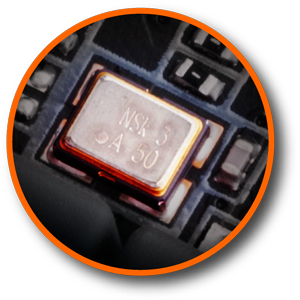

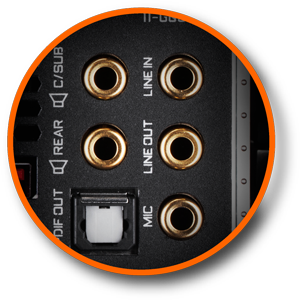

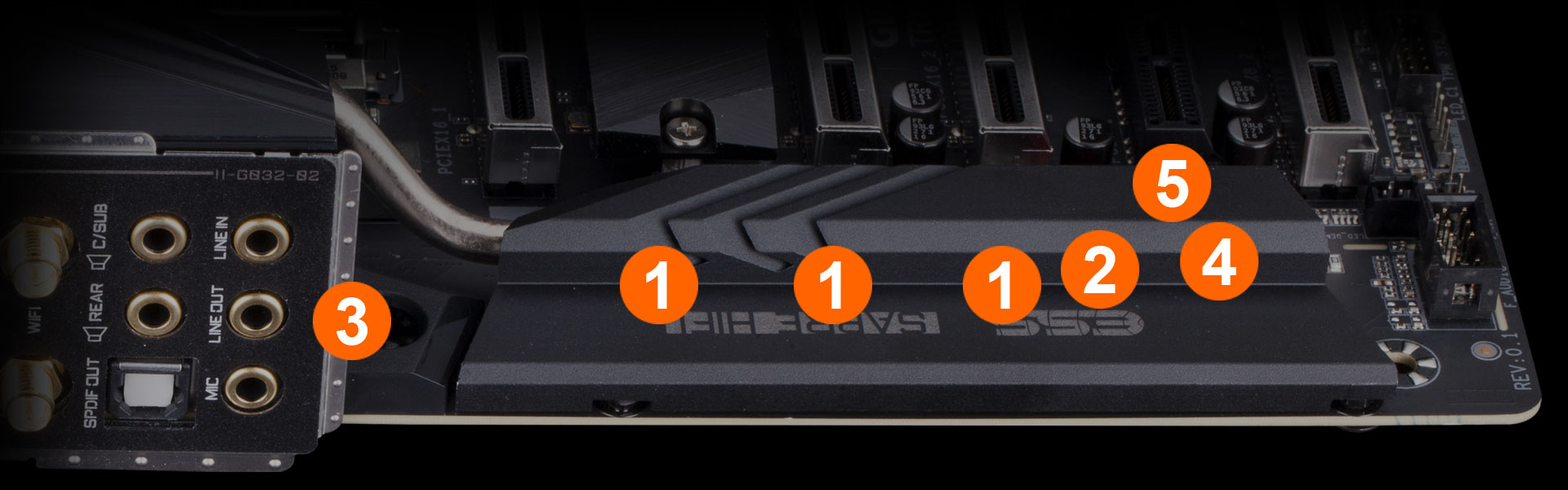

HI-FI AUDIO SYSTEM
For enthusiasts, sound quality is just as essential to the gaming experience. TRX40 AORUS MASTER is equipped with

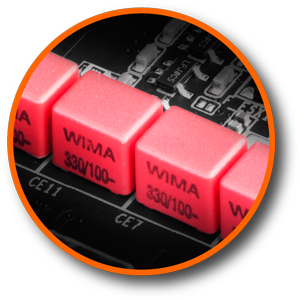

several audiophile level components such as ESS SABRE DAC and WIMA capacitors to provide a superb audio experience.

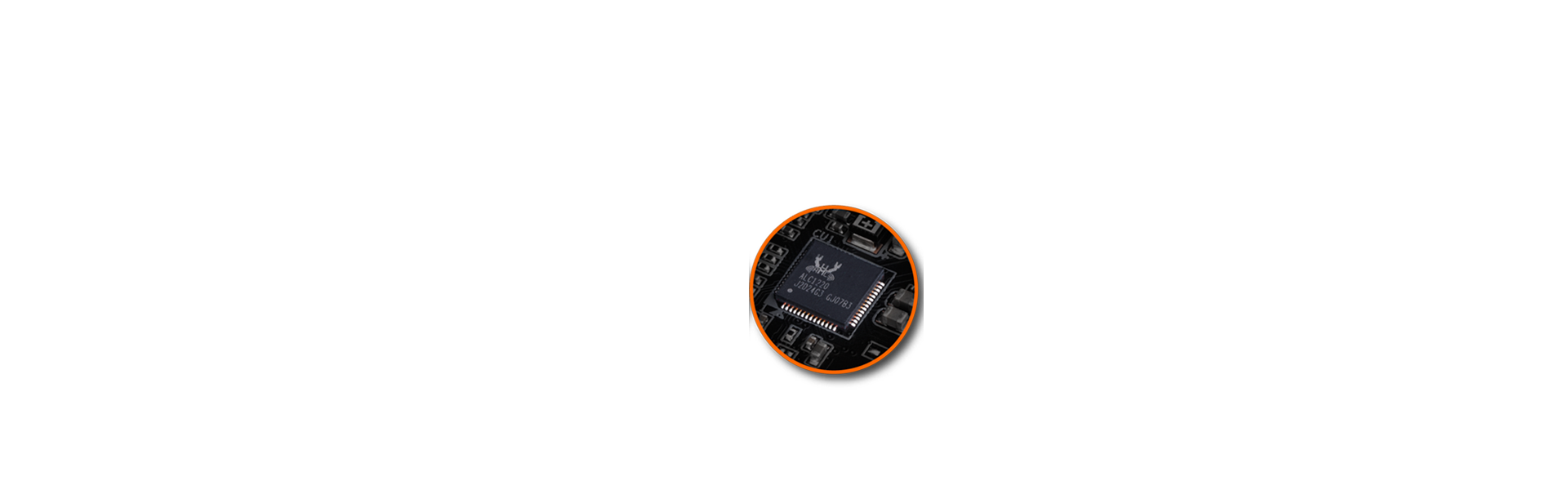

1. True Hi-Fidelity Music (Digital Audio)
Provides high quality surround sound audio and vibrant stream experience.

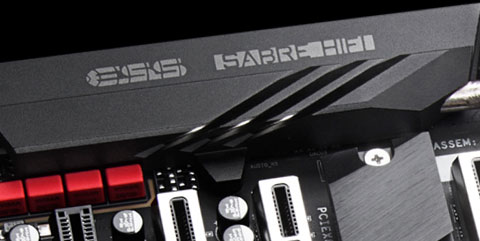

2. ESS SABRE reference DAC 9218 (Digital / Analog
Support QUAD DAC™ to deliver superb 124dB DNR and 112dB THD+N.

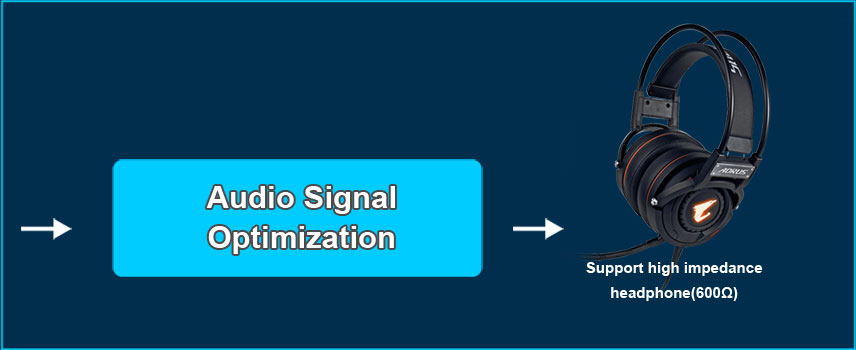

True 2vrms outputs are capable of driving professional high impedance headphones and
deliver professional line-level
Analog Volume Control delivers 130dB SNR at low listening levels by reducing noise as
the audio signal decreases.
High-Res music Supports up to 32bit 192KHz PCM.
3. Gold Plated Audio Jacks (Crystal Sound Output)
High resistance to corrosion and oxidation.
4. Precise TXC Oscillator
Provides precise time triggers to Digital-Analog Converters.
5. Audiophile Grade Capacitors
Famous WIMA capacitors are used as feedback signal processing to deliver crystal and balanced sound.
Gold Plated Audio Jacks
DTS :X® Ultra
Recreates an authentic, spatially accurate 3D audio experience for
over any headphones or speakers. Supports
channel-based, scene based and object-based audio. Provides out-of-the-box
for a range of headphones and
speakers. Provides post-processing enhancements and device level tuning for DTS®
DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D
audio experience for games.
Immersion through DTS Headphone:X means in the sonic landscape, stationary and
sounds can be heard from above,
below or around the listener. Sounds pass around the listener with amazing
externalization and accurate localization.
*DTS Sound Unbound needs the latest Windows fixes in the Windows 10, please upgrade
your Windows 10 OS to Win10 Build 18898 or later versions.
DTS:X Ultra Technology Video
DTS:X Ultra Experience Video
GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best
components we can find on TRX40 AORUS MASTER and reinforce every slot to make each of them solid and durable.
4X PCIE Armor
8X Memory Armor
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from
the PCIe connectors to provide the extra
strength required to support heavy graphics cards.

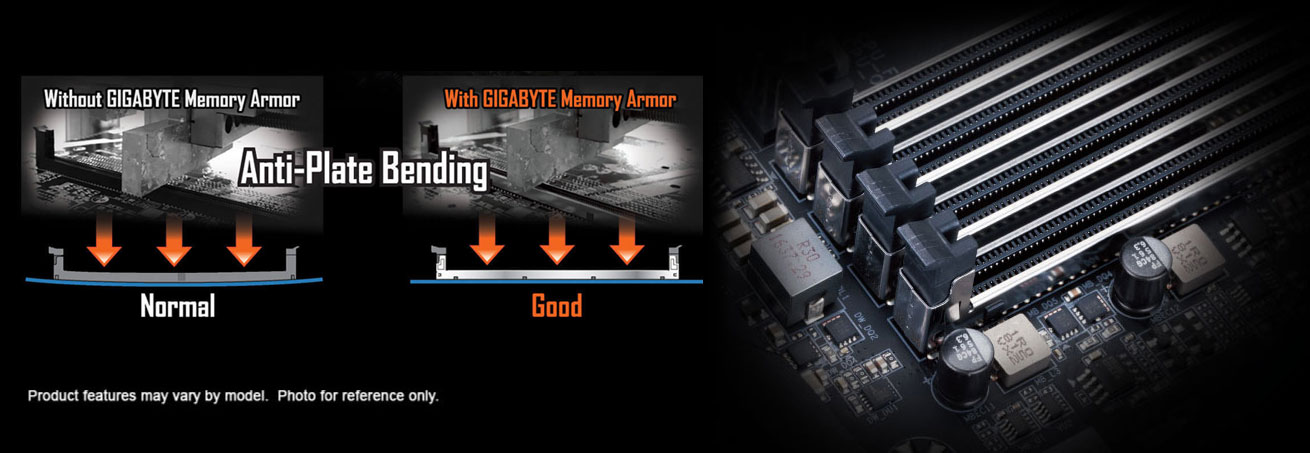

Ultra Durable™ Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting
and plate bending, in addition to preventing any possible ESD interference.
Solid Pin Power Connectors
TRX40 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 8pin power
connectors to offer a stable power supply
during CPU overloading.
Solid Pin Power connector
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor
enter the BIOS menu to flash
the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash
drive, then press the
dedicated Q-Flash Plus button and you’re good to go!
GIGABYTE Patented Double Locking Bracket
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology
GIGABYTE that protects arguably
one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your
motherboard has both a 'Main BIOS'
and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware
improper OC settings or power
failure during the update process.

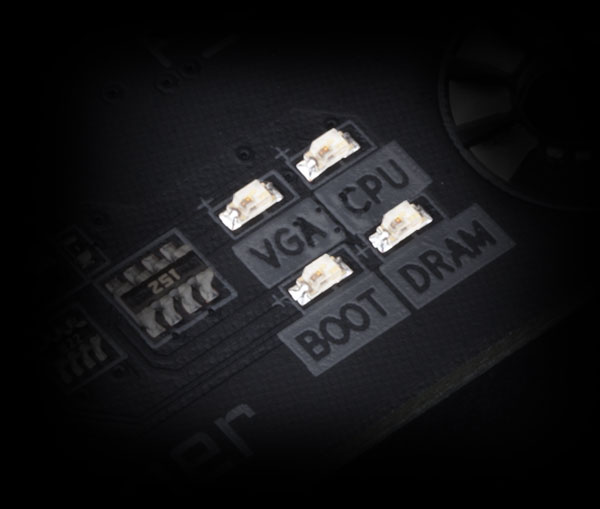

Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring,
users to quickly diagnose which
major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.
* Photo for reference only.
Easy to Install "G Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate as space is
are tiny. With the G Connector, you can connect all the FP cables at once, simplifying
of building your next PC and saving you frustration.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. TRX40 AORUS MASTER bundled several useful and intuitive software
to help users to control every aspect of motherboard.
GIGABYTE BIOS & APP CENTER
System Information Viewer

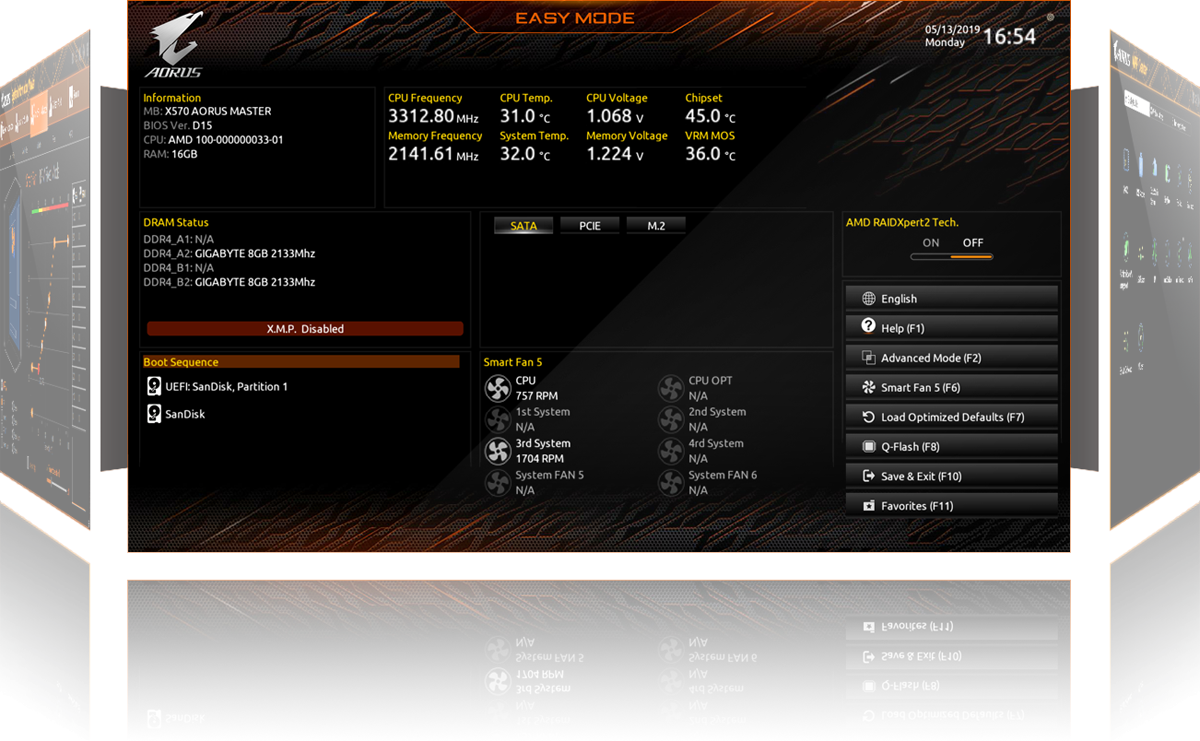

New User Interface
All new EASY MODE shows important hardware information in one page including CPU
clock, Memory, Storage, Fan.
Add constantly used items into the favorite menu for quick access.
Show all kinds of storage information including SATA, PCIE and M.2 interface.
List all changes before saving and exiting bios. Quickly review overall settings
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.

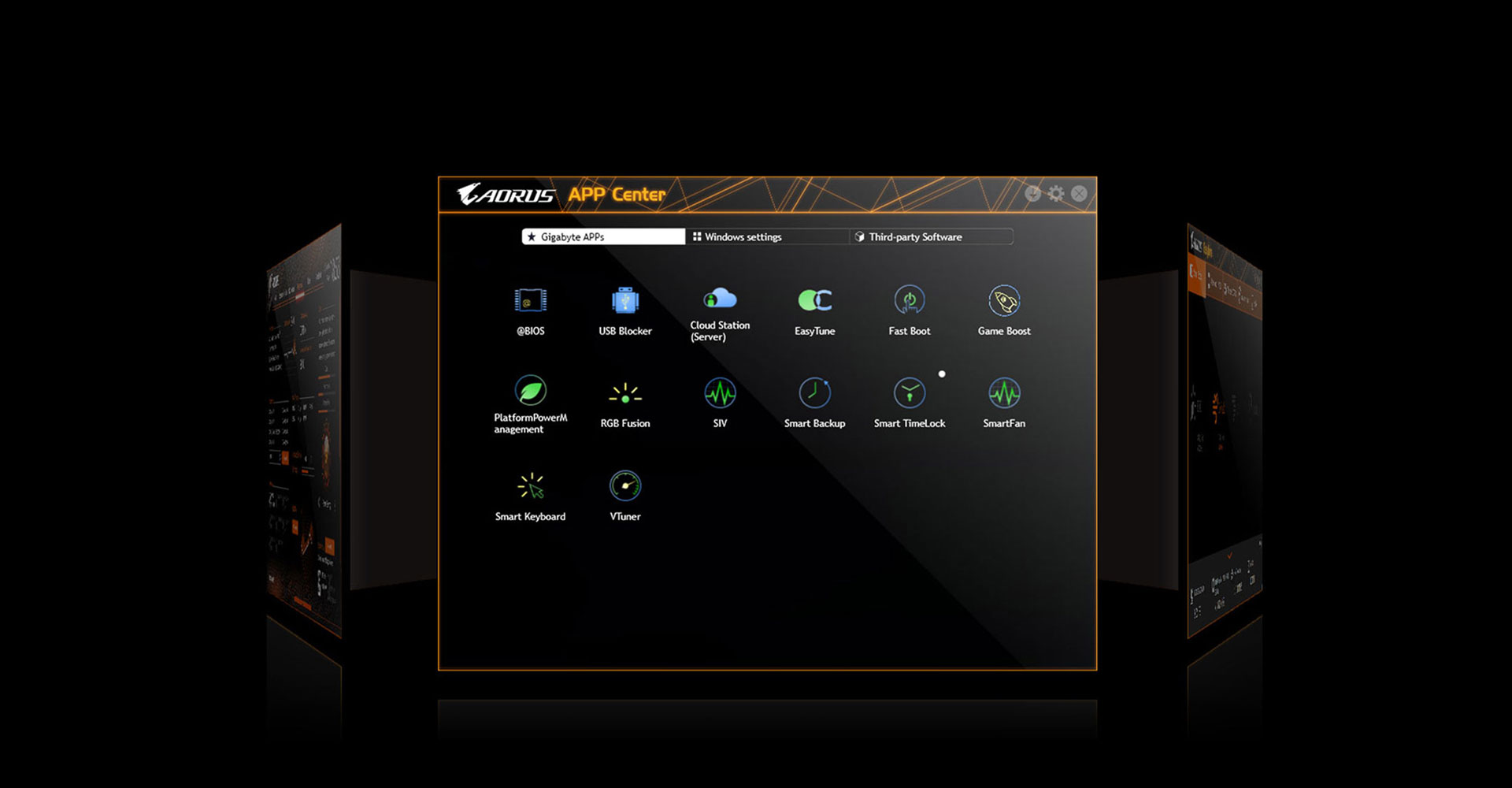

GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you
can choose any utility you want to install from APP CENTER and keep updated with the
latest utilities and drivers version.

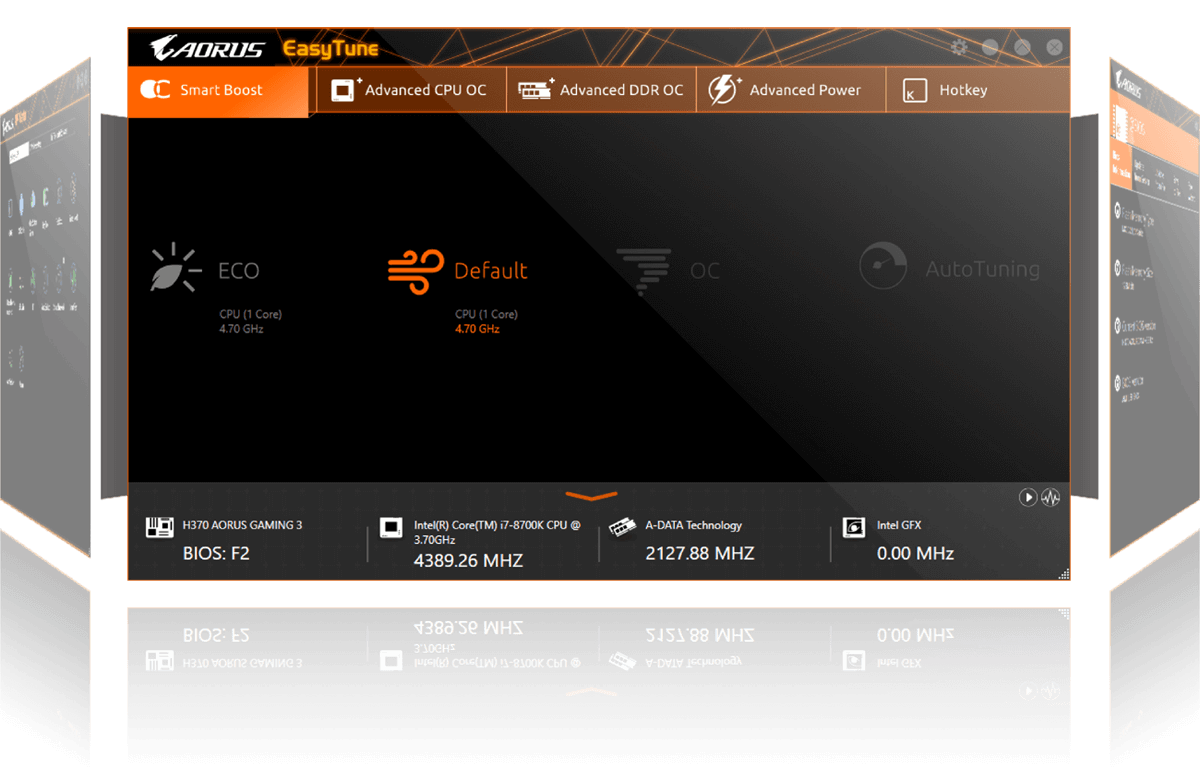

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to
fine-tune their system settings or adjust
system and memory clocks and voltages in a Windows environment. With Smart Quick
Boost, one click
is all it takes to automatically overclock your system, giving an added performance
you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to
your current system status. Monitor components
such as the clocks and processor, set your preferred fan speed profile, create
alerts when temperatures
get too high or record your system's behavior; these are the possibilities of the
XSplit Gamecaster + Broadcaster: Cast Your Game
Now set up your stage and share the greatest gaming moments with XSplit
Broadcaster! Fully optimized social
media integration is ready for real-time chats—keeping you notified yet focused
the game. It takes
just one click to stream your gameplay to Twitch. Host your game like a pro!
* Free 1 year XSplit Gamecaster + Broadcaster Premium License.
