AORUS and EK Waterblocks brings to you the best solution in cooling your PC. With liquid cooling, often known as water cooling, users can reap benefits beyond what a large stock air cooler can provide. You can strive for performance, stealth, or merely aesthetics all with liquid cooling.
Air cooling has never been so easy. You may find that even without an active cooling solution, this state-of-the-art heatsink performs better than anything you’ve encountered. That’s because its integral design was to improve upon traditional heatsinks.
Unleash the performance of your PC. By actively cooling your gaming rig, gamers can push the limits of the CPU even further with more stable overclocks. Even when you don’t need the performance your PC will thank you for it.

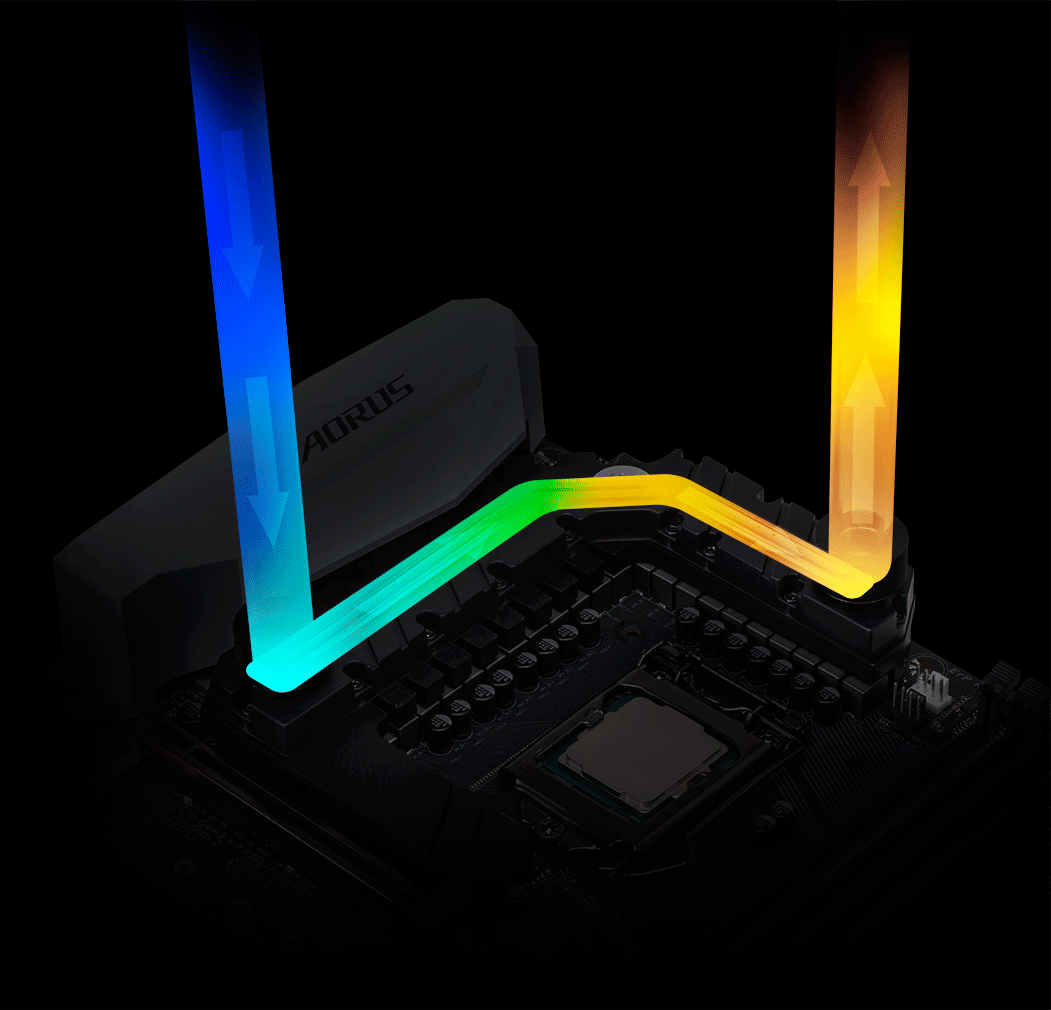

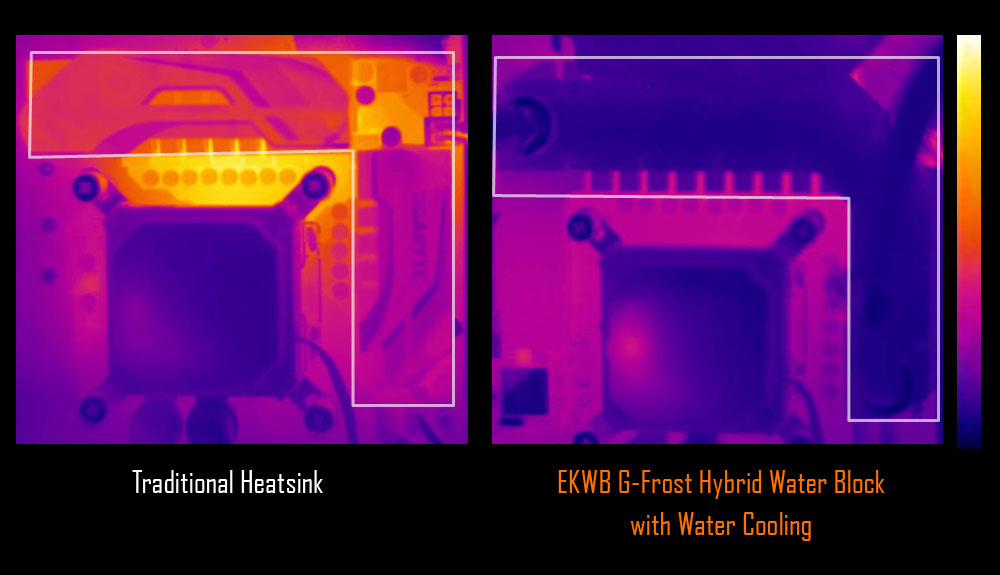

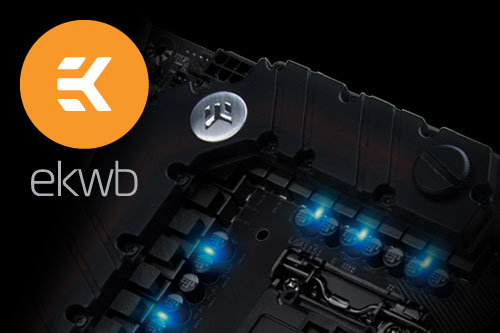

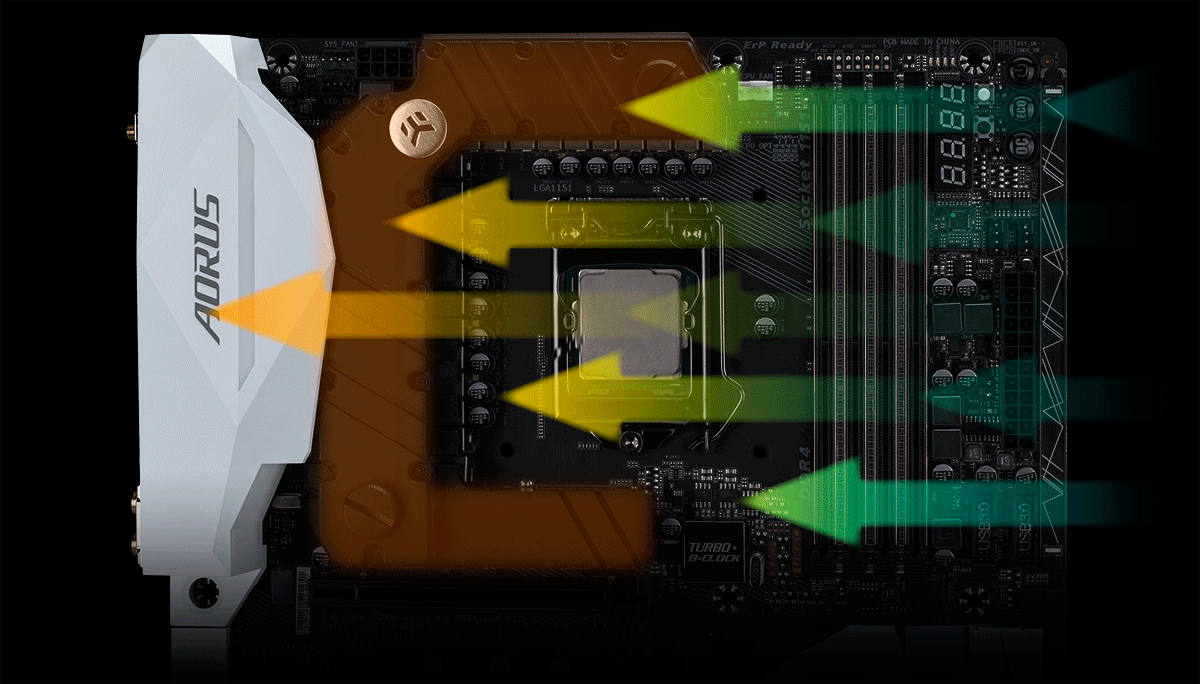

AORUS and EK Water Blocks have joined forces to create an extreme hybrid water block, with G1/4" threaded fittings, to help enhance cooling of the CPU VRMs for increased stability and performance.

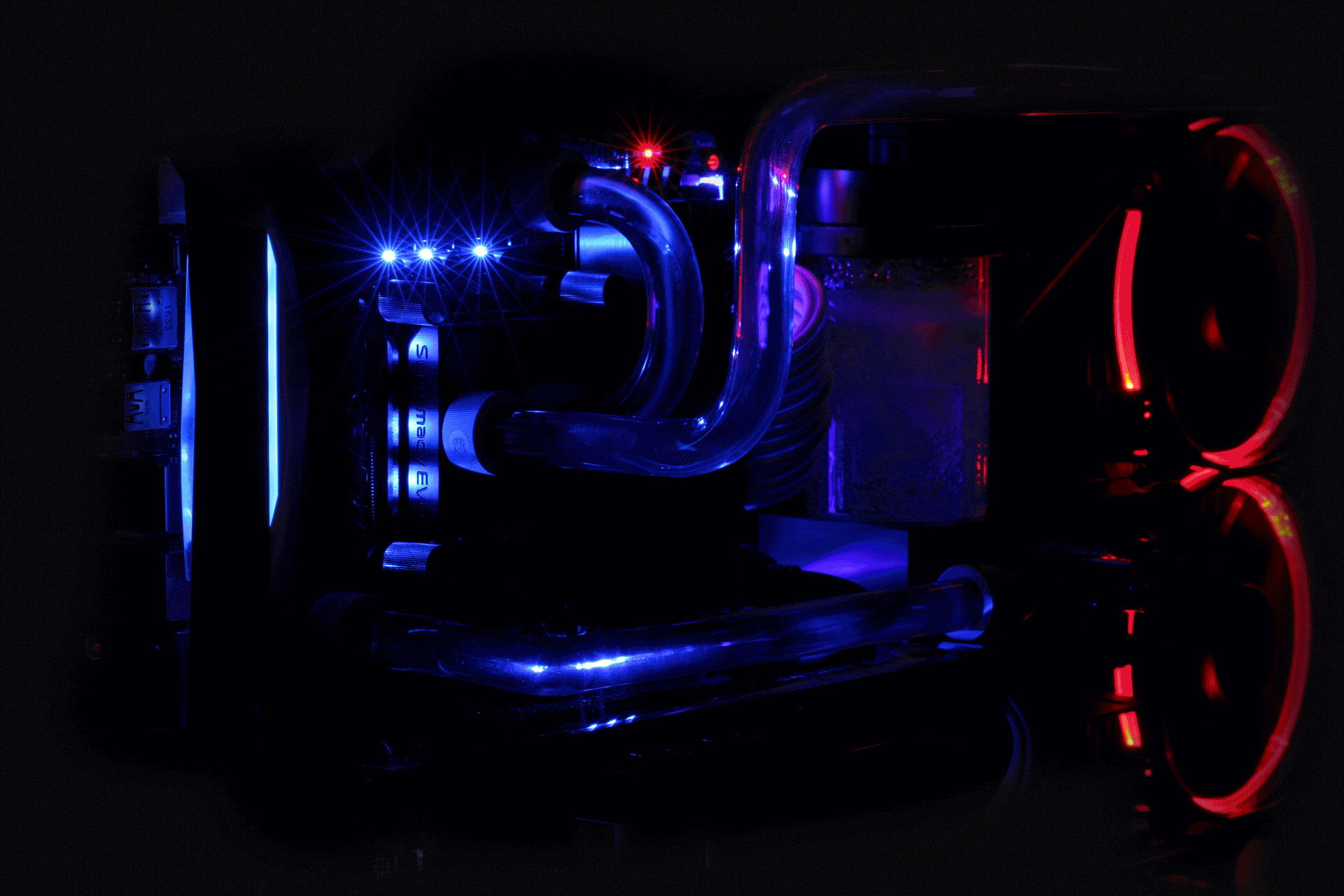

Most gamers don’t stop, so your PC shouldn’t either. Components that are consistently placed under thermal stress will often fail or die completely. With liquid cooling you can expect a longer lifespan from your PC.

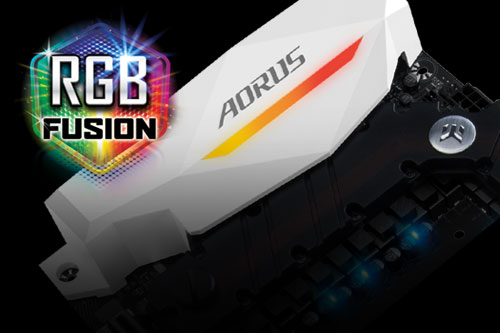

AORUS' 200 series motherboards boast the most advanced LED system in the market today. With more customizability than ever and a convenient and intuitive UI thanks to the RGB Fusion App, you’ll have a blast making your AORUS your own. LED enthusiasts now have even more options with the ability to customize multiple zones independently. For a more functional use, the bright and vibrant LEDs can be configured to display the PC’s temperature or load. For even more LED goodness RGBW strips are now supported for more true and vibrant whites.
• 16.8M RGB Colors
• 6 Light Zones
• 8 Programmable Sections
• 8 Different Lighting Effects
• 2 RGBW Light Strip Pin Headers
• Accent LED with Interchangeable Overlay
• Advanced Mode for Extreme Customizability
Lighting zone, programmable sections, wave mode may vary by model.
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be done away from the keyboard and monitor of their PC.
Six different light zones are equipped with high brightness RGB LEDs, namely the CPU, Memory, Armor, Audio, PCI-Express and Chipset & Accent LED Zones. When it’s all set and done, your system will shine like never before.

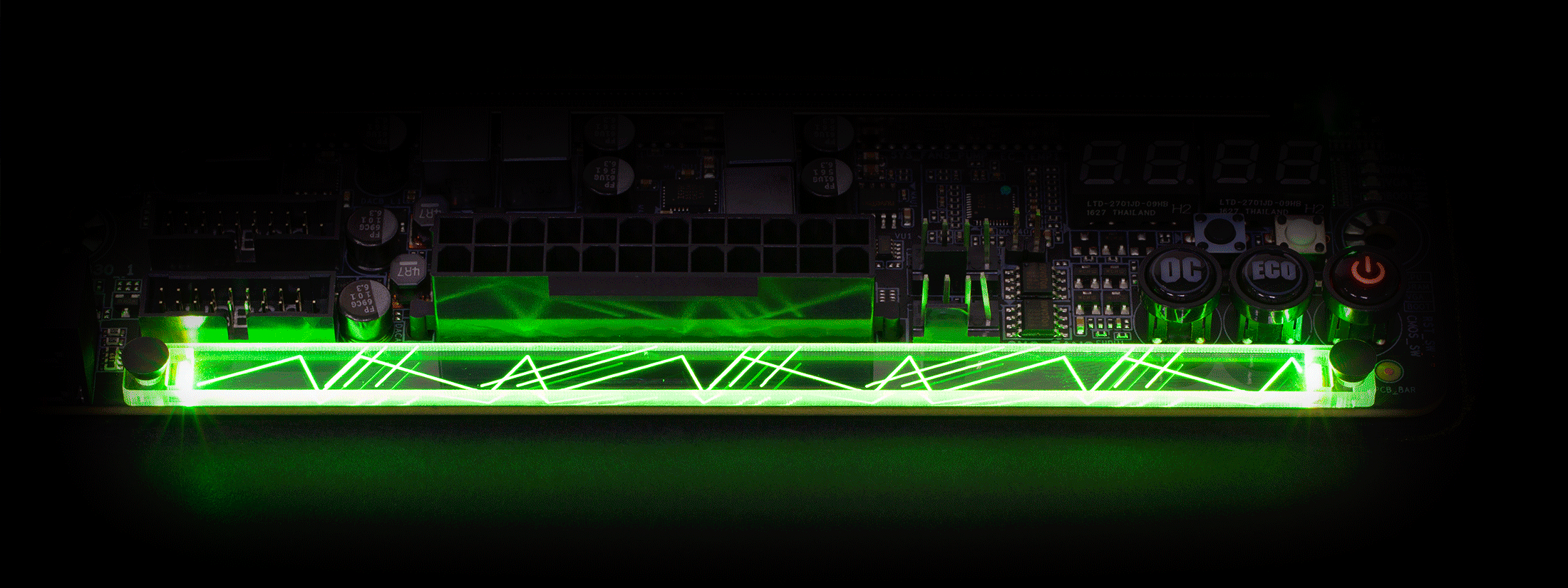

AORUS brings even more color and life to your system with an Accent LED Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own.Design your very own Accent LED Overlay with a 3D printer. Click here to download dimensions and 3D files for the Accent LED Overlay.

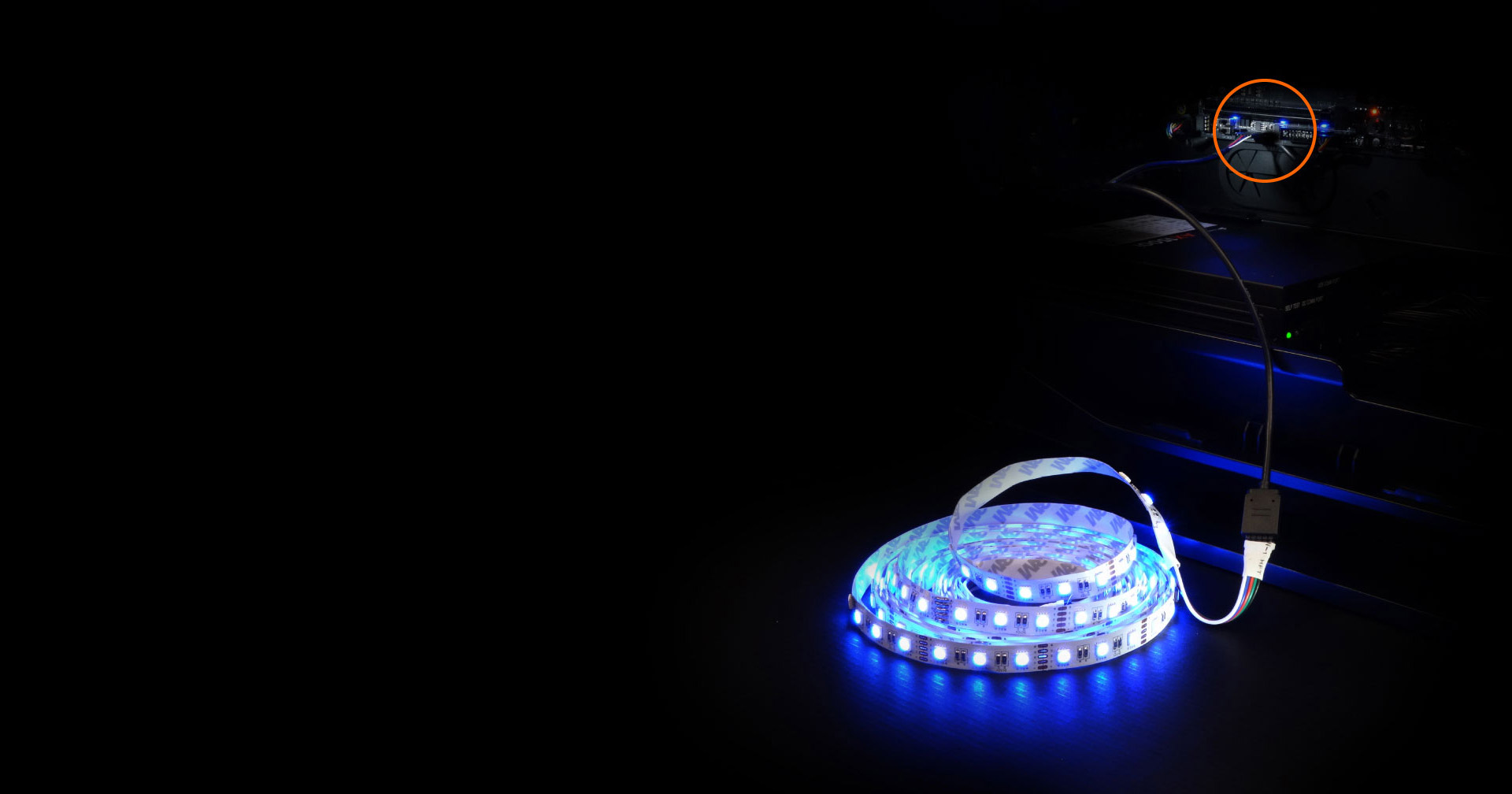

Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colors.
When using RGB/UV LED strips, users can give their systems a fluorescent glow with the use of UV reactive liquid, neon braided cables, and acrylic paint for a wicked-looking gaming PC.
No need to worry when choosing light strips as AORUS motherboards support a wide variety of RGBW/-UV light strips on the market thanks to the RGB Fusion software that allows users to redefine the pin location for the R/G/B Signal.

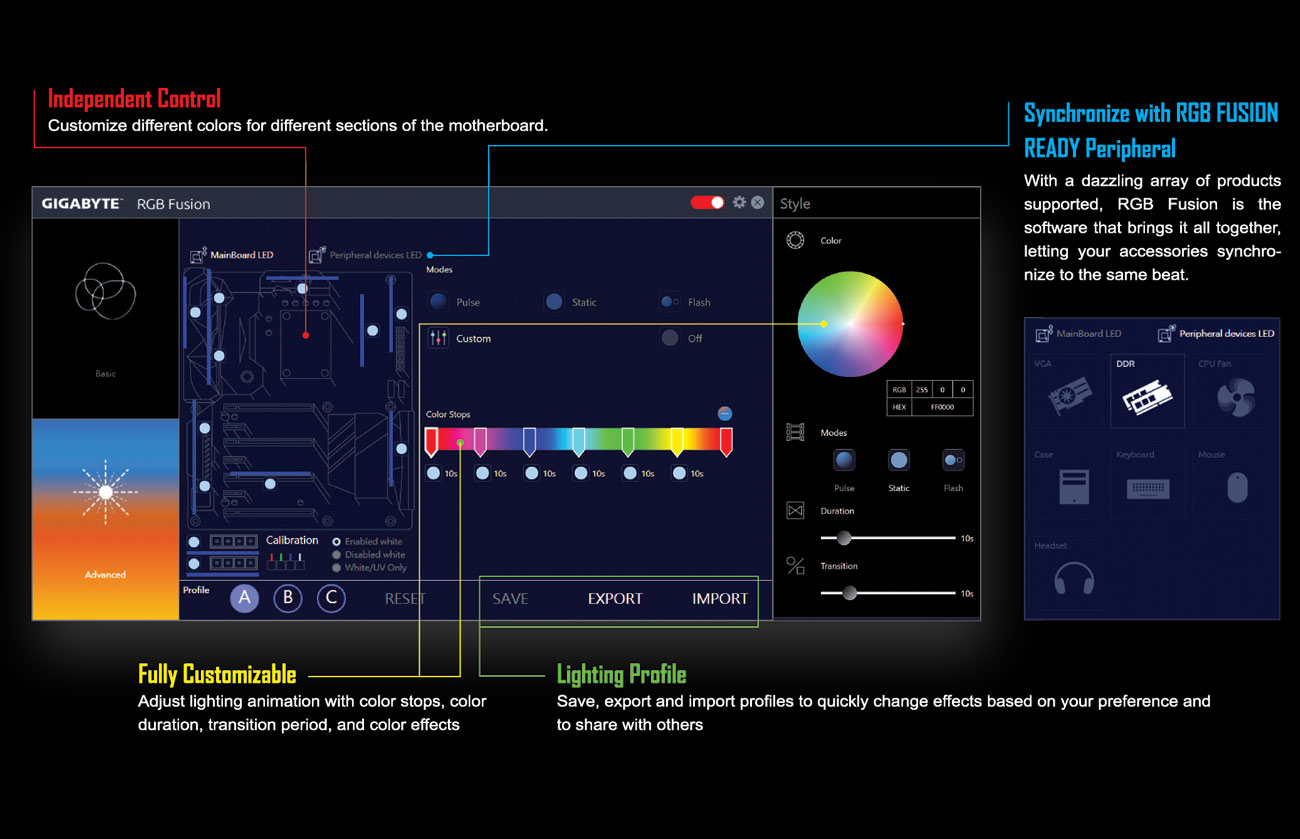

With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature.
For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and color transitions, along with specific duration and transition times.
Once done, it’s simple to save and share your lighting profile with others.
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
• Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.
Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.

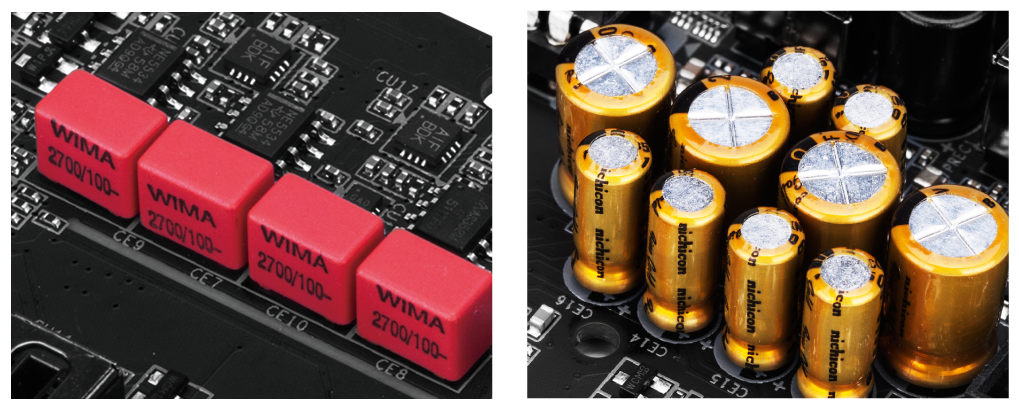

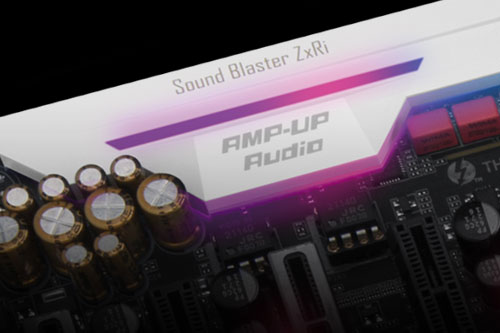

The Z270X-Gaming 9 boasts a combination of Hi-Fi grade WIMA capacitors and Nichicon audio grade Fine Gold capacitors. While the Nichicon Fine Gold capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
AORUS offers true sound customization with its triple upgradable OP-AMP solution. To ensure users receive the best sound profile matching their needs and experience the most enjoyable audio, AORUS has included an OP-AMP for both left and right channels on the rear I/O as well as a dedicated OP-AMP for the front audio jack.
AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2.
USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.
Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.

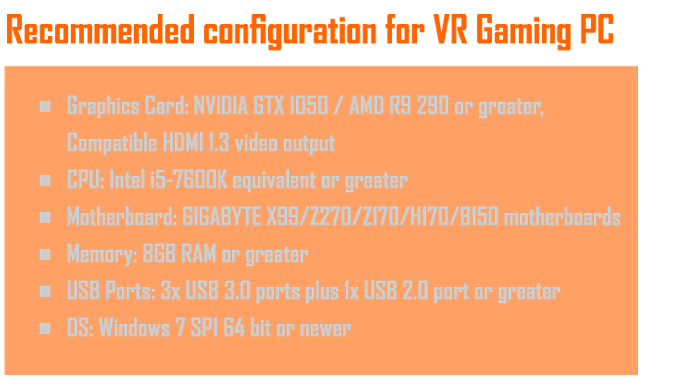

> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.
To create a seamless VR experience AORUS Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 and a one piece metal shielding to brace for heavier discrete graphics cards it's obvious that AORUS has the tools you need to start your journey in VR. To set the mood AORUS Motherboards include RGB Fusion to put you in the center of action.
Any copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners. VR Gaming photo for reference only.
Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!
*Free 1 year XSplit Gamecaster + Broadcaster Premium License.

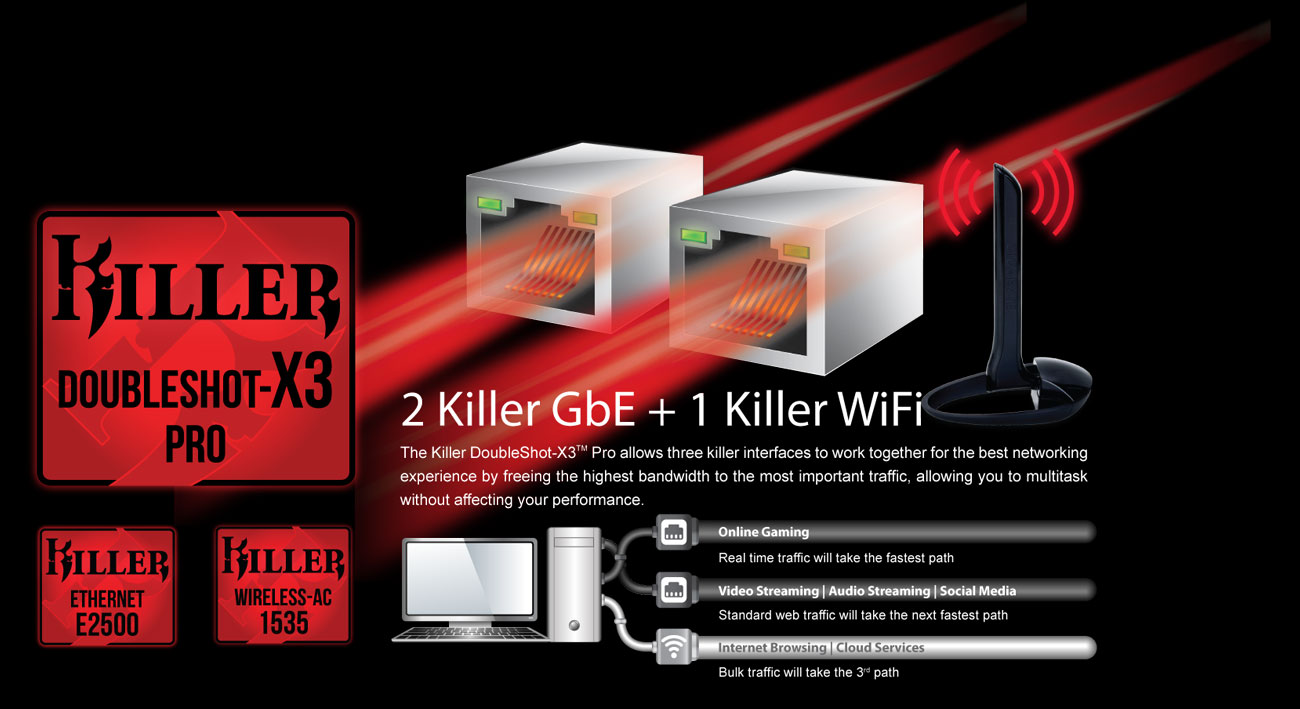

Automatically prioritize your networking needs over the fastest available connection for high quality, lag-less and uninterrupted gaming connectivity.
Gaming Performance while Multitasking
AORUS' Z270 motherboards offers the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design supports up to three Intel 750 Series NVMe PCIe SSDs which can be configured in RAID for record speeds of up to 3525 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.
The new Intel 750 series SSDs offer an incredible increase in performance over SATA drives. Using the NVMe protocol which takes advantage of the fast bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for users looking to boot their OS faster, load their games in a flash and access large files without waiting. By implementing the U.2 port onboard to support the 2.5” Intel 750 Series drive, AORUS ensures that the users can benefit from the best performance.
SSDs and cables not included.
• Z270X-Gaming 9 uses the PEX8747 to boost PCIe lanes up to a total of 32 lanes
• Supports up to 4-Way SLI & CrossFire configurations
• Supports dual x16 for 2-Way SLI & CrossFire configurations
Take your gaming performances to a whole new level by multiple GeForce GTX cards with High-Bandwidth(HB) SLI Bridge.
With two NVMe PCIe Gen3 x4 M.2 connectors onboard, AORUS brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.
AORUS' M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.

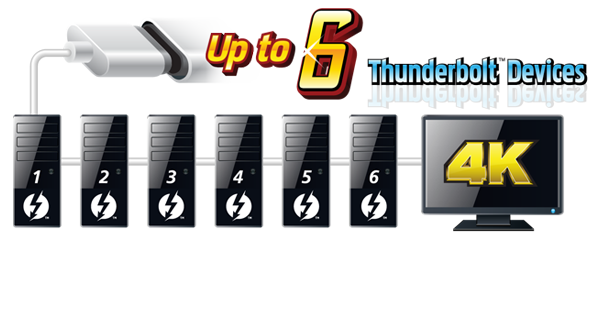

Powered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over a USB Type-C™ connector on the back I/O of the AORUS' motherboards, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.
Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The Z270X-Gaming 9 is able to support a display in 4K resolution at 60 FPS. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 6 devices thanks to the Z270X-Gaming 9's USB Type-C™ port.
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.
The Intel® USB 3.1 controller utilizes four PCIe Gen3 Lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
Z270X-Gaming 9 features a 22 phase power delivery design equipped with 4th gen. IR® digital power controllers and 3rd gen. PowIRstage® ICs featuring Isense technology, which provides more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.
Built-in Advanced Performance Tuning IC
Turbo B-Clock Tuning IC in the AORUS 200 series motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
*Turbo B-Clock overclocking range may vary according to CPU capabilities.
Need help overclocking your PC? Scan this QR code or click here.
Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.
* XMP Profile support may vary depending on memory module. Please visit www.aorus.com to see the complete validated memory support list. Product features may vary by model.
AORUS partners very closely with memory vendors from around the world to ensure that modules offered by popular memory brands are compatible with AORUS Motherboards. AORUS has verified over 1000+ different modules to ensure performance in a AORUS built system.

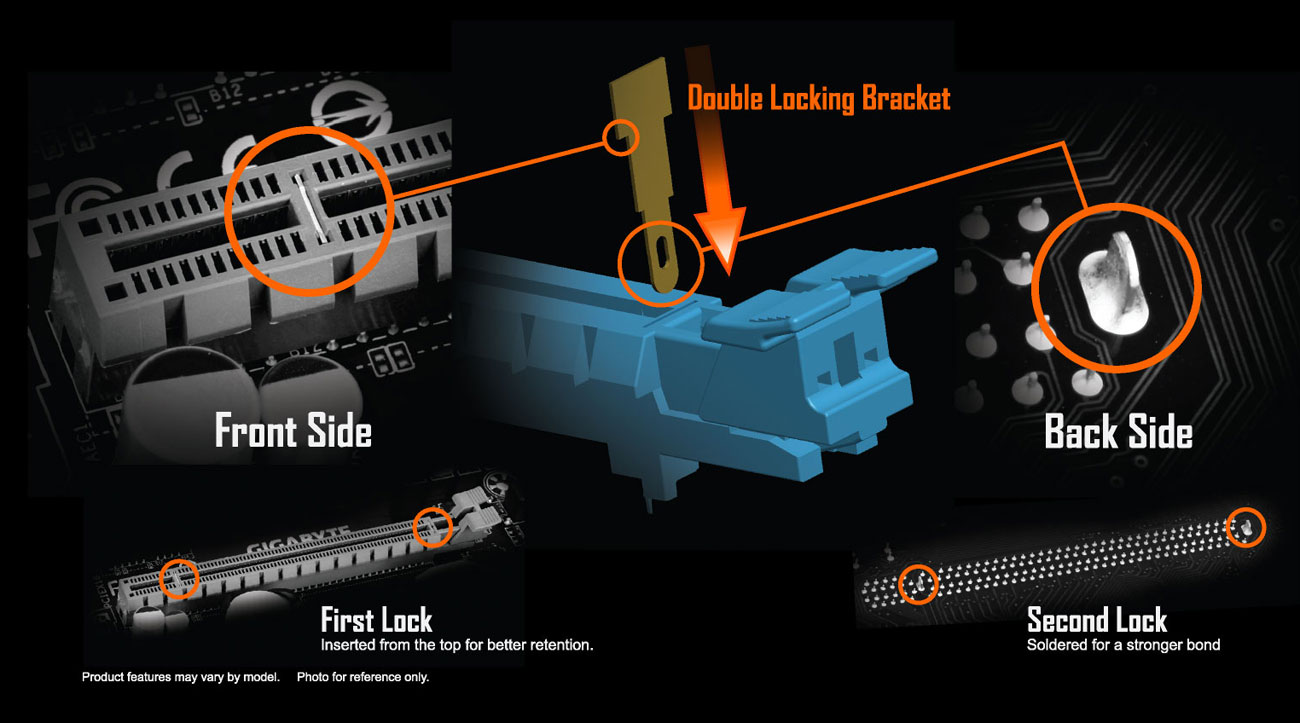

Never worry about your heavy graphics card damaging your motherboard again. AORUS’ proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a foolproof option which can save your PC’s life.
AORUS’ exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference.
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design AORUS gives Ultra Durable Motherboards a whole new meaning.
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
Overclocking to Boost Your Frame Rates
Get the highest levels of performance from your PC with easy-to-use GIGABYTE overclocking features.
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.
AORUS motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on AORUS motherboards.
AORUS' exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
AORUS motherboards come equipped with a 15 microinch thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
AORUS Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or Memory needing to be installed.
Updating your BIOS on your AORUS motherboard can be done in a flash – even without memory or CPU onboard. Utilizing the EC Controller, the BIOS on your AORUS Motherboard can now be updated through Q-Flash Plus even if your system is unable to boot. A LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.
The tiny cables of the front panel connectors can be hard to manipulate as space is restricted and indicators being tiny. With the G-Connector, you can connect all the FP cables at once, simplifying the process of building your next PC and saving you some frustrations.
4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
To facilitate being the full streaming solution each AORUS motherboard includes TriDef® SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.
*Free 1 month TriDef® SmartCam License.
