Unique Onboard mSATA SSD Support
|
|
GIGABYTE 7 series motherboards feature an onboard mSATA slot, allowing DIY builders to take advantage of advanced SSD-based technologies like Intel® Smart Response and Intel® Rapid Start. Mounting an affordable, low capacity mSATA SSD directly onto your motherboard can enhance your PC’s performance with better overall desktop responsiveness, faster boot times and faster system resume times. |
| |
Simple and Efficient
mSATA modules are easy to install, take up less space, use less power and require no additional cabling for smaller form factor systems.
Cost Effective
mSATA modules are more cost effective than regular SSDs – using less PCB and requiring no external drive housing.
Uses SATA Bus NOT PCIe
mSATA SSD uses a Mini-PCIe interface to connect directly to the board via a SATA data bus, leaving all PCIe lanes free.
|
|
 |
 |
Onboard Clear CMOS button
makes it easier than ever to reset your BIOS to its factory defaults. |
|
|
|
Onboard Restart button
assists user in getting the absolute maximum control. |
|
|
|
Onboard Power and LED Debug
Display puts users in the driving seat when experimenting with different hardware configurations. |
|
|
|
OC-PEG
provides onboard SATA power connectors provide more stable PCIe power when using multiple graphics configurations. |
|
|
|
Onboard BIOS Switcher
allows users to easily switch between Dual UEFI BIOS ROMs. |
|
|
 |
 |
 |
 |
GA-Z77X-UD5H
|
|
|
GIGABYTE Helps You Quick Charge Your iPhone / iPad / iPod Touch
|
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger. |
| |
Quick Charge Your iPhone Anytime
Quick Charge for iPhone / iPad / iPod touch |
| |
|
Working |
Standby |
Suspend
to RAM |
Suspend
to DISK |
Shutdown |
Charge time
(Lower is Better) |
| |
Quick
Charge |
(S0) |
(S1) |
(S3) |
(S4) |
(S5) |
| |
GIGABYTE
ON/OFF
Charge |
Yes |
Yes |
Yes |
Yes* |
Yes* |
|
Up to
40% Faster |
| |
Traditional
Design |
No |
No |
No |
No |
No |
|
|
|
|
| * |
Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports.
Charging results may vary by model.
|
|
|
|

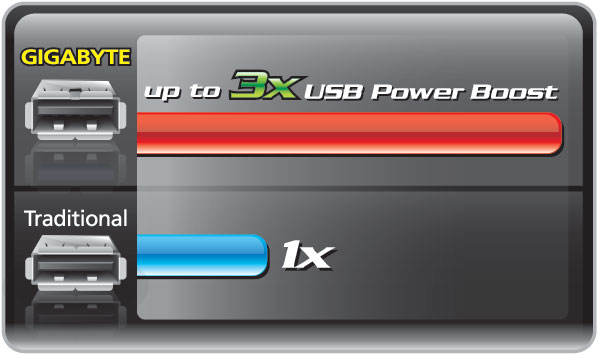

3x USB Power Boost |
GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
|
|
* 3x USB power is a maximum theoretical value.
Actual performance may vary by system configuration.
|
|
|
One port per USB Port |

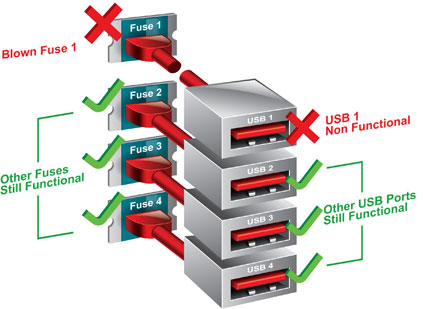

GIGABYTE One Fuse per USB Port Design |

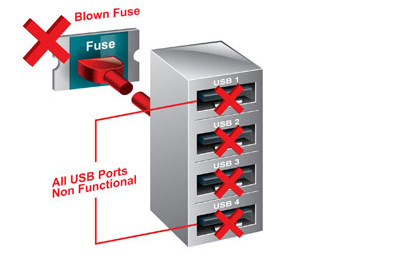

Traditional One Fuse Design for Multi-USB Ports |
|
 |
 |
 |
|
|
|

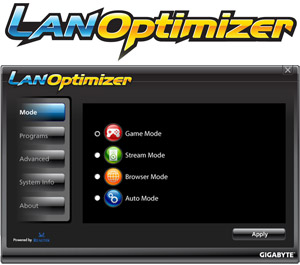

LAN Optimizer - Intelligent optimization network management tool |
GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth. |
|
