G1.Sniper 5 Specifications
CPU support

4th Generation Intel® Core™ processors
CPU socket

LGA 1150
Chipset

Intel Z87 chipset
Graphics Interface

2*PCIE 3.0 x16 + 2*PCIE 3.0 x8 (2 x16 / 4 x8 Bandwidth)
Display Interface

2*HDMI, DisplayPort
Memory Type

2 Channel DDR3
Memory DIMM

4*DDR3
Expansion slots

3*PCIE x1
SATA connectors

10*SATA3
SATA RAID

RAID 0,1,5,10
USB

10*USB 3.0 + 6*USB 2.0
Audio / LAN

6-Channel HD / 2*GbE LAN
Form Factor(mm)

EATX (305x264)
OP-AMP Upgrade
kiti included



USB 2.0

USB 3.0

Gold Plated
DisplayPort

Dual LAN
(Including Intel GbE LAN)

Gold Plated
Audio Jacks

PS/2 port
Gold Plated
Coaxial SPDIF Out
Dual Gold Plated
HDMI Ports
USB 3.0

OP-AMP
Audio Output

Optical Digital Audio Output





G1.Sniper M5 Specifications
CPU support

4th Generation Intel® Core™ processors
CPU socket

LGA 1150
Chipset

Intel Z87 chipset
Graphics Interface

1*PCIE 3.0 x16 + 1*PCIE 3.0 x8 (1 x16 / 2 x8 Bandwidth)
Display Interface

2*HDMI, DVI, DisplayPort
Memory Type

2 Channel DDR3
Memory DIMM

4*DDR3
Expansion slots

1*PCIE x4 + 1*PCIE x1
SATA connectors

6*SATA3
SATA RAID

RAID 0,1,5,10
USB

6*USB 3.0 + 6*USB 2.0
Audio / LAN

6-Channel HD / 2*GbE LAN
Form Factor(mm)

mATX (244x244)
OP-AMP Upgrade
kiti included



USB 2.0

DVI

Gold Plated
DisplayPort

GbE LAN

Gold Plated
Audio Jacks

PS/2 port

Dual Gold Plated
HDMI Ports
USB 3.0

OP-AMP
Audio Output

Optical Digital Audio Output

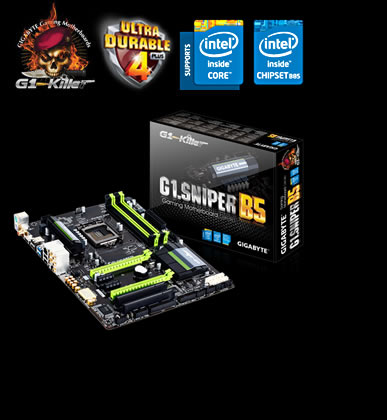

G1.Sniper B5 Specifications
CPU support

4th Generation Intel® Core™ processors
CPU socket

LGA 1150
Chipset

Intel B85 chipset
Graphics Interface

1*PCIE 3.0 x16
Display Interface

HDMI
Memory Type

2 Channel DDR3
Memory DIMM

4*DDR3
Expansion slots

1*PCIE 2.0 x4 + 2*PCIEx1+2*PCI
SATA connectors

4*SATA3 + 2*SATA2
USB

4*USB 3.0 + 8*USB 2.0
Audio / LAN

8-Channel HD / GbE LAN
Form Factor(mm)

ATX (305x225)


Mouse Port

HDMI

USB 2.0
USB 3.0
GbE LAN

Gold Plated
Audio Jacks

Keyboard
Port
Gold Plated
Coaxial SPDIF Out

USB 2.0

OP-AMP
Audio Output

Optical Digital Audio Output

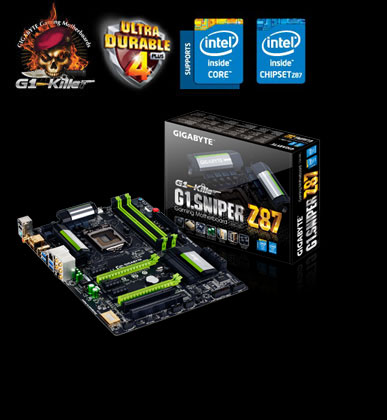

G1.Sniper Z87 Specifications
CPU support

4th Generation Intel® Core™ processors
CPU socket

LGA 1150
Chipset

Intel Z87 chipset
Graphics Interface

1*PCIE 3.0 x16 + 1*PCIE 3.0 x8 (1 x16 / 2 x8 Bandwidth)
Display Interface

HDMI, DisplayPort
Memory Type

2 Channel DDR3
Memory DIMM

4*DDR3
Expansion slots

3*PCIE x1 + 2*PCI
SATA connectors

6*SATA3
USB

6*USB 3.0 + 7*USB 2.0
Audio / LAN

6-Channel HD / GbE LAN
Form Factor(mm)

ATX (305x233)


USB 2.0
Gold Plated
DisplayPort
Gold Plated
USB DAC-UP
GbE LAN

Gold Plated
Audio Jacks

PS/2 port
Gold Plated
Coaxial
Gold Plated
HDMI

USB 3.0

OP-AMP
Audio Output

Optical Digital Audio Output





G1.Sniper A88X Specifications
CPU support

AMD FM2+/FM2 A-series processors
CPU socket

FM2+ socket
Chipset

AMD A88X chipset
Graphics Interface

1*PCIE 3.0* / 2.0 x16 slot
Display Interface

HDMI, Dual-link DVI, D-Sub
Memory Type

2 Channel DDR3
Memory DIMM

4*DDR3
Expansion slots

1*PCIE x4 + 3*PCIE x1 + 2*PCI slots
SATA connectors

8*SATA3
USB

4*USB 3.0 + 9*USB 2.0
Audio / LAN

8-Channel HD / GbE LAN
Form Factor(mm)

ATX (305x225)
      * Only FM2+ APU supports PCI-E 3.0

USB 2.0
D-Sub
USB 3.0

GbE LAN
Gold Plated
Audio Jacks

PS/2 port
Dual-link DVI
HDMI
Gold Plated
USB DAC-UP
USB 2.0

OP-AMP
Audio Output

Optical Digital Audio Output








GIGABYTE
OP-AMP Premium
Upgrade Kit

* Sold Seperately
3 Different Op-AMPs Included
OP-AMP A
Burr-Brown - OPA2111KP
OP-AMP B
Linear Technology - LT1358CN8

OP-AMP C
Analog Devices - AD827JNZ
IC Extractor



Memory support is dependent on memory module compatibility and system OS.
For further product information, please visit our website: www.gigabyte.com
Specifications and images are subject to change without notice.
All trademarks and logos are the properties of their respective holders.
Features and Actual component specifications may vary by model.
