 Références





Intel
Référence

GA-P41T-D3P
GA-P41T-D3P

GA-G41MT-D3P
GA-G41MT-D3P
GA-G41MT-S2P
GA-G41MT-S2P
Support CPU
Intel Core2 multi core
Intel Core2 multi core
Intel Core2 multi core
Socket CPU
LGA775
LGA775
LGA775
QPI/FSB
1333/1066/800MHz
1333/1066/800MHz
1333/1066/800MHz
Chipset
Intel G41+ICH7
Intel G41+ICH7
Intel G41+ICH7
VGA Intégrée
-
Intel GMA X4500
Intel GMA X4500
Interfaces graphiques
1*PCI-E x16 slot
1*PCI-E x16 slot
1*PCI-E x16 slot
Type mémoire
Dual-Channel DDR3
1066/800
Dual-Channel DDR3
1066/800
Dual-Channel DDR3
1066/800
DIMM
2*DDR3 (Max 8GB)
2*DDR3 (Max 8GB)
2*DDR3 (Max 8GB)
Ports d'extension
3*PCI-Ex1 +3*PCI
2*PCI-Ex1 +1*PCI
2*PCI-Ex1 +1*PCI
Connecteurs ATA
4*SATA 3Gb/s +1*PATA
4*SATA 3Gb/s
4*SATA 3Gb/s
SATA RAID
-
-
-
USB
8*USB2.0
8*USB2.0
8*USB2.0
Audio
8-channel HD
8-channel HD
8-channel HD
1394
-
-
-
LAN
GbE LAN
GbE LAN
GbE LAN
Innovations
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready

On/Off Charge, Ultra Durable 2,4 phase power,USB 3x power,
50000hrs solid capacitors for CPU VRM
108dB SNR Blu-ray, ErP Ready
Form Factor (mm)
mATX (305x194)
mATX (244x194)
mATX (244x194)


Intel
Référence

GA-G41MT-D3V
GA-G41MT-D3V

GA-G41MT-D3PT
GA-G41MT-D3PT

Support CPU
Intel Core2 multi core
Intel Core2 multi core
Socket CPU
LGA775
LGA775
QPI/FSB
1333/1066/800MHz
1333/1066/800MHz
Chipset
Intel G41+ICH7
Intel G41+ICH7
VGA Intégrée
Intel GMA X4500
Intel GMA X4500
Interfaces graphiques
1*PCI-E x16 slot
1*PCI-E x16 slot
Type mémoire
Dual-Channel DDR3
1066/800
Dual-Channel DDR3
1066/800
DIMM
2*DDR3 (Max 8GB)
2*DDR3 (Max 8GB)
Ports d'extension
2*PCI-Ex1 +1*PCI
2*PCI-Ex1 +1*PCI
Connecteurs ATA
4*SATA 3Gb/s
4*SATA 3Gb/s +1*PATA
SATA RAID
-
-
USB
8*USB2.0
8*USB2.0
Audio
8-channel HD
8-channel HD
1394
-
-
LAN
GbE LAN
GbE LAN
Innovations
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready
On/Off Charge, Ultra Durable 2,
4 phase power,USB 3x power,
All 50000hrs solid capacitors,
108dB SNR Blu-ray, ErP Ready
Form Factor (mm)
mATX (244x194)
mATX (244x194)

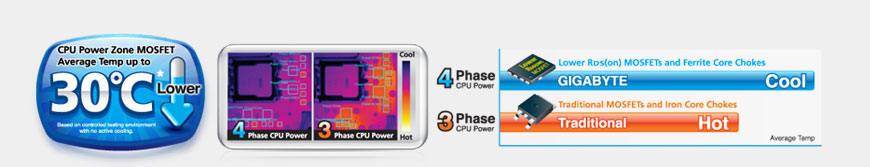

* Pour obtenir le meilleur comparatif thermique que possible, les ingénieurs de GIGABYTE ont comparé une carte mère traditionnelle ( 3 phases, bobines MOSFETs classiques ) avec une carte mère GIGABYTE Ultra Durable™ 2 proposant 4 phases d'alimentation, des bobines en ferrite et des MOSFETs à faible RDS(on).


•  Based on NVIDIA platform

AMD
Référence

GA-M52LT-D3P
GA-M52LT-D3P

GA-M68MT-D3P
GA-M68MT-D3P
GA-M68MT-S2P
GA-M68MT-S2P
Support CPU
AMD AM3 PhenomII/ AthlonII CPU
AMD AM3 PhenomII/ AthlonII CPU
AMD AM3 PhenomII/ AthlonII CPU
Socket CPU
AMD Socket AM3
AMD Socket AM3
AMD Socket AM3
QPI/FSB
2000MT/s (HT1.0)
2000MT/s (HT1.0)
2000MT/s (HT1.0)
Chipset
NV nForce 520LE
NV GeForce 7025/ nForce 630a
NV GeForce 7025/ nForce 630a
VGA intégrée
-
NV CineFX 3.0 (DX9)
NV CineFX 3.0 (DX9)
Interfaces graphiques
1*PCI-E x16 slot
1*PCI-E x16 slot
1*PCI-E x16 slot
-
RGB port
RGB port
Mémoire
Dual-Channel DDR3
1666+/1333/1066
Dual-Channel DDR3
1333+/1066
Dual-Channel DDR3
1333+/1066
DIMM
4*DDR3 (Max 16GB)
2*DDR3 (Max 8GB)
2*DDR3 (Max 8GB)
Ports d'extension
2*PCI-Ex1 + 4*PCI
2*PCI-Ex1 + 1*PCI
2*PCI-Ex1 + 1*PCI
Connecteurs ATA
2*SATA 3Gb/s + 1*PATA
4*SATA 3Gb/s
4*SATA 3Gb/s
SATA RAID
0, 1 (nForce 520LE)
0, 1, 5, 10
(GeForce 7025/ nForce 630a)
0, 1, 5, 10
(GeForce 7025/ nForce 630a)
USB
8*USB2.0
10*USB2.0
10*USB2.0
Audio
8-channel HD
8-channel HD
8-channel HD
1394
-
-
-
LAN
10/100 LAN
GbE LAN
GbE LAN
Innovations
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, All 50000hrs solid capacitors, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, All 50000hrs solid capacitors, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready
4+1phase, On/Off Charge, Ultra Durable 2 Classic, USB 3x power, 50000hrs solid capacitors for CPU VRM, 108dB SNR Blu-ray, Auto Green, EasyTune6, ErP Ready
Form Factor (mm)
ATX (305x216)
mATX (244x206)
mATX (244x206)

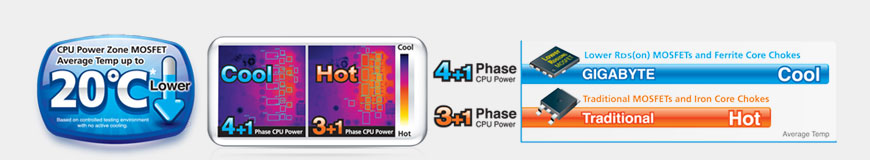

* Pour obtenir le meilleur comparatif thermique que possible, les ingénieurs de GIGABYTE ont comparé une carte mère traditionnelle ( 3 phases, bobines MOSFETs classiques ) avec une carte mère GIGABYTE Ultra Durable™ 2 proposant 4 phases d'alimentation, des bobines en ferrite et des MOSFETs à faible RDS(on).
