Onboard Acceleration

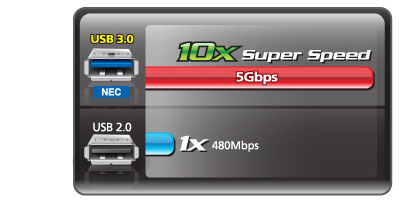

 World’s first USB 3.0 logo certified solution from NEC
Utilizing the new generation SuperSpeed USB 3.0 interface from NEC with a 10x data transfer speed boost over USB 2.0, USB 3.0 features dual-simplex transfer for simultaneous data transfer from PC to USB device for improved data transfer efficiency.

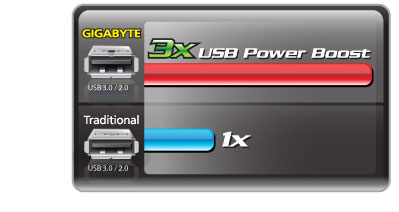

 Utmost compatibility with 3x USB power boost
The 3x USB Power Boost from GIGABYTE is designed to deliver the utmost compatibility and stability for USB devices, such as external storage devices or optical drives, by supplying sufficient power through a single USB port. This will help free-up USB ports for using multiple USB devices on one motherboard.

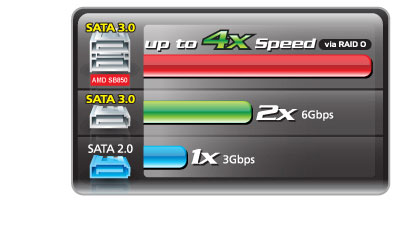

  World’s First SATA Revision 3.0 solution provider from AMD SB850
Double your hard disk drive performance with SATA Revision 3.0 (SATA 6Gbps) from AMD SB850, the latest generation of high speed storage interface with RAID 0,1,5,10 support. Coupled with RAID 0 (Stripe) mode, SATA Revision 3.0 enables a data transfer boost of up to 4x speed over SATA Revision 2.0.
Ultra Durable
Benefits of 2 oz Copper PCB

Better Power
2X Lower
Lower EMI
Better ESD
Revolutionary Ultra Durable™3 tech-nology from GIGABYTE features the industry’s first consumer desktop motherboard design with 2 oz copper Power and Ground layers for dramatically lower system tempera-ture, improved energy efficiency and enhanced stability for overclocking.
Signal Layer
Power Layer
Ground Layer
Power Laye
50,000 hr.
Japanese Solid Capacitor
2OZ Copper
Inner Layer
PCB (Printed Circuit Board)

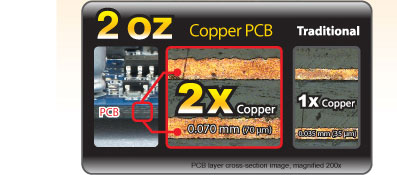

2x copper PCB (2 oz copper PCB) = weight of copper layer
30.48 cm x 30.48 cm (1 square foot) PCB is 56.7 g (2 oz)
Copper Layer Thickness
2X copper 0.070mm (70 µm)
1X copper 0.035mm(35 µm)
Ultra Power Efficient
  Easy Energy Saver Bringing Easy-to-use
Energy Saving to Your System
Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. One click of the Easy Energy Saver button and three levels of CPU voltage auto-adjusted options allowing users to easily take advantage of power savings, without any confused or complicated calibration setup.
* Easy Energy Saver Supports AMD AM2+ and new generation AM3 CPU.
Ultra Performance
  Not your average IGP !

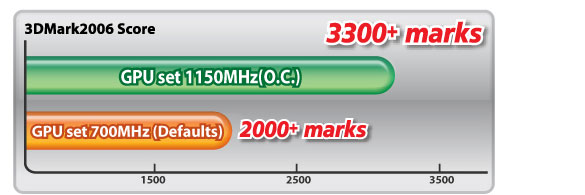

Based on AMD 890GX chipset with ATI Radeon®HD 4290 graphics core (DirectX10.1), GA-890GPA-UD3H is able to boost GPU frequency up to 1150MHz delivering ultimate graphics performance. Plus an additional 128MB DDR3 SidePort Memory accelerated, the 3DMark06 score can even beyond 3300 marks.*
     *3DMark06 scores of 3300+ was achieved by overclocking, please visit GIGABYTE website for details.

AMD Future CPU Headroom
Supports the latest 45nm AMD 6core & multi-core
Phenom™II/ Athlon™II processors with socket AM3
and HT 3.0 technology support
Multi-display ports
Supports HDMI, DVI, D-sub multi-display
ports for Full HD 1080p Blu-ray and HDCP
content protection video playback
USB 3.0 Support
Supports newest NEC SuperSpeed USB 3.0
with SuperFast transfer rates of up to 5 Gbps
4+1 Power Phase for CPU VRM
Max headroom for AMD high-TDP 140W CPU with 4+1 power phase
                                                    design, ensuring maximum overclockability,
                                                    optimized power delivery and lowest VRM
                        Dual PCIe 2.0 Graphics Interfaces
                        2 PCIe 2.0 graphics interfaces support ATI CrossFireX™ (running at x8, x8) or insert                         ATI DX11 VGA card for support for ATI Hybrid CrossFireX for enhanced level of                         graphics performance.
Precision OV
Unique hardware controller IC providing more precise voltage control and finer
stepping for CPU, Chipset
and memory.
New Levels of Memory Performance
Supports Dual Channel DDR3
1866+(OC)/ 1333 /1066 memory.
GIGABYTE Patented DualBIOS™ Technology
2 Physical BIOS ROMs onboard
providing double protection
against BIOS corruption or damage.
SATA 6Gbps via AMD SB850
Provides 6 ports of native SATA3 storage with
SuperFast 6Gbps link speeds
and RAID 0, 1, 5, 10 support.

AMD 890GX Chipset
Integrated ATI Radeon HD 4290 (DirectX 10.1) and a 128M DDR3 Sideport memory, allowing for easy GPU overclock and obtain 3DMark 06
score of 3300 marks or higher

Editor's choice 2010

Gold Award

Gold Award
Hardware zone
4 Stars
