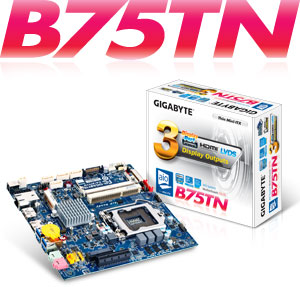

GA-B75TN
GA-B75TN
CPU Support
2nd and 3rd generation Intel Core processor
CPU Socket
LGA 1155
Chipset
Intel B75 Express chipset
Graphics Interface
1*PCI-E 3.0 x 4
Display Interface
LVDS,HDMI,DisplayPort
Memory Type
Dual Channel DDR3 SO DIMM
Memory DIMM
2*DDR3 SO DIMM
Expansion Slots
1*Mini PCI-Ex1+1*PCI-Ex4+1*mSATA
SATA connectors
SATA2*3+SATA3*1
USB
USB 3.0 port x 4
LAN
GbE LAN
Form Factor(mm)
170x170mm Thin Mini-ITX

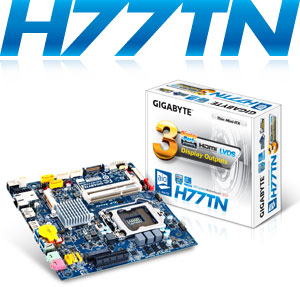

GA-H77TN
GA-H77TN
CPU Support
2nd and 3rd generation Intel Core processor
CPU Socket
LGA 1155
Chipset
Intel H77 Express chipset
Graphics Interface
1*PCI-E 3.0 x 4
Display Interface
LVDS,HDMI,DisplayPort
Memory Type
Dual Channel DDR3 SO DIMM
Memory DIMM
2*DDR3 SO DIMM
Expansion Slots
1*Mini PCI-Ex1+1*PCI-Ex4+1*mSATA
SATA connectors
SATA2*2+SATA3*2
SATA RAID
RAID 0,1,5,10
USB
USB 3.0 port x 4
LAN
GbE LAN
Form Factor(mm)
170x170mm Thin Mini-ITX

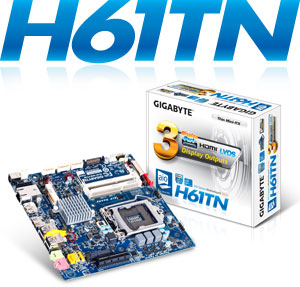

GA-H61TN

GA-H61TN

CPU Support
2nd and 3rd generation Intel Core processor
CPU Socket
LGA 1155
Chipset
Intel H61 Express chipset
Graphics Interface
1*PCI-E 3.0 x 4
Display Interface
LVDS,HDMI,DisplayPort
Memory Type
Dual Channel DDR3 SO DIMM
Memory DIMM
2*DDR3 SO DIMM
Expansion Slots
1*Mini PCI-Ex1+1*PCI-Ex4+1*mSATA
SATA connectors
SATA2*3
USB
USB 2.0 port x 4
Form Factor(mm)
170x170mm Thin Mini-ITX
