10K Durable Black™ Solid Caps

GIGABYTE 9 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for a guaranteed minimum of 10K hours. Not only do they provide ultra-low ESR no matter how high the CPU loading, they also come in customized jet black from Nippon Chemi-Con and Nichicon.

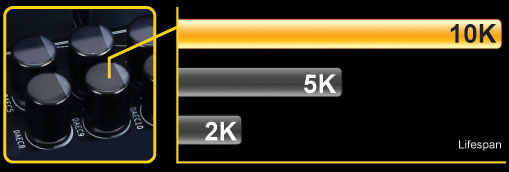

High-End 10K hours Solid Caps
Mainstream 5K hours Solid Caps
Standard 2K hours Solid Caps
Testing result for reference only. Results may differ according to system configuration






2x Copper PCB Design (2 oz Copper PCB)
GIGABYTE’s exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.


2x Copper PCB
Traditional

PCB layer cross-section image, magnified 200x

PCB (Printed Circuit Board)
2x copper PCB = 2 oz copper PCB = weight of copper layer
30.48 cm x 30.48 cm (1 square foot) PCB is 56.7 g (2 oz)

Lower
Temperature
Better Power
Efficiency
Lower EMI
Better
Overclocking
2x Lower
Impedance
Better ESD
Protection

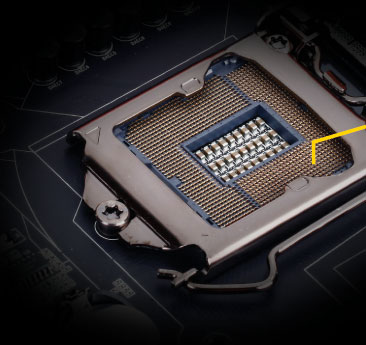

5x (15μ) Gold Plated CPU Socket Design
GIGABYTE 9 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.

15µ
Gold Plated CPU Socket
3μ Gold Plated
CPU Socket
μ= microinch
Standard Design

New Design





* Features may vary by model.
