Introducing 4K Resolution: The Next Evolution in HD Technology
HD displays have been the de-facto standard for TVs and displays for some time now, with 1200 pixel resolution screens becoming the norm for most consumers. 4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the vertical axis (more than four times today’s standard HD pixel density) for unrivalled visual clarity and stunning realism.

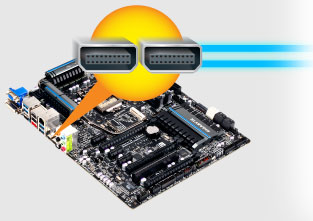

Exclusive 4K Resolution Support from GIGABYTE Dual Thunderbolt™ Motherboards
GIGABYTE is currently the only vendor offering Dual Thunderbolt™ port motherboards from the time that the new high-speed data technology was released to the retail motherboard market. As such, these motherboards are also the first to offer native support for 4K resolution displays using Intel™ processor graphics, without requiring a high-end discrete GPU solution.

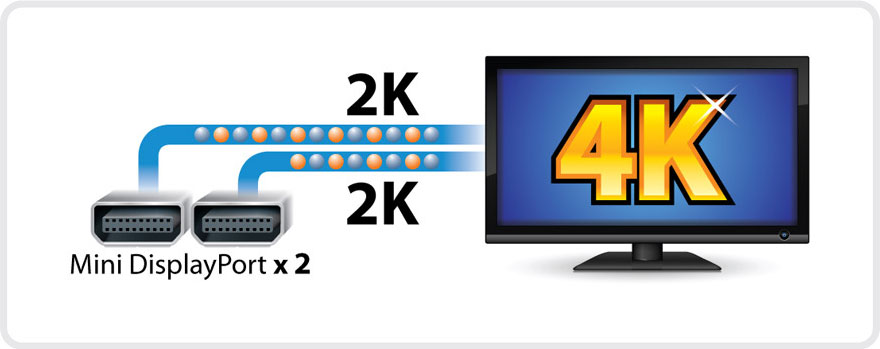

Each Thunderbolt™ port complies with the DisplayPort 1.1 standard (with support for 2K resolutions from each port), providing a combined throughput of up to 4K for the ultimate in display future-proofing.
Support for Intel® Collage Display Technology
With Intel® Collage display technology, GIGABYTE is able to offer 4K resolution support using standard HD displays. Intel® Collage display technology uses the Dual Thunderbolt™ ports which are then split using a readily available DisplayPort splitter adapter, creating a total of four digital streams that can stream an incredible combined Ultra HD resolution of 3840 x 2400 pixels.
Using the Intel® processor graphics control panel, users can select a choice of horizontal or vertical modes, with 7680 x 1200 and 3840 x 2400 pixel resolutions respectively. Horizontal mode offers an extended desktop experience ideal for commercial applications including Financial, Stock Market, Medical and Transportation, while vertical mode offers a simple way to enjoy 4K Ultra HD content using standard HD displays.

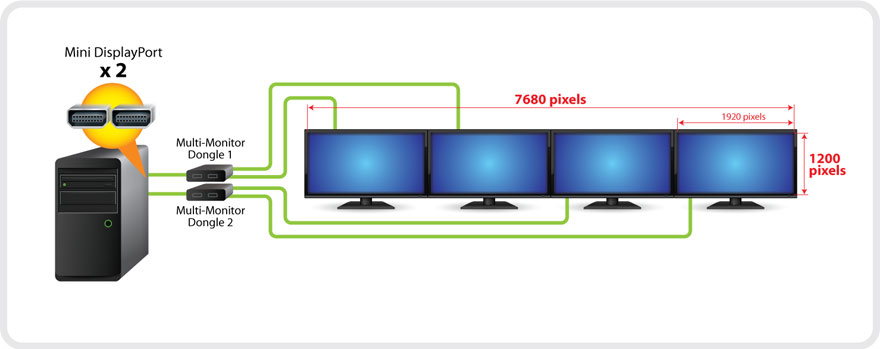

Horizontal Mode

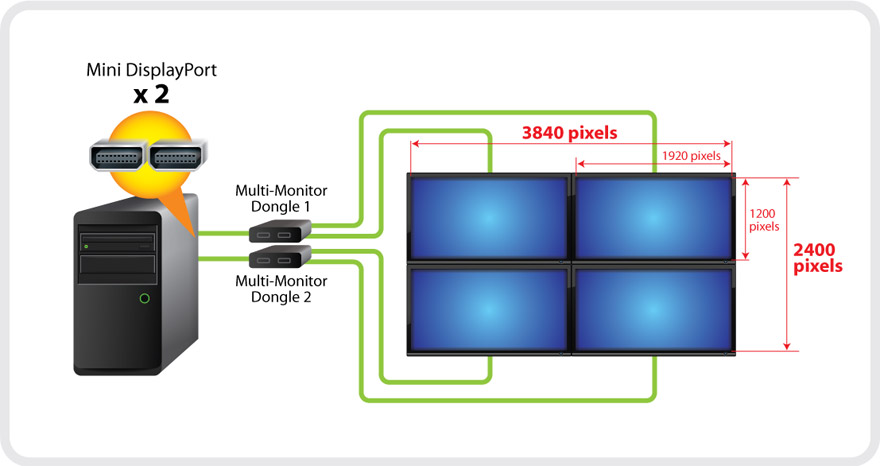

Vertical Mode

GIGABYTE 4K Ultra HD Collage Display Technology
