MB10-DS1 Server Motherboard Overview

GIGABYTE MB10-DS1 Overview
Intel Xeon 6th Gen Xeon Logo

Built With the Intel Xeon D-1521 SoC Processor

Based on the Broadwell microarchitecture, the Intel Xeon D are Server-on-Chip processors based on the 14nm process.

Designed for high density and scale-out server infrastructures, these processors focus on high power efficiency while maintaining datacenter grade features, such as large storage and memory platforms. Through this density and computing power, they aim at lowering the TCO of enterprise & public clouds, storage, and network applications.

DDR4 Memory Support

The Intel Xeon D product family supports the DDR4 memory technology. Compared to DDR3, this new generation brings:

+50%
Bandwidth Performance
-35%
Power Consumption @ 2DPC
-50%
Power Consumption @ 3DPC

Easy BIOS Update

Because updating your BIOS to a newer version can be a troublesome experience, GIGABYTE has developed this integrated function (no additional software to install) that lets you update the BIOS of your server / workstation motherboard(s):

Without having to install CPUs, memory, drives, operating system, etc.

Without having to power on the system (but a power supply must be connected)

One board at a time via our IPMI 2.0 web interface

Multiple boards simultaneously via command line

> Download the Easy BIOS Update user guide here.

Remote System Management

This motherboard is equipped with an onboard Aspeed AST2400 controller, providing comprehensive remote system monitoring with a whole set of management features, such as:

Remote Boot & Reset

Remote Image Mounting

Full Control Over Network, Users, Services, etc.

Complete System Monitoring & Diagnostics

> Download the Server Management Console user guide here.

GIGABYTE Avocent IPMI 2.0 Screenshot

The Best Components Only

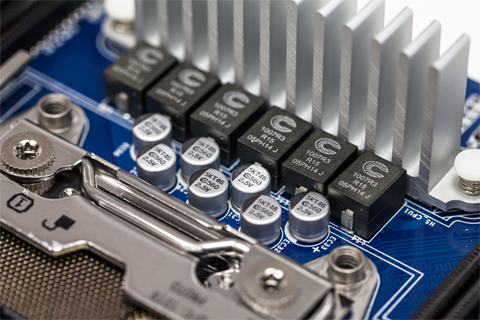

GIGABYTE Server & Workstation Motherboards PWM Detail

All IR Power Design

The CPU and memory power delivery of our motherboards is ensured by industry-leading IR Digital PWM and IR PowIRstage IC controllers. These components guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance.

OS-CON Capacitors

With a service life of a minimum of 50’000 hours, our server motherboards are built with ultra long lasting components for the highest reliability possible.

High End Ferrite Core Chokes

The top quality chokes we install on our server motherboards also contribute to an ultra stable power delivery to the CPU and the memory.


Recommended Accessories

TPM Module
GC-MUFL

GIGABYTE GC-MUFL TPM Module
See product page >
10GbE LAN Card
GC-MNXE21

GIGABYTE GC-MNXE21 10GbE LAN Card
See product page >
SAS 12Gb/s Card
CRA3338

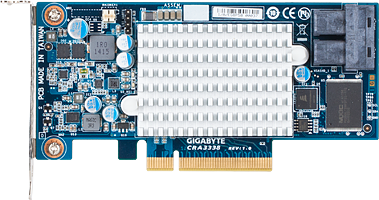

GIGABYTE CRA3338 SAS 12G Card
See product page >
