GIGABYTE

  Lower
Temperature
Better
Overclocking
Better Power
Efficiency
2X Lower
Impedance
Lower EMI Better ESD
Protection

Ultra Durable™ 3 Family
Ultra Durable 3
  Ultra Durable 3 Classic

Copper Cooled Quality

GIGABYTE Ultra Durable 3 series motherboards
GIGABYTE Ultra Durable 3 series motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry's first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, GIGABYTE Ultra Durable 3 motherboards deliver dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking.


PCB (Printed Circuit Board)

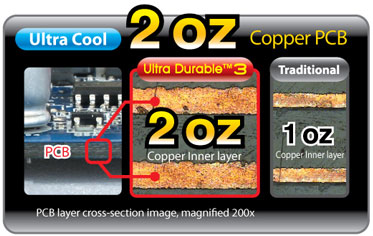

2 oz copper PCB = Copper weight per layer
1 square Foot (12 inch x 12 inch) PCB is 2 oz.

Weight Thickness
1.0 oz 35 µm (µ = micro)
2.0 oz 70 µm (µ = micro)

Ultra Durable 3

Ferrite Core
Choke

  50,000 hrs. Japanese Solid Capacitor
Lower
RDS(on)
MOSFET


2 oz Copper
Inner Layer
Signal Layer

Prepreg

Power layer

Core


Ground layer
Prepreg
Signal Layer


Ultra Durable 3 Classic

50,000 hrs. Japanese
Solid Capacitor


DualBIOS™


2 oz Copper
Inner Layer
Signal Layer

Prepreg

Power layer

Core


Ground layer
Prepreg
Signal Layer


TOP
