GIGABYTE Ultra Durable™ 4 motherboards embrace a range of exclusive technologies that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats.




2X Copper PCB

GIGABYTE Ultra Durable™ 4 design features 2X the amount of copper of a traditional motherboard for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable™ 4 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2X Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.
Ferrite Core Choke

50,000 hr.
Japanese Solid Capacitor
Lower RDS(on)
MOSFET


2X Copper
Inner Layer
Signal Layer

Prepreg

Power Layer



Core



Ground Layer

Prepreg

Signal Layer

PCB (Printed Circuit Board)

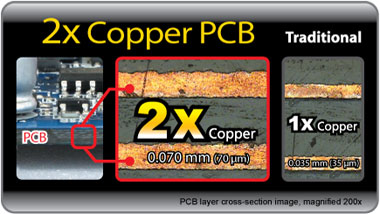

2x copper PCB = 2 oz copper PCB = weight of copper layer
30.48 cm x 30.48 cm (1 square foot) PCB is 56.7 g (2 oz)

Copper Layer
Thickness
2x copper
0.070mm (70 µm)
1x copper
0.035mm (35 µm)
Benefits of 2x Copper PCB

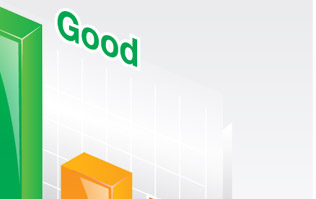

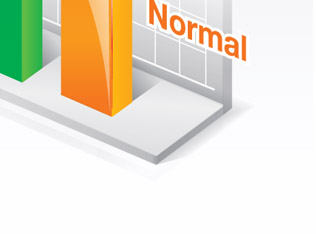

• Cooler than traditional motherboards
• Enhanced durability
• Improved energy efficiency
• Greater margins for overclocking

Lower
Temperature		 Better
Overclocking		 Better Power
Effciency		 2x Lower
Impedance		 Lower EMI Better ESD
Protection





Humidity Protection
New Glass Fabric PCB

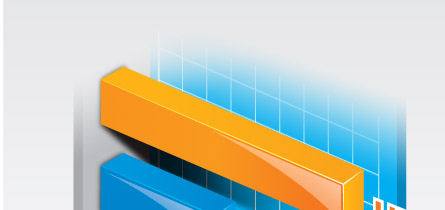

Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
NEW
New Glass Fabric PCB
Traditional Glass Fabric PCB
Traditional





Electrostatic Protection
High ESD Resistance ICs
All GIGABYTE Ultra Durable™ 4 Classic motherboards use high quality IC microchips that are rated with higher electro-static discharge (ESD) resistance than traditional IC implementations. GIGABYTE Ultra Durable™ 4 Classic motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard, its components and the PC in general against potential damage caused by static electricity, a common threat to today’s PCs.
High ESD Resistance ICs
Traditional ESD Resistance ICs






Power Failure Protection
DualBIOS™ ; Anti-Surge IC

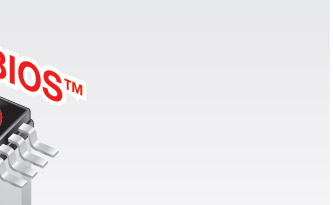

If your home experiences a sudden power outage for any reason, GIGABYTE Ultra Durable™ 4 Classic motherboards are equipped to ensure that you won’t be dealing with a fatal malfunction. All GIGABYTE Ultra Durable™ 4 Classic motherboards use patented DualBIOS™ technology to provide fail safe protection for the BIOS on your motherboard, automatically refreshing your BIOS from a back up version in the case of a critical power outage.

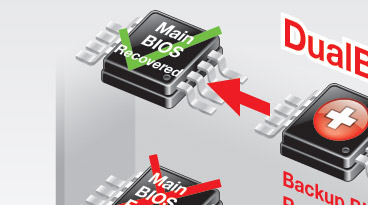

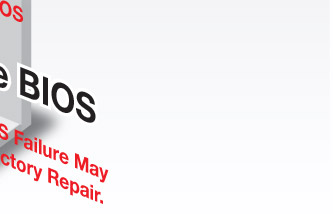

BIOS Recovery

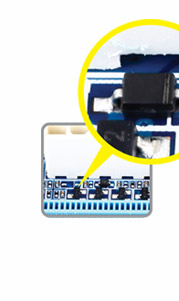

GIGABYTE Ultra Durable™ 4 Classic motherboards also feature special anti-surge ICs that protect your motherboard, and your PC, from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any kind of irregular and inconsistent power delivery.

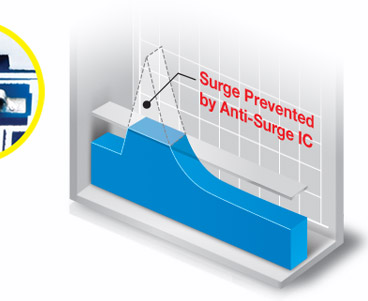

Anti-Surge IC

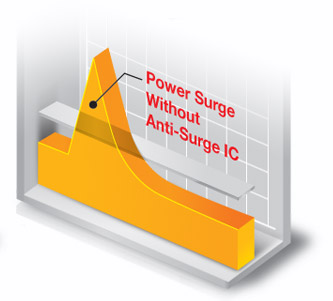

Without Anti-Surge IC
* Anti-Surge ICs may vary by model





High Temperature Protection
All Solid Caps ; Lower RDS(on) MOSFETs
Specially selected components make your PC capable of higher temperatures in more extreme conditions, while at the same time preventing your PC from overheating.  Using all solid capacitors for the GIGABYTE Ultra Durable™ 4 range both reduces overall board temperatures while making the motherboard more robust at higher temperatures. The choice of Lower RDS(on) MOSFETs also helps to reduce operating temperatures significantly compared to traditional MOSFET solutions.

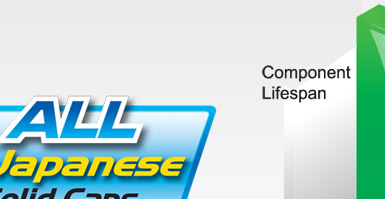

Cap Comparison
All Solid Cap Design
Traditional Cap Design

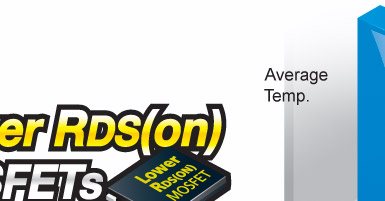

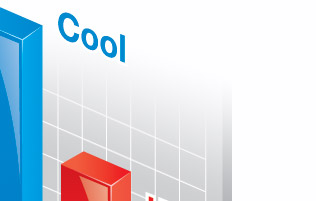

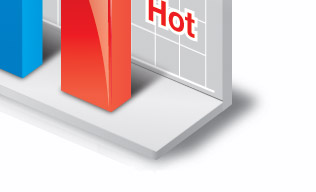

MOSFET Comparison

Lower RDS(on) MOSFET Design

Traditional MOSFET Design
* Lower RDS(on) MOSFET design may vary by model
