Features
|
|
|

333


Tomorrow's Performance Onboard Today
GIGABYTE 333 Onboard Acceleration motherboards set a new standard in high performance computing by incorporating all the industry's latest high-speed data transfer technologies. Proving once again to be the true Leader in Motherboard Innovation, the GIGABYTE 333 Onboard Acceleration delivers unparallel performance with onboard integration of the latest SuperSpeed USB 3.0 technologies from NEC, SATA Revision 3.0 (6Gbps) technologies from Marvell, and an unprecedented 3x USB power boost on all USB ports for the most power hungry USB devices. It also offers several unique technologies from GIGABYTE including Ultra Durable™ 3, AutoGreen, DES2 and GIGABYTE Smart 6 that includes a combination of 6 innovative software utilities for easier and smarter PC system performance, power and security management.

World's first USB 3.0 logo certified solution from NEC

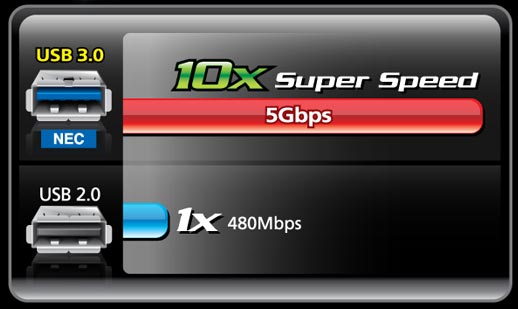

GIGABYTE 7 Series Motherboards utilize the new generation SuperSpeed USB 3.0 interface from NEC. Featuring a 10x data transfer speed boost over USB 2.0 and dual-simplex data transfer, USB 3.0 delivers faster USB 3.0 performance and enhanced data transfer efficiency.


Faster Data Transfer
Transfer of 25GB HD movie

lower is better
  70 sec


13.9 min
(834 sec)


USB 3.0 USB 2.0

Better data transfer efficiency




   Dual Simplex



  Dual direction at the same time

USB 3.0 Device
      USB 3.0 PC
Data transfer between USB device and PC is bidirectional. Data is both sent and
received between USB device and PC simultaneously, hence improving the data
transfer efficiency.

  Half Duplex transfer



  Only one direction at a time

USB 2.0 device

           USB 2.0 PC

Data transfer between USB device and PC is in only one direction.
Data is either being sent or received at any one time – can't be sent and received simultaneously.

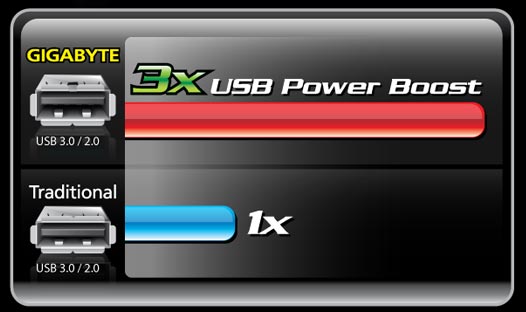

  Utmost compatibility with 3x
USB power boost

The 3x USB Power Boost from GIGABYTE is designed to deliver the utmost compatibility and stability for USB devices such as external storage devices or optical drives by supplying sufficient power through a single USB port. This will help free-up USB ports for using multiple USB devices on one motherboard.

  World's First SATA Revision 3.0
solution provider from Marvell®

Double your hard disk drive performance with SATA Revision 3.0 (SATA 6Gbps) from Marvell®, the latest generation of high speed storage interface. Coupled with RAID 0 (Stripe) mode, SATA Revision 3.0 enables a data transfer boost of up to 4x speed over SATA Revision 2.0.
* Only for Intel X58A-UD7 and P55A-UD7 motherboards.

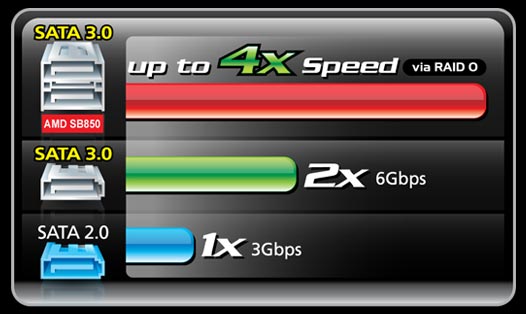

  World’s First SATA Revision 3.0
solution provider from AMD SB850®

Native SATA 6Gbps Support
Yet another onboard feature of GIGABYTE AMD 800 series motherboards is the latest AMD SB850 South Bridge, delivering integrated, high-speed SATA Revision 3.0 compatibility with 6 ports of native super fast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). GIGABYTE 800 series motherboards also provide RAID 0, 1, 5, 10 support. When used in RAID 0 (Stripe) mode, GIGABYTE AMD 800 series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces.
* Only for 890FXA-UD7 motherboard.
