PCB (Printed Circuit Board)
2x copper PCB = 2 oz copper PCB = weight of copper layer
30.48 cm x 30.48 cm (1 square foot) PCB is 56.7 g (2 oz)

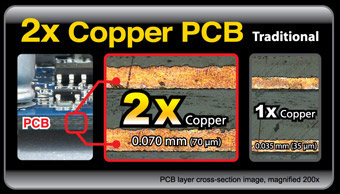

Copper Layer Thickness
2x copper 0.070mm(70 µm)
1x copper 0.035mm(35 µm)

High Capacity
Ferrite Core
Choke

Solid Capacitor

Power Stage

2x Copper
Inner Layer
Signal Layer

Power Layer


New Glass Fabric

Ground Layer

Signal Layer



* Actual component specifications may vary by model

The Benefits of 2 oz Copper PCB design

  Lower
Temperature		 Better
Overclocking		 Better Power
Efficiency		 2x Lower
Impedance		 Lower EMI Better ESD
Protection

GIGABYTE’s exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
