M.I.B 2

GIGABYTE M.I.B. 2 (Memory Intelligent Booster 2) technology is specially designed to maximize memory performance and boost memory bandwidth up to 10% by optimizing data transmission among CPU, north bridge chipset and memory. The innovative GIGABYTE M.I.B. 2 technology shortens memory latency time and enhances system performance without sacrificing stability.

The north bridge chipset acts as a very important role for the data communication between CPU and memory. It provides a data transaction center for CPU and memory, and the rate of data transfer depends on clock cycles needed for memory data to be deliver to CPU, the fewer the clock cycles needed, the faster the data is being transferred. Therefore, by shortening the interval of each clock cycle, the system is able to transfer the same amount of data with lesser time consumed; thus greatly increases system performance.

To enjoy the experience of high performing M.I.B. 2 (Memory Intelligent Booster 2), first you will need a GIGABYTE PX Series motherboards; secondly we suggest a known brand memory module for best results.

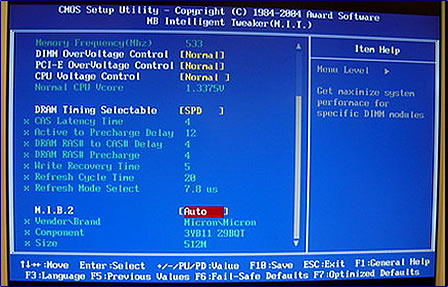

1.	Below is the BIOS setup utility. Press "Crtl + F1" to activate advance BIOS setting options. Select " Motherboard Intelligent Tweaker (M.I.T.)" to enter memory setting items.
	< Press "Ctrl + F1" to activate advance BIOS setting options.>
2.	On the M.I.T Settings page are a number of editable items. To enable M.I.B. 2, please select "M.I.B. 2" option.
	< Select "M.I.B. 2" to enable the function >

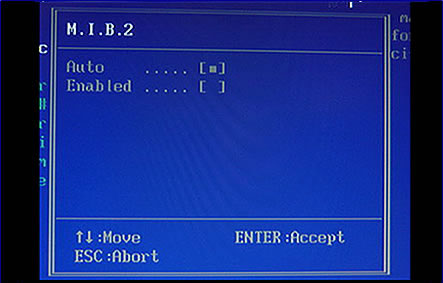

3.	Select "Enabled" to activate M.I.B. 2 function
	< Select "Enable" to activate M.I.B. 2 >

Note:

It might cause system instability if your memory is unable to handle such setting. Please use known branded memory modules for M.I.B. 2 function.
