Introuctidon
GIGABYTE M.I.B (Memory Intelligent Booster) technology is specially designed to maximize memory performance and boost memory bandwidth up to 10% by optimizing data transmission among CPU, north bridge chipset and memory. The innovative GIGABYTE M.I.B technology shortens memory latency time and enhances system performance without sacrificing stability.

Methodology
The north bridge chipset acts as a very important role for the data communication between CPU and memory. It provides a data transaction center for CPU and memory, and the rate of data transfer depends on clock cycles needed for memory data to be deliver to CPU, the fewer the clock cycles needed the faster the data is being transferred. Therefore, by shortening the interval of each clock cycle, the system is able to transfer the same amount of data with lesser time consumed; thus greatly increases system performance.

Tips and Tricks
To enjoy the experience of high performing M.I.B. (Memory Intelligent Booster), firstly you will have to have GIGABYTE P4 Titan™ 865PE / 865G series rev. 2.0 motherboards; secondly we would suggest a known brand memory module is more applicable

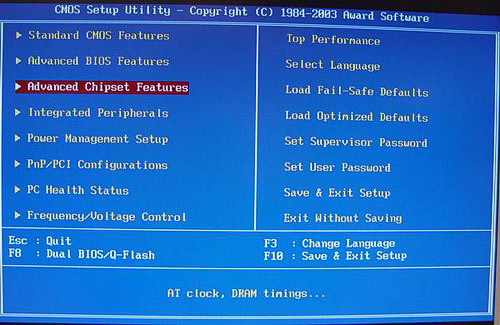

1) Below shows the screen of BIOS setup utility. Press "Crtl + F1" to activate advance BIOS setting options. Select "Advance Chipset Features" to enter memory setting items.


Press "Ctrl + F1" to activate advance BIOS settting options



2) At this page you can see varity of setting items. To enable M.I.B, please select "Memory Intelligent Booster"


Select "Memory Intelligent Booster" to enable the function

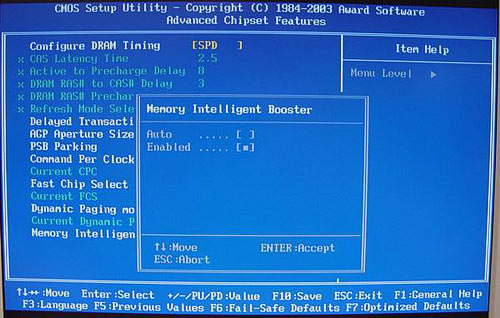

2) Select "Enabled" to activate M.I.B function.


Select "Enable" to activate M.I.B.



Note:
1) It might cause system unstable if your memory is uncapable to handle such setting. Please use known branded memory modules for M.I.B function
