"One Small Click for Man,
One Giant Leap for Mankind"
Helping to save the world one motherboard at a time.
GIGABYTE Dynamic Energy Saver™ Advanced / Easy Energy Saver™

  GIGABYTE Goes Green with
Dynamic Energy Saver™ Advanced Technology




World's Only Energy Saving Technology with Hardware-based
Dynamic 6-Gear Power Phase Switching

GIGABYTE Dynamic Energy Saver™ is a revolutionary technology that delivers unparalleled power savings with the simple click of a button. Featuring an advanced proprietary hardware and software design, GIGABYTE Dynamic Energy Saver™ is able to provide exceptional power savings and improved power efficiency without sacrificing computing performance.





Power Consumption

Power Savings
CPU Power
Savings






Power Efficiency
Improved Power Efficiency
CPU Power
Efficiency




Dynamic Energy Saver™ Advanced Features

• Improved algorithms in power savings and system performance
• Minimize CPU resources by allowing Dynamic Energy Saver™ utility to be turned off
• Power Saving remains ON even if Dynamic Energy Saver™ utility is turned off or
  removed from Windows task bar
• Allows Power Phase Switching even if users overclock or over-volt the system



Powered by Intersil's Reliable Hardware CPU Power Engine

Intersil is the world leading provider for high performance power IC solutions, providing GIGABYTE motherboards with the industry's highest quality CPU power design.





  One-Click Energy Saving with
GIGABYTE Dynamic Energy Saver™ Advanced


Allows users to see real-time CPU power consumption and how much power they are saving   Allows users to see the dynamic gear
shifting in real-time

    One Click to turn On or Off the GIGABYTE Dynamic Energy Saver™ Advanced Utility



3 levels of
Voltage adjustments		   Turn On or Off the Dynamic LED indicator on the motherboard


Throttles down CPU frequency for users wanting even greater energy savings
  GIGABYTE Easy Energy Saver™


GIGABYTE now makes it even easier for users to save energy with the new GIGABYTE Easy Energy Saver™. One click of the Easy Energy Saver™ button and users are able to instantly take advantage of power savings, without a confusing setup or complicated calibration processes. Not only can users see real-time CPU power consumption in Watts, but once Easy Energy Saver™ is enabled, users can see how much power they are actually saving. Now, everyone can benefit from quick and easy energy savings, helping
to not only save electricity costs, but also
making it easy to do your part to
help save the environment.



Stealth Mode Power Savings

Allows users to turn on or off the Dynamic Energy Saver™ Advanced Utility completely, while still experiencing the hardware-based energy saving benefits of Dynamic Energy Saver™ Advanced.


Multi-gear Power Phase Switching During Overclocking

Automatically adjusts the energy savings settings to allow power users to play, while at the same time, take advantage of Dynamic Energy Saver™ Advanced efficient power phase switching.


    TOP




Delivering Power Only When Needed


Dynamic 6-Gear Power Phase Switching Technology

Featuring an advanced proprietary software and hardware design, GIGABYTE Dynamic Energy Saver™ Advanced motherboards provide exceptional power savings and improved power efficiency through the use of GIGABYTE's unique multi-gear power phase design, allowing for the most efficient switching of power phases depending on CPU workload.

What is a Power Phase ?
1 set Phase Power = 2 MOSFETs + 1 Choke + 1 Solid Capacitor



Power phase
+12V(Vin)

 Hi-MOS
Choke
Stores energy and
regulates current
(Reduces EMI) 		Solid Capacitor
Stores & discharges
electric current
when needed


MOSFET
Switch that allows
or stops electric
current to pass
through an electric
circuit for
power charging

    CPU
      Low-MOS






  Only GIGABYTE's Multi-Gear Switching Provides
Optimum Power Efficiency From Light To Heavy Loading

Dynamic Multi-Gear Power Design


Power
Efficiency
(%)



  Gear1 Gear2 Gear3 Gear4 Gear5 Gear6 GIGABYTE Multi-Gear Switching
I (A)

  The Gear 1 phase switching requires 45nm processors with PSI signal enabled.



Dynamic LED Display
GIGABYTE's unique LED
hardware design allows users to see the dynamic gear shifting in real-time.
Dynamic LED during light loading
Dynamic LED during heavy loading

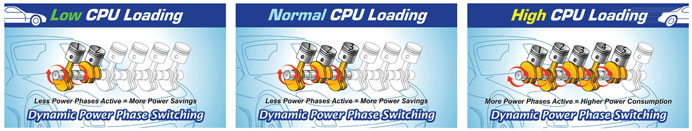

  Dynamic 6-Gear Switching automatically adjusts the number of active power phases according to CPU loading



Tomorrow's Technology Today
GIGABYTE
VRD 11.1
Motherboards
For the Latest Intel CPUs

New VRD 11.1 Power Specification for Intel is Latest Processors
GIGABYTE's motherboards now offer support for the new VRD (Voltage Regulator Down) 11.1 processor power delivery specification from Intel VRD 11.1 is a new energy saving power standard that communicates the CPU's power requirements to the motherboard, allowing Dynamic Energy Saver™ Advanced motherboards to gear down to a single (1) power phase for unequalled power efficiency during deeper sleep state.


Gear down to 1 power phase
(During deep sleep mode)


New VRD 11.1 Design
Older VRD Design
  Future CPU Support
YES
No
  Better power efficiency
YES
No
What is a VRD ?
A Voltage Regulator Down (VRD) is an electrical reglator designed to atuomatically maintain a constant voltage level for the CPU.

Green Ethernet

Green Ethernet is a technology that features lower power consumption than traditional Ethernet controllers by adjusting power amplitudes according to different network cable lengths. This allows lower energy loss while the system is either active or idle, without sacrificing the quality of the network connections.

High
  Green Ethernet
  w/o Green Ethernet
Low

  0-30m 30-70m 70-100m >100m

Network Cable Length

Lower Power Consumption
100m Network Cable Length
     Green Ethernet
  High Power Consumption
  100m Network Cable Length
   w/o Green Ethernet


GIGABYTE Cares

GIGABYTE is proud to be at the forefront of developing new technologies which help reduce the impact everyday computing has on the environment. As such, GIGABYTE has become a member of the Climate Savers Computing Initiative. Started by Google and Intel in 2007, the Climate Savers Computing Initiative is a nonprofit group of eco-conscious consumers, businesses and conservation organizations whose goal is to promote development, deployment and adoption of smart technologies that can both improve the efficiency of a computer’s power delivery and reduce the energy consumed when the computer is in an inactive state.
Corporate
• Energy-Saving and CO2 reduction activities
• Turning off lights during lunch breaks
• Running only one lift during off peak hours rather than all of the lifts
• Turn off PCs after work and regular inspection for energy savings in the evenings
• Saving water resources
• Converting to an online application and approval system to reduce paper usage
• Recycling of waste within office and factory buildings

Product
• Focus on Green design
• Restrict harmful materials
• The World's first RoHS motherboard
• Dynamic Energy Saver™ Motherboards
• GIGABYTE Motherboards to meet Energy Star 4.0 hardware requirement
• Green Mark certification of Taiwan

Social Responsibility
• First motherboard company to join leading Green Computing Initiatives
• Joining the environment protection plan
• Aim for Green products
• Pollution reduction and recycling as part of corporate mission
