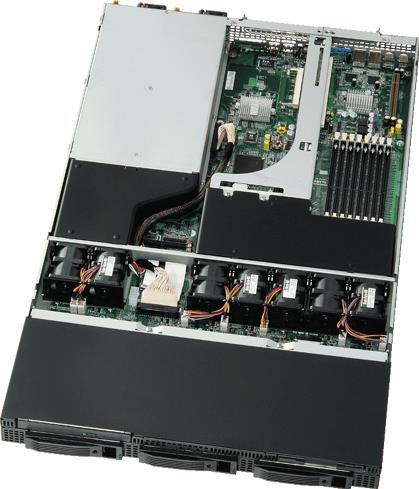

GS-SR195HLegacy | Firmware updates supported
- Dual Intel® Xeon™ processors at 800MHz (Nocona/Irwindale)
- Support ECC Registered DDR266/333 up to 32GB/16GB
- Support PCI-x 66MH or PCI-E x8 slot
- On board ATI® 7000M graphic controller
- Support three SCSI Hot-Swap HDDs by Adaptec® AIC7902
- Dual Intel® 82541 Gigabit Ethernet controllers
- Advanced IPMI 1.5 management function with GIGABYTE Server Management Tool (GSMT) for remote management and console redirection
- Specifications
- Support
- Related Resources
Specifications
CPU
- Dual Intel® Xeon™ (Nocona/Irwindale) support up to 3.8GHz
- Supports 800MHz/Socket 604
Chipset
- Intel® 7320 MCH
- Intel® 6300ESB
LAN
- Dual intel® 82541 GbE
Video
- ATI® 7000M
Storage
- 3 x SCSI Hot-swap HDDs
RAID
- Supports Host RAID 0,1
Expansion Slots
- 2 x PCI-X 64/66 slot
- 1 x PCI-E x8 (Optional)
Power Supply[#1]
- Redundant 525W (1+1)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
