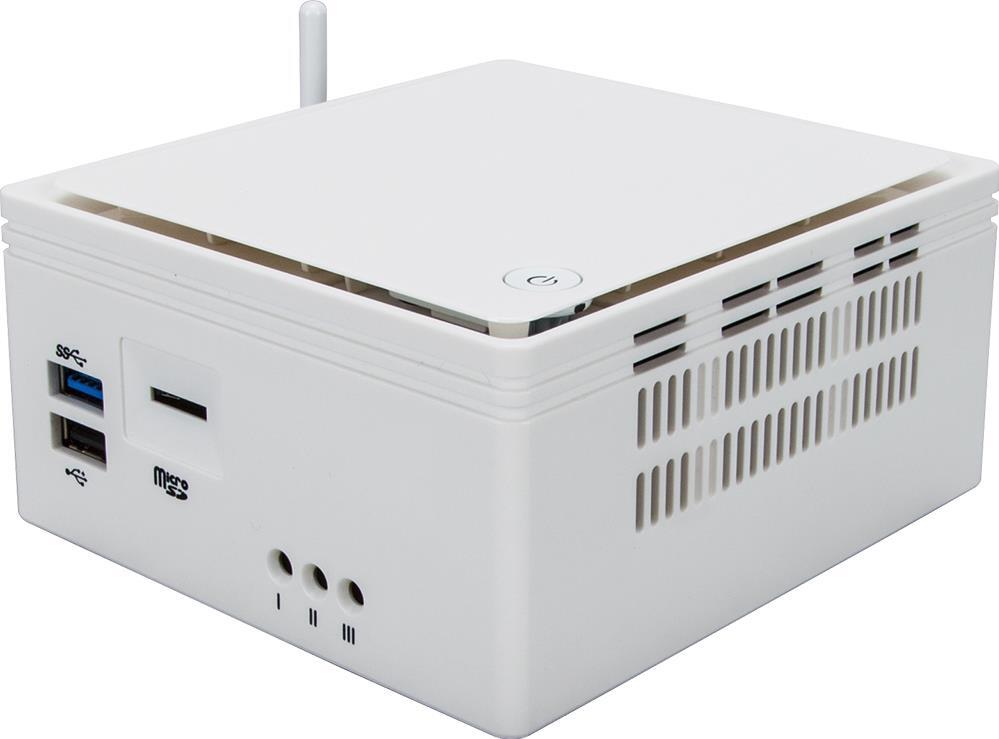

GB-TCV2ALegacy | Firmware updates supported
3G Communication Embedded System
- Intel® Atom™ processor E3815
- 4GB DDR3L SO-DIMM module included
- 1 x GbE LAN (Realtek RTL8111G)
- 1 x 3G module included
- Overview
- Specifications
- Support
Specifications
Operating Properties
Operating temperature: 0°C to 35°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Intel Atom processor E3815
Single core, 22nm
1.46GHz
512Kb cache
5W TDP
Single core, 22nm
1.46GHz
512Kb cache
5W TDP
Socket
1 x BGA 1170
Memory
1 x SO-DIMM slot
DDR3L memory
Up to 8GB
1067Mhz
4GB DDR3L memory module pre-installed
DDR3L memory
Up to 8GB
1067Mhz
4GB DDR3L memory module pre-installed
Flash Memory
4GB of eMMC memory
LAN
1 x GbE LAN port (Realtek RTL8111G)
Video
Intel HD Graphics
SATA
1 x SATA II 3Gb/s port
Expansion Slots
1 x Full-size Mini-PCIe slot
Occupied by WiFi + Bluetooth card (Azurewave AW-NB159H)
1 x Full-size Mini-PCIe slot
Occupied by 3G card (MTPCIE-H5)
Occupied by WiFi + Bluetooth card (Azurewave AW-NB159H)
1 x Full-size Mini-PCIe slot
Occupied by 3G card (MTPCIE-H5)
Internal I/O
1 x RTC header
1 x System fan header
1 x LPC (80h) header
1 x LVDS connector
1 x USB 2.0 header
1 x SATA power connector
1 x System power connector
1 x System fan header
1 x LPC (80h) header
1 x LVDS connector
1 x USB 2.0 header
1 x SATA power connector
1 x System power connector
Rear I/O
1 x Serial DB-9
1 x RJ45
1 x HDMI 1.4a
1 x DC-In
1 x Kensington lock slot
1 x RJ45
1 x HDMI 1.4a
1 x DC-In
1 x Kensington lock slot
OS Supported
Windows 7 (x32/x64)
Windows 8.1 (x32/x64)
Windows 8.1 (x32/x64)
Power Supply
External power adapter:
- 12V
- 3A
- 36W
- 100~240VA
Packaging Content
1 x 4GB DDR3L SO-DIMM memory module
1 x Mini PCIe card bracket
2 x Screws M2x4L
1 x Wifi+BT combo card
1 x 3G mini PCIe card
1 x 36W adapter
1 x Regional adapter plug
1 x Mini PCIe card bracket
2 x Screws M2x4L
1 x Wifi+BT combo card
1 x 3G mini PCIe card
1 x 36W adapter
1 x Regional adapter plug
Ordering Information
L10 System: 9BTCV2AMR-SI
Power adapter: 25EP2-100360-A3S
Power adapter: 25EP2-100360-A3S
Front I/O
1 x USB 3.0
1 x USB 2.0
1 x MicroSD card slot
1 x USB 2.0
1 x MicroSD card slot
System Fans
Fanless
Dimension
107.6(W) x 56.1(H) x 114.4(D) mm
Motherboard
MZBAYVA
Weight
410g
Side I/O
2 x USB 2.0
1 x Antenna
1 x Antenna
