 Models


* Product features may vary by model.
Model Name

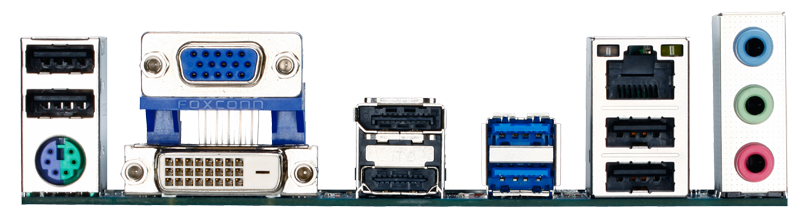

GA-Z77-HD4

GA-Z77-HD4

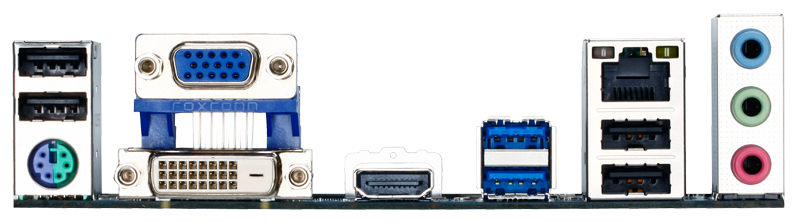

GA-Z77-HD3
GA-Z77-HD3

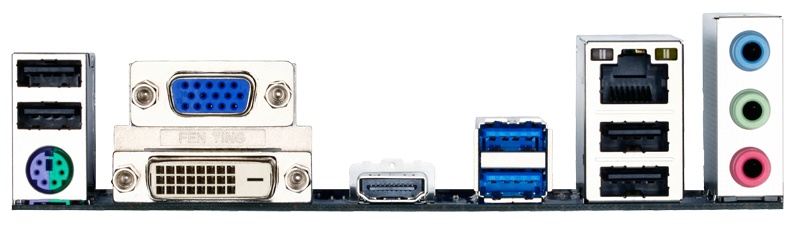

GA-B75M-HD3

GA-B75M-HD3
GA-H61M-HD2
GA-H61M-HD2
CPU Support
Intel 22nm and 2nd gen Core CPUs
Intel 22nm and 2nd gen Core CPUs
Intel 22nm and 2nd gen Core CPUs
Intel 22nm and 2nd gen Core CPUs
CPU Socket
LGA 1155
LGA 1155
LGA 1155
LGA 1155
Chipset
Intel Z77 Chipset
Intel Z77 Chipset
Intel B75 Chipset
Intel H61 Chipset
Graphics Interface
1*PCI-E 3.0x16 +
1*PCI-E 2.0x4
1*PCI-E 3.0x16 +
1*PCI-E 2.0x4
1*PCI-E 3.0x16
1*PCI-Ex16
Memory Type
Dual-Channel DDR3 3200/1600 MHz
Dual-Channel DDR3 2800/1600 MHz
Dual-Channel DDR3 1600/1333 MHz
Dual-Channel DDR3 1600/1333 MHz
Memory DIMM
4*DDR3 (Max 32 GB)
4*DDR3 (Max 32 GB)
2*DDR3 (Max 16GB)
2*DDR3 (Max 16GB)
Expansion Slots
2*PCI-Ex1+ 2*PCI
2*PCI-Ex1+ 2*PCI
2*PCI-Ex1+1*PCI
2*PCI-Ex1
SATA connector
2*SATA 6Gb/s +
4*SATA 3Gb/s
2*SATA 6Gb/s +
4*SATA 3Gb/s
1*SATA 6Gb/s +
5*SATA 3Gb/s
4*SATA 3Gb/s
SATA RAID
RAID 0,1,5,10
RAID 0,1,5,10
N/A
N/A
USB
4* USB3.0+8*USB2.0
4* USB3.0+8*USB2.0
4*USB 3.0+8*USB 2.0
10*USB 2.0
Audio
8-channel HD
8-channel HD
8-channel HD
8-channel HD
LAN
1*GbE LAN
1*GbE LAN
1*GbE LAN
1*GbE LAN
Video Output
DispayPort/ HDMI/ DVI/
D-sub
HDMI/ DVI/ D-sub
HDMI/ DVI/ D-sub
HDMI/ DVI/ D-sub
Features& Software
Digital power,
3D BIOS,
Gen3 support,
CrossFire,
Ultra durable 4 Classic,
All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8,3X USB Power
Digital power,
3D BIOS,
Gen3 support,
CrossFire,
Ultra durable 4 Classic,
All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8,3X USB Power
Intel SBA,
USB 3.0, SATA 3,
Ultra durable 4 Classic,
All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8
Ultra durable 4 Classic,
All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8
Form Factor (mm)
ATX (305x193)
ATX (305x193)
mATX (224x174)
mATX (226x174)



Model Name

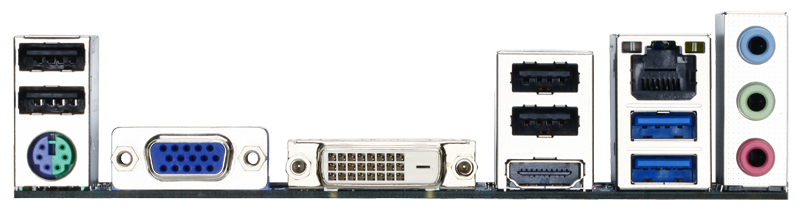

GA-F2A85XM-HD3
GA-F2A85XM-HD3

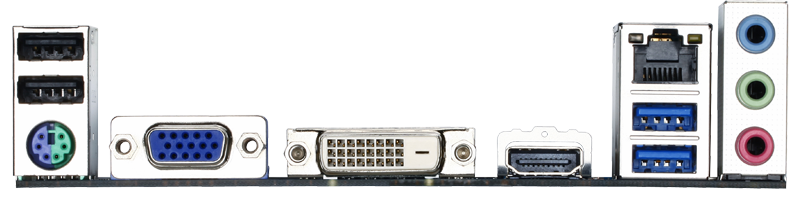

GA-F2A75M-HD2
GA-F2A75M-HD2

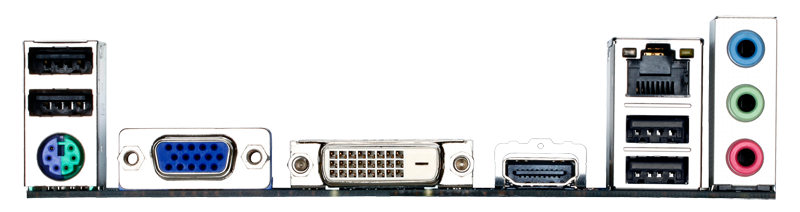

GA-F2A55M-HD2
GA-F2A55M-HD2
CPU Support
AMD A-series APUs (DX11) / Athlon CPUs
AMD A-series APUs (DX11) / Athlon CPUs
AMD A-series APUs (DX11) / Athlon CPUs
CPU Socket
AMD Socket FM2
AMD Socket FM2
AMD Socket FM2
Chipset
AMD A85X Chipset
AMD A75 Chipset
AMD A55 Chipset
Graphics Interface
2*PCI-E 2.0 x16 (x16, x4)
1*PCI-E 2.0 x16
1*PCI-E 2.0 x16
Memory Type
Dual-Channel DDR3 1866+/1600/1333 MHz
Dual-Channel DDR3 1866+/1600/1333 MHz
Dual-Channel DDR3 1866+/1600/1333 MHz
Memory DIMM
2*DDR3 (Max 64GB)
2*DDR3 (Max 64GB)
2*DDR3 (Max 64GB)
Expansion Slots
1*PCI-E 2.0 x1 + 1*PCI
1*PCI-E 2.0 x1 + 1*PCI
1*PCI-E 2.0 x1 + 1*PCI
SATA connector
8*SATA 6Gb/s
4*SATA 6Gb/s
4*SATA 3Gb/s
SATA RAID
0, 1, 5, 10 (A85X)
0, 1, 10 (A75)
0, 1, 10 (A55)
USB
4*USB3.0 + 8*USB2.0
4*USB3.0 + 6*USB2.0
8*USB2.0
Audio
8-channel HD
8-channel HD
8-channel HD
LAN
1*GbE LAN
1*GbE LAN
1*GbE LAN
Video Output
HDMI/ Dual-link DVI/ D-sub
HDMI/ Dual-link DVI/ D-sub
HDMI/ Dual-link DVI/ D-sub
Features& Software
USB 3.0, SATA 3,
3+2 phase, Ultra Durable 4 Classic,
Triple-monitor support,
AMD Dual Graphics/ Eyefinity support, All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8
USB 3.0, SATA 3,
3+2 phase, Ultra Durable 4 Classic,
Triple-monitor support,
AMD Dual Graphics/ Eyefinity support, All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8
3+2 phase, Ultra Durable 4 Classic,
Triple-monitor support,
AMD Dual Graphics/ Eyefinity support, All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8
Form Factor (mm)
mATX (244x174)
mATX (225x174)
mATX (225x174)
* HD : HDMI + DVI + D-SUB.
* Product features may vary by model.
