All IR® Digital CPU Power Design
GIGABYTE Ultra Durable™ 5 Plus motherboards use industry-leading PowIRstage™ controllers from International Recifier®. These 100% digital controllers offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their next generation Intel® Core™ processors.

Total Solution from International Rectifier (IR®)

All IR® Digital PWM Controllers

Z87X-OC Force

IR® PowIRstage® IC

IR® Digital PWM Controller







Single Package Design
IR has leveraged it's world class packaging technology developed for the DirectFET®, improving the thermal capability and layout of the PowIRstage® significantly over that of other MCM packages.

Single Package Design*
vs.
Multi-Chip Design


High Side MOSFET

Driver IC


Low Side MOSFET
* Z87X-OC Force only

Other MOSFET layout implementations use a multi-chip, side-by-side arrangement of the high and low side MOSFETs and driver IC, taking up significant board real estate and creating more electrical leakage.
High Side MOSFET
(Traditional MOSFET)

Low Side MOSFET
(Traditional MOSFET)

Driver IC
(MOSFET Driver)




Power Stage
(Also known as IR3550 PowIRstage® )
Lower RDS(on) MOSFET
(Also known as WPAK, PowerPAK MOSFET...)

8 pins
(4 right, 4 left)
Traditional MOSFET (Also known as D-Pak MOSFET...)

3 pins
(1 right, 2 left)

Size ratio between objects is constant



Ultra Cool, Ultra Efficient, Ultra Performance
Traditional MOSFET
IR3550 PowIRstage®



* Testing result for reference only. Results may differ according to system configuration.
* 4 phase IR3550 PowIRstage® with 2x Copper PCB vs. 4 phase traditional MOSFET @ 100A load 10 mins lab testing without heatsink.

Cooler temps. = Higher Overclocks
Overheat

Not enough power
for overclocking

IR3550 PowIRstage® ICs remain cooler than other MOSFET designs, allowing users to overclock to greater levels of performance. Each power component has a maximum thermal operational temperature, and once it is reached, adding more voltage will only result in a failed overclock. Since IR3550 PowIRstages® are able to operate at cooler temperatures at higher voltages than traditional designs, overclockers are able to have more headroom to increase voltages, resulting in higher potential overclocks.
MOSFET Overclocking Stability
IR3550
PowIRstage®
Best
Lower RDS(on) MOSFET
(Also known as WPAK, PowerPak MOSFET...)
Good
Traditional MOSFET
(Also known as D-Pak MOSFET... )
OK



OC Cool

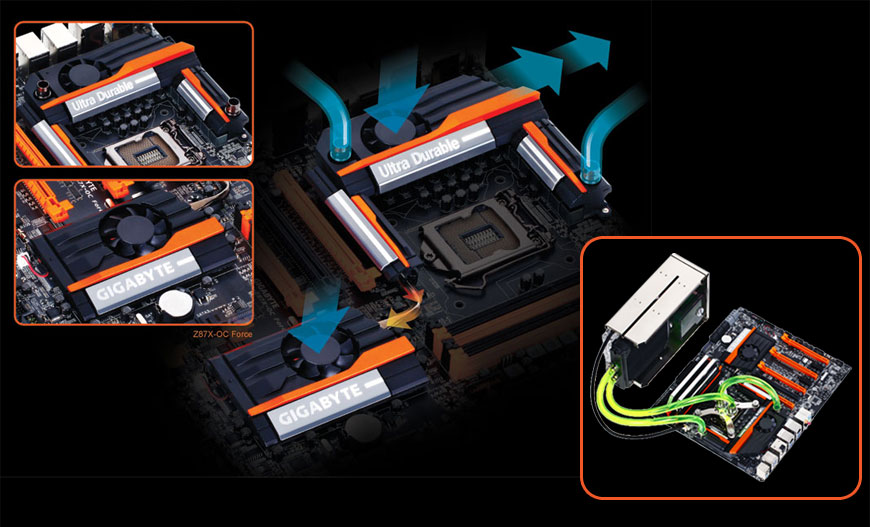

The GIGABYTE Z87X-OC Force Motherboard features an extreme heatsink design for the PWM area that allows users to employ both passive, active and water cooling setups. A hollow body heatsink fitted with a silent integrated fan ensures superb heat dissipation during extreme overclocking configurations.


GIGABYTE OPT Fan Support
Many of today's 3rd party water cooling systems require CPU fan power support for both the cooling fan and the water pump. GIGABYTE 8 Series motherboards feature OPT fan support, an additional CPU fan pin header that can be used to connect a water pump and configured for continuous full speed operation. The OPT Fan is also useful for high performance coolers employing two fans.



Digital PWM Controller and PowIRstage® IC design may vary by model.
Features and Actual component specifications may vary by model.
Photos are for reference only.
