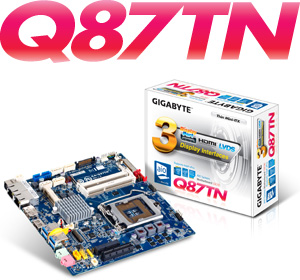

GA-Q87TN |
CPU Support |
4th generation Intel® Core™ processors |
CPU Socket |
LGA 1150 |
Chipset |
Intel Q87 Express Chipset |
Graphics Interface |
1*PCI-E 3.0 x4 |
Display Interface |
LVDS, HDMI, DisplayPort |
Memory Type |
Dual Channel DDR3 SO DIMM |
Memory DIMM |
2*DDR3 SO DIMM |
Expansion Slots |
1*mini PCI-E slot (Half size) |
SATA connectors |
4*SATA3 + 1*m-SATA |
SATA RAID |
RAID 0, 1, 5, 10 |
USB |
6*USB3.0 + 5*USB 2.0 |
Audio LAN |
7.1 channel HD / Dual GbE LAN |
Form Factor(mm) |
170x170mm Thin Mini-ITX |
|
|
|
| |
|
| |
|

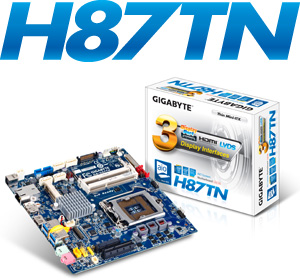

GA-H87TN |
CPU Support |
4th generation Intel® Core™ processors |
CPU Socket |
LGA 1150 |
Chipset |
Intel H87 Express Chipset |
Graphics Interface |
1*PCI-E 3.0 x4 |
Display Interface |
LVDS, HDMI, DisplayPort |
Memory Type |
Dual Channel DDR3 SO DIMM |
Memory DIMM |
2*DDR3 SO DIMM |
Expansion Slots |
1*mini PCI-E slot (Half size) |
SATA connectors |
4*SATA3 + 1*m-SATA |
SATA RAID |
RAID 0, 1, 5, 10 |
USB |
6*USB3.0 + 5*USB 2.0 |
Audio LAN |
7.1 channel HD / GbE LAN |
Form Factor(mm) |
170x170mm Thin Mini-ITX |
|
|
|
|
| |
|
| |
|

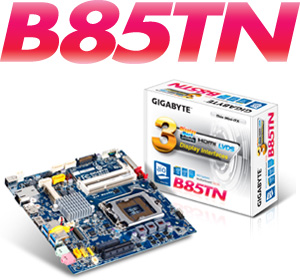

GA-B85TN |
CPU Support |
4th generation Intel® Core™ processors |
CPU Socket |
LGA 1150 |
Chipset |
Intel B85 Express Chipset |
Graphics Interface |
1*PCI-E 3.0 x4 |
Display Interface |
LVDS, HDMI, DisplayPort |
Memory Type |
Dual Channel DDR3 SO DIMM |
Memory DIMM |
2*DDR3 SO DIMM |
Expansion Slots |
1*mini PCI-E slot (Half size) |
SATA connectors |
3*SATA3+1*SATA2 + 1*m-SATA |
SATA RAID |
NA |
USB |
4*USB3.0 + 5*USB 2.0 |
Audio LAN |
7.1 channel HD / GbE LAN |
Form Factor(mm) |
170x170mm Thin Mini-ITX |
|
|
|
|
| |
|
| |
|

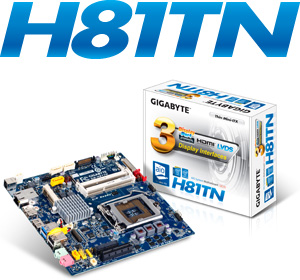

GA-H81TN |
CPU Support |
4th generation Intel® Core™ processors |
CPU Socket |
LGA 1150 |
Chipset |
Intel H81 Express Chipset |
Graphics Interface |
1*PCI-E 3.0 x4 |
Display Interface |
LVDS, HDMI, DisplayPort |
Memory Type |
Dual Channel DDR3 SO DIMM |
Memory DIMM |
2*DDR3 SO DIMM |
Expansion Slots |
1*mini PCI-E slot (Half size) |
SATA connectors |
2*SATA3 + 1*SATA2 + 1*m-SATA |
SATA RAID |
NA |
USB |
2*USB3.0 + 7*USB 2.0 |
Audio LAN |
7.1 channel HD / GbE LAN |
Form Factor(mm) |
170x170mm Thin Mini-ITX |
|
|
|
|
|
|
