GIGABYTE HD Series Motherboards

* Product features may vary by model.

Model Name

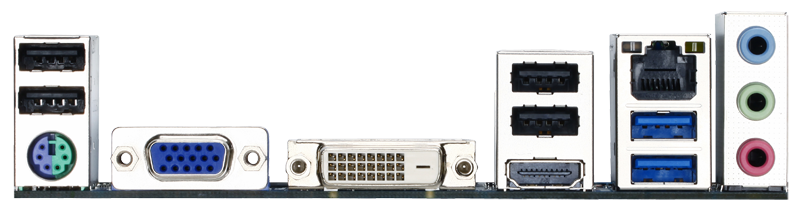

GA-F2A85XM-HD3

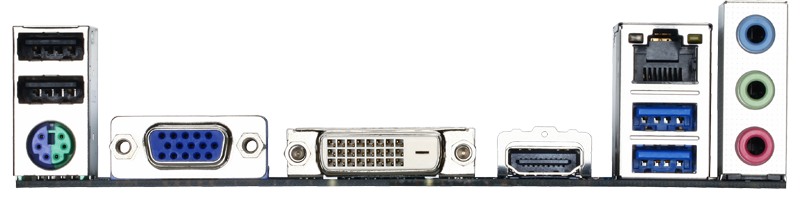

GA-F2A75M-HD2

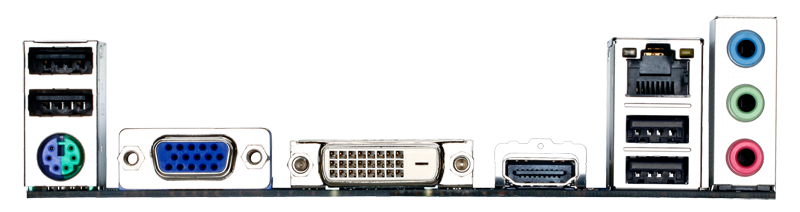

GA-F2A55M-HD2

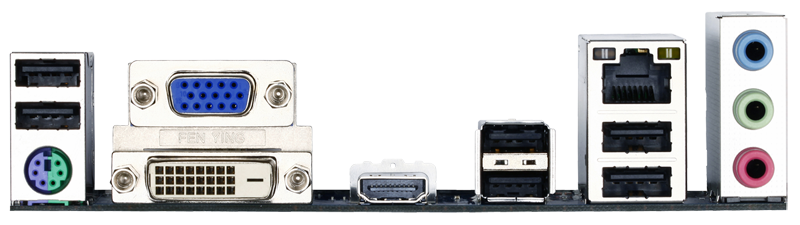

GA-H61M-HD2

CPU Support

AMD A-series APUs (DX11) / Athlon CPUs

Intel 22nm and 2^nd gen Core CPUs

CPU Socket

AMD Socket FM2

LGA 1155

Chipset

AMD A85X Chipset

AMD A75 Chipset

AMD A55 Chipset

Intel H61 Chipset

Graphics Interface

2*PCI-E 2.0 x16 (x16, x4)

1*PCI-E 2.0 x16

1*PCI-Ex16

Memory Type

Dual-Channel DDR3 1866+/1600/1333 MHz

Dual-Channel DDR3 1600/1333 MHz

Memory DIMM

2*DDR3 (Max 64GB)

2*DDR3 (Max 16GB)

Expansion Slots

1*PCI-E 2.0 x1 + 1*PCI

2*PCI-Ex1

SATA connector

8*SATA 6Gb/s

4*SATA 6Gb/s

4*SATA 3Gb/s

SATA RAID

0, 1, 5, 10 (A85X)

0, 1, 10 (A75)

0, 1, 10 (A55)

N/A

USB

4*USB3.0 + 8*USB2.0

4*USB3.0 + 6*USB2.0

8*USB2.0

10*USB 2.0

Audio

8-channel HD

LAN

1*GbE LAN

Video Output

HDMI/ Dual-link DVI/ D-sub

HDMI/ DVI/ D-sub

Features& Software

USB 3.0, SATA 3,
3+2 phase, Ultra Durable 4 Classic,
Triple-monitor support,
AMD Dual Graphics/ Eyefinity support, All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8

3+2 phase, Ultra Durable 4 Classic,
Triple-monitor support,
AMD Dual Graphics/ Eyefinity support, All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8

Ultra durable 4 Classic,
All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8

Form Factor (mm)

mATX (244x174)

mATX (225x174)

mATX (226x174)
