 3D Power™
|
|
|
|
|
|


  *3D Power utility is available for download from the official GIGABYTE website

GIGABYTE X79 series motherboards are the first to take advantage of the exclusive GIGABYTE 3D Power, an all new hardware and software-based Digital Power Engine for both the CPU and Memory that delivers unprecedented power delivery control.

3-Way Digital Engine

Digital
Memory
Engine A
Digital
CPU
Engine
Digital
Memory
Engine B
Power
Power
Power

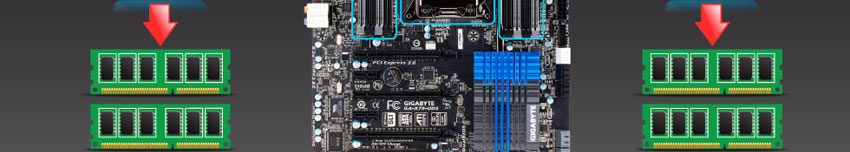

Memory Zone A

Memory Zone B


  All New 3-Way
Digital Power

Digital
CPU
Engine

         CPU Zone


Digital
Memory
Engine A

Digital
Memory
Engine B

  Memory Zone A Memory Zone B



  GIGABYTE Turbo Voltage Response Maintain Optimal Voltage Realtime PWM Frequency Switching



    Turbo Voltage Response
Higher frequency for improved overlocking
and greater levels of performance

Lower PWM frequency for improved system stability and enhanced power savings
    Without Turbo Voltage Response
  Turbo Voltage Response allows the CPU and memory voltages to reach their target voltages quicker, helping to improve overclocking performance and provide better power savings.


All New Digital Power Control for the CPU and Memory

Utilizing a brand new Digital PWM controller, GIGABYTE's 3D Power™ delivers a steady flow of power to the CPU and memory no matter the loading. This all new, all digital power system provides enthusiast users with exceptional control over the overclocking potential of their GIGABYTE X79 motherboard.

GIGABYTE is the first in the industry to utilize dual digital memory controllers for real-time system adjustment. Users can set OVP (Over Voltage Protection) and OCP (Over Current Protection) to safeguard their memory, adjust memory Load-line Calibration (to speed up response time and resolve memory vdroop), as well as adjust memory PWM frequency on-the-fly. This means that users can optimize their system for enhanced performance or stability in real-time, enjoying a new level of flexibility and control thanks to the new digital power design of GIGABYTE X79 motherboards.




GIGABYTE 3D Power™(patent pending) Utility
Users can now enjoy a fully interactive 3D utility that facilitates adjustment of the 3 dimensions that control the power delivery to the CPU and Memory:  Voltage, Phase and Frequency. These parameters are crucial to how the digital PWM supplies power to critical areas of the motherboard and can help users quickly obtain the highest, most stable overclock.


3D Power™: Voltage Control
  3D Power™: Phase Control   3D Power™: Frequency Control
Voltage parameters can be modified within 3D Power™, including load line calibration the of CPU. By adjusting load line calibration, Vdroop can be avoided, maintaining optimal voltages levels despite increasing current levels. OVP (over voltage protection) can also be adjusted to change default protection range of the CPU, memory controller, VTT and system memory.

Users can calibrate OCP (Over Current Protection) for the CPU, integrated memory controller and system memory power levels. This allows the Phase Control to deliver even more power to the system when needed.

GIGABYTE's digital PWM allows for adjustable frequency control via the International Rectifier PWM controller. 3D Power™ frequency control allows users to change the PWM controller frequency so that the CPU VRM can adjust power delivery speeds more quickly.  Users can also adjust the PWM spectrum or maximum and minimum overall frequencies.

The above photos are for reference only.




3D Power Utility Download
Description 3D Power
(Note) Support GIGABYTE X79 series motherboards.(support may vary by model)
(Note) Please update the latest BIOS version
