* Produktfunktioner kan variera mellan olika modeller. |
|
|
Modell |
 |
|
|

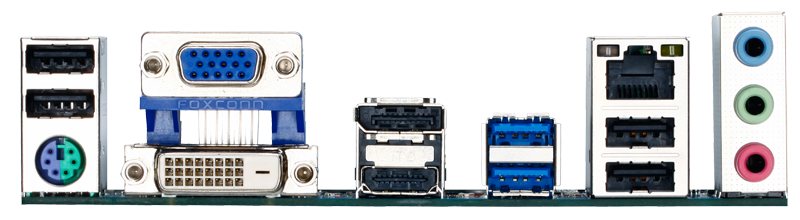

GA-Z77-HD4 |
|
 |
 |

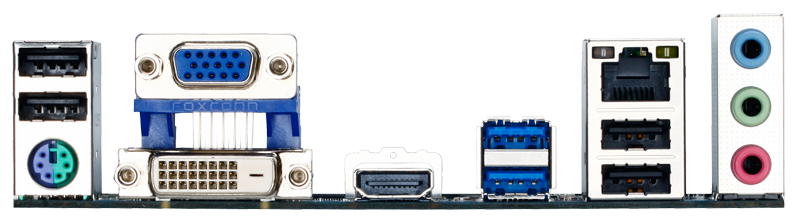

GA-Z77-HD3 |
|
 |
|
GA-B75M-HD3 |
|
 |
|

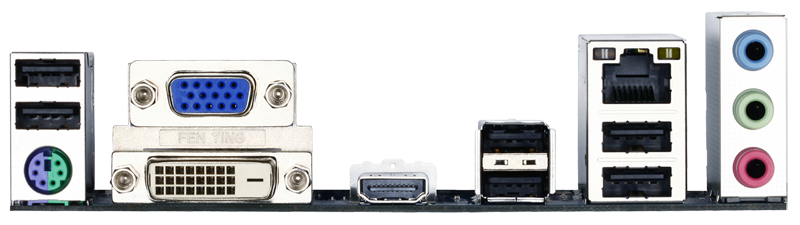

GA-H61M-HD2 |
|
Processorstöd |
Intel 22nm and 2nd gen Core CPUs |
Intel 22nm and 2nd gen Core CPUs
|
Intel 22nm and 2nd gen Core CPUs |
Intel 22nm and 2nd gen Core CPUs |
Processorsockel |
LGA 1155 |
LGA 1155 |
LGA 1155 |
LGA 1155 |
Styrkrets |
Intel Z77 Styrkrets |
Intel Z77 Styrkrets |
Intel B75 Styrkrets |
Intel H61 Styrkrets |
Grafikkortsgränssnitt |
1*PCI-E 3.0x16 +
1*PCI-E 2.0x4 |
1*PCI-E 3.0x16 +
1*PCI-E 2.0x4 |
1*PCI-E 3.0x16 |
1*PCI-Ex16 |
Minnestyp |
Två-kanalers DDR3 3200/1600 MHz |
Två-kanalers DDR3 2800/1600 MHz |
Två-kanalers DDR3 1600/1333 MHz |
Två-kanalers DDR3 1600/1333 MHz |
Minnes DIMM |
4*DDR3 (Max 32 GB) |
4*DDR3 (Max 32 GB) |
2*DDR3 (Max 16GB) |
2*DDR3 (Max 16GB) |
Expansionsportar |
2*PCI-Ex1+ 2*PCI |
2*PCI-Ex1+ 2*PCI |
2*PCI-Ex1+1*PCI |
2*PCI-Ex1 |
SATA Portar |
2*SATA 6Gb/s
+
4*SATA 3Gb/s |
2*SATA 6Gb/s +
4*SATA 3Gb/s |
1*SATA 6Gb/s +
5*SATA 3Gb/s |
4*SATA 3Gb/s |
SATA RAID |
RAID 0,1,5,10 |
RAID 0,1,5,10 |
N/A |
N/A |
USB |
4* USB3.0+8*USB2.0 |
4* USB3.0+8*USB2.0 |
4*USB 3.0+8*USB 2.0 |
10*USB 2.0 |
Ljud |
8-kanaler HD |
8-kanaler HD |
8-kanaler HD |
8-kanaler HD |
LAN |
1*GbE LAN |
1*GbE LAN |
1*GbE LAN |
1*GbE LAN |
Videoutgång |
DispayPort/ HDMI/ DVI/
D-sub |
HDMI/ DVI/ D-sub |
HDMI/ DVI/ D-sub |
HDMI/ DVI/ D-sub |
Funktioner & mjukvara |
Digital power,
3D BIOS,
Gen3 stöd,
CrossFire,
Ultra durable 4 Classic,
All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8,3X USB Power
|
Digital power,
3D BIOS,
Gen3 stöd,
CrossFire,
Ultra durable 4 Classic,
All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8,3X USB Power |
Intel SBA,
USB 3.0, SATA 3,
Ultra durable 4 Classic,
All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8
|
Ultra durable 4 Classic,
All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8
|
Formfaktor (mm) |
ATX (305x193) |
ATX (305x193) |
mATX (224x174) |
mATX (226x174) |
|
|
Modell |
|
 |
|

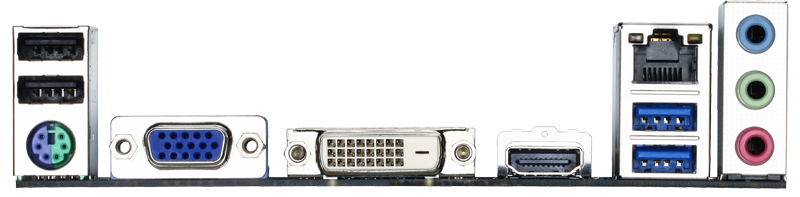

GA-F2A75M-HD2 |
|
 |
|

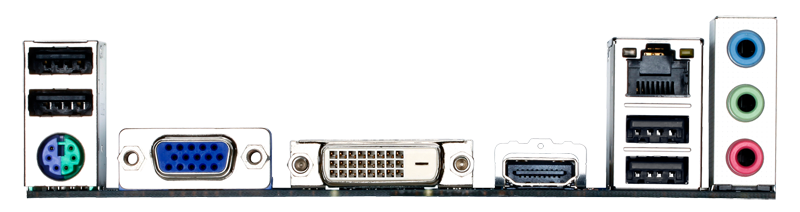

GA-F2A55M-HD2 |
|
Processorstöd |
AMD A-series APUs (DX11) / Athlon CPUs |
AMD A-series APUs (DX11) / Athlon CPUs |
AMD A-series APUs (DX11) / Athlon CPUs
|
Processorsockel |
AMD Sockel FM2 |
AMD Sockel FM2 |
AMD Sockel FM2 |
Styrkrets |
AMD A85X Styrkrets |
AMD A75 Styrkrets |
AMD A55 Styrkrets |
Grafikkortsgränssnitt |
2*PCI-E 2.0 x16 (x16, x4) |
1*PCI-E 2.0 x16 |
1*PCI-E 2.0 x16 |
Minnestyp |
Två-kanalers DDR3 1866+/1600/1333 MHz |
Två-kanalers DDR3 1866+/1600/1333 MHz |
Två-kanalers DDR3 1866+/1600/1333 MHz |
Minnes DIMM |
2*DDR3 (Max 64GB) |
2*DDR3 (Max 64GB) |
2*DDR3 (Max 64GB) |
Expansionsportar |
1*PCI-E 2.0 x1 + 1*PCI |
1*PCI-E 2.0 x1 + 1*PCI |
1*PCI-E 2.0 x1 + 1*PCI |
SATA Portar |
8*SATA 6Gb/s |
4*SATA 6Gb/s |
4*SATA 3Gb/s |
SATA RAID |
0, 1, 5, 10 (A85X) |
0, 1, 10 (A75) |
0, 1, 10 (A55) |
USB |
4*USB3.0 + 8*USB2.0 |
4*USB3.0 + 6*USB2.0 |
8*USB2.0 |
Ljud |
8-kanaler HD |
8-kanaler HD |
8-kanaler HD |
LAN |
1*GbE LAN |
1*GbE LAN |
1*GbE LAN |
Videoutgång |
HDMI/ Dual-link DVI/ D-sub |
HDMI/ Dual-link DVI/ D-sub |
HDMI/ Dual-link DVI/ D-sub |
Funktioner & mjukvara |
USB 3.0, SATA 3,
3+2 phase, Ultra Durable 4 Classic,
Triple-monitor stöd,
AMD Dual Graphics/ Eyefinity stöd, All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8 |
USB 3.0, SATA 3,
3+2 phase, Ultra Durable 4 Classic,
Triple-monitor stöd,
AMD Dual Graphics/ Eyefinity stöd, All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8 |
3+2 phase, Ultra Durable 4 Classic,
Triple-monitor stöd,
AMD Dual Graphics/ Eyefinity stöd, All Solid capacitors,
On/Off Charge,Dual UEFI BIOS, Win8 |
Formfaktor (mm) |
mATX (244x174) |
mATX (225x174) |
mATX (225x174) |
|
|
* HD : HDMI + DVI + D-SUB.
* Product features may vary by model. |
|
