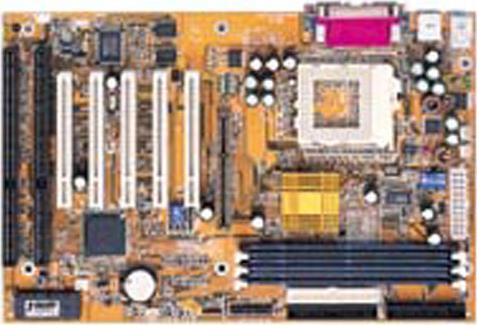

GA-6BX7 (Rev. 2.4)

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 370 for Intel® and other compatible processors
    2. Supports CPU multiplier 3.0~8.0 for future processors
    3. 66/75*/83*/100/112*/124*/133*/140*/150* MHz FSB
    4. AUTO detect CPU voltage
  • Chipset
    1. Intel 440BX AGPset
    2. Winbond 83977 I/Oset
    3. Winbond 83782 Health chip
  • Memory
    1. 8MB to 768MB DRAM size
    2. 3x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256/512 MB
    4. SDRAM DIMM module
    5. Supports ECC type DIMM module (72bits)
  • Expansion Slots
    1. 1 x AGP Slot Supports 66/133 MHz speeds
    2. 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 2 x ISA Slot
  • I/O Controller
    1. 2 x Ultra DMA 33 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
    4. IrDA TX / RX Header (optional)
  • H/W Monitoring
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors; Case open detection
    3. System health status detect & report by BIOS, LDCM®& SIV
    4. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT 13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX, 4 layer PCB (30.5*20.0 cm)
  • Driver
    1. Intel® LDCM® utility, SIV utility
    2. Ultra DMA 33 Bus Master IDE driver (Intel® )
    3. Intel ® PIIX4e patch utility for Windows 95
  • Other Features
    1. Includes Wake-On-LAN header (WOL)SB-LINK™ connector
    2. Poly fuse for keyboard & USB overcurrent protection
  • Power
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
    3. Power-off by Windows 95/98 shut down & Switch
    4. AC recovery ON/OFF control
    5. 3 level ACPI LED support
  • CPU
    1. Socket 370 for Intel® and other compatible processors
    2. Supports CPU multiplier 3.0~8.0 for future processors
    3. 66/75*/83*/100/112*/124*/133*/140*/150* MHz FSB
    4. AUTO detect CPU voltage
  • Chipset
    1. Intel 440BX AGPset
    2. Winbond 83977 I/Oset
    3. Winbond 83782 Health chip
  • Memory
    1. 8MB to 768MB DRAM size
    2. 3x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256/512 MB
    4. SDRAM DIMM module
    5. Supports ECC type DIMM module (72bits)
  • Expansion Slots
    1. 1 x AGP Slot Supports 66/133 MHz speeds
    2. 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 2 x ISA Slot
  • I/O Controller
    1. 2 x Ultra DMA 33 Bus Master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 2 x USB ports on board
    4. IrDA TX / RX Header (optional)
  • H/W Monitoring
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
    2. 3 fan power & speed detection connectors; Case open detection
    3. System health status detect & report by BIOS, LDCM®& SIV
    4. H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT 13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Form Factor
    1. ATX, 4 layer PCB (30.5*20.0 cm)
  • Driver
    1. Intel® LDCM® utility, SIV utility
    2. Ultra DMA 33 Bus Master IDE driver (Intel® )
    3. Intel ® PIIX4e patch utility for Windows 95
  • Other Features
    1. Includes Wake-On-LAN header (WOL)SB-LINK™ connector
    2. Poly fuse for keyboard & USB overcurrent protection
  • Power
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
    3. Power-off by Windows 95/98 shut down & Switch
    4. AC recovery ON/OFF control
    5. 3 level ACPI LED support

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
