GIGABYTE VDI Solution with Virtual GPU

Remote workstations by GIGABYTE deliver an exceptional user experience using VDI paired with vGPU technology

Introduction

The time is now for Virtual Desktop Infrastructure (VDI) using Virtual GPUs (vGPU) to take hold. Workers and devices are scattered, and employees often need to work remotely. This poses all sorts of challenges in terms of security, productivity, user adaptation, and IT management. Also, there is a shift to a greater need for engineers and designers to use 3D applications and other graphics accelerated applications with large amounts of data. In the past, CPU-only VDI environments were deployed to centralize management; however, these solutions could only reach office workers who did not need graphics acceleration, and power users, designers, and more were left out and had to stick with dedicated machines. Now, VDI has reached the point that all users who need graphics acceleration have a solution by combining VDI with vGPU. GIGABYTE has many servers specifically designed for VDI usage for productivity applications, 3D modeling, HPC applications, AI, and more.

Who needs VDI with Virtual GPUs?

Virtual Workforce

Workforce is shifting, and workers are more commonly needed to do work outside of the office. They also may have to use multiple devices, including tablets or personal phones. VDI allows users to access files remotely, while IT can securely manage the security and privacy concerns.

AI and Deep Learning

Artificial Intelligence and Deep Learning rely on the power of GPUs because most algorithms are parallelizable, which GPUs excel at, and GPUs have incredible memory bandwidth that can handle a lot of data.

Engineering & Sciences

To optimize and test designs in aerodynamics, as well as thermal simulations, these situations require the acceleration that only a GPU can offer. Engineers need access to data or high computing, and with Virtual GPUs the work is possible at a terminal separate from where the data or hardware is based.

Challenges to VDI

Several industries have been quick to adopt VDI, such as Healthcare as they needed greater compliance with regulations, and remote access became a must. However, as companies are pondering the possibility of switching there servers to VDI there are some major challenges ahead.

When we say companies need to adopt new practices we are focusing on the individuals. The switch from a personal device that is always yours to one that is simply logged in can make many users become perturbed. Add this to the fact that not all applications can be virtualized and you have a user that does not want to adopt a new way of using the PC. Convincing and showing employees that in the long term it is worth it must be done. As well, costs upfront are high for VDI architecture. Instead of buying a laptop when a user needs one, all the hardware and setup for VDI must be done before deployment of virtual devices. Last, to deploy virtual devices, IT administrators need to be onboard with the project and require high proficiency in working with servers and may need training. If these challenges can be met companies can reap the benefits of VDI.

Benefits of VDI

User Experience

Resources can better be tailored to user. As well, PC upgrades and repair takes minutes instead of hours.

Productivity & Flexibility

A dedicated, virtualized machine allows users to easily access their work-related resources from anywhere and on any device with internet.

Ease of Management

One central server location to upgrade hardware or software, as well as monitoring and patching, makes IT admins job easier.

Efficiency of Resources

Resources are not underutilized or overprovisioned. Virtual machines have optimal allocation of hardware to fit user.

VDI Architecture Explained

Virtual Machines from a Single Server

The concept of VDI is to use hardware in a server and allocate it to virtual machines (VM). The image on the right visualizes the allocation of resources. And the image below depicts virtualization architecture that is discussed next.

To start, a server is built with typical hardware (CPU, RAM, storage, GPU, network interconnects, etc.) that has been determined for the end users. After hardware installation, a hypervisor (Microsoft Hyper-V, Citrix XenServer, etc.) is installed to abstract the hardware. This hypervisor creates a virtualization layer upon which the VMs are built. The hypervisor that is between the VMs and the hardware contains a Virtual Machine Manager. Through this technology each VM is added with their own operating system and applications. At this point a server has virtualized all but the GPU.

To create a virtual GPU, software such as NVIDIA Virtual GPU Manager installs in the hypervisor. This software coupled with other NVIDIA software (vCS, vDWS, vPC, or vApps) allows customization of the virtual machine. On this vGPU layer are the VMs as before, but now with NVIDIA drivers and binaries/libraries.

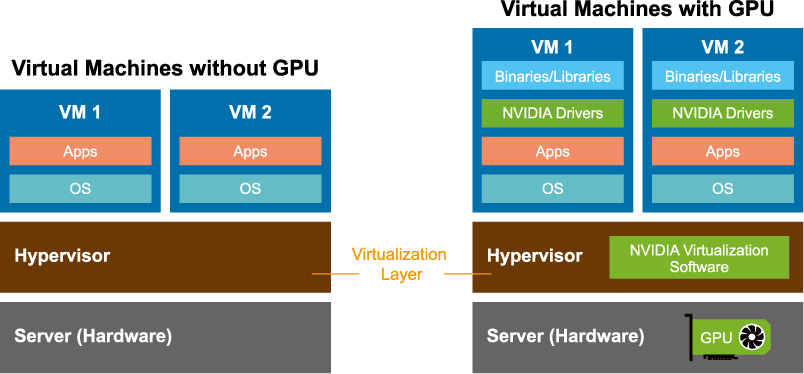

Virtualization with and without a Virtual GPU

Determine the GIGABYTE server and NVIDIA Solution

Details below are meant to help one decide on what solution fits best.

・Understand the types of users to select the appropriate NVIDIA Virtual software
・Learn about the different types of NVIDIA GPUs based on specifications and usage
・Choose from the list of GIGABYTE servers that are NVIDIA vGPU certified

Types of VDI Users

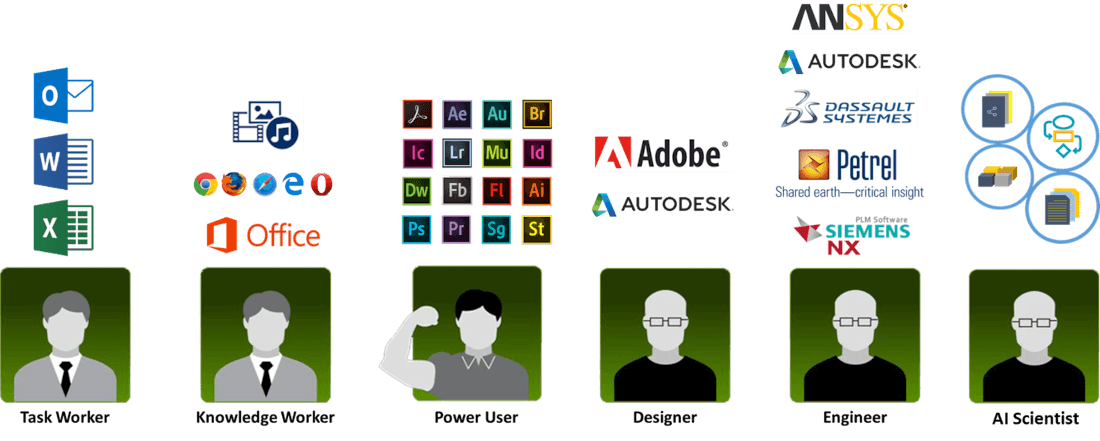

Programs Used by Worker Type

Task Worker:

Basic tasks and do not need graphics acceleration.

NVIDIA Virtual Software: vApps

NVIDIA GPU Used: Turing T4 and

Knowledge Worker:

Entry-level graphics.

NVIDIA Virtual Software: vPC or vDWS

NVIDIA GPU Used: Turing T4 or A16

Power User:

Mid-level graphics to high.

NVIDIA Virtual Software: vDWS or vCS

NVIDIA GPU Used: RTX6000, A10 or Turing T4

Designer, Engineer, AI Scientist:

High-end computing.

NVIDIA Virtual Software: vCS

NVIDIA GPU Used: A100, A30, RTX A6000, or Turing T4

NVIDIA Accelerators for Virtualized Compute Server Environment
NVIDIA Models	A10	A16	A30	A40	A100-80G PCIe	RTX A6000	T4
Architecture	Ampere	Ampere	Ampere	Ampere	Ampere	Ampere	Turing
CUDA cores	9216	10240	3584	10752	6912	10752	2560
Single-Precision	31.24 TFLOPS	34.712 TFLOPS	10.320 TFLOPS	37.4 TFLOPS	19.5 TFLOPS	38.7 TFLOPS	8.1 TFLOPS
GPU Memory	24GB GDDR6	4x 16 GDDR6	24GB HBM2	48GB GDDR6	80GB HBM2e	48GB GDDR6	16GB GDDR6
Memory Bandwidth	600 GB/s	4x 231.9 GB/s	933 GB/s	695.8 GB/s	1935 GB/s	768 GB/s	320 GB/s
Interface	PCIe Gen 4	PCIe Gen 4	PCIe Gen 4	PCIe Gen 4	PCIe Gen 4	PCIe Gen 4	PCIe Gen 3
Max Power	150W	250W	165W	300W	300W	300W	70W
Form Factor	single-slot	dual-slot	dual-slot	dual-slot	dual-slot	dual-slot	single-slot
Support NVLink	No	No	No	No	PCIe (NVLink Bridge)	NVLink Bridge	No
Usage	Mainstream graphics and video with AI	VDI applications (support 64 online users)	HPC, AI, data analytics, and mainstream compute	Mainstream visual computing	Ultra-high-end rendering, 3D design, AI(From FP64 to INT4) and data science	High end visual computing	Entry-level to 3D design and engineering, AI (inference), and data science

GIGABYTE Servers (NVIDIA vGPU Certified)
NVIDIA Models	A10	A16	A30	A40	A100-80G PCIe	RTX A6000	T4
1U G-series	G191-H44	G191-H44	G191-H44	G191-H44	G191-H44	G191-H44	G191-H44, G180-G00
1U OCP-series	-	-	-	-	T182-Z70	-	T181-G23, T181-G24, T181-Z70
1U E-series	E152-ZE0	-	-	-	E162-220	-	-
2U G-series	G242-Z11, G291-280, G291-281, G292-2G0, G292-Z24, G292-Z40, G292-Z43, G292-Z44	G242-Z11, G292-Z24, G292-Z40, G292-Z44	G291-280, G291-281, G292-Z24, G292-Z40, G292-Z44	G241-G40, G242-Z11, G292-Z24, G292-Z40, G292-Z44, G292-280	G292-280, G292-Z40, G292-Z44, G291-Z40, G241-G40, G242-P31, G242-Z11, G291-281, G291-Z40, G242-P32, G292-Z20, G292-Z24	G242-Z11, G291-280, G292-Z20, G292-Z40, G292-Z44, G292-Z45, G292-280	G291-280, G291-281, G291-2G0, G291-Z20, G221-Z30, G241-G40, G242-Z10, G242-Z11, G242-P31, G291-Z20, G292-Z20, G292-Z24, G292-Z40, G292-Z42, G292-Z43, G292-Z44, G292-Z22, G292-Z42
2U R-series	R282-Z96, R292-4S0	R262-ZA2, R281-3C2, R282-Z93, R282-Z96, R282-Z9, R262-ZA2	R262-ZA2, R281-3C2, R282-Z93, R282-Z96, R282-Z9, R262-ZA2, R281-G30	R262-ZA2, R281-3C2, R282-Z93, R282-Z96, R282-Z9, R262-ZA2, R281-G30	R282-Z93, R282-G30, R281-3C2, R281-G30, R282-Z93, R282-Z96, R292-4S0,	R292-4S0	R281-G30, R281-3C2, R282-Z93, R281-T95, R282-G30, R282-Z93, R292-4S0
2U E-series	E251-U70	E251-U70	E251-U70	E251-U70	E251-U70	-	E251-U70
2U H-series	-	-	-	-	-	-	H231-G20
4U G-series	G482-Z54, G492-H80, G492-HA0, G492-Z51	G492-Z51, G492-HA0, G482-Z52, G482-Z54, G481-HA0	G482-Z54, G492-H80, G492-HA0, G492-Z51	G492-Z51, G492-HA0, G482-Z52, G482-Z54, G481-HA0, G492-H80	G482-Z54, G492-Z52, G492-H80, G492-HA0, G481-HA0, G482-Z50, G482-Z52, G482-Z54, G492-Z50, G492-Z51	G481-HA0, G482-Z53, G482-Z54, G492-H80, G492-HA0, G492-Z51	G481-H80, G481-HA0, G481-HA1, G482-Z50, G482-Z51, G482-Z54, G492-H80, G492-HA0, G492-Z51

Products

G242-Z11

Ideal for scale-out deployment in virtualization for GPU-centric workloads. High core count AMD EYPC™ processor and up to 4 GPUs with direct PCIe Gen4 x 16 connection to CPU. Also, 4 x 3.5" SATA and 2 x 2.5" U.2 (Gen 4)
