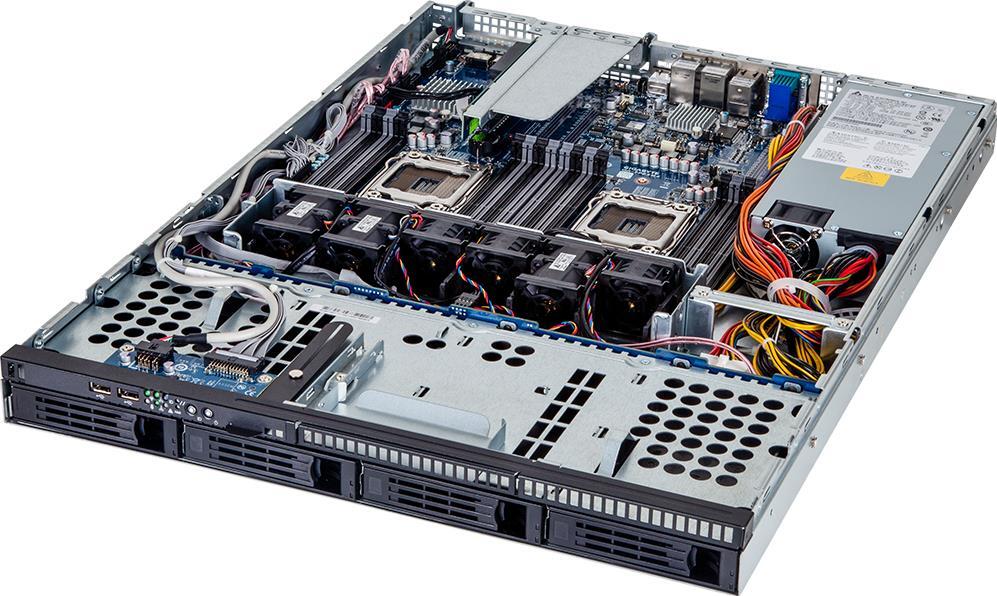

GS-R12P4GLegacy | Software updates supported

Intel® C602 chipset
  • Intel® Xeon® processor E5-2600 & 2600 V2 product families
  • 16 x RDIMM/UDIMM ECC DIMM slots
  • 4 x 3.5" hot-swappable HDD bays
  • Supports SATA III 6Gb/s and SAS 3Gb/s
  • 4 X GbE LAN ports (Intel® I350-AM4)
  • 600W 80 PLUS Gold PSU
  • Aspeed® AST2300 remote management controller
儲存
此產品已儲存至最愛清單
  • 產品介紹
  • 產品規格
  • 支援與下載
  • 相關資源

產品規格

Dimensions (WxHxD, mm)
1U
444 x 43.6 x 615
Motherboard
GA-7PESH4
CPU
Supports:
  • Intel® Xeon® E5-2600 V2 processors
  • Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
  • Intel® Xeon® E5-2600 processors
  • Intel® Xeon® E5-1600 processors (single CPU configuration only)
Socket
2 x LGA 2011
Mounting pitch: narrow ILM (56x94mm)
2 x CPU heatsinks included
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® C602
Memory
16 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz

*Supported by Intel® Xeon® E5-2600 V2 processors only

Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
LAN
4 X GbE LAN ports (Intel® I350-AM4) 1 x 10/100 management LAN
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
4 x 3.5" hot-swappable HDD/SSD bays
SATA
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
SAS
1 x Mini-SAS (for 4 x SATA 3Gb/s ports) 1 x Mini-SAS (disabled, can be enabled via Intel® upgrade key)
RAID
Intel® SATA RAID 0/1/10/5
Peripheral Drives
1 x Slim type ODD bay
Expansion Slots
2 x Half-length low-profile slots
1 x PCIe x16 (Gen3 x8 bus) connector
1 x PCIe x8 (Gen3 x8 bus) connector
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PMBus connector
4 x System fan headers
2 x CPU fan headers
1 x USB 2.0 vertical Type A port
1 x HDD back plane board header
1 x Front panel header
1 x SATA1 port DOM support jumper
1 x SATA2 port DOM support jumper
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x USB 2.0 header
1 x Serial header
2 x Mini-SAS cable connectors
1 x S3_MASK jumper
1 x Flash descriptor security jumper
1 x Clear CMOS jumper
1 x ME recovery jumper
1 x Skip supervisor password jumper
1 x BIOS recovery jumper
1 x Force to Stop FRB3 Timer jumper
1 x BIOS write protect jumper
1 x TPM header
1 x SATA SGPIO header
1 x IPMB connector
1 x Chassis intrusion header
Front I/O
2 x USB 2.0
2 x System status LED
1 x HDD LED
2 x LAN LED
1 x ID LED
1 x Reset button
1 x NMI button
1 x ID button with LED
1 x Power on/off button
Rear I/O
4 x USB 2.0
1 x VGA
1 x Serial
5 x RJ45
1 x ID button with LED
Backplane Board
N/A
TPM
1 x TPM header
Power Supply[#1]
1 x 600W PSU
80 PLUS Gold
100~220V AC
System Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
  • Network settings
  • Network security settings
  • Users control
  • Services settings
  • IPMI settings
  • Sessions control
  • LDAP settings
  • Power control
  • Voltages, fans and temperatures monitoring
  • System event log
  • Events management (platform events, trap settings, email settings)
  • Serial Over LAN
  • vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2008 SP2 (x86)
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 5.6 (x86/x64)
Red Hat Enterprise Linux 6.1 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2
System Fans
3 x 40x40x28mm (18'000rpm)
Š3 x 40x40x56mm (front: 16'000rpm / rear: 15'400rpm)
Operating Properties
Operating temperature: 5°C to 35°C
ŠNon-operating temperature: 0°C to 50°C
10-80% operating humidity at 30°C
Weight
10 kg
Part Numbers
Barebone: 6NR12P4GMS-00
Rail kit: 25HB2-3C6100-K0R

[#1] 伺服器產品未附帶電源線。客戶需自行選擇適當的電源線 (可選配件),或聯繫業務協助客製化。

[#2] 本網站所提供之產品規格、圖片及其他資訊僅供參考,如有差異應以實際產品為準。技嘉科技保留隨時修改內容的權利,並不對因使用上述資料而導致的任何損失承擔責任。

[#3] 本產品所標示之效能數據為晶片廠商或相關介面標準制定組織所公佈的最大理論值,實際效能可能因系統配置及使用環境而有所不同。

[#4] 本文所使用的所有商標及企業識別標誌均為其合法所有者的財產。
