• Features Intel® 4th generation Core™ processors
  • Intel® Iris™ Pro graphics 5200
  • Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)
  • Ultra compact PC design - 0.79L (62 x 111.4 x 114.4 mm)
  • 1 x mSATA SSD Slot
  • 2 x SO-DIMM DDR3L Slots (1333 / 1600 MHz)
  • IEEE 802.11 a/b/g/n/ac Wi-Fi / Bluetooth 4.0 Mini-PCIe card
  • HDMI plus Mini DisplayPort Outputs (supports dual displays)
  • 4K resolution output (4096 x 2304 via HDMI)
  • 4 x USB 3.0
  • Gigabit LAN
  • Headphone jack with S/PDIF
  • VESA mounting bracket (75 x 75mm + 100 x 100mm)

* Barebone products do not include the operating system.
* Product may vary based on local distribution.
* Wireless module inclusion may vary based on local distribution.
  • GIGABYTE BRIX Pro – Highly Compact, Highly Potent
    The BRIX Pro takes the signature compact design philosophy of the GIGABYTE BRIX series, adding a high-performance Intel® Core™ i5 processor featuring Intel® Iris™ Pro graphics 5200. As well as a featuring a true high-performance processor that is ideally suited to CPU-intensive applications like image design and video editing, the superior graphics performance of the BRIX Pro means it’s also great for 3D gaming.
    Available in black and red, with a choice Intel® Core™ i5 4570R processors, the BRIX Pro is a DIY PC kit, shipping with a Wi-Fi Mini PCIe module pre-installed, plus power adapter and cable.

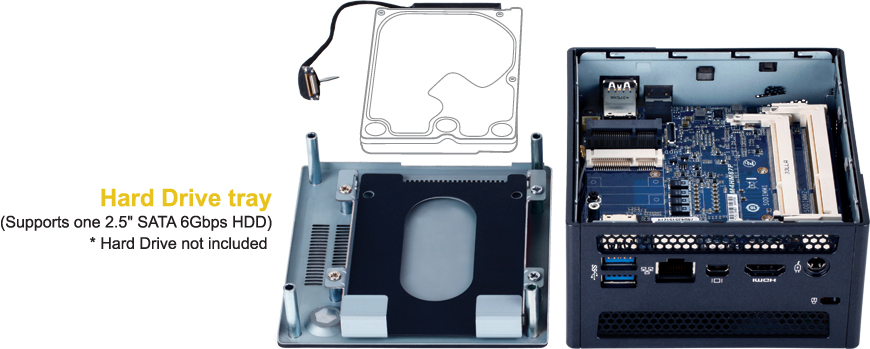

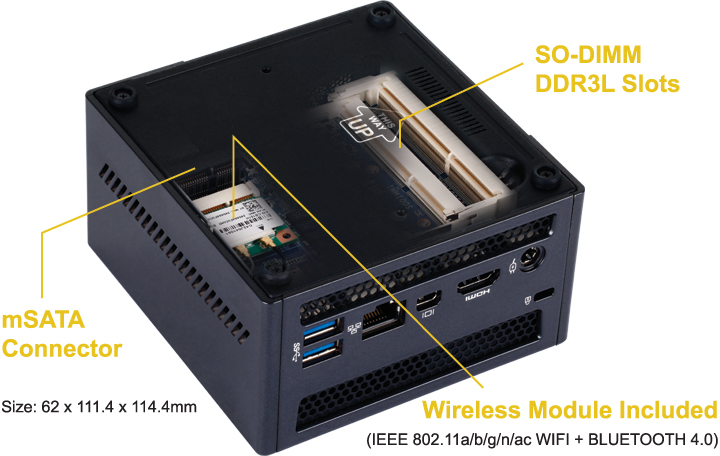

    The BRIX Pro gives users the flexibility to independently choose integrated storage and system memory sizes, with two SO-DIMM DDR3L slots plus support for both mSATA SSD and standard 2.5” HDD installation.
  • Intel® Iris™ Pro Graphics 5200
    The BRIX Pro is one of the first devices to boast the cutting edge graphics capabilities of Intel® Iris™ Pro graphics. Based on the latest graphics architecture from Intel®, Iris™ Pro Graphics use an on-package 128M eDRAM cache that negates memory pipeline issues, greatly boosting overall performance in 3D applications.
  • Display and Audio Connectivity

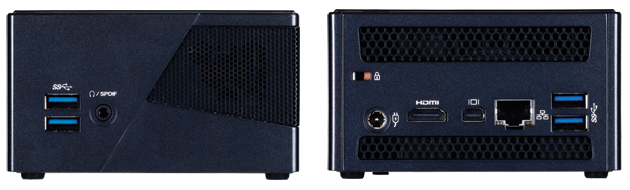

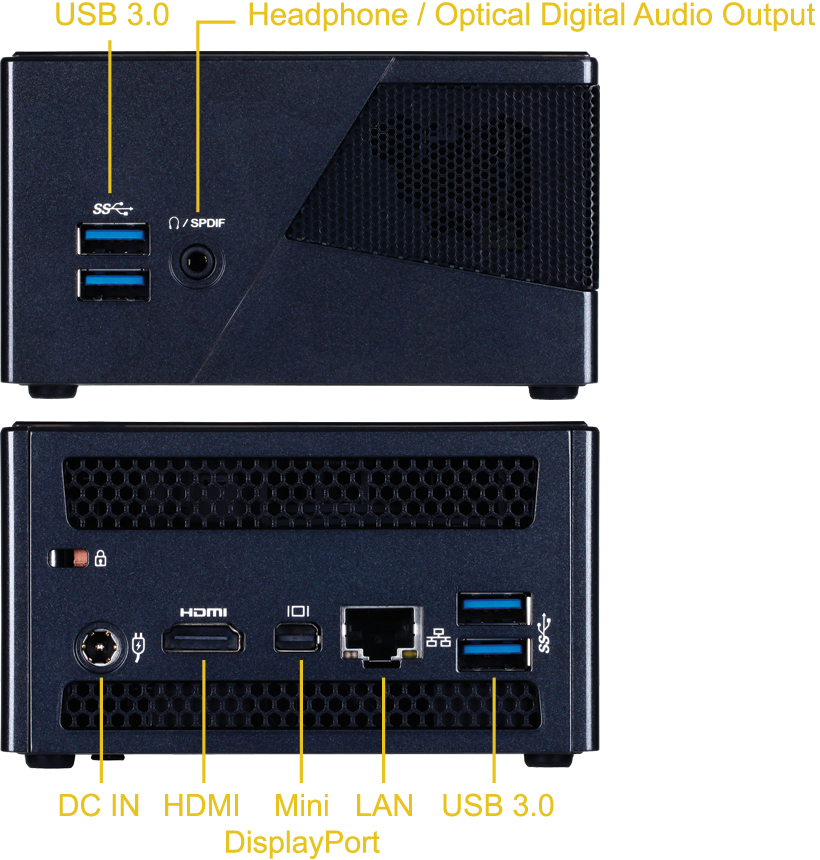

    The GIGABYTE BRIX Pro features both Mini DisplayPort and HDMI ports on the rear panel, enabling support for simultaneous dual display connectivity, making it suited to both the work place, home theater and entertainment scenarios, including casual 3D gaming. The GIGABYTE BRIX Pro also supports the latest 4K displays via HDMI. Audio connectivity includes SPDIF audio via a front panel connector, useful in Home Theater scenarios that use an A/V receiver.

  • USB 3.0 and Network Connectivity
    The GIGABYTE BRIX Pro provides four USB 3.0 ports* (2x front plus 2x rear) offering improved connectivity for peripherals, storage devices and more. In addition to including a Gigabit Ethernet port, the GIGABYTE BRIX Pro also includes a Mini PCIe module offering IEEE 802.11 a/b/g/n/ac Wi-Fi and the latest Bluetooth 4.0, providing connectivity for low power Bluetooth devices and peripherals, as well as allowing users to easily connect their mobile devices.
  • 支援VESA標準

    技嘉BRIX Pro的包裝配備內建一組符合VESA標準的固定架,讓他可以輕易地安裝隱藏在螢幕或大尺寸電視背後,更能融入家庭裝潢。這樣的設計提供了一個絕佳的方式,可以讓內建VESA標準固定架孔位的螢幕,輕易轉化為全功能個人電腦或數位看板。






* 以上產品之規格、圖片及其他資訊僅供參考,如與實際產品有任何不相符之處,應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失,技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值,實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示,均為其合法所有人之財產。
* 基於PC基本架構,有部分記憶體空間須留作系統用途,故所偵測到之記憶體大小會比實際上較少。
