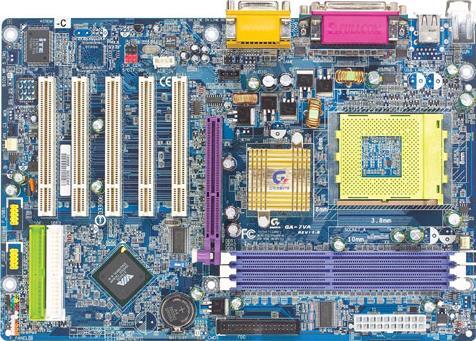

GA-7VA-C (Rev. 1.x)

產品規格支援與下載銷售據點

產品規格

  • 中央處理器(CPU)
    1. Socket A for AMD Athlon™ Windows® XP / Athlon™ /Duron™ 200/266/333 MHz FSB processors
  • 晶片組
    1. Northbridge : VIA KT333 (Rev.CF)
    2. Southbridge : VIA 8235
    3. Super I/O : ITE IT8705F
    4. Realtek ALC650 AC97 6-channel codec Chip
  • 記憶體
    1. Type : DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
    2. Max capacity : Up to 3GB by 3 DIMM slots
  • 擴充槽
    1. 1 x AGP slot (AGP 4X only)
    2. 5 x PCI slots (PCI 2.2 compliant)
  • 內接插座
  • 1 x FDD port
  • 2 x UDMA ATA133/100/66 Bus Master IDE ports
  • 2 x USB 2.0 connector (support 4 ports)
  • 2 x cooling fan pin header
  • 後方面板裝置連接插座
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 2.0 ports
    3. 2 x COM ports
    4. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    5. 1 x Game/Midi port
    6. 1 x LPT
  • 硬體監控
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report power-in voltage, CPU voltage, and Fan Speed Support auto detect temperature thermal shutdown function
  • BIOS
    1. 2 Mbit flash RAM
    2. Award BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    4. AC recovery ON/OFF control
  • 附贈軟體
  • ol>
  • Norton Internet Security™
    1. Norton Anti Virus™
    2. Norton™ Personal Firewall
    3. Norton™ Privacy Control
    4. Norton™ Parental Control
    5. Norton™ Spam Alert
  • GIGABYTE Windows Utility Manager
  • Adobe Acrobat Reader
  • PCB規格
    1. ATX, Dimension : ( 29.5 x 20.0 cm )
  • CPU/AGP/DIMM setting
    1. CPU FSB adjustable via BIOS (1MHz-linear)
    2. CPU Vcore Voltage adjustable via BIOS
  • Driver
    1. VIA 4 in 1 service pack utility
    2. Realtek sound driver
    3. VIA USB 2.0 driver
  • 附加特色
    1. Suspend-To-RAM (STR)
    2. Supports USB KB/MS Wake up from S3
    3. Poly fuse for keyboard over-current protection
  • 電源
    1. ATX power connector
    2. Power-off by Windows 95/ 98/ Me/ 2000/ NT/ Windows® XP shut down and Switch
  • 中央處理器(CPU)
    1. Socket A for AMD Athlon™ Windows® XP / Athlon™ /Duron™ 200/266/333 MHz FSB processors
  • 晶片組
    1. Northbridge : VIA KT333 (Rev.CF)
    2. Southbridge : VIA 8235
    3. Super I/O : ITE IT8705F
    4. Realtek ALC650 AC97 6-channel codec Chip
  • 記憶體
    1. Type : DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin
    2. Max capacity : Up to 3GB by 3 DIMM slots
  • 擴充槽
    1. 1 x AGP slot (AGP 4X only)
    2. 5 x PCI slots (PCI 2.2 compliant)
  • 內接插座
  • 1 x FDD port
  • 2 x UDMA ATA133/100/66 Bus Master IDE ports
  • 2 x USB 2.0 connector (support 4 ports)
  • 2 x cooling fan pin header
  • 後方面板裝置連接插座
    1. PS/2 Keyboard / Mouse
    2. 2 x USB 2.0 ports
    3. 2 x COM ports
    4. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    5. 1 x Game/Midi port
    6. 1 x LPT
  • 硬體監控
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report power-in voltage, CPU voltage, and Fan Speed Support auto detect temperature thermal shutdown function
  • BIOS
    1. 2 Mbit flash RAM
    2. Award BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    4. AC recovery ON/OFF control
  • 附贈軟體
  • ol>
  • Norton Internet Security™
    1. Norton Anti Virus™
    2. Norton™ Personal Firewall
    3. Norton™ Privacy Control
    4. Norton™ Parental Control
    5. Norton™ Spam Alert
  • GIGABYTE Windows Utility Manager
  • Adobe Acrobat Reader
  • PCB規格
    1. ATX, Dimension : ( 29.5 x 20.0 cm )
  • CPU/AGP/DIMM setting
    1. CPU FSB adjustable via BIOS (1MHz-linear)
    2. CPU Vcore Voltage adjustable via BIOS
  • Driver
    1. VIA 4 in 1 service pack utility
    2. Realtek sound driver
    3. VIA USB 2.0 driver
  • 附加特色
    1. Suspend-To-RAM (STR)
    2. Supports USB KB/MS Wake up from S3
    3. Poly fuse for keyboard over-current protection
  • 電源
    1. ATX power connector
    2. Power-off by Windows 95/ 98/ Me/ 2000/ NT/ Windows® XP shut down and Switch

* HDMI、HDMI High-Definition Multimedia Interface、HDMI 商業外觀及 HDMI 識別標章等詞彙均為 HDMI Licensing Administrator, Inc. 的商標或註冊商標。
* 產品規格會依各國家地區出貨而有所變動，應以各地實際出貨狀況為準。誠摯建議與當地經銷商或零售商確認最新產品販售規格。
* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。
