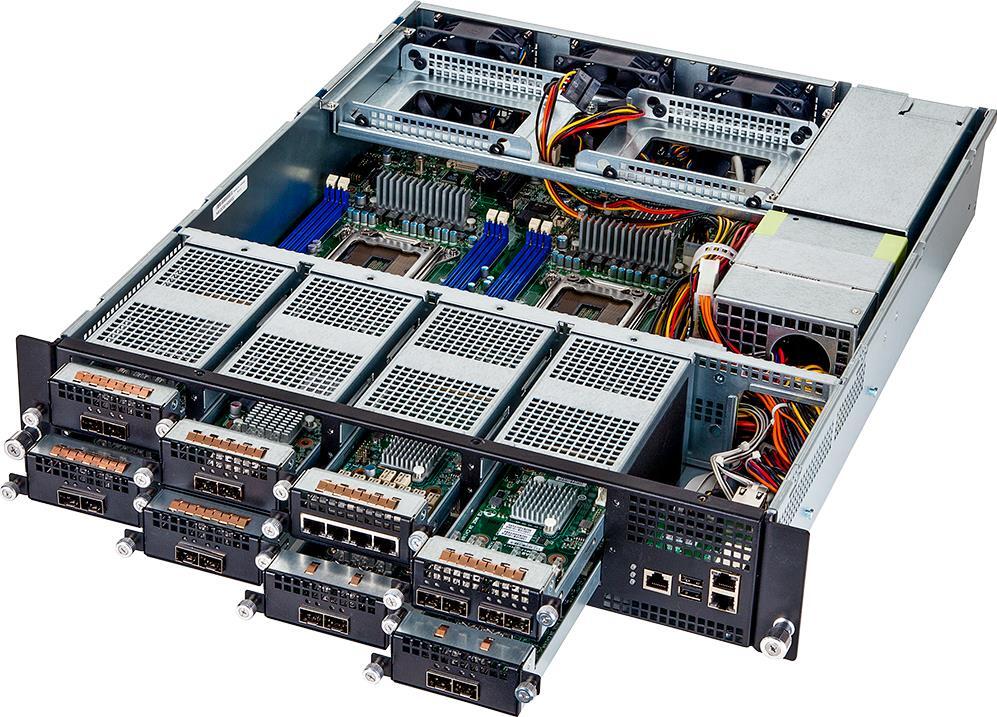

GS-A22C0Legacy | Software updates supported
Intel® DH8900 chipset
- Relay system for critical network applications
- Intel® Xeon® processor E5-2600 & 2600 V2 product families
- 8 x RDIMM/UDIMM ECC DIMM slots
- 8 x LAN controller card trays
- Available with quad GbE or 10GbE SFP+ LAN cards
- 2 x Internal 3.5" HDD/SSD bays
- 750W PSU (2 x 750W redundant PSU in option)
- Aspeed® AST2300 remote management controller
- Overview
- Specifications
- Support
- Related Resources
Specifications
Dimensions (WxHxD, mm)
2U
430 x 88.5 x 550
430 x 88.5 x 550
Motherboard
GA-7CPCP
CPU
Supports:
- Intel® Xeon® E5-2600 V2 processors
- Intel® Xeon® E5-1600 V2 processors (single CPU configuration only)
- Intel® Xeon® E5-2600 processors
- Intel® Xeon® E5-1600 processors (single CPU configuration only)
- Intel® 2nd & 3rd Gen. Core™ i7 processors (single CPU configuration only)
Socket
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)
2 x CPU heatsinks included
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Mounting pitch: square ILM (80x80mm)
2 x CPU heatsinks included
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard
Chipset
Intel® DH8900CC
Memory
8 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors
LAN
2 x GbE LAN ports (Intel® 82574L)
1 x 10/100 management LAN
8 x LAN controller card trays
Available LAN cards:
1 x 10/100 management LAN
8 x LAN controller card trays
Available LAN cards:
- 4 x GbE SFP+ LAN ports (Intel® I350)
- 4 x GbE LAN ports (Intel® I350)
- 2 x 10GbE SFP+ ports (Intel® 82599ES)
- 8 x GbE SFP+ LAN ports (Intel® I350)
- 8 x GbE LAN ports (Intel® I350)
Video
Integrated in Aspeed® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
2 x Internal 3.5" HDD/SSD bays
1 x CF card slot
1 x CF card slot
SATA
2 x SATA II 3Gb/s ports
SAS
-
RAID
-
Peripheral Drives
-
Expansion Slots
8 x PCIe x8 (Gen3 x8 bus) slots
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x USB 2.0 headers
2 x LAN
1 x VGA header
1 x VGA
1 x Front panel header
1 x I/O header
1 x LPC header
1 x TPM header
1 x Serial header
1 x Keyboard/mouse header
1 x GPIO header
1 x LPT
4 x System fan headers
2 x CPU fan headers
2 x SATA II 3Gb/s ports
1 x BIOS recovery jumper
1 x S3_MASK jumper
1 x BMC firmware readiness jumper
1 x HDD/SSD LED header
1 x PMBus header
2 x 8-pin ATX 12V power connectors
2 x USB 2.0 headers
2 x LAN
1 x VGA header
1 x VGA
1 x Front panel header
1 x I/O header
1 x LPC header
1 x TPM header
1 x Serial header
1 x Keyboard/mouse header
1 x GPIO header
1 x LPT
4 x System fan headers
2 x CPU fan headers
2 x SATA II 3Gb/s ports
1 x BIOS recovery jumper
1 x S3_MASK jumper
1 x BMC firmware readiness jumper
1 x HDD/SSD LED header
1 x PMBus header
Front I/O
2 x USB 2.0
3 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x HDD/SSD activity LED
1 x System status LED
3 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x HDD/SSD activity LED
1 x System status LED
Rear I/O
-
Backplane Board
N/A
TPM
1 x TPM header
Power Supply[#1]
750W PSU
(2 x 750W redundant PSU in option)
80 PLUS Gold
100~240V AC
(2 x 750W redundant PSU in option)
80 PLUS Gold
100~240V AC
System Management
Aspeed® AST2300 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Windows Server 2003 R2 (x86/x64)
Windows Server 2008 R2 (x86/x64)
Red Hat Enterprise Linux 6.3 (x86/x64)
SUSE Linux Enterprise Server 11 (x86/x64)
Windows Server 2008 R2 (x86/x64)
Red Hat Enterprise Linux 6.3 (x86/x64)
SUSE Linux Enterprise Server 11 (x86/x64)
System Fans
3 x 80x80x38mm (9000rpm)
Operating Properties
Operating temperature: 0°C to 60°C
Non-operating temperature: -20°C to 70°C
5-95% operating humidity (non-condensing)
Non-operating temperature: -20°C to 70°C
5-95% operating humidity (non-condensing)
Weight
N/A
Part Numbers
6NA22C0MS-00
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
