GS-R22PXPLegacy | Software updates supported

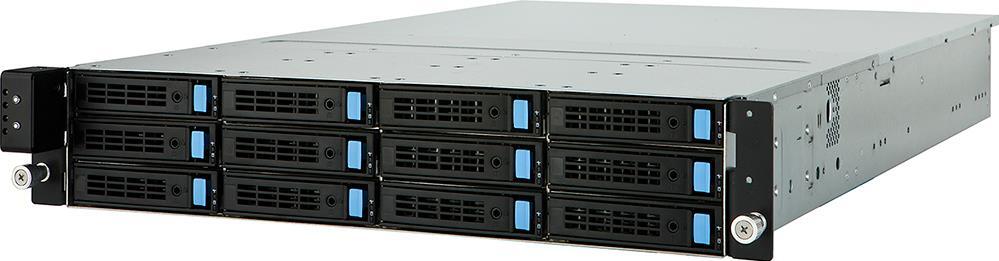

Dual Socket 2U Rackmount Server
- Intel® Xeon® processor E5-2600 & 2600 V2 product families
- 16 x RDIMM/UDIMM ECC DIMM slots
- 12 x 3.5" hot-swappable HDD bays
- Supports PCI Express Gen3
- Supports SATA III 6Gb/s and SAS 6Gb/s
- High end dual GbE Ethernet controller
- Overview
- Specifications
- Support
- Related Resources
Specifications
Motherboard
GA-7PESH1
CPU
Supports Intel® Xeon® processor E5-2600 & 2600 V2 product families
Socket
2 x LGA 2011
Mounting pitch: square ILM (80x80mm)
Mounting pitch: square ILM (80x80mm)
Chipset
Intel® C602
Memory
16 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz
*Supported by Intel® Xeon® E5-2600 V2 processors only
LAN
Dual Gigabit Ethernet LAN ports (Intel® I350)
1 x Management LAN
Video
Integrated in Aspeed 2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
12 x 3.5" hot-swappable HDD bays
Supports:
Supports:
- SATA 3.0 6Gb/s
- SATA 2.0 3Gb/s
- SAS 2.0 6Gb/s
RAID
Intel® SW RAID 0/1/5/10
LSI® SAS2008 IR RAID 0/1/1E/10
LSI® SAS2008 IR RAID 0/1/1E/10
Expansion Slots
1 x Low profile PCIe x16 (@Gen3 x16 bus) slot
1 x Low profile PCIe x16 (@Gen3 x8 bus) slot
2 x Low profile PCIe x8 (@Gen3 x4 bus) slot
1 x Low profile PCIe x4 (@Gen2 x1 bus) slot
1 x Low profile PCIe x16 (@Gen3 x8 bus) slot
2 x Low profile PCIe x8 (@Gen3 x4 bus) slot
1 x Low profile PCIe x4 (@Gen2 x1 bus) slot
Rear I/O
4 x USB 2.0 ports
1 x VGA connector
1 x COM port
3 x RJ45 port
1 x VGA connector
1 x COM port
3 x RJ45 port
Power Supply[#1]
2 x 750W 1+1 redundant PSU 80 PLUS Gold
100~220V AC
100~220V AC
System Management
Aspeed 2300
IPMI 2.0
iKVM
iKVM
OS Compatibility
Windows Server 2008 SP2 (32bit)
Windows Server 2008 SP2 (64bit)
Windows Server 2008 R2 (64bit)
Red Hat ELES 5 Update8 x86 (32bit)
Red Hat ELES 5 Update8 x64 (64bit)
Red Hat ELES 6 Update3 x86 (32bit)
Red Hat ELES 6 Update3 x64 (64bit)
Windows Server 2008 SP2 (64bit)
Windows Server 2008 R2 (64bit)
Red Hat ELES 5 Update8 x86 (32bit)
Red Hat ELES 5 Update8 x64 (64bit)
Red Hat ELES 6 Update3 x86 (32bit)
Red Hat ELES 6 Update3 x64 (64bit)
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
