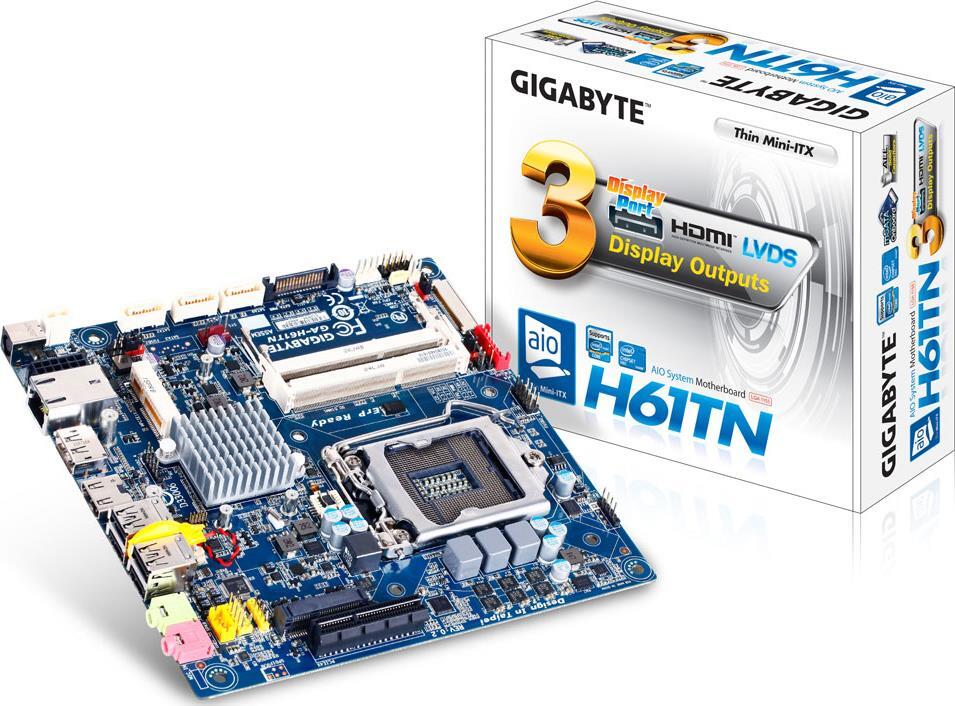

GA-H61TN (Rev. 1.1)
Intel® H61 Chipset
Đặc điểm kỹ thuật
- CPU
- Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package (Supports up to 65W)
- L3 cache varies with CPU
- Chipset
- Intel® H61 Express Chipset
- Bộ nhớ
- 2 x 1.5V DDR3 SO-DIMM sockets supporting up to 8 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. - Dual channel memory architecture
- Support for DDR3 1600/1333/1066/800 MHz memory modules
- 2 x 1.5V DDR3 SO-DIMM sockets supporting up to 8 GB of system memory
- Card đồ họa tích hợp
- Chipset:
- 1 x HDMI 1.3a port, supporting a maximum resolution of 1920x1200
- 1 x DisplayPort, supporting a maximum resolution of 2560x1600
- 1 x LVDS connector
- Âm thanh
- Realtek ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 5.1/7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
- LAN
- 1 x Realtek GbE LAN chip (10/100/1000 Mbit)
- Khe cắm mở rộng
- 1 x PCI Express x4 slot (Supports 25W only)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.) - 1 x Mini PCI Express x1 slot
- 1 x PCI Express x4 slot (Supports 25W only)
- Giao diện lưu trữ
- Chipset:
- 3 x SATA 3Gb/s connectors (SATA0/1/2) supporting up to 3 SATA 3Gb/s devices
- 1 x mSATA 3Gb/s connector
- USB
- Chipset:
- Up to 9 USB 2.0/1.1 (4 ports on the back panel,5 ports available through the internal USB headers) (Card reader/Touch panel/webcam and other devices)
- Kết nối I/O bên trong
- 1 x 2-pin power connector
- 1 x CPU fan header
- 1 x system fan header
- 3 x SATA 3Gb/s connectors
- 1 x mSATA connector
- 1 x SATA power connector
- 4 x USB 2.0/1.1 headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x digital microphone header
- 1 x AIO speaker header
- 1 x LVDS connector
- 1 x LVDS drive voltage header
- 1 x flat panel display power header (both panel and backlight inverter)
- 1 x flat panel display power connector
- 1 x backlight switch header
- 1 x flat panel display switch header
- 1 x WIFI activity indicator LED header
- 1 x Clear CMOS jumper
- Kết nối bảng phía sau
- 1 x HDMI port
- 1 x DisplayPort
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 2 x audio jacks (Line Out, Mic In)
- 1 x DC-In power connector
- Điều khiển I/O
- iTE I/O Controller Chip
- Theo dõi phần cứng
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU fan speed control
* For 4-pin CPU coolers only.
* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
- BIOS
- 1 x 64 Mbit flash
- Use of licensed AMI EFI BIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
- Hệ điều hành
- Support for Microsoft Windows 8/7
- Hệ số khuôn
- Thin Mini-ITX Form Factor; 17.0cm x 17.0cm
- Ghi chú
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
- CPU
- Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package (Supports up to 65W)
- L3 cache varies with CPU
- Chipset
- Intel® H61 Express Chipset
- Bộ nhớ
- 2 x 1.5V DDR3 SO-DIMM sockets supporting up to 8 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. - Dual channel memory architecture
- Support for DDR3 1600/1333/1066/800 MHz memory modules
- 2 x 1.5V DDR3 SO-DIMM sockets supporting up to 8 GB of system memory
- Card đồ họa tích hợp
- Chipset:
- 1 x HDMI 1.3a port, supporting a maximum resolution of 1920x1200
- 1 x DisplayPort, supporting a maximum resolution of 2560x1600
- 1 x LVDS connector
- Âm thanh
- Realtek ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 5.1/7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
- LAN
- 1 x Realtek GbE LAN chip (10/100/1000 Mbit)
- Khe cắm mở rộng
- 1 x PCI Express x4 slot (Supports 25W only)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.) - 1 x Mini PCI Express x1 slot
- 1 x PCI Express x4 slot (Supports 25W only)
- Giao diện lưu trữ
- Chipset:
- 3 x SATA 3Gb/s connectors (SATA0/1/2) supporting up to 3 SATA 3Gb/s devices
- 1 x mSATA 3Gb/s connector
- USB
- Chipset:
- Up to 9 USB 2.0/1.1 (4 ports on the back panel,5 ports available through the internal USB headers) (Card reader/Touch panel/webcam and other devices)
- Kết nối I/O bên trong
- 1 x 2-pin power connector
- 1 x CPU fan header
- 1 x system fan header
- 3 x SATA 3Gb/s connectors
- 1 x mSATA connector
- 1 x SATA power connector
- 4 x USB 2.0/1.1 headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x digital microphone header
- 1 x AIO speaker header
- 1 x LVDS connector
- 1 x LVDS drive voltage header
- 1 x flat panel display power header (both panel and backlight inverter)
- 1 x flat panel display power connector
- 1 x backlight switch header
- 1 x flat panel display switch header
- 1 x WIFI activity indicator LED header
- 1 x Clear CMOS jumper
- Kết nối bảng phía sau
- 1 x HDMI port
- 1 x DisplayPort
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 2 x audio jacks (Line Out, Mic In)
- 1 x DC-In power connector
- Điều khiển I/O
- iTE I/O Controller Chip
- Theo dõi phần cứng
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU fan speed control
* For 4-pin CPU coolers only.
* Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
- BIOS
- 1 x 64 Mbit flash
- Use of licensed AMI EFI BIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
- Hệ điều hành
- Support for Microsoft Windows 8/7
- Hệ số khuôn
- Thin Mini-ITX Form Factor; 17.0cm x 17.0cm
- Ghi chú
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
* Các thuật ngữ HDMI, HDMI High-Definition Multimedia Interface, Nhận diện thương mại HDMI và Logo HDMI là các nhãn hiệu thương mại hoặc nhãn hiệu thương mại đã đăng ký của HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
