GA-Z87X-UD5H (rev. 1.x)

GIGABYTE 8 Series motherboards support the latest 4th Generation Intel^® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.

Next Gen Intel^® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel^® Core™ processors and Intel^® Z87 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel^® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles.

GIGABYTE Ultra Durable™ 5 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.

Durable Black Solid Caps GIGABYTE 8 Series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. With ultra-low ESR no matter how high the CPU loading, these exclusive capacitors also come in customized jet black, exclusively on GIGABYTE 8 series motherboards. "Rated for an unprecedented 10,000 hours of intensive operation at an incredible 105°C" – Nippon Chemi-Con

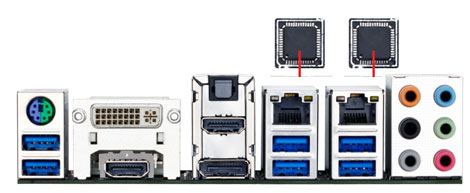

GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.

GIGABYTE 8 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.

GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

On GIGABYTE 8 Series motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer
GIGABYTE One Fuse per USB Port Design	Traditional One Fuse Design for Multi-USB Ports

Built-in Gaming Audio/Headphone Amplifier (Front Headphone / Rear line out)
GIGABYTE 8 Series motherboards feature a high capacity headphone amplifier which is able to drive 600Ω loads, allowing gamers to enjoy a fuller range of dynamic sound with crisper details and less distortion when using high quality professional headphones. Featuring a wide bandwidth, low noise, high slew rate and low distortion, GIGABYE 8 series motherboards are ideal for professional audio usage and gaming enthusiasts.

GIGABYTE On/Off Charge technology is revised and upgraded on all GIGABYTE 8 Series motherboards, with comprehensive and enhanced charging support for a broad range of devices that include those that run both iOS and Android. Users can enjoy fast AC charging over USB on mobile devices, even when the PC is turned off.

GIGABYTE motherboards feature cFos Speed, a network traffic management application which helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environment. cFos Speed works in a similar way to an OS driver, monitoring network traffic packets at the application layer, allowing optimization and improved network performance for specific applications.

7 strategically placed Smart Fan pin headers allow for more precise control of system and CPU fans.

Many of today's 3rd party water cooling systems require CPU fan power support for both the cooling fan and the water pump. GIGABYTE 8 Series motherboards feature OPT fan support, an additional CPU fan pin header that can be used to connect a water pump and configured for continuous full speed operation. The OPT Fan is also useful for high performance coolers employing two fans.
Option 1: OPT Fan Support for Water Pump	Option 2: OPT Fan + CPU Fan Support Dual CPU Fans Cooler

Flexible graphics capabilities supported for either CrossFire™ or SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE 8 series motherboards boards provide native 4K support with integrated Intel^® HD Graphics via HDMI.

HDMI giao diện mới nhất High-Definition Multimedia có thể cung cấp băng thông lên đến 5Gb/s truyền tải video chất lượng audio 8-kênh audio chất lượng cao. Khả năng truyền tải cao, không nén video kỹ thuật số và âm thanh, HDMI đảm bảo khả năng cao nhất cho trải nghiệm video lên đến 1080p mà không có sự tổn thất chất lượng với giao diện analog và giao diện digital-to-analog. Ngoài ra, HDMI tương thích với HDCP (High-bandwidth Digital Content Protection), cho phép phát Blu-ray/HD DVD và nội dung trên các phương tiện truyền thông khác.

DVI (Digital Visual Interface) là một giao diện video tiêu chuẩn, thiết kế để mang dữ liệu video kỹ thuật số, tối đa hóa chất lượng hình ảnh của thiết bị hiển thị kỹ thuật số, chẳng hạn như màn hình LCD, máy chiếu kỹ thuật số. Ngoài ra, giao diện DVI tương thích với với HDCP (High-bandwidth Digital Content Protection).

Bo mạch chủ GIGABYTE với các tính năng tiên tiến thế hệ tiếp theo, DisplayPort cung cấp băng thông lên đến 10.8 Gbps thông qua cáp tiêu chuẩn, đem đến hàng tỷ màu sắc, khả năng làm tươi và hình ảnh trung thực nhất.

GIGABYTE App Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system.

• Simple and easy-to-use interface that allows users to fine-tune their system settings • Adjust system and memory clocks and voltages in a Windows environment • System-related information display without the need to install additional software

GIGABYTE Smart Fan 2

As well as offering more system fans than ever before, GIGABYTE 8 Series motherboards feature updated and improved CPU and system fan speed controls, with individual airflow and speed settings available via a dedicated digital controller. GIGABYTE Smart Fan 2 allows you to configure CPU fans and system fans.

The new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.

GIGABYTE EZ Setup combines several key utilities designed to simplify install and configuration procedures for several exclusive GIGABYTE apps including Disk Mode Switch, Smart Connect, EZ Rapid Start and EZ Smart response.

• Take control of how your BIOS looks and feels with a fully customizable UI • Adjust overclocking and performance settings in real-time • Smooth mouse control and shortcuts for fast navigation GIGABYTE's new Dashboard mode allows users to have complete access to all data related to your motherboards key components including CPU, graphics and memory clocks, temperatures and voltages. For the first time ever, overclockers can adjust CPU clock, frequency and voltage settings in real-time within BIOS. This massively saves time, allowing users to find optimal settings without having to reboot.
