  • Thiết kế bo mạch độc đáo không sử dụng các mấu để gắn quạt CPU
  • Hỗ trợ vi xử lý Intel thế hệ thứ 4 và thứ 5
  • Hỗ 4-way CrossFire™ cùng với OC Brace
  • Thiết kế nguồn CPU kỹ thuật số chính xác cao
  • SATA Express có tốc độ truyền dữ liệu đến 10Gb/s
  • Các tính năng ép xung độc quyền của GIGABYTE
  • Card mạng dành cho game Killer™ E2200
  • Thiết kế PCB bằng đồng dầy 2x
  • Chip âm thanh Realtek ALC1150 115dB SNR HD với bộ khuếch đại âm
  • New Heatsink design with 8 onboard fan connectors
  • Tụ điện rắn bền bỉ, tuổi thọ cao
  • Tiện ích App Center bao gồm EasyTune™ và Cloud Station™
  • Công nghệ GIGABYTE DualBIOS

Chỉ dành cho ép xung chuyên nghiệp sử dụng LN2.
Bo mạch này không có các mấu gắn quạt CPU
  • Dòng bo mạch chủ chuyên ép xung GIGABYTE series 9


    Following the success of the GIGABYTE Z87X-OC motherboard, the #1 most overclocked motherboard on HWBOT.org in 2013, GIGABYTE has unleashed the Z97X-SOC Force LN2 overclocking motherboard. With a host of unique OC features and bleeding-edge hardware design, GIGABYTE 9 series overclocking motherboards will allow even novice users to Overclock Like a Pro.
  • OC Ignition
    OC Ignition maintains power to the motherboard and connected components while the system is shut down. This means that system fans will continue to provide airflow in cold bug situations, while i-ram drive users will not lose installed data. OC Ignition also allows users to pre-test water cooling setups, and allows case mod demonstrations without having to turn on the PC.

    • Fans continue to provide airflow in cold bug situations
    • Perfect for pre-testing water-cooled system setups
    • Case mod demonstrations without having to turn on the PC
    • Retains i-ram data
  • OC DIMM và công tắc PCIe Switch
    OC DIMM Switch:
    Manually turn on or off each channel of installed memory DIMMs, allowing users to effortlessly disable memory DIMMs from the system without the hassle of physically removing.

    OC PCIe Switch:
    Overclockers can manually turn on or off each installed PCIe lane of the motherboard, allowing users to disable individual graphics cards without physically removing. This is especially useful when overclocking on LN2 and water cooled systems.
  • OC Brace
    OC Brace allows extreme overclockers and system testers to safely install up to four graphics cards in an open case or test bed without risking PCIe slot damage or preventing cards not showing up in the OS due to poor contact with PCIe slot. OC Brace is a simple and elegant way to give robust installation support to full sized graphics cards in extreme multi-GPU configurations.
  • OC Touch
    GIGABYTE OC Touch là tập hợp một số các nút phục vụ ép xung tích hợp trực tiếp trên bo mạch để giúp việc ép xung nhanh chóng và dễ dàng hơn rất nhiều.

  • Hỗ trợ card đồ họa cao cấp
    GIGABYTE 9 series overclocking motherboards feature optimized support for AMD CrossFire™ in 4 way configuration plus support for Nvidia SLI technology in 2-way setups. This extreme design allows a more optimized multiple-card overclocking experience where the first 3 slots have the data bandwidth available from trace paths direct from the CPU and the fourth slot taking PCIe lanes from the Intel® Z97 PCH.

  • OC PEG
    OC PEG adds auxiliary power to the PCIe slots of your motherboard, improving system stability in extreme configurations. This is especially useful in power-hungry 4-way graphics configurations.

  • OC Connect
    OC Connect positions two USB connectors on the near side of the motherboard facing the overclocker. This makes it easier to save data, flash the BIOS or install software in open bench testing platforms whether for extreme overclocking or simply pretesting the PC before final component installation inside a case scenarios where accessing the rear panel I/O can be an inconvenience.
  • Cổng SATA Expess
    GIGABYTE motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.
  • Realtek ALC 1150 115dB SNR HD Audio
    The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

    The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.
  • Tích hợp bộ khuếch đại âm thanh phía sau
    Specially designed for gamers, GIGABYTE 9 series Ultra Durable™ motherboards utilize a high-capacity amplifier which is able to drive 600Ω loads, giving gamers a fuller range of dynamic sound with crisper details and less distortion when using high quality professional headphones.
  • Khu vực âm thanh chuyên thanh chuyên dụng
    +Giúp bảo vệ và cách ly các linh kiện âm thanh nhạy cảm trên bo
    + Giúp bảo vệ và cách ly các mạch khuếch đại khỏi tình trạng nhiễu điện từ (EMI)

  •

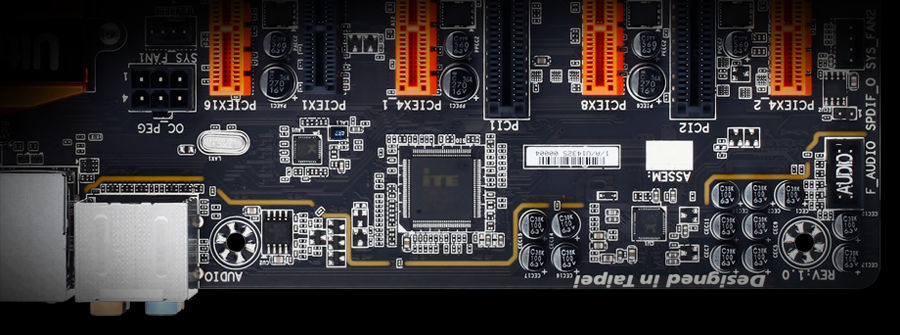

    Các ngõ ra kênh âm thanh Trái và Phải của Dòng bo mạch chủ GIGABYTE chuyên ép xung được đặt ở từng lớp PCB khác nhau để loại trừ trường hợp “chồng kênh” và duy trì chất lượng âm thanh tốt nhất.
    Lớp PCB chứa kênh Trái
      Lớp PCB chứa kênh Phải
      The above photos are for reference only.


  • Card mạng Killer
    NO LAG, JUST FRAG!
    Select GIGABYTE 9 series motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions. The Killer™ E2200 features Advanced Stream Detect technology, which identifies and prioritizes all network traffic to ensure important applications that require high-speed connectivity are prioritized over less important traffic.

  • Thiết kế sử dụng toàn bộ nguồn CPU kỹ thuật số IR
    GIGABYTE 9 series overclocking motherboards use an all digital CPU power design from International Rectifier® which include both digital PWM Controller and industry-leading PowIRstage™ controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their next generation Intel® Core™ processors.

  • Tụ điện rắn màu đen siêu bền 10K
    GIGABYTE 9 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for a guaranteed minimum of 10K hours. Not only do they provide ultra-low ESR no matter how high the CPU loading, they also come in customized jet black from Nippon Chemi-Con and Nichicon.

  • Thiết kế Socket CPU mạ vàng 5x (15μ)
    GIGABYTE 9 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.

  • GIGABYTE App Center gồm tiện ích EasyTune và Cloud Station
    GIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.

  • GIGABYTE UEFI DualBIOS™ với Dashboard Mode
    GIGABYTE's UEFI DualBIOS™ has a redesigned user interface that offers users the chance to take control of their BIOS environment like never before.
    • Take control of how your BIOS looks and feels with a fully customizable UI
    • Adjust overclocking and performance settings in real-time
    • Smooth mouse control and shortcuts for fast navigation

  • Thiết kế PCB bằng đồng dầy 2x (PCB bằng đồng dầy 2oz)
    GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
