• Hỗ trợ vi xử lý Intel thế hệ thứ 4 và thứ 5
  • Hỗ trợ công nghệ Dual Thunderbolt 2™
  • Hỗ trợ cấu hình nhiều card đồ họa
  • Sử dụng tụ điện âm thanh chuyên dụng
  • Thiết kế nguồn CPU kỹ thuật số chính xác cao
  • SATA Express có tốc độ truyền dữ liệu đến 10Gb/s
  • Khe M.2 có tốc độ truyền dữ liệu lên đến 10Gb/s dành cho các ổ SSD
  • Card mạng Intel GbE LAN với phần mềm tăng tốc CFOS
  • Chip âm thanh Realtek ALC1150 115dB SNR HD với bộ khuếch đại âm
  • Thiết kế PCB bằng đồng dầy gấp 2 lần
  • Tụ điện rắn màu đen siêu bền, tuổi thọ cao
  • Phần mềm App Center bao gồm 2 tiện ích EasyTune™ và Cloud Station™
  • GIGABYTE UEFI DualBIOS™
  • Tụ điện âm thanh cao cấp
    GIGABYTE Ultra Durable™ motherboards use high quality Nippon Chemicon ARE series audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for user experience.
  • Dòng bo mạch chủ GIGABYTE series 9
    GIGABYTE 9 Series motherboards support the latest 4th & 5th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.
  • Dual Thunderbolt™ 2 – Kế nối siêu nhanh cho hệ thống máy tính

    The new Dual Thunderbolt™ 2 controller from Intel®, builds on the success of previous revisions, adding channel bandwidth aggregation to facilitate single channel transfer speeds of up 20 Gbps, compared to a max of 10 Gbps on previous designs. This allows for incredible data transfer speeds when using high performance storage devices, while also supporting daisy-chaining of up 12 devices and triple digital display support.


  • Hỗ trợ cấu hình nhiều GPU
    Flexible graphics capabilities supported for either 3-Way CrossFire™ or 2-Way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
  • Cổng SATA Expess
    SATA Express interface provides multiple PCI Express lanes and 2 SATA 3.0 6 Gb/s ports, exposed through the same connector, allowing use of both PCI Express and SATA storage devices. Exposed PCI Express lanes are providing a pure PCI Express connection to the storage device, without any additional layers of abstraction.

  • Intel® Gigabit LAN
    Intel® Gigabit LAN networking, a popular choice with gamers that features several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.
  • cFosSpeed
    GIGABYTE motherboards feature cFos Speed, a network traffic management application which helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environment. cFos Speed works in a similar way to an OS driver, monitoring network traffic packets at the application layer, allowing optimization and improved network performance for specific applications.
  • Chip âm thanh Realtek ALC1150 115dB SNR HD
    The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

    The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.
  • Tích hợp khuếch đại âm thanh
    Specially designed for gamers, GIGABYTE 9 series Ultra Durable™ motherboards utilize a high-capacity amplifier which is able to drive 600Ω loads, giving gamers a fuller range of dynamic sound with crisper details and less distortion when using high quality professional headphones.

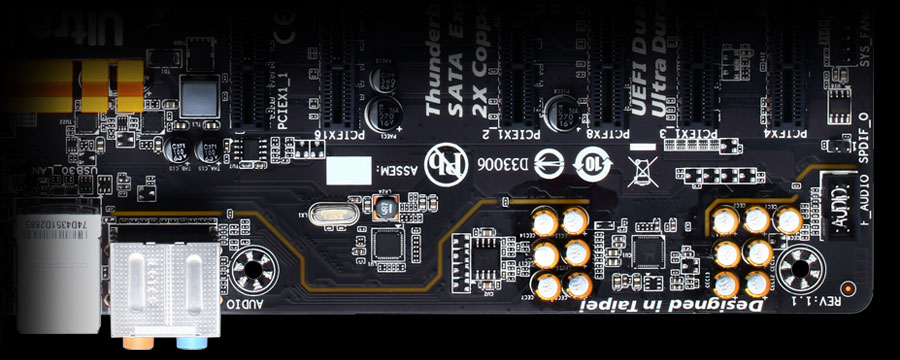

  • Khu vực âm thanh chuyên thanh chuyên dụng
    + Giúp bảo vệ và cách ly các linh kiện âm thanh nhạy cảm trên bo mạch
    + Giúp bảo vệ và cách ly các mạch khuếch đại khỏi tình trạng nhiễu điện từ (EMI)
    + Để giúp nhận biết được sự ngăn cách này, một đường dẫn phân cách phát sáng đã được sử dụng
  •
    Ngõ ra âm thanh kênh Trái và Phải của GIGABYTE Ultra Durable™ series 9 được đặt ở các lớp PCB khác nhau để loại trừ trường hợp “chồng kênh” và giúp duy trì chất lượng âm thanh tốt nhất.
    Lớp PCB chứa kênh Trái
    PCB layer
      Lớp PCB chứa kênh Phải
    PCB layer
      Hình ảnh phía trên chỉ để tham khảo.


  • Trung tâm ứng dụng - APP Center
    GIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.
  • EasyTune™

    • Smart Quick Boost provides users with different levels of CPU
    frequencies to choose to achieve desired system performance.

    • Advanced CPU OC allows users to set CPU base clock, frequency,
    and voltages, and integrated graphics frequency.


    • Advanced DDR OC allows users to set the memory clock.
      • 3D Power allows users to change power phase, voltage, and
    frequency settings.
  • Cloud Station™
    GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control desktop PCs via wireless connection.

    HomeCloud
    HomeCloud allows users to share the files between your smart phone/tablet device and computer or back up the files from the device to the computer.

    HotSpot
    HotSpot turns your computer into a virtual wireless access point and allows you to share your connection with your other wireless devices.

    GIGABYTE Remote
    GIGABYTE Remote allows users to remotely control the mouse / keyboard / Windows Media Player on your computer from your smart phone/tablet device.




    Remote OC
    Remote OC allows users to remotely control their desktop PC with a powerful suite of software functions that Include overclocking and system tweaking, system monitoring plus the ability to also remotely power down/reset the PC when needed.

    Auto Green
    Auto Green is an easy-to-use tool that provides users with simple options to enable system power savings via a Bluetooth-enabled smart phone/tablet devices. When the device is out of the range of the computer's Bluetooth receiver, the system will enter the specified power saving mode.

  • Tụ điện rắn siêu bền có tuổi thọ đến 10K giờ
    GIGABYTE 9 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for a guaranteed minimum of 10K hours. Not only do they provide ultra-low ESR no matter how high the CPU loading, they also come in customized jet black from Nippon Chemi-Con and Nichicon.

  • Thiết kế PCB bằng đồng dầy gấp 2 lần (2 oz)
    GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.

  • Socket CPU được mạ vàng dầy 5x (15μ)
    GIGABYTE 9 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.

  • Công nghệ GIGABYTE DualBIOS™ (UEFI) độc quyền
    GIGABYTE 9 series Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
  • Chống tĩnh điện cho cổng USB và LAN
    GIGABYTE 9 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
  • Chống sốc điện với IC chống sốc
    GIGABYTE 9 series Ultra Durable™ motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
  • Chống ẩm với PCB bằng sợi thủy tinh mới
    There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE 9 series motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions.
    Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

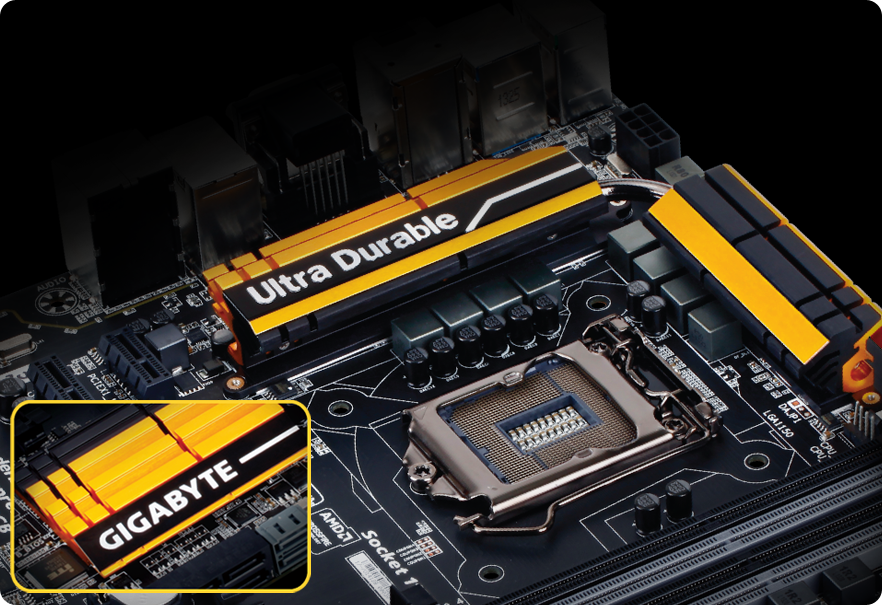

  • Thiết kế tản nhiệt hoàn toàn mới
    Các bo mạch chủ GIGABYTE series 9 đã được khoát lên mình một bộ tản nhiệt hoàn toàn mới có khả năng phân tán sức nóng tại các khu vực quan trọng như nguồn CPU và chipset (PCH) rất nhanh chóng. Ngoài ra, với bộ tản nhiệt mới này còn giúp cho các bo mạch chủ GIGABYTE có thể duy trì nhiệt độ trên các mosfet cấp nguồn luôn ở trạng thái mát mẻ, vì vậy khi hệ thống động ở mức cao nhất vẫn đảm bảo được nhiệt độ tối ưu.

  • Hỗ trợ GIGABYTE OPT Fan
    Many of today’s 3rd party water cooling systems require CPU fan power support for both the cooling fan and the water pump. GIGABYTE 9 Series motherboards feature OPT fan support, an additional CPU fan pin header that can be used to connect a water pump and configured for continuous full speed operation. The OPT Fan is also useful for high performance coolers employing two fans.

  • Hỗ trợ độ phân giải 4K siêu nét
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
  • Hỗ trợ giao tiếp HDMI
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • Hỗ trợ DVI
    DVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection).

* Các thuật ngữ HDMI, HDMI High-Definition Multimedia Interface, Nhận diện thương mại HDMI và Logo HDMI là các nhãn hiệu thương mại hoặc nhãn hiệu thương mại đã đăng ký của HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
