• Real Time Ray Tracing For Professionals
    NVIDIA® Quadro RTX™ 6000, powered by the NVIDIA Turing™ architecture and the NVIDIA RTX™ platform, brings the most significant advancement in computer graphics in over a decade to professional workflows. Designers and artists can now wield the power of hardware-accelerated ray tracing, deep learning, and advanced shading to dramatically boost productivity and create amazing content faster than ever before.

    Equipped with 4608 CUDA cores, 576 Tensor cores, 72 RT Cores and massive 24GB GDDR6 memory, Quadro RTX 6000 can render complex models and scenes with physically accurate shadows, reflections, and refractions to empower users with instant insight. Support for NVIDIA NVLink enables applications to scale memory and performance with multi-GPU configurations. And with the industry's first implementation of the VirtualLink® port, Quadro RTX 6000 provides simple connectivity to the next-generation of high-resolution VR head-mounted displays to let designers view their work in the most compelling virtual environments possible.

    Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you're developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.



  • 3D Graphics Architecture
    • Scalable geometry architecture
    • Hardware tessellation engine
    • NVIDIA GigaThread™ engine with 7 async copy engines
    • Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
    • Up to 32K x 32K texture and render processing
    • Transparent multisampling and super sampling
    • 16x angle independent anisotropic filtering
    • 32-bit per-component floating point texture filtering and blending
    • 64x full scene antialiasing (FSAA)/128x FSAA in SLI Mode
    • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
    • Dedicated H.264 & HEVC Encoder
    • Bly-ray dual-stream hardware acceleration (supporting HD picture-in picture playback)
    • NVIDIA GPU boost automatically improves GPU engine throughput to maximize application performance

  • NVIDIA CUDA Parallel Processing Architecture
    • New RT (Ray Tracing) Core per SM
    • Turing SM Architecture (streaming multi-processor design that delivers greater processing efficiency)
    • Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
    • Mixed-precision (1-, 4-, 8-, 16-, 32- and 64-bit) computing
    • API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
    • Error correction codes (ECC) on graphics memory
    • Configurable up to 96 KB of RAM (dedicated shared memory size per SM)

  • Advanced Display Features
    • Support for any combination of four connected displays

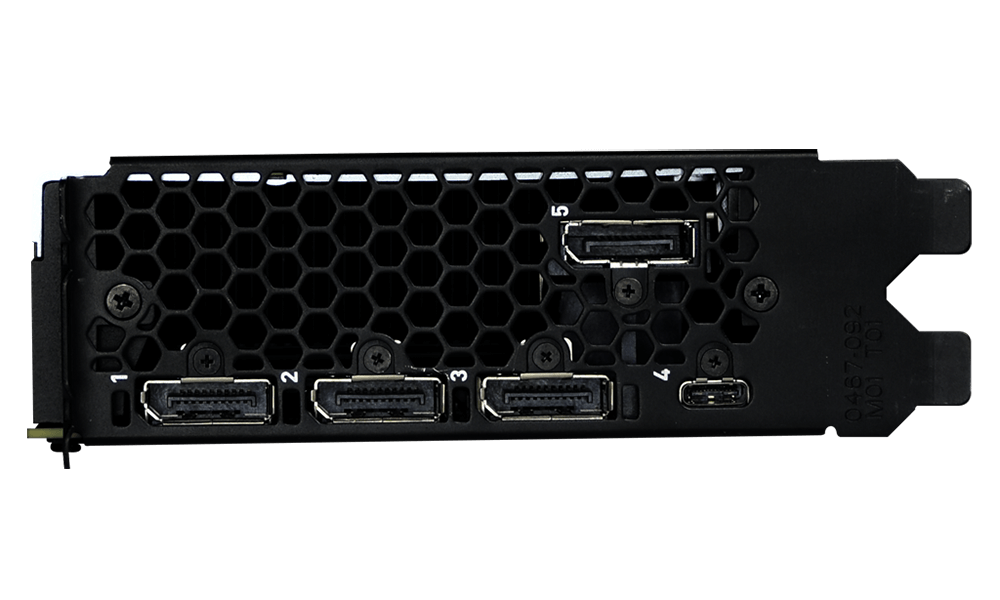

    • Four DisplayPort 1.4 outputs (supporting resolutions such as 3840 x 2160 at 120 Hz, 5120 x 2880 at 60 Hz and 7680 x 4320 at 60Hz)
    • DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables (resolution support based on dongle specifications)
    • HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60Hz 10b/12b HEVC Decode, 4K at 60Hz 10b HEVC Encode)
    • HDCP 2.2 support over DisplayPort and HDMI connectors
    • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
    • NVIDIA 3D Vision™ technology, 3D DLP, Interleaved, and other 3D stereo format support
    • Full OpenGL quad buffered stereo support
    • Underscan/overscan compensation and hardware scaling
    • NVIDIA nView multi-display technology
    • Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA Mosaic, NVIDIA Sync and NVIDIA Warp/Blend technologies




  • DisplayPort and HDMI Digital Audio
    • Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
    • DisplayPort Data rates of 48 KHz
    • HDMI Digital Audio Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
    • Word sizes of 16-bit, 20-bit, and 24-bit
