GPU Workstation - Intel® Xeon® 600 Processors for Workstations
- Supports up to 4 x dual-slot Gen5 GPUs
- Single Intel® Xeon® 600 Processors for Workstations
- 8-Channel DDR5 RDIMM/MRDIMM per CPU with 8 x DIMMs
- 2 x 10 Gb/s LAN ports via Intel® X710-AT2
- 4 x M.2 slots with PCIe Gen5 x4

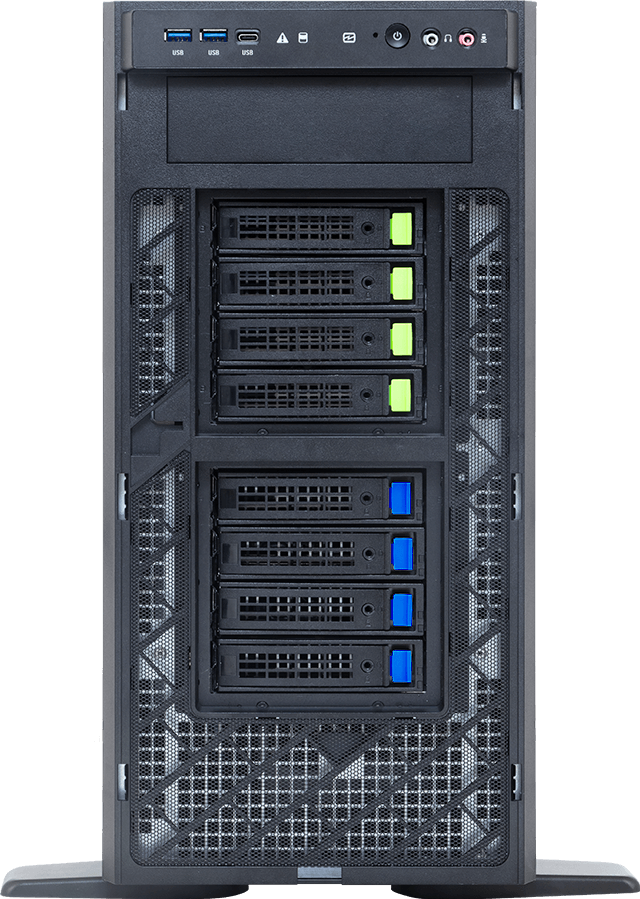

- 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x 3.5"/2.5" SATA/SAS-4 hot-swap bays
- 4 x PCIe x16 slots with Gen5 x16 lanes
- 2 x PCIe x16 slots with Gen5 x16 lanes, require Intel® Xeon® 690/670/650 processors
- Single 2500 W ATX 80 PLUS Platinum power supply
Ordering Numbers: 6NW774W90MR000AAF1*

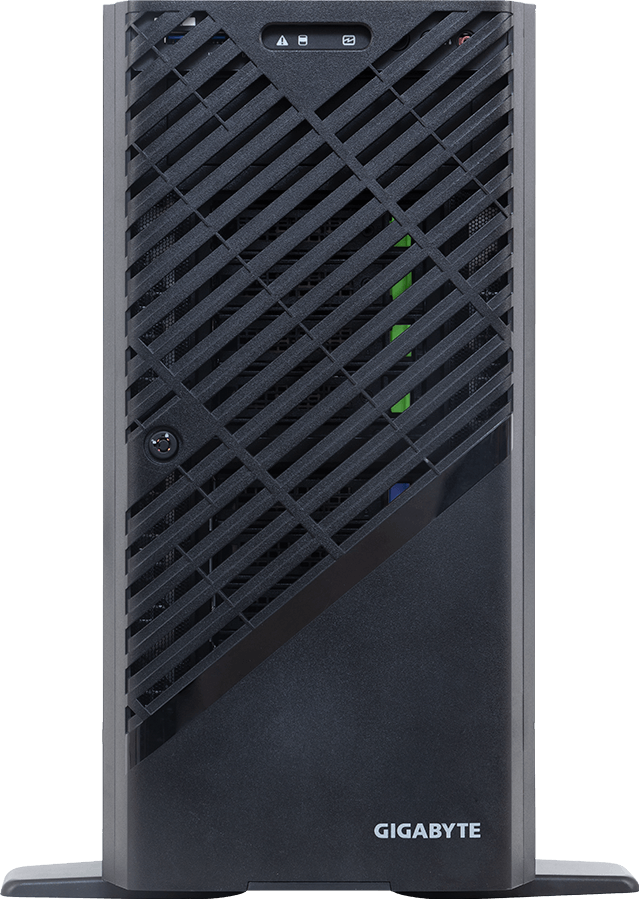

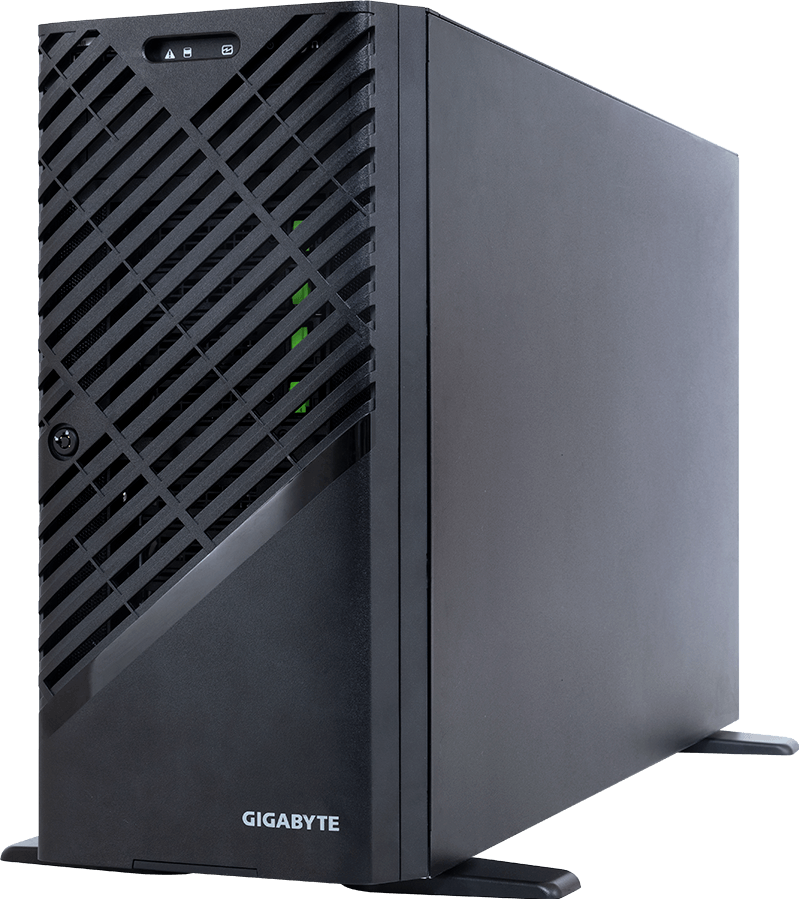

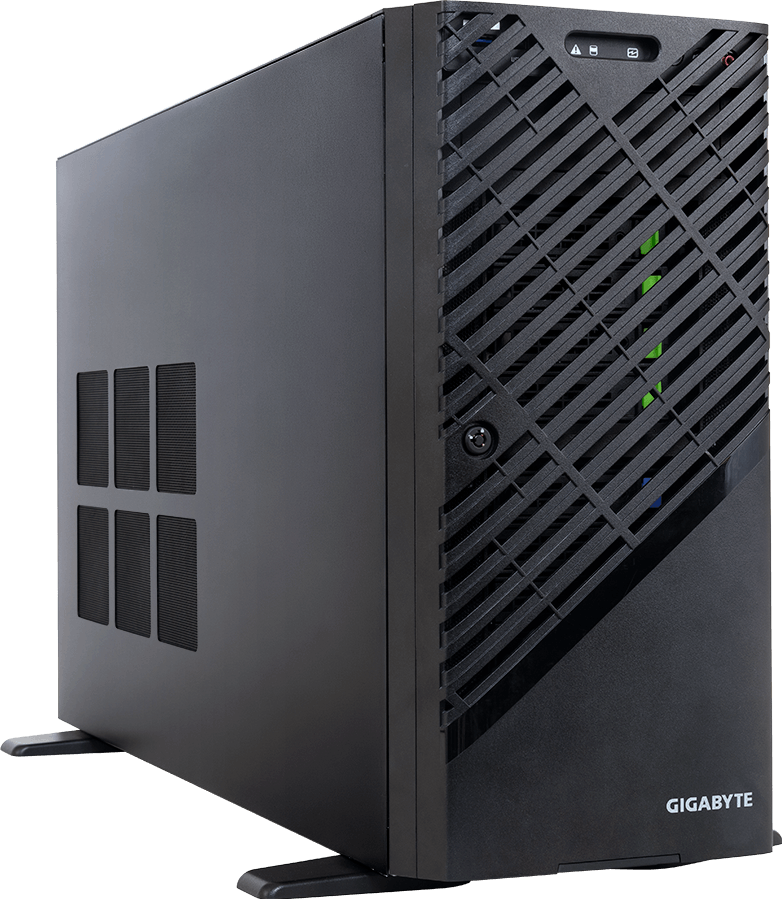

All-New Workstation Design
Guarding Your Professional Work Needs
- Smooth edge design bold diagonal grid
- Radiating a dominant yet stable style
- Achieving a balance of functionality and aesthetics
- Large perforations enhance heat dissipation
- Iron meshes reinforcement prevents foreign objects
- Lock holes ensure information security

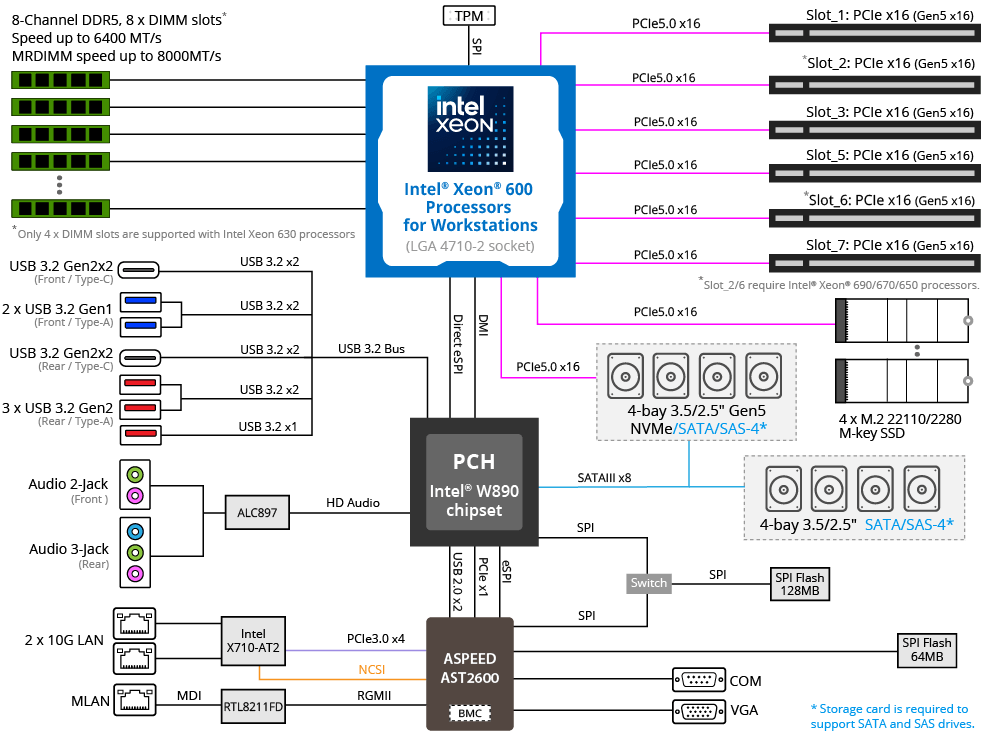

W774-W90-AAF1 Block Diagram

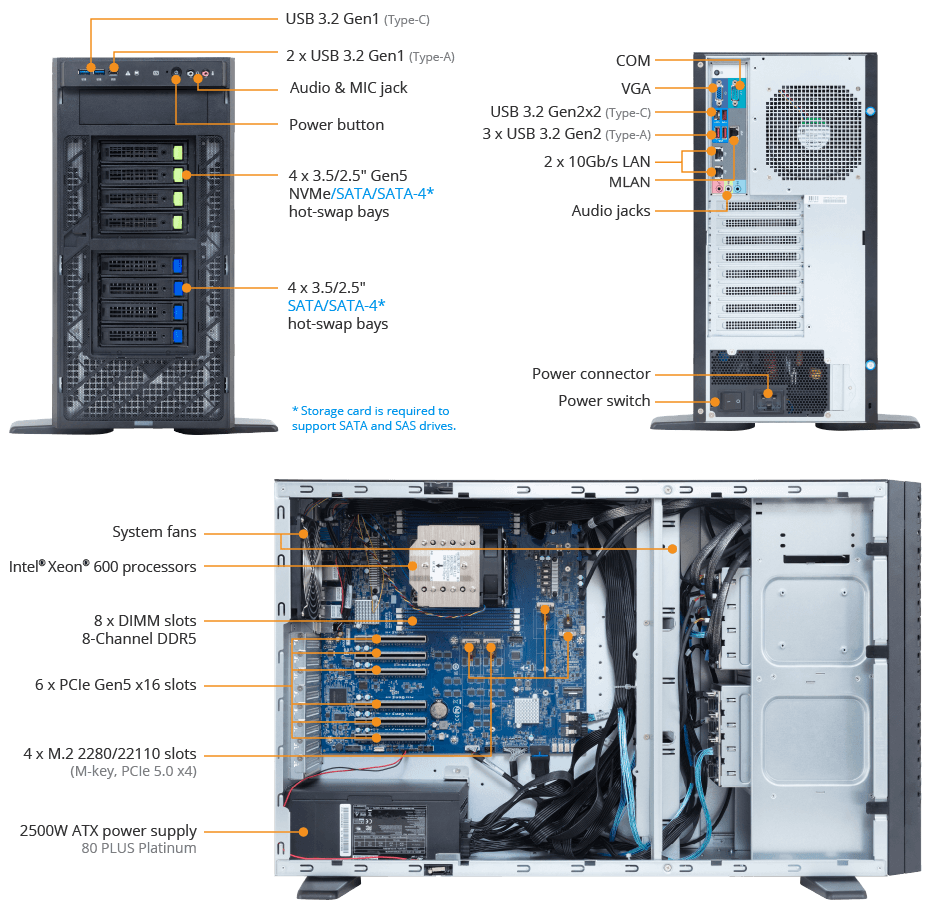

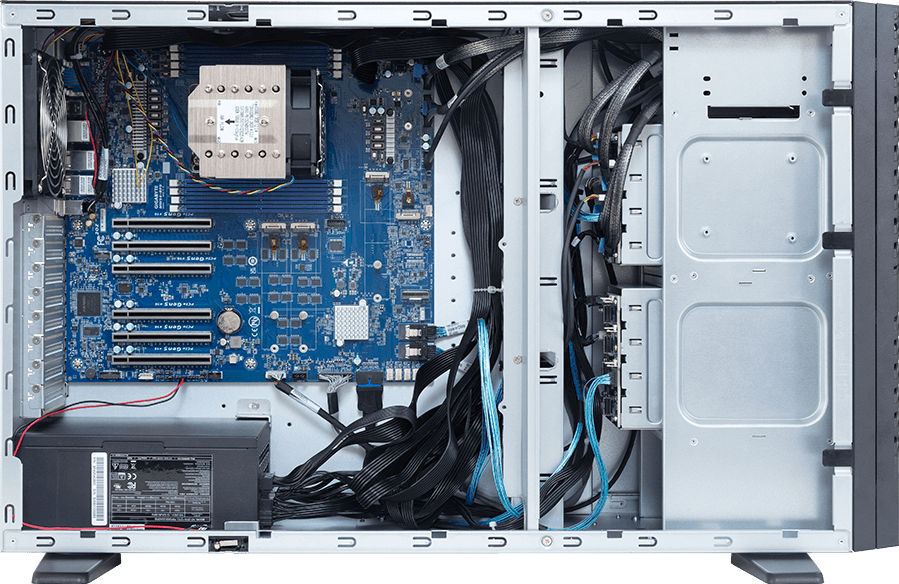

W774-W90-AAF1 Product Overview
High Performance
Supports Multiple Multi-slot Accelerators
GIGABYTE Workstations have been tested and validated across a range of workloads with various computing accelerators designed to deliver high levels of performance for 3D rendering, deep learning and high-performance computing. The design enables content creators, data scientists, researchers, and engineers to tackle challenges that were once impossible.
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.
GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.
GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:
- GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
- GSM CLI: A command-line interface for monitoring and managing remotely.
- GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
Specifications
Dimensions (WxHxD, mm)
Pedestal
218 x 455 x 726.3
218 x 455 x 726.3
Motherboard
MW94-RP0
CPU
Intel® Xeon® 600 processors for workstations
Single processor, TDP up to 350 W
[Note] Please select Intel® Xeon® 690/670/650 processors to enable all functions.
Single processor, TDP up to 350 W
[Note] Please select Intel® Xeon® 690/670/650 processors to enable all functions.
Socket
1 x LGA 4710-2
Socket E2
Socket E2
Chipset
Intel® W890
Memory
8 x DIMM slots [1]
Support DDR5 RDIMM/MRDIMM
8-channel memory per processor
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8000 MT/s [2]
[1] Only 4 x DIMMs are supported with Intel® Xeon® 630 processors.
[2] MRDIMMs are supported only on select SKUs.
Support DDR5 RDIMM/MRDIMM
8-channel memory per processor
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8000 MT/s [2]
[1] Only 4 x DIMMs are supported with Intel® Xeon® 630 processors.
[2] MRDIMMs are supported only on select SKUs.
LAN
2 x 10 Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mb/s Management LAN
- Support NCSI function
1 x 10/100/1000 Mb/s Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x VGA port
- 1 x VGA port
Audio
Realtek® ALC897 HD Audio Codec
Supports 2/4/5.1/7.1 channel configurations
Rear: 3 x Audio jacks (Audio in/Audio out/Mic)
Front: 2 x Audio jacks (Audio out/Mic)
Supports 2/4/5.1/7.1 channel configurations
Rear: 3 x Audio jacks (Audio in/Audio out/Mic)
Front: 2 x Audio jacks (Audio out/Mic)
Storage
Front hot-swap:
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 3.5"/2.5" SATA/SAS-4 [1]
Internal M.2:
4 x M.2 (2280/22110), PCIe Gen5 x4, from CPU
[Note] SAS card is required to support SAS drives.
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 3.5"/2.5" SATA/SAS-4 [1]
Internal M.2:
4 x M.2 (2280/22110), PCIe Gen5 x4, from CPU
[Note] SAS card is required to support SAS drives.
RAID
Intel® SATA RAID 0/1/10/5
Onboard VROC key header
Onboard VROC key header
Peripheral Drives
5.25" space reserved for ODD device
PCIe Expansion Slots
Slot_7: PCIe x16 (Gen5 x16), from CPU
Slot_6: PCIe x16 (Gen5 x16), from CPU [1]
Slot_5: PCIe x16 (Gen5 x16), from CPU
Slot_3: PCIe x16 (Gen5 x16), from CPU
Slot_2: PCIe x16 (Gen5 x16), from CPU [1]
Slot_1: PCIe x16 (Gen5 x16), from CPU
[1] Slot_2/6 require Intel® Xeon® 690/670/650 processors.
Slot_6: PCIe x16 (Gen5 x16), from CPU [1]
Slot_5: PCIe x16 (Gen5 x16), from CPU
Slot_3: PCIe x16 (Gen5 x16), from CPU
Slot_2: PCIe x16 (Gen5 x16), from CPU [1]
Slot_1: PCIe x16 (Gen5 x16), from CPU
[1] Slot_2/6 require Intel® Xeon® 690/670/650 processors.
[Note] The system supports the following GPU configurations:
- Dual-slot 300 W GPUs: 4 x GPUs
- Dual-slot 600 W GPUs: 1 x GPU
- Triple-slot GPUs: 2 x GPUs
Front I/O
1 x USB 3.2 Gen2x2 port (Type-C)
2 x USB 3.2 Gen1 ports (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED
2 x USB 3.2 Gen1 ports (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button
1 x Reset button
1 x Power LED
1 x Storage activity LED
1 x System status LED

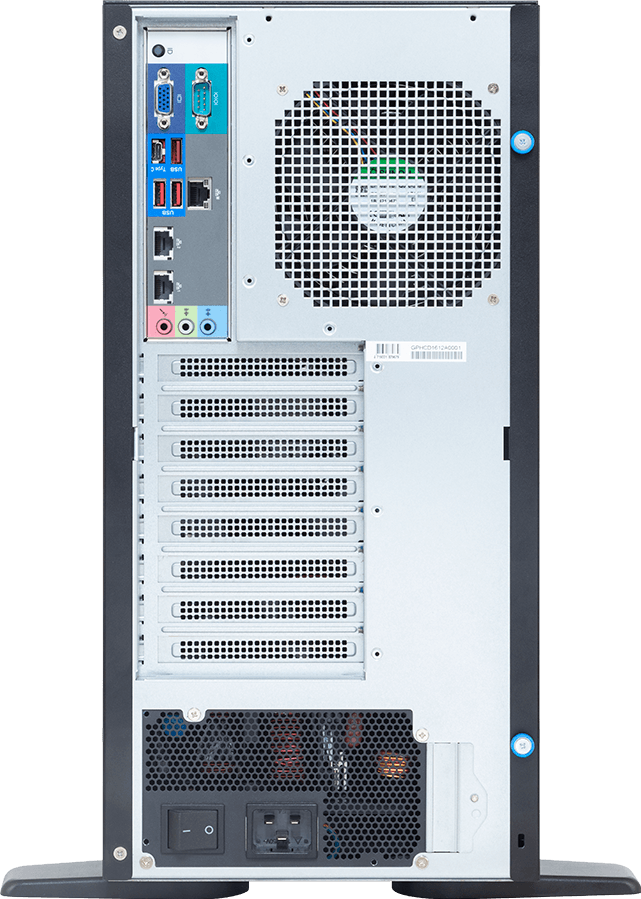

Rear I/O
1 x USB 3.2 Gen2x2 port (Type-C)
3 x USB 3.2 Gen2x1 ports (Type-A)
1 x VGA port
1 x Serial port
2 x RJ45 ports
1 x MLAN port
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
3 x USB 3.2 Gen2x1 ports (Type-A)
1 x VGA port
1 x Serial port
2 x RJ45 ports
1 x MLAN port
3 x Audio jacks (Audio in/Audio out/Mic)
1 x ID button with LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM 2.0 kit: CTM012
- Optional TPM 2.0 kit: CTM012
Power Supply[#1]
Single 2500 W ATX 80 PLUS Platinum power supply [1]
AC Input:
- 200-240V~, 15A, 50-60Hz
DC Output:
- Max 2500W
+12V/ 208.3A
+5V/ 25A
+3.3V/ 25A
+5Vsb/ 4A
-12V/ 0.3A
[1] The system power supply requires C19 power cord.
AC Input:
- 200-240V~, 15A, 50-60Hz
DC Output:
- Max 2500W
+12V/ 208.3A
+5V/ 25A
+3.3V/ 25A
+5Vsb/ 4A
-12V/ 0.3A
[1] The system power supply requires C19 power cord.
System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
System Fans
Middle:
3 x 120x120x38mm
Rear:
1 x 120x120x25mm
3 x 120x120x38mm
Rear:
1 x 120x120x25mm
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Weight
Net Weight: 29.2 kg
Gross Weight: 34 kg
Gross Weight: 34 kg
Packaging Dimensions
1050 x 594 x 417 mm
Packaging Content
1 x W774-W90-AAF1
1 x CPU fansink
2 x Carriers
1 x CPU fansink
2 x Carriers
Part Numbers
- Barebone package: 6NW774W90MR000AAF1*
- Motherboard: 9MW94RP0NR-000*
- Front panel board - CFPW040: 9CFPW040NR-00*
- Backplane board - CBPW041: 9CBPW041NR-00*
Optional parts:
- Motherboard: 9MW94RP0NR-000*
- Front panel board - CFPW040: 9CFPW040NR-00*
- Backplane board - CBPW041: 9CBPW041NR-00*
Optional parts:
- Rail kit ((A)+(B)+(C)+(D)):
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
(B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
(C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
(D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
(A) 25HB2-A66126-K0R (Slide Rail), Q'ty: 1 set
(B) 25HB4-W77304-C0R (Rack Ear Right), Q'ty: 1 set
(C) 25HB4-W77305-C0R (Rack Ear Left), Q'ty: 1 set
(D) 25HB7-W77300-C0R (Top Cover for Assembly), Q'ty: 1 set
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
