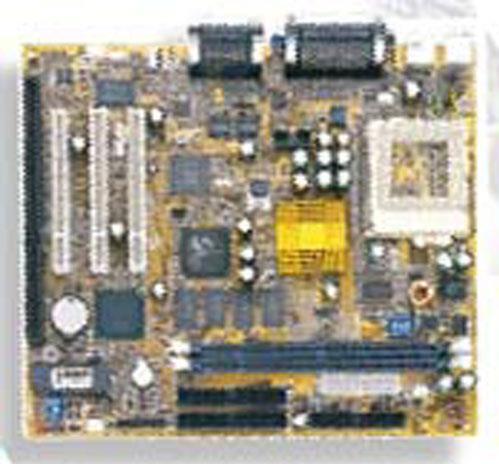

GA-6ZMM7

EspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Intel® PPGA CeleronTM Processor 300 to 433 MHz
    2. Socket 370 for future Processor support
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
    5. Clock multiplier 3.0/3.5 .... /6.5
  • Chipset
    1. Intel® 440ZX AGPset
    2. Winbond 83977 I/Oset
    3. ATi AGP chip (8MB SDRAM)
    4. YAMAHA 740 PCI Sound chip
    5. Winbond 83782 Health chip
  • Memoria
    1. 8MB to 512MB DRAM size
    2. 2 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
  • Puertos de Expansión
    1. 3 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    2. 1 x ISA Slot
  • Controlador de E/S
    1. 2 x Ultra DMA/33 Bus Master IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse, 2 x USB on board
    3. 1 x VGA(DB15), 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 1 x COM by cable
    5. IrDA TX / RX Header (optional)
  • Monitorización H/W
    1. Auto Speed down and Alarm when CPU overheat or Fan failure(OS independent & Driverless)
    2. System Health status detect & report by BIOS, LDCM® & SIV
    3. H/W detect ±5V, ±12V, CPU & CMOS battery Voltage Status
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance,Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Diseño
    1. Micro ATX , 4 layer PCB (24.3*21.0 cm)
  • Controlador
    1. Intel® LDCM® utility, SIV utility
    2. Ultra DMA/33 Bus Master IDE Driver (Xstore Pro, Triones & Intel® )
    3. Intel® PIIX4e Patch Utility for Windows 95
    4. ATi AGP Driver & YAMAHA PCI Sound Driver
    5. TREND MICRO PC-cillin 98 Anti-Virus utility (scan only)
  • Otras Características
    1. Includes Wake-On-LAN Header (WOL) & SB-LINKTM connector
    2. On board PC speaker
    3. Supports Internal / External modem wake on
    4. 3 Fan Power & Speed Detection Connectors; Case Open Detection
    5. Poly fuse for keyboard overcurrent protection
  • Energía
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem(COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. AC Recovery ON/OFF control
    5. Stop CPU Fan during entering suspend mode
    6. 3 Level ACPI LED Support
  • Procesador
    1. Intel® PPGA CeleronTM Processor 300 to 433 MHz
    2. Socket 370 for future Processor support
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
    5. Clock multiplier 3.0/3.5 .... /6.5
  • Chipset
    1. Intel® 440ZX AGPset
    2. Winbond 83977 I/Oset
    3. ATi AGP chip (8MB SDRAM)
    4. YAMAHA 740 PCI Sound chip
    5. Winbond 83782 Health chip
  • Memoria
    1. 8MB to 512MB DRAM size
    2. 2 x 3.3V DIMM Sockets
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
  • Puertos de Expansión
    1. 3 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    2. 1 x ISA Slot
  • Controlador de E/S
    1. 2 x Ultra DMA/33 Bus Master IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse, 2 x USB on board
    3. 1 x VGA(DB15), 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 1 x COM by cable
    5. IrDA TX / RX Header (optional)
  • Monitorización H/W
    1. Auto Speed down and Alarm when CPU overheat or Fan failure(OS independent & Driverless)
    2. System Health status detect & report by BIOS, LDCM® & SIV
    3. H/W detect ±5V, ±12V, CPU & CMOS battery Voltage Status
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance,Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & report system health status
  • Diseño
    1. Micro ATX , 4 layer PCB (24.3*21.0 cm)
  • Controlador
    1. Intel® LDCM® utility, SIV utility
    2. Ultra DMA/33 Bus Master IDE Driver (Xstore Pro, Triones & Intel® )
    3. Intel® PIIX4e Patch Utility for Windows 95
    4. ATi AGP Driver & YAMAHA PCI Sound Driver
    5. TREND MICRO PC-cillin 98 Anti-Virus utility (scan only)
  • Otras Características
    1. Includes Wake-On-LAN Header (WOL) & SB-LINKTM connector
    2. On board PC speaker
    3. Supports Internal / External modem wake on
    4. 3 Fan Power & Speed Detection Connectors; Case Open Detection
    5. Poly fuse for keyboard overcurrent protection
  • Energía
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem(COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. AC Recovery ON/OFF control
    5. Stop CPU Fan during entering suspend mode
    6. 3 Level ACPI LED Support

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
